 Post subject: EL dash into EB, ABS module??
Posted: Mon Sep 24, 2012 2:55 pm
Oompa Loompa

Age: 30

Posts: 49

Joined: 1st Apr 2011

Gallery: 8 images

Ride: Eb II XR6

Location: kalgoorlie
WA, Australia

I'm have an EL that i'm using as a doner car for my EB and am changing the whole dash over as well as the BBM, thermo fans, Serp belt, etc. The issue i have is the Eb has one of these under the dash.

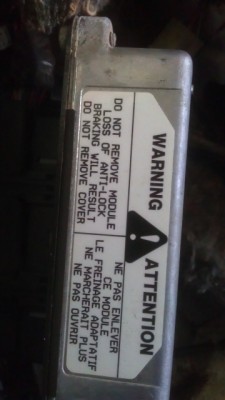

File comment: ABS unit
IMAG0048.jpg [ 82.58 KiB | Viewed 18 times ]

Its the ABS unit. The EL however only has an airbag unit in this space. Do the later models not have an ABS unit or is it controled by the Engine computer?
I still want to have the ABS functional and am wondering how i make it work with the EL Wiring/dash/Computer?
Any Suggestions would be greatly appreciated.



EBII SXR6 White, manual, el dash and door trims, ba xr front seats, serpentine belt, electric fans and a turbo

 Post subject: Re: EL dash into EB, ABS module??
Posted: Mon Sep 24, 2012 3:07 pm
Technical Contributor
User avatar

Age: 52

Posts: 5472

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

From EF onwards, the ABS modulator (hydraulic portion) and the ECU are combined in the one unit.
EB and earlier have separate ECU and modulator.
EF onwards also went to Bosch units in lieu of the earlier Bendix.



96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion
