Another ECU thread from SVO XR6 :D



Page 4 of 8 [ 109 posts ] Go to page Previous  1, 2, 3, 4, 5, 6, 7, 8  Next


Posted: Mon Sep 12, 2005 10:16 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Dont think you want them any bigger than the exhuast ports... You'd be suprised what a 2.5in exhaust can flow :wink:
Top
 Profile


Posted: Mon Sep 12, 2005 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

MORE WORRIES!!!

:D:D:D:D

sorry bout all the pics...

As you all prob know is that the super sallon TASCO cars use the EMS stinger.

I found a base map for the falcon :D

FIRSTLY...
note the set up pages, "trigger pull up resistor". Mine is turned off but the SS one is on.
Also the difference between the sync sensor, mine is on hall but the ss one is mag
and the ignition time scale difference, mine is 40 the ss one is 50


Secondly, check the timing difference!
Is it coz one of my settings is wrong?

I cant see how there could be that much difference as my EL is simular to the EA/EB's

HELP!!!!!!!!!!!!!!!





Attachments:

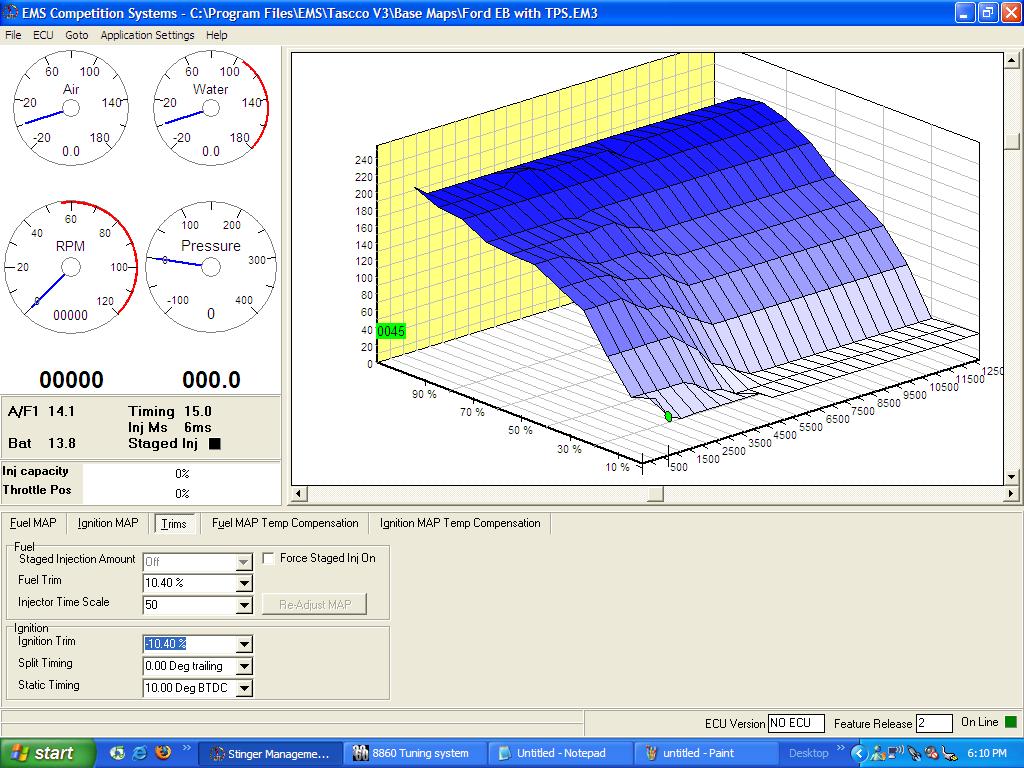

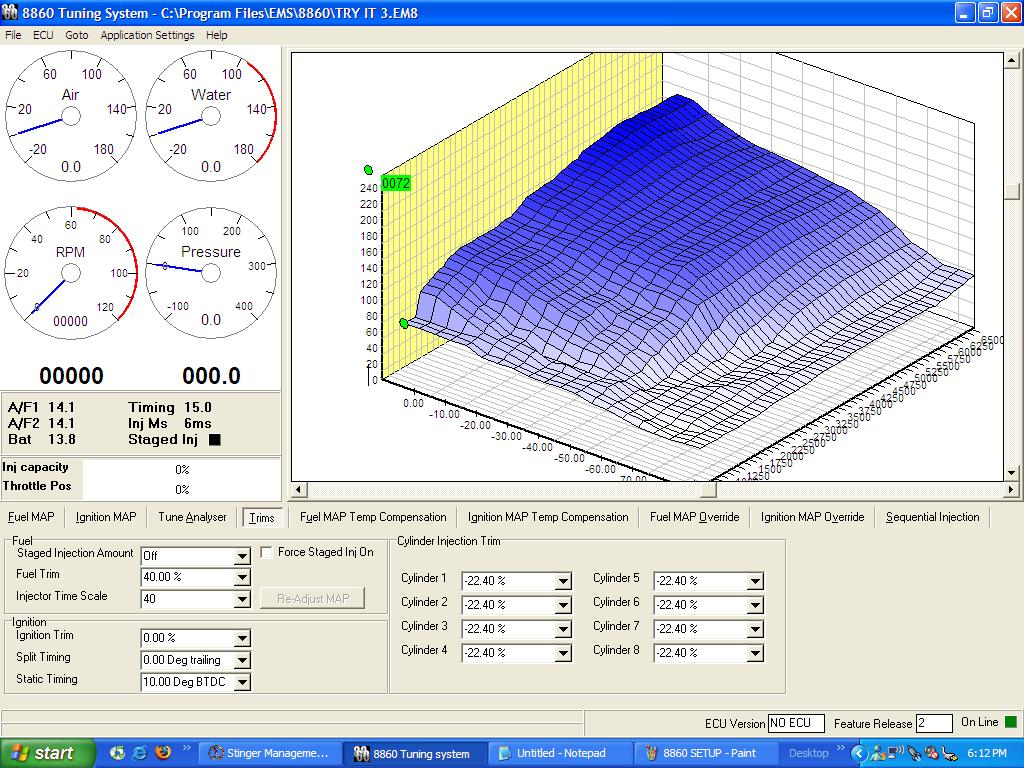

File comment: MY TRIMS
TRIMS 8860.JPG
TRIMS 8860.JPG [ 192.99 KiB | Viewed 48 times ]

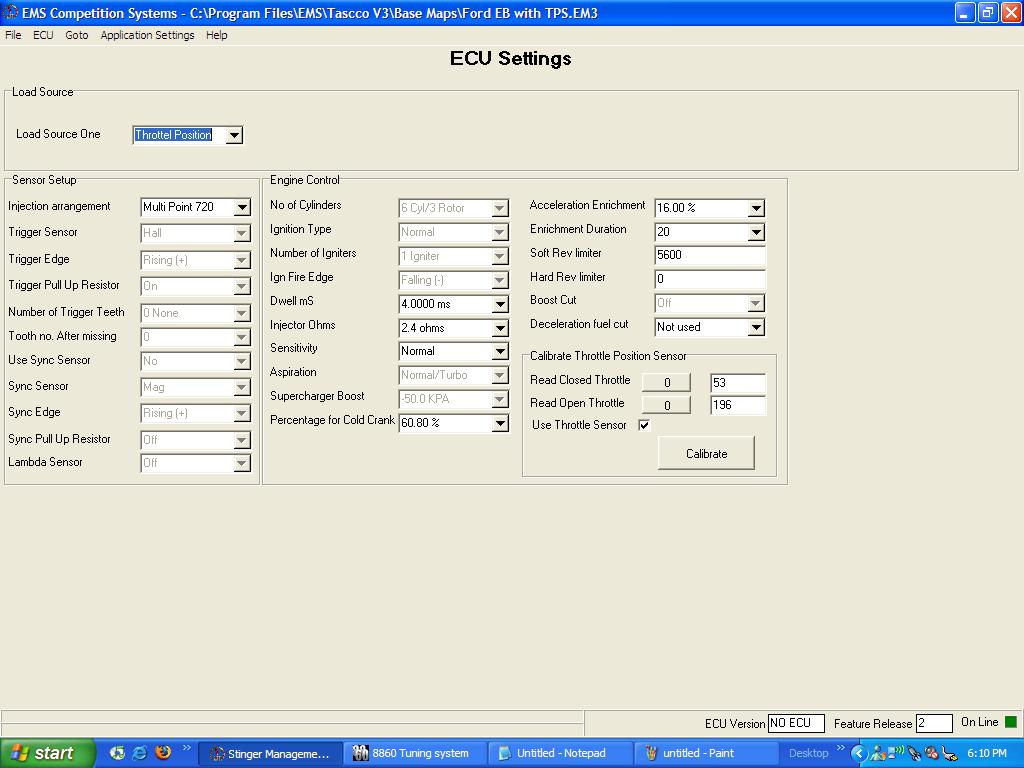

File comment: SUPER SALLON CAR SET UP PAGE
ECU SETUP TASCO.JPG
ECU SETUP TASCO.JPG [ 92.59 KiB | Viewed 51 times ]

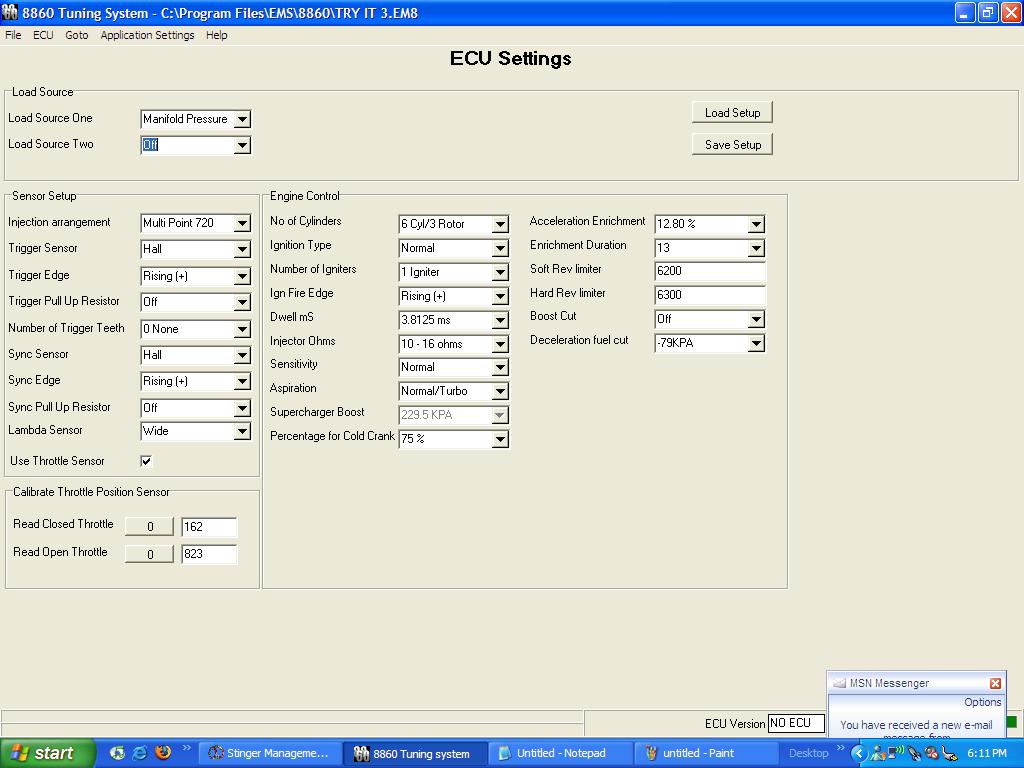

File comment: MY SETUP PAGE
8860 SETUP.JPG
8860 SETUP.JPG [ 95.45 KiB | Viewed 51 times ]



_________________


Top
 Profile


Posted: Mon Sep 12, 2005 10:30 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

more...





Attachments:

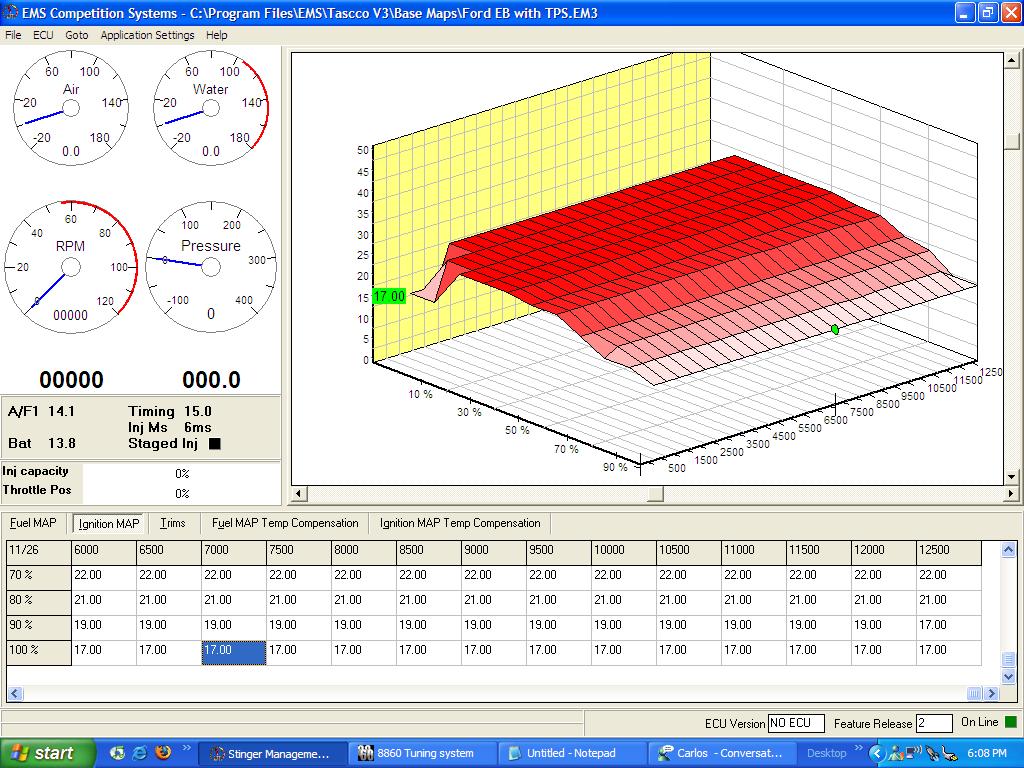

File comment: SUPER SALLON TIMING
TASCO IG MAP.JPG
TASCO IG MAP.JPG [ 181.27 KiB | Viewed 59 times ]

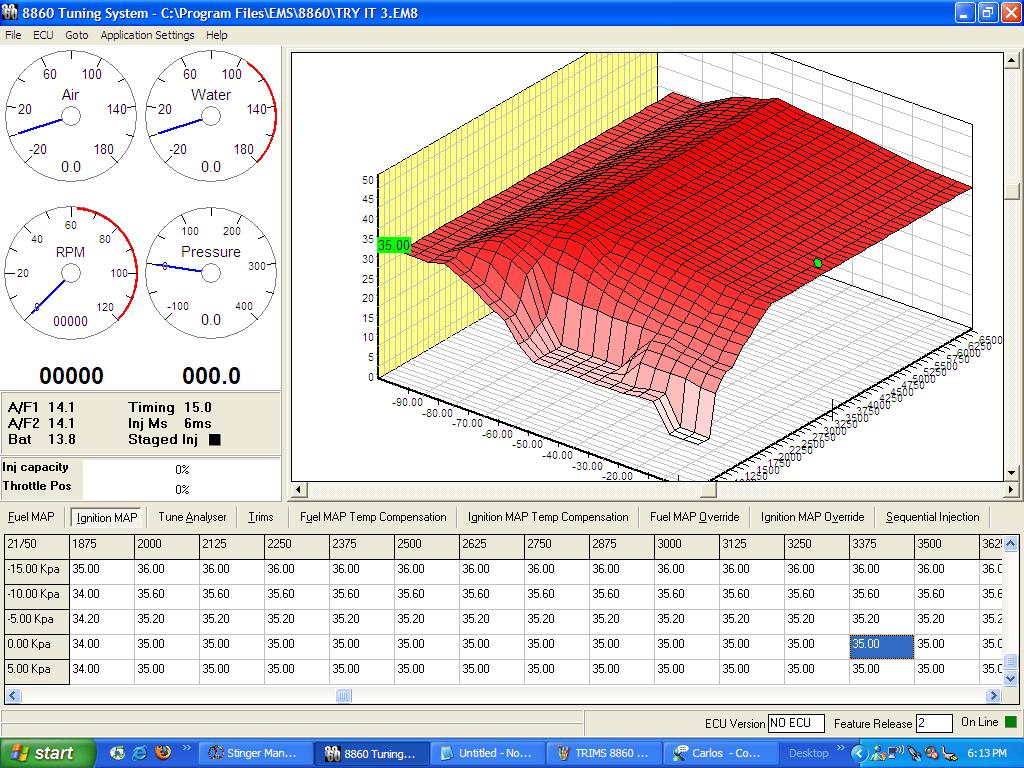

File comment: MY IGNITION
IG 8860.JPG
IG 8860.JPG [ 207.54 KiB | Viewed 50 times ]
File comment: SUPER SALLON TRIMS
trim TASCO.JPG
trim TASCO.JPG [ 159.96 KiB | Viewed 43 times ]



_________________


Top
 Profile


Posted: Tue Sep 13, 2005 1:08 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

k, thanks to CHEF we figured out some stuff...


TRIGGER PULL UP SENSER is used mainy with crank angle senser's like with the EF's/AU's, not as much with dizzzzzys. Gives a stronger signal.

The mag and hall senser is a bit confusing, im 99% sure the falcoons run a hall senser?
not a mag, and if so why do they hve it set to mag with the ss cars???

Injector time scale still is a mystory...spooky!

But we figured that the TRIGGER EDGE should be set to the negitive side, mine has been set to the positive side :S
This is correct due to it being a hall....rite???
wonder what changes it will make ....?


goin for a quick spin to try it out.



_________________


Top
 Profile


Posted: Tue Sep 13, 2005 2:21 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

Changing the trigger edge to negitive was a BAD IDEA!!!

made some nasty nioses while trying to start :D

hehe, live and learn!



_________________


Top
 Profile


Posted: Tue Sep 13, 2005 4:30 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Injector scale is simple... I'll explain that one to you later
Top
 Profile


Posted: Tue Sep 13, 2005 5:16 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

moist :D

I hve nealry sorted out all my "puff o smoke" now

FIGJAM :D

It come down to the tps sensitivity ;)



_________________


Top
 Profile


Posted: Tue Sep 13, 2005 6:56 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1013

Joined: 12th Nov 2004

Gallery: 3 images

Ride: MY06 REX

Location: Perthoslavakia
WA, Australia

johno are you good?



_________________

The Evil Strawberry

Top
 Profile


Posted: Tue Sep 13, 2005 6:58 pm
Technical Contributor
Offline
User avatar

Age: 33

Posts: 5858

Joined: 5th Nov 2004

Gallery: 8 images

Ride: '95 EF's

Location: Leederville
WA, Australia

haha my parents aren't too happy with the marks your exhaust leaves on our grass & driveway! :P



_________________

R.I.P. Scotty

Top
 Profile


Posted: Tue Sep 13, 2005 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

haha, told ya!

gotta love the dumpa :p



_________________


Top
 Profile


Posted: Thu Sep 15, 2005 3:39 am
Getting Side Ways
Offline
User avatar

Posts: 1043

Joined: 7th Feb 2005

Location: Canberra
ACT, Australia

Im running EMS8860 in my ED XR6.
But the syncsensor is set to Mag, Tigger Edge +, No dwell, cold crank 80%, Trigger Pull up resistor ON.

Cold start my car is as good as it was with the stock ECU, starts on the 2nd or 3rd crank and idles fine and can be driven straight away.

Ingition is similar to the Super Saloons

Tuning is thanks to Tony Goodlich.



_________________

1993 ED XR6 5speed Polynesian Green. Project car.

1998 EL XR8 Auto Hot Chilli Red. New daily and project

Top
 Profile


Posted: Thu Sep 15, 2005 12:07 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

ahh yeah, i got mine tho tony too ;)

im guessing there must be differences between the EA/ED's and the el's :?

i got my cold start at about 75% and can now be driven rite away.

You ever tried running more timing?



_________________


Top
 Profile


Posted: Tue Sep 20, 2005 12:59 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

Sturmovik wrote:
Im running EMS8860 in my ED XR6.
But the syncsensor is set to Mag, Tigger Edge +, No dwell, cold crank 80%, Trigger Pull up resistor ON.

Cold start my car is as good as it was with the stock ECU, starts on the 2nd or 3rd crank and idles fine and can be driven straight away.

Ingition is similar to the Super Saloons

Tuning is thanks to Tony Goodlich.


Tony Goodlich here
The sync can be set to anything as it is not used, only the trigger is used as EA-ED and EL only have the trigger off the dizzy.

Good to see you guys trying to get the most out of the EMS8860. With my turbo ED Falcon I am getting close to 600km out of the tank with a combination of City/highway driving all thanks to the latest tuning software "Tune Analyser" on the EMS 8860. Just tune the cruising points to 15.5 A/F ratio and have 40 to 45 degrees advance on cruise and gives great economy. With over 400+rwhp at the moment its great to have power /economy and drivability all together.



_________________

Turbo 6s rule

Top
 Profile


Posted: Tue Sep 20, 2005 1:20 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

*jealous

I only get 450k's, but its all 50-70kmhr stop start s**t

im now running 15.6 at cruise 14.7 accell and 13.1 at wot

40* at cruise 30* at wot 16* at idle and 10* at crank



_________________


Top
 Profile


Posted: Wed Sep 21, 2005 12:12 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

I run about 25deg at idle as I try to minimise the step of 40deg at 1250rpm at cruise as much as possible. If you say run 10deg then you have a 30 degree step which tends to make the power at crusing speeds of say 900 to 1250 erratic. Its a bit hard to explain but I have reason for running a high initial advance. The problem is if you go too high then it can give a fluctuating idle.
I run 15.5 up tp -30kpa 15A/F at -20kpa, 14A/f at -10, 13A/F at 0kpa then 12.5 at +kpa.

You could bump your cruise timing to 45deg. It seems to be the timing that helps with economy.

When I go for a economy run I have to drive like a p***y to get the good economy, but considering I run a big fuel pump and 550cc injectors, economy is still achievable. Running Lucas injectors helps a bit IMO



_________________

Turbo 6s rule

Top
