 Post subject: The Diag Code reader units are ready.
Posted: Thu Feb 21, 2008 11:17 am
Smokin em up
Offline
User avatar

Posts: 281

Joined: 11th Dec 2004

Ride: AUIII XR8

Location: Melbourne
VIC, Australia

Guys, the units are finished, packed and ready to go.
Please PM me if you wish to proceed.
Best Regards
Top
 Profile


Posted: Sun Mar 09, 2008 12:54 pm
Fordmods Newbie
Offline

Age: 61

Posts: 1

Joined: 8th Mar 2008

Ride: EF Fairmont Ghia V8

Location: Tottenham
NSW, Australia

Very interested :)
Top
 Profile


Posted: Mon Mar 10, 2008 9:44 pm
Smokin em up
Offline

Age: 54

Posts: 200

Joined: 27th May 2007

Ride: Ford FG XR6 TURBO

Location: Frankston North
VIC, Australia

Good onya Muzza these are great.



_________________

Current ride Ford FG XR6 TURBO

Top
 Profile


 Post subject: Re: The Diag Code reader units are ready.
Posted: Tue Apr 08, 2008 1:08 am
Oompa Loompa
Offline

Age: 86

Posts: 23

Joined: 30th Jan 2008

Location: Hobart
TAS, Australia

muzza wrote:
Guys, the units are finished, packed and ready to go.
Please PM me if you wish to proceed.
Best Regards


Hi Muzza. Do you have any more of your brilliant code readers for sale? i have an EF 6cyl.
Regards Ed
Top
 Profile


Posted: Tue Apr 08, 2008 9:57 am
Smokin em up
Offline
User avatar

Posts: 281

Joined: 11th Dec 2004

Ride: AUIII XR8

Location: Melbourne
VIC, Australia

Tas Ed, yes are available. I'll PM you the details.
Top
 Profile


Posted: Tue Apr 08, 2008 10:06 am
SA Cruise Moderator
Offline
User avatar

Age: 37

Posts: 1870

Joined: 14th Apr 2006

Ride: 1993 EBll xr6, 2003 ba xt

Power: 150 rwkw

Location: Whyalla
SA, Australia

pm sent muzza

thanks alot



_________________

Owning 1 of 84,847 ebII.
2x clarion subs 1200w, 1x clarion amp 400w, pioneer headunit, 16x8 roh reflex.
Clear side, front indicators, White dials, trip computer, boot spoiler, K & N air filter.
35% tint, paint code (z) stark white, 3" crome nudge bar, Xh snorkle

Top
 Profile


 Post subject: The LED Display/USB interface Version...... :0
Posted: Tue Jun 03, 2008 9:43 pm
Smokin em up
Offline
User avatar

Posts: 281

Joined: 11th Dec 2004

Ride: AUIII XR8

Location: Melbourne
VIC, Australia

Guys,

Announcing the LED Display version ......

DCR - Diagnostic Code Reader

I had, sporadically, been working on a LED display version of the Code unit for sometime....however, it had spent most of the time on the backburner.
Anyway, quiet time at work off and on over the past few months and I had 6 or so projects on that backburner so I have attacked some of them.
Had three automotive ones - Speedo corrector, Thermofan controller (EL fans into EA-EB-ED) and the LED Diag Code Reader.

Finished all of them :)
The LED version has been completed .... as a prototype at this stage.
i.e. ..... It Works !!!

Details:-
- 3 digit LED display
- Three LEDs on the left of the display show Power On (green), Fuel Pump control status (yellow) and the code pulses (red).
- Reads the slow codes (chose not to do the fast codes... fast codes to not send the Memory Codes, plus more complex with more buttons needed).
- Reads 2 and 3 digit codes and has been tested on XF, ED, EF, EL and XH so far (eng, trans, ABS across these).
- Automatically detects 2 or 3 digit codes.
- Automatically detects the different models
- Did not go to LCD - much more complex wrt displaying additional info of Code details - decided to look at this (maybe) later.
- Implemented a USB port interface to PC.
- There is also a 4 pin plug for connection (via an adapter cable) to XF, EA, EB.

On Connection "dcr" for Diagnostic Code Reader is displayed.
When Diag Mode switch is set to On the display is "On"
First valid pulse changes the display to "---"
The Codes are displayed on the LED one at a time.
These is a short beep each time a new code is displayed.
Separator is displayed as "10-"
"End" is displayed after last code.

The USB connection works as a COM port on the PC so any terminal program can be used (e.g. Hyperterminal). Am running the USB at 9600 which is default in XP.

Next steps:-
Still doing a bit more testing (need to confirm EA/EB - but if it works on XF and ED and EL then there should be no issue).
Need to get front label artwork and get a batch of labels manufactured.
Order in all the bits
Make jigs to machine the cases.

The sexy curvy case I am using will be black in the production version.
I did not add a DB9 (COMport) connector due to lack of space.

Anyway... will keep yous informed.





Attachments:

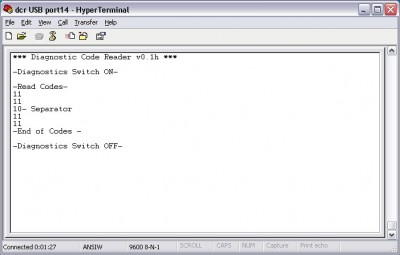

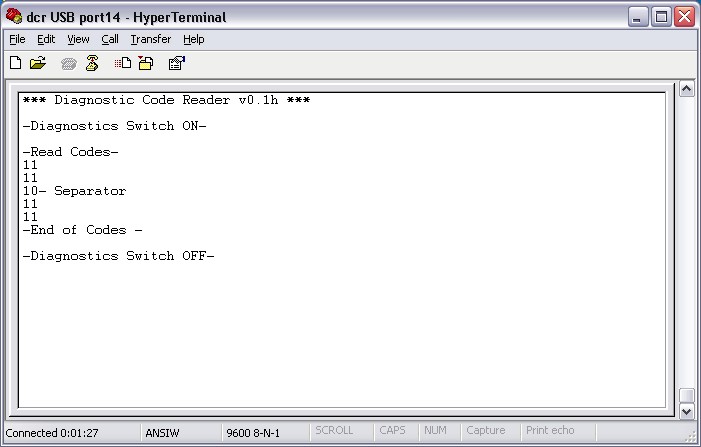

Hyperterminal_2.jpg [ 48.93 KiB | Viewed 295 times ]

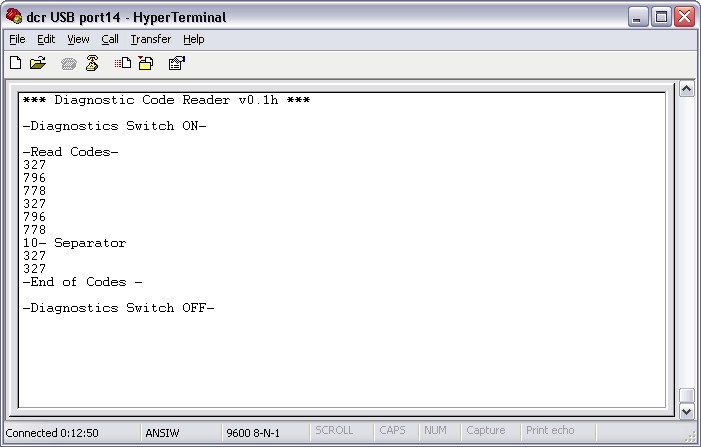

Hyperterminal_1.jpg [ 48.6 KiB | Viewed 274 times ]

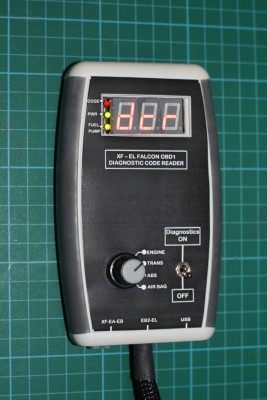

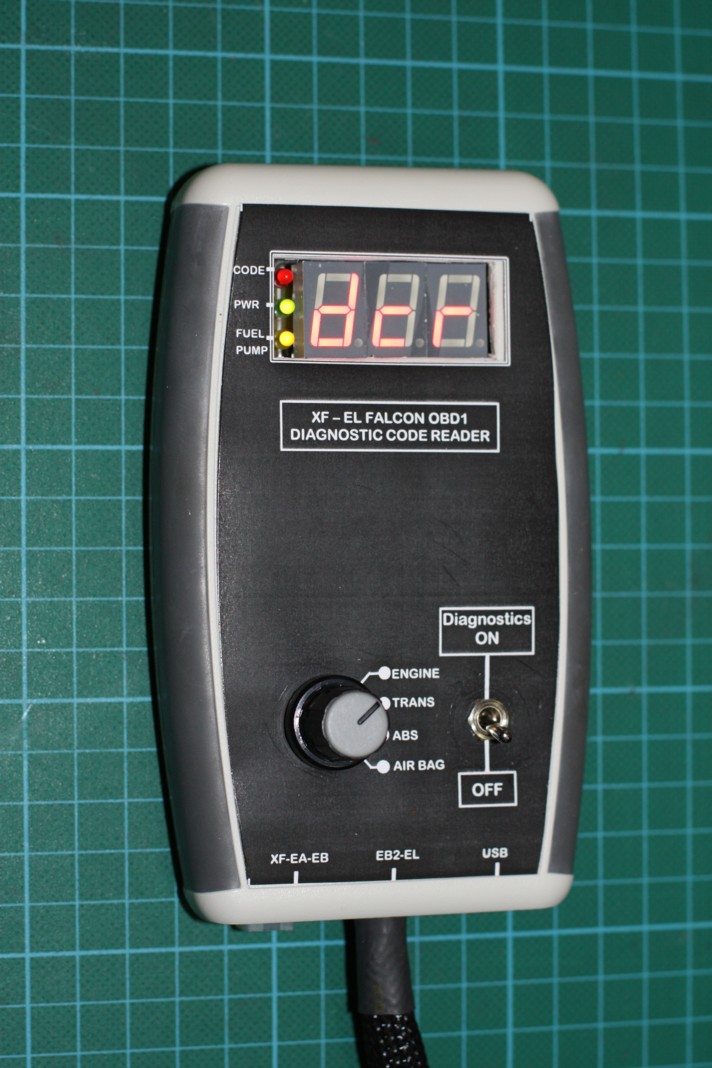

LED dcr Proto_1_small.jpg
LED dcr Proto_1_small.jpg [ 156.38 KiB | Viewed 334 times ]
Top
 Profile


Posted: Tue Jun 03, 2008 11:05 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

That's a fine looking piece of kit for a prototype.

If I still had an E series I'd buy one now worries (If still got one of your 'old' ones).

OBD2 is so much easier to work with these days.

Good work.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Wed Jun 04, 2008 12:13 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

I'm very interested in something like this for my ED.

So basically you plug it into your cars diagnostic port, pull all the dianostic codes out of it, then plug it into your computer to get the resulting output?



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Wed Jun 04, 2008 12:50 am
Smokin em up
Offline
User avatar

Posts: 281

Joined: 11th Dec 2004

Ride: AUIII XR8

Location: Melbourne
VIC, Australia

Hello, the operation is as follows:-

1. plug the PC/laptop into the unit.
The USB port, in the unit, is powered from the PC/laptop port.
Get Hyperterm working.
2. plug the DCR unit to the diagnostic connector.
3. On powerup the unit will display "dcr".
On powerup the banner (e.g.) "Diagnostic Code Reader v1.0" is output on the USB port and displays on the PC/laptop.
4. initiate test e.g. the KOEO test....
Flick the switch on the DCR unit to ON.
"On" is displayed on the LED.
"Diagnostic Switch On" is sent on the USB port.
Once the first valid pulse is detected the LED displays "---" and "Read Codes" is sent on the USB.
Codes are displayed on the LED and sent to the USB port simaltaneously (unit will beep at each new code).

One would need to write the codes down in conjunction with each notification beep if no PC is connected.

Once no more codes are detected "End of Codes" is sent to the USB.
4 secs later "End" is displayed on the LED.

5. At this point the unit is still in read mode if KOEO tests are initiated, or, the diag switch can be set to OFF.... if the Diag Switch is set to Off then "Diagnostics Mode - OFF" is sent to the USB and "dcr" displays on the LED.

I set this up on the basis that the unit would be used stand-alone more frequently that with a PC connected.

I actually did consider creating a "stack" to store the codes but did not develop this.
Thoughts ??
Top
 Profile


Posted: Mon Aug 11, 2008 11:38 pm
Oompa Loompa
Offline

Age: 40

Posts: 22

Joined: 10th May 2008

Gallery: 9 images

Ride: ef fairmont

Location: mundubbera
QLD, Australia

hi how much do you sell your dcr's for cause i would like to purchase one off you if they are not to expensive thanks
Top
 Profile


Posted: Tue Aug 12, 2008 12:03 am
Smokin em up
Offline
User avatar

Posts: 281

Joined: 11th Dec 2004

Ride: AUIII XR8

Location: Melbourne
VIC, Australia

fstfrd69....
Have not produced the new version as yet.
Had to focus on some other stuff and that has caused a delay.
Have ordered most of the bits and these should arrive in the next weeks.
I'll post a message when ready.
Top
 Profile


Posted: Tue Aug 12, 2008 8:10 am
Oompa Loompa
Offline

Age: 40

Posts: 22

Joined: 10th May 2008

Gallery: 9 images

Ride: ef fairmont

Location: mundubbera
QLD, Australia

ok thanks muzza will keep an eye for it than
Top
 Profile


Posted: Tue Aug 12, 2008 8:28 am
Getting Side Ways
Offline
User avatar

Age: 47

Posts: 1669

Joined: 23rd Dec 2004

Gallery: 1 images

Ride: Boosted ED XR6, EBII Mont Wgn

Power: 252 rwkw

Location: Mildura
VIC, Australia

nice work muzza, new version look like it will be much eaiser to use... I may have to upgrade.. do you do tradeins on the old model :wink: lol



_________________

[SEXYR-6] ED XR6 T5 Turbo Build
[EBW-347] EB Wagon V8 Stroker Build
FordMods Member #1761

Top
 Profile


Posted: Tue Aug 12, 2008 11:17 am
SA Cruise Moderator
Offline
User avatar

Age: 37

Posts: 1870

Joined: 14th Apr 2006

Ride: 1993 EBll xr6, 2003 ba xt

Power: 150 rwkw

Location: Whyalla
SA, Australia

also very interested in the new model?

will be watching topic for when they are ready.



_________________

Owning 1 of 84,847 ebII.
2x clarion subs 1200w, 1x clarion amp 400w, pioneer headunit, 16x8 roh reflex.
Clear side, front indicators, White dials, trip computer, boot spoiler, K & N air filter.
35% tint, paint code (z) stark white, 3" crome nudge bar, Xh snorkle
