Does ED dizzy have centrifugal advance?



Page 1 of 1 [ 9 posts ]


 Post subject: Does ED dizzy have centrifugal advance?
Posted: Sat Sep 10, 2005 12:25 am
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Just setting my Wolf up for ignition, the manual says i need to " lock" the dizzy. But i thought there was no centrifugal advance as advance was done by the EEC...

Is this right?
Top
 Profile


Posted: Sat Sep 10, 2005 1:17 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2282

Joined: 14th Jan 2005

Gallery: 8 images

Ride: ED Fairmont Ghia & EF XR8

Location: Melbourne
VIC, Australia

mmmmmm tough one, to tell you the truth i honestly dont know. but one way to know for sure is to check is to see if there is a vacuum line going to the dizzy.

come to think im pretty sure they dont

cheers



_________________


Top
 Profile


Posted: Sat Sep 10, 2005 1:34 am
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

the dizzys are electronically advanced. Meaning the ECU controls the advance. This started from the XF series 2 onwards.


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


Posted: Sat Sep 10, 2005 1:36 am
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Great, yep I had an XF long long time ago, it had cent' advance. So thats good, dont have to weld up the shaft like on some dizzys.

thanks
Top
 Profile


Posted: Sat Sep 10, 2005 12:14 pm
Parts Gopher
Offline

Age: 45

Posts: 54

Joined: 17th Aug 2005

Ride: ef

Location: melbourne
VIC, Australia

Hi.

Ed series vehicles dont have centrifugal or vacuum advance.
It has a tfi module and is basically controlled by the ecu.
Top
 Profile


Posted: Sun Sep 11, 2005 11:55 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

it should be a setting in your trims. Base timing?
With mine there is a "locked" option.
ill do a screan shot to show



_________________


Top
 Profile


Posted: Mon Sep 12, 2005 2:20 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1680

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 220kw 1600 Datto

Location: Scaaabz
WA, Australia

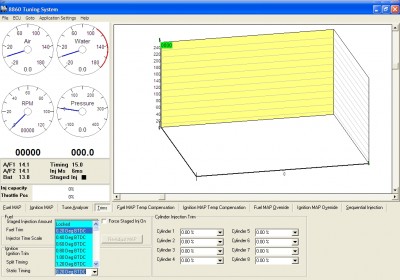

"static timing" is how your ment to lock the timing (with EMS)
im guessing its simular?
And i leave my stactic timing at 10*. From what i measured and others have told me this is the rite setting...





Attachments:
File comment: ig timing
ig tr.JPG
ig tr.JPG [ 354.38 KiB | Viewed 58 times ]



_________________


Top
 Profile


Posted: Mon Sep 12, 2005 10:04 pm
Getting Side Ways
Offline
User avatar

Posts: 1960

Joined: 6th Nov 2004

Gallery: 22 images

Power: 315 rwkw

Location: Under the flight path of incoming packpackers
NSW, Australia

Wolf meant locking it by welding the shaft on a dizzy with centrifical force advance... They say to to put the crank at 22deg adv and point the rotor at no 1 lead
Top
 Profile


Posted: Tue Sep 13, 2005 11:47 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

CHEF wrote:
Wolf meant locking it by welding the shaft on a dizzy with centrifical force advance... They say to to put the crank at 22deg adv and point the rotor at no 1 lead


You can probably offset this electronically as well... i.e. if your engine has a mechanical base advance of 10, there's more than likely the option to offset this by -12 and get your -22 total base....



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile
