Are you sure you want to be just swapping looms etc BEFORE actually diagnosing the problem? What happens if you swap it over, and the problem is still there?

Locate the problem, or at least narrow it down a little. If its small parts like coil, lights etc, then swapping is easy and a fast way to diagnose, but a whole loom??? You might just introduce more problems. You might disturb the original problem and stop it temporarily, then have it come back a month later.



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Fri Feb 16, 2007 12:20 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

as i said i wont be swapping looms. ill just buy a new car.

i have pretty much tracked it down to the rear lights.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sun Feb 18, 2007 6:56 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

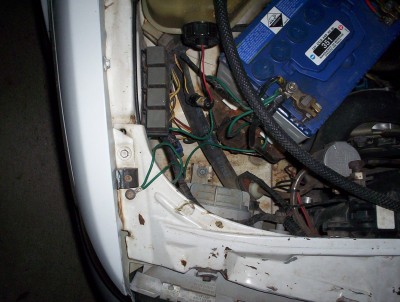

i have tracked the problem down to the highbeam circuit. im not exactly sure where about it is. i unplugged ALL lights and turned the lights on and it cut out. i then removed the relay (see pic) and re-tested and nothing stopped which was a good sign. i then replaced the rear lights and tested. still working i pluged the headlights in but left the relay off. and still working so now i have low beams parkers just no high beam. as soon as i put the relay back in no matter whan one i turn on it shorts.

so at the moment i have it sitting there with no relay but obviously i cant leave it like that.

i now need to chase down a manual for it. mine went missing



in this pic you can see the trailor plug which is what i thorght it was first up.




_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sun Feb 18, 2007 7:22 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

Mate, this is excellent news, and very good progress.

Just need to clarify a few things - (assuming its the High beam relay you are removing here, and that turning on the high beams produces the fault) :-

1) When you plug the high beam relay back in, does it blow regardless of whether the high beam switch is on or off?

2) If you leave the high beam switch Off with the relay removed, does bridging pin 87 and 30 (the pins opposite and rotated 90 degrees to each other) cause the fault?

The results from this should tell you if you have a power or control circuit fault.

I have the EF exterior light circuit here. If you want it, just PM me - it's likely to be slightly different, but should give you a rough layout of how the circuit works and where to look next.



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sun Feb 18, 2007 8:15 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

its option 1 i think. having the relay in shorts it no matter what i switch on. i will have to sus it out tomorrow.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sun Feb 18, 2007 8:29 pm
Technical Contributor
Offline
User avatar

Posts: 691

Joined: 1st Jun 2005

Ride: EFII Sedan

Location: Brisbane
QLD, Australia

My Ellery's schematic shows that the high and low beam relays are given their 12V+ supply through a circuit breaker, but I don't know where that circuit breaker is located.

Do the high beams continue to work after you get the fault, or do they stay off for a while until your car is able to be started again?

I'm thinking your power loss may have something to do with the circuit breaker (if its a self resetting type).

I have a theory about the blowing relays too. If you put a brand new relay in, and everything goes ok till you flick the high beams, your positive wire out from the high beam relay may be shorted to ground. This would cause the relay to arc closed, and then cause the fault to occur every time the relay was plugged in regardless of the switch position from then on.



_________________

EF II Sedan
Ex Chaser, Dual Fuel (Impco LPG)
LSD High, 3.23, Black wheels, other shiny bits.

EB II Sedan <--- R.I.P. (Rest in pieces - gone to the wreckers for $50...... bargain!)

Top
 Profile


Posted: Sun Feb 18, 2007 8:31 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

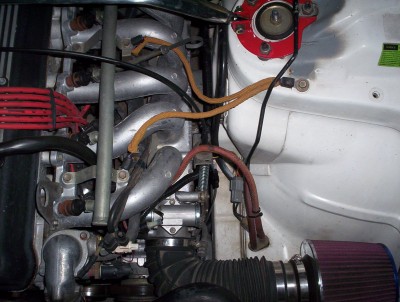

Put in a new relay, and run an extra earth wire, from the battery to the body. I have pics here of mine. The one on the LHS is yellow in colour and the RHS one is green in colour.





Attachments:
Extra earths on 88EA 002.jpg
Extra earths on 88EA 002.jpg [ 485.12 KiB | Viewed 20 times ]
Extra earths on 88EA 001.jpg
Extra earths on 88EA 001.jpg [ 472.03 KiB | Viewed 32 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Mon Feb 19, 2007 12:22 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

EBGizmo wrote:
My Ellery's schematic shows that the high and low beam relays are given their 12V+ supply through a circuit breaker, but I don't know where that circuit breaker is located.

Do the high beams continue to work after you get the fault, or do they stay off for a while until your car is able to be started again?

I'm thinking your power loss may have something to do with the circuit breaker (if its a self resetting type).

I have a theory about the blowing relays too. If you put a brand new relay in, and everything goes ok till you flick the high beams, your positive wire out from the high beam relay may be shorted to ground. This would cause the relay to arc closed, and then cause the fault to occur every time the relay was plugged in regardless of the switch position from then on.


basically what happens is when i put the relay in i turn any light on (including brake) and it trips. but when the relay is removed i can use all lights obviously except high beams. it does have a self resetting one as it takes anywhere from 20 seconds to 10 minutes to reset.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Mon Feb 19, 2007 1:04 am
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

check the earth points!



_________________


Top
 Profile


Posted: Wed Feb 28, 2007 9:56 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

ok so i attached a new earth... and still keep killing the battery.

i checked and cleaned all the earth straps and terminals... still nothing.

at one last attempt today i removed the battery and checked the altinator wire... dirty but tight. i ran my hand up the wire to find a lump... i look down to see a lump of melted electrical trape and alot of corrosion... BINGO

i removed the tape to see where antony from ALTED performance had done the attachment from 4 wires into one. i grabed the soliering iron and soldiered another 4 guage wire to it and ran it to the battery

turned the car one and switched the lights on with my fingers crossed... it kept running so i ran to the front to see one headlight on... :D
i know its not all of them but i bought the XR lights in unknown condition but i have a new set of globes coming on friday. so on friday ill know for sure if its solved the issue.


also i need to raise my idle RPM as it currently sits just under 500 rpm and when the lights are on the lights go dull then bright as it idle bounces.


on the shopping list now is a new battery as i think it killed a cell.

altho it will now be a while before its all done as i lost my job yesterday so im on very small budget.



_________________

Member #7418
KB Laser White lightning Turbo - B6T
Turbo NC II Fairlane Ghia
http://www.fordmods.com/the-garage-f53/my-new-nc-ii-fairlane-dial-up-warning-t50380.html

Top
 Profile


Posted: Sat Mar 03, 2007 8:04 am
Stock as a Rock
Offline

Posts: 108

Joined: 5th Oct 2005

Location: melbourne
VIC, Australia

would make sense, dead battery, voltage drop across the battery feed to ur alt, as soon as u turn on a load to the battery it takes away enough voltage to turn the ecu into sleepy time mode :P
Top
 Profile


Posted: Sat Mar 03, 2007 10:34 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 5540

Joined: 31st Oct 2005

Gallery: 28 images

Ride: NC II Fairlane

Location: morayfield
QLD, Australia

it wasnt just the computer in sleep mode... the little red light on the stereo would stop also... it drained the battery completely.

im also swapping the altinator as its showing up at just over 10 volts and wont move from there. also a battery will be coming.
