Pin outs of diagnostic connector

Home » Forums » Fordmods Tech » ECU, Fuel System and Tuning Forum

Page 1 of 1 [ 4 posts ]

Post New Topic Post Reply

Previous topic Next topic

hornet

Post subject: Pin outs of diagnostic connector

Posted: Sun Jan 08, 2006 11:16 pm

Getting Side Ways

Offline

Posts: 916

Joined: 27th Nov 2004

Gallery: 4 images

Ride: EL Futura

Location: Berri
SA, Australia

Does anyone have a copy of the pin outs of the EEC diagnostic plug? The image is missing from the technical document.

Cheers!

_________________

5 Speed EL Futura
Stock as a rock*

A1 Oils - Synthetic lubricants: www.a1oils.com.au
* A rock that has been Alted

Top

Profile

EDXR8

Posted: Mon Jan 09, 2006 1:23 am

Getting Side Ways

Offline

Age: 45

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

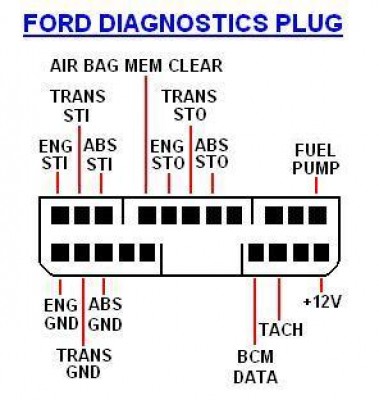

Here is one I drew up

Attachments:

diagport.JPG [ 19.04 KiB | Viewed 232 times ]

Top

Profile

hornet

Posted: Mon Jan 09, 2006 9:42 am

Getting Side Ways

Offline

Posts: 916

Joined: 27th Nov 2004

Gallery: 4 images

Ride: EL Futura

Location: Berri
SA, Australia

Thanks EDXR8,

Thats exactally what i'm looking for!

_________________

5 Speed EL Futura
Stock as a rock*

A1 Oils - Synthetic lubricants: www.a1oils.com.au
* A rock that has been Alted

Top

Profile

jraduga

Post subject: pinouts for an au II

Posted: Mon Mar 06, 2006 2:49 pm

Fordmods Newbie

Offline

Age: 58

Posts: 2

Joined: 6th Mar 2006

Location: Morisset
NSW, Australia

Is the pinut you have given also suitable for an AU2.?? If not does anyone have the pinouts for the OBD connector...Thanks
