 Post subject: pod filter in air box
Posted: Sat Nov 18, 2006 2:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi
i just finished the bbm conversion on my ea and i have
just put a k&n pod filter in the air box..
pretty easy to do aswell.

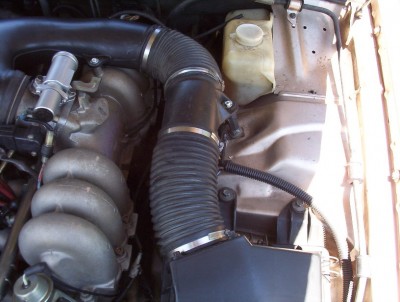

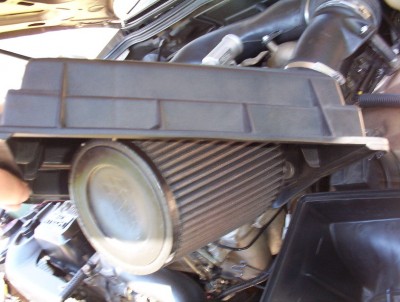

i cut the plastic tube that runs from the flexable hose to the airbox so it doesnt have the narrow restrictive end and then removed the 4 bolts holding the bell mouth thing.. i used another flexable hose to join it to a piece of 3" pipe that runs through the air box lid and just attached the pod filter ...

normally i would use a k&n panel filter but i had this pod from my old xr8 so i thought it was just as good..
and i had bought a k&n panel filter for the ea box about 6 months ago and i dont really want to buy another one..

here are some pics





Attachments:
pod box 002.jpg
pod box 002.jpg [ 91.96 KiB | Viewed 39 times ]
pod box 001.jpg
pod box 001.jpg [ 88.42 KiB | Viewed 37 times ]
Top
 Profile


Posted: Sat Nov 18, 2006 6:15 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

At least you've got it enclosed.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Sat Nov 18, 2006 11:43 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Yea without it enclosed it would be useless..
i also dont really like how the factory pipe from the airbox to the flex hose is so restrictive at the airbox end..
i suppose ford have there reasons for it..

the good thing is that i have the original pipe and bellmouth just incase i want to put it back to original...
Top
 Profile


Posted: Sun Nov 19, 2006 6:41 am
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

you need to put a 45 degree bend in the pipe into the airbox.

The airbox lid is cutting alot off flow from the top half off the pod filter the way you have done it.

The mounting position is very similar too Lukey's install where he used the existing bell mouth from an EF lid adaptor.

Also ribbed air pipe is crap for air flow aswell.......compared too mandrel bent 45 degree 3in pipe.

But i would say you know what your doing and it is just a temp install with the BBM until you get some good pipework for the intake & pod filter.

cheers...



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Top
 Profile


Posted: Sun Nov 19, 2006 9:38 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

EL__Fairmont wrote:
you need to put a 45 degree bend in the pipe into the airbox.

The airbox lid is cutting alot off flow from the top half off the pod filter the way you have done it.

The mounting position is very similar too Lukey's install where he used the existing bell mouth from an EF lid adaptor.

Also ribbed air pipe is crap for air flow aswell.......compared too mandrel bent 45 degree 3in pipe.

But i would say you know what your doing and it is just a temp install with the BBM until you get some good pipework for the intake & pod filter.


cheers...


yea it is kind of temparary..
the pipe does have a bend but its only about 25 degree bend
and i will replace the flex pipe with a steel pipe very soon
i just used stuff that i had laying around in my shed.
Top
 Profile
