Removing that darn Fuel Pump ring



Page 1 of 1 [ 15 posts ]


 Post subject: Removing that darn Fuel Pump ring
Posted: Wed Mar 29, 2006 8:30 pm
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

I will take any advice on how to remove this sucker, and note i'm two fins down from hammering and not owning a shed full of tools (and too proud now to pay a mekanik to fit my second hand $80 pump & sender)

H E L P



_________________


Top
 Profile


Posted: Wed Mar 29, 2006 8:46 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

gett 2 big flat blade screw drivers and cross them over. or make up a tool



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


Posted: Wed Mar 29, 2006 9:01 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

persevere. did mine recently, somehow the o-ring started leaking, after pullingit all out, seeing it was fine, and putting it back together the leak stopped - grrr.

small taps with a blunt object on each 'fin' don't concentrate on one or two, use all of them, it'll take a fair bit of time, but it'll give.

also did you remove the 'pipe clamp' ? (also not fun, little f**k 8mm spanner, on 1/8th a turn, off, on 1/8th turn....



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Wed Mar 29, 2006 9:17 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

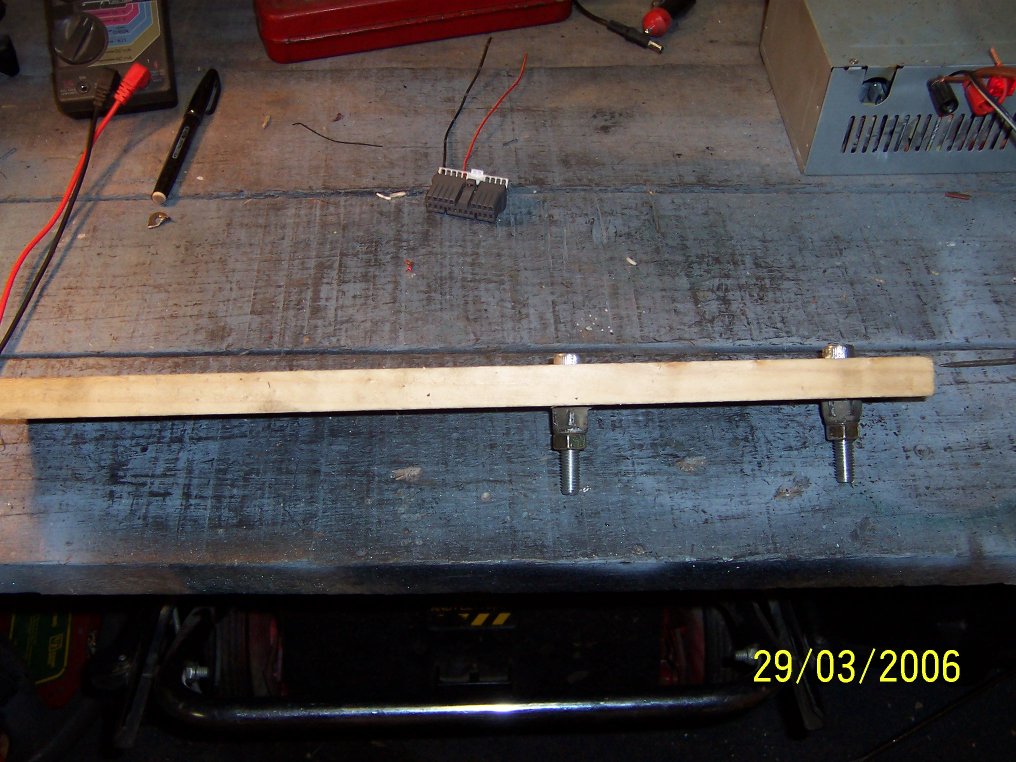

get a piece of timber, about 50cms long, and drill two holes in it just under the size of the large cap, press in two long bolts with washers on either side and tighten up the bolts with the nuts, (use like 10cm bolts) this makes a great spanner for it!

one 5/16ths single hex spanner will open the hose clamp with ease





Attachments:
Spanner.jpg [ 154.78 KiB | Viewed 43 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Wed Mar 29, 2006 10:40 pm
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

Nice Spanner
very nice
i actually contemplated making one similar from wood this arvo, but cracked the s**t, put the old one back in and had a grog instead
i will try out the many taps method, then the spanner tomorrow!!

Thanks heaps



_________________


Top
 Profile


Posted: Wed Mar 29, 2006 10:43 pm
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

Nice Spanner
very nice
i actually contemplated making one similar from wood this arvo, but cracked the s**t, put the old one back in and had a grog instead
i will try out the many taps method, then the spanner tomorrow!!

Thanks heaps



_________________


Top
 Profile


Posted: Wed Mar 29, 2006 10:46 pm
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

How did i do that twice?? (oops this is the third!!)



_________________


Top
 Profile


Posted: Thu Mar 30, 2006 8:02 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

u can buy the tool from a good tool store...

or ford works a treat

me and my dad made 1 with the blueprints in the gregories book!



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Mar 31, 2006 8:23 am
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

Disco Frank wrote:
u can buy the tool from a good tool store...

or ford works a treat

me and my dad made 1 with the blueprints in the gregories book!


I don't suppose you are able to upload an image of that gregory's instructions for me please?



_________________


Top
 Profile


Posted: Fri Mar 31, 2006 11:11 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

mmm with me being bored today i might do....



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Mar 31, 2006 11:22 am
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

mmm bored
am I bored if I find myself staring at your jiggly avatar for several minutes before replying??
or just a red blooded Aussie male?

I'd be powerful grateful if you could upload that image dude!!!



_________________


Top
 Profile


Posted: Fri Mar 31, 2006 3:11 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia




_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Mar 31, 2006 4:50 pm
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

data_mine wrote:


You Da Man!!!
I'm making one this weekend and fixing that sender



_________________


Top
 Profile


Posted: Fri Mar 31, 2006 5:19 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

thanks datamine! my damn scanner was not working!
yes tried a didgi cam too

this needs to be put into the tech docc section!

BRAD!!!!



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Apr 07, 2006 9:29 am
Parts Gopher
Offline
User avatar

Age: 44

Posts: 91

Joined: 30th Nov 2004

Ride: Fairmont EL

Location: Newcastle
NSW, Australia

Its fixed!!! and like most things, easy when done once!

I couldn't find any metal in shed worthy of "the tool" so i went the wood and bolts!! I might upload a piccy but its similar to the other one

A tech docu would have been good on this! especially to make sure you haven't cross threaded the ring and the sender is rattly

Then send the docu to Klosters in Newcastle as the butt f***ers tested my fuel gauge system last month and left it loose so i spilt 20 litres of fuel across town between work and home, I ring em up and they didn't even give a hoot, or apologise, or even care, especially when i told em i wouldn't go back to them even just to get air in my tyres!!!

at least they fixed it and replaced my lost fuel (after prompting)
