| TROYMAN |
|
||
|
TerroristGHIA wrote: Did some body say NOS
Brett dont worry mate every time i think of nos i think! terroristGHIA...lol
|
||
| Top | |
||
| asizzy |
|
||
|
InspectorRectum you have one very homemade CAI. And about the hole in the bottom of the airbox...isint it also for like so that air can go out when needed..like when the pressure gets built up inside the airbox you need a hole so that excess air can get out when need be.. i dont know if that made sense.
_________________ AsIzZy |
||
| Top | |
||
| GeZza200 |
|
||
|
asizzy wrote: InspectorRectum you have one very homemade CAI. And about the hole in the bottom of the airbox...isint it also for like so that air can go out when needed..like when the pressure gets built up inside the airbox you need a hole so that excess air can get out when need be.. i dont know if that made sense.
yeah i would say you would want a whole like your saying, if your on gas an it might backfire or somthing.
_________________ EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come |
||
| Top | |
||
| asizzy |
|
||
|
I would like to see more CAI
So i can get more ideas for myself. Sharing is caring guys, don't keep it for yourself.
_________________ AsIzZy |
||
| Top | |
||
| NCIILANE |
|
|||
|
OK
Here's what I threw together last weekend. Just a trial system atm! But seems to be pretty effective!
<a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0336.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0336.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0341.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0341.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0348.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0348.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0350.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0350.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0351.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0351.jpg" border="0" alt="Photobucket"></a> If it all goes good, gunna fit it to my new airbox base and paint it black
Cheers, Mick
_________________
|
|||
| Top | |
|||
| InspectorRectum |
|
||
|
lol! you kent (dont worry, no offence taken
), my intake works, see like when you go and line everything up, cut, wash and glue it's done No need to look prettyful, practicality wins overs cosmetcality anyday. N as long as the engine is happy n pingin its tittys off, what more could you need... apart from 1 more to race against
4:20 trixie, 4:20 IRweasel
EDIT: in case they disappear from eBay the company that makes those aftermarket (booya, go Ford) airboxs is Acron Plastics http://www.acronplastics.com.au/ Last edited by InspectorRectum on Wed Nov 12, 2008 8:38 pm, edited 4 times in total. |
||
| Top | |
||
| InspectorRectum |
|
||
|
NCIILANE wrote: OK
Here's what I threw together last weekend. Just a trial system atm! But seems to be pretty effective! <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0336.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0336.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0341.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0341.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0348.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0348.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0350.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0350.jpg" border="0" alt="Photobucket"></a> <a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=IMG_0351.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/IMG_0351.jpg" border="0" alt="Photobucket"></a> If it all goes good, gunna fit it to my new airbox base and paint it black Cheers, Mick wow mate, lookin factory GW. where does it run to though? |
||
| Top | |
||
| NCIILANE |
|
|||
|
sits just above the air intake of the lower front bar atm
<a href="http://s285.photobucket.com/albums/ll41/micknkell/?action=view¤t=100_7526-1.jpg" target="_blank"><img src="http://i285.photobucket.com/albums/ll41/micknkell/100_7526-1.jpg" border="0" alt="Photobucket"></a>
_________________
|
|||
| Top | |
|||
| InspectorRectum |
|
||
|
ahh if only that gap was a tinyyy bit bigger ay
what are the holes for, i see you've got 2 bigger ones and a small one? |
||
| Top | |
||
| NCIILANE |
|
|||
|
Previous failed attempts at CAI
_________________
|
|||
| Top | |
|||
| InspectorRectum |
|
||
|
haha 3rd times a charm mate, good job.
|
||
| Top | |
||
| britishracinggreen |
|
|||||
|

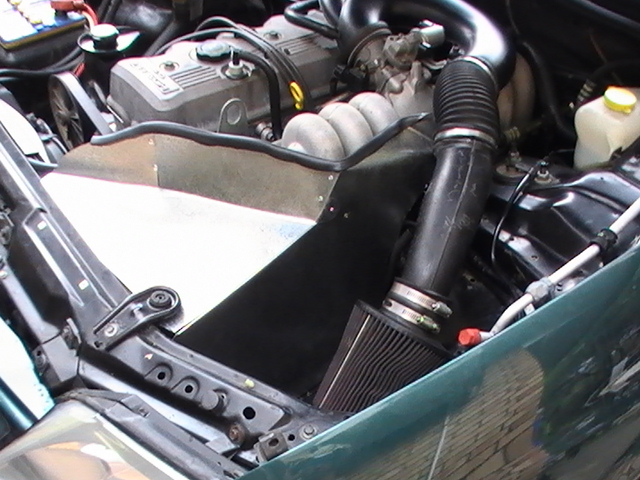

this is my intake atm...
need to find some pipe for in between rubber flex thing, and the pod mayb alloy....
|
|||||
| Top | |
|||||
| relaxed_diplomacy |
|
||
|
That looks clever. How quickly can you remove the shrouding for servicing?
_________________ wrecking 9/97 EL fairmont sedan burgundy 6cyl auto 270k modBAintake |
||
| Top | |
||
| britishracinggreen |
|
||
|
i havent removed it yet but should come out without any hassle ...... i might have a try, its not attached to body in any way it just sorta sit in ther so yeah should be easy
|
||
| Top | |
||
| fiend |
|
|||
|
A lot of you would have seen the air pressure test I did... If not, here it is...
Link to thread is http://www.fordmods.com/forums/viewtopic.php?t=72008 I like the work I.Rectum and NCLane have done on the standard airbox. Brilliant... I just want to draw attention to the pressure testing that actually shows the area at bottom of plastic in front of wheel arch to be pathetically devoid of pressure. If that 3" intake was out the front.... Well now, that would be awesome. Here's an excerpt from another thread of mine.... blah blah discovered that the throttle when holding 5000rpm uses about the same amount of air pressure that is available at the front headlight when traveling at 70km. Guess you could go all mathematical on my a*** and say that at 5000rpm @ 3.95L per rev.... 19750L a minute... How much air would pass through a 3" hoop at 70km/h per hour? icon_arrow.gif A 3" circle has approx 50 CM2 according to Radius squared times PI. icon_arrow.gif When moving at 70km/h you are doing 19.44 metres a second. icon_arrow.gif 19.44 x .5 x 60 = 583 metres cubed?.... 583,000 L a minute can pass through a 3" circle traveling at 70km/h. Therefore, I suppose, is the evidence that I should put the air box back into the car and chop a 8" hole in the front with a cone reducing to three inch before air box. At 70k an hour I am forcing extra air into the throttle body than it can use. Ho hum. My air system works okay, and better than most according to educated guesses, but how about that yellow section, above? Here's mine, it's been seen before, but here goes...
All good, ....
And here's one photo with the pod dropped in hole.. ...........................................
And that's the lot for the time being. Have found that the air pressures in and around wheel arch are useless - as is anything under the car. The original snorkel is in a good position but to make use of it you really should get rid of the bonnet in front of it!!!!! Go on - someone do it..... .....
|
|||
| Top | |
|||
