Unknown Rectangular Tank on NF



Page 1 of 1 [ 11 posts ]


 Post subject: Unknown Rectangular Tank on NF
Posted: Thu Jul 21, 2005 8:27 pm
Fordmods Newbie
Offline

Posts: 9

Joined: 17th Jul 2005

Location: Broadford
VIC, Australia

I have found a loose rectangular black tank just in front of the passenger side front wheel (in the area of what looks like ABS brake mechanism) on an NF Fairlane Ghia. I am reparing this corner after a Kangaroo stike which broke the pass side lights and pushed in the guard.

I cannot find anywhere obvious where this thing was mounted. It is 200mm long, 110mm wide and 60mm deep with three black lines (look like fuel or vacuum lines)coming out of it. One of the black lines goes through an electic selonoid and that line has broken off at the selonoid. It also has a loose cap on the end about the size of a plastic milk bottle top that appears as though it might be a breather.

Anyone know what it is? Where should it be mounted? Will it cause a problem if the selonoid pipe is left broken?
Question

My guess is a fuel vapour canister which is why I put the question on this forum, but I could be very wrong.

Thanks avro
Top
 Profile


Posted: Thu Jul 21, 2005 8:34 pm
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

IIRC it's the charcoal cannister



_________________

Banned

Top
 Profile


Posted: Thu Jul 21, 2005 8:50 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

correct



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Thu Jul 21, 2005 9:27 pm
Tyre Shredder
Offline
User avatar

Age: 51

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

Interceptor wrote:
IIRC it's the charcoal cannister



"Oh Yeah"



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Thu Jul 21, 2005 9:45 pm
Fordmods Newbie
Offline

Posts: 9

Joined: 17th Jul 2005

Location: Broadford
VIC, Australia

Thanks guys, I thought it was the canister but was not sure. Anyone know where its supposed to be mounted, cannot find any obvious spot for it???.

This is a greast site. Also found the FTG wreckers good, thats where I got the replacement headlight.

Thanks avro
Top
 Profile


Posted: Thu Jul 21, 2005 9:55 pm
Tyre Shredder
Offline
User avatar

Age: 51

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

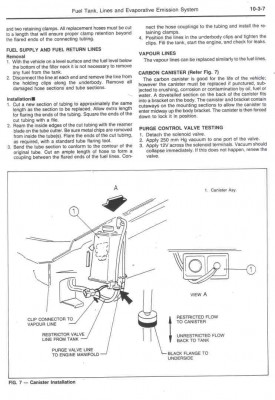

Here ya go!!!! :D





Attachments:
Canister.jpg [ 61.41 KiB | Viewed 75 times ]



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"

Top
 Profile


Posted: Thu Jul 21, 2005 11:58 pm
Fordmods Newbie
Offline

Posts: 9

Joined: 17th Jul 2005

Location: Broadford
VIC, Australia

Thanks again thats great. As I said, great site guys.

Thanks avro
Top
 Profile


Posted: Fri Jul 22, 2005 12:16 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Yeah, thats the CC alright.

Pull the indicator out and you can see the bracket it mounts to. Mine fell out as well!!



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Fri Jul 22, 2005 3:13 pm
Fordmods Newbie
Offline
User avatar

Age: 32

Posts: 17

Joined: 13th Nov 2004

Ride: EB XR8 sprint

Location: Geelong
VIC, Australia

Hey, I had to replace mine the other week, looks like the car was in an accident before I brought it.

If youve dislodged it from hitting it, make sure you check it for cracks/splits, mine managed to drop all the charcoal in it, dont know if it makes much of a difference, but its obviously there for a reason.



_________________

Oh my god!! Im a rage-o-holic... I cant live without rage-o-hol!! - Homer J Simpson

Top
 Profile


Posted: Fri Jul 22, 2005 3:32 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

yahuh - it is there for emission control ... which no doubt would affect your ECU if it were to fail...



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


Posted: Fri Jul 22, 2005 4:33 pm
Tyre Shredder
Offline
User avatar

Age: 51

Posts: 377

Joined: 22nd May 2005

Gallery: 7 images

Ride: NF Fairlane V8

Location: Melbourne
VIC, Australia

Quote:
yahuh - it is there for emission control ... which no doubt would affect your ECU if it were to fail...


Ahh right and wrong.. :D

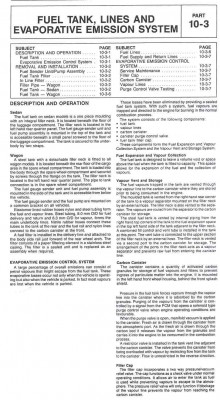

The canister purge valve is operated by the ECU but it takes no inputs from it, a vacuum leak in the system might cause bad idling but it's mainly there to vent fuel tank vapours and satisfy EPA reg's.

For a better explanation of it I attached Ford's description.. :shock:





Attachments:
EmissionSystem.jpg [ 118.84 KiB | Viewed 50 times ]



_________________

The TORQUE Monster project begins!

Pic's, details and all the yummy stuff:
http://www.fordmods.com/forums/viewtopic.php?t=22693

"There's no replacement for displacement!"
