 Post subject: $35 INTAKE MOD
Posted: Sun Sep 30, 2007 8:10 pm
Stock as a Rock
Offline
User avatar

Age: 42

Posts: 197

Joined: 5th Jun 2007

Gallery: 12 images

Ride: AUIII XR6 HP

Power: 137 rwkw

Location: sydney
NSW, Australia

Was looking into the ss induction kit, but for $350 +,decided to give it a crack myself. Got the 80mm flex pipe from autobarn for $25 and 90mm pvc pipe from bunnings for $10. Took 2 hours to complete. Cut an 80mm hole in the front of the airbox with a holesaw, fed the pipe into the front grille. Took the std outlet (55mm opening) off the back of the airbox and cut a 90mm hole for the pvc pipe fitted with 2 part epoxy. Partnered up with a K&N panel it revs much better up top end, ready for my new cam and exhaust upgrade.





Attachments:

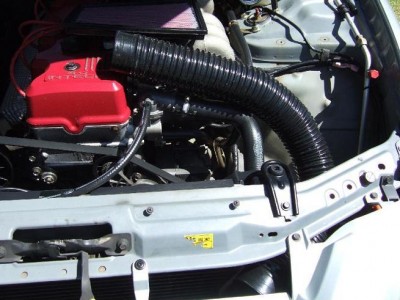

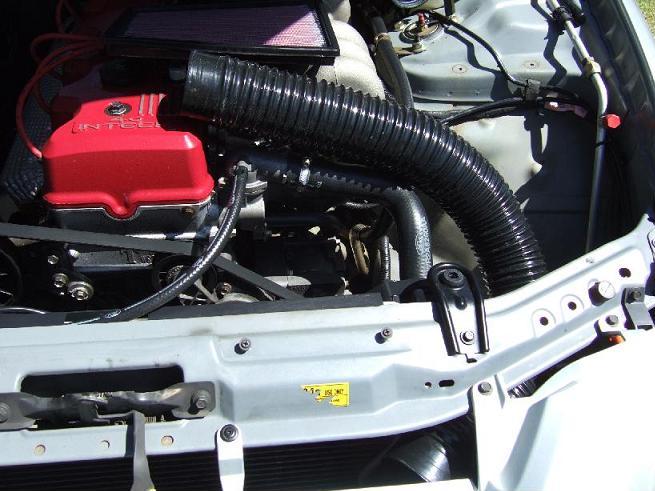

File comment: Pipe through the front next to radiator
airbox 1.JPG
airbox 1.JPG [ 56.43 KiB | Viewed 172 times ]

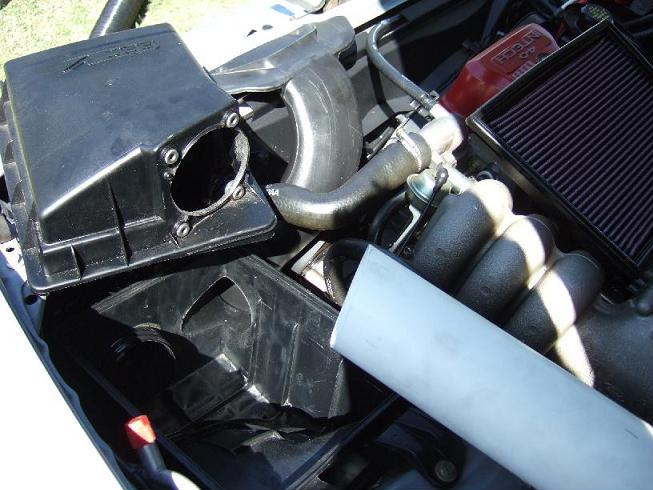

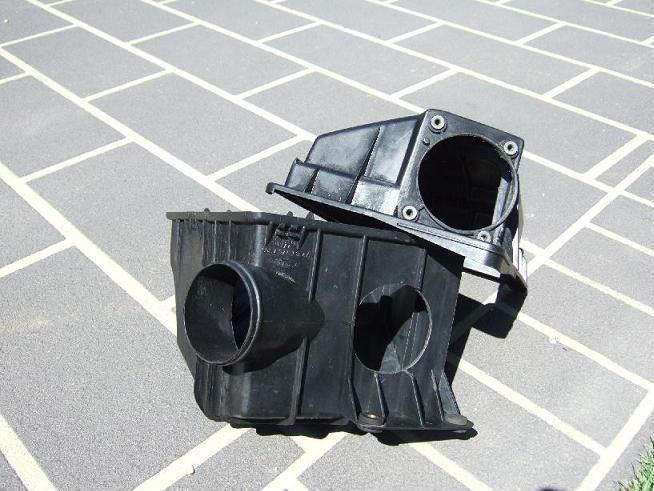

File comment: Modified airbox holes
airbox 2.JPG
airbox 2.JPG [ 55.86 KiB | Viewed 141 times ]
airbox 3.JPG
airbox 3.JPG [ 55.3 KiB | Viewed 151 times ]

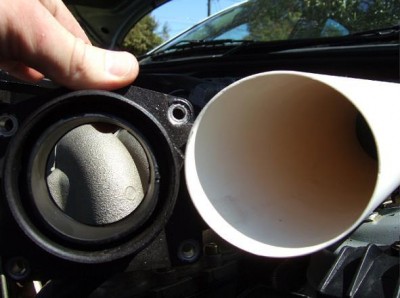

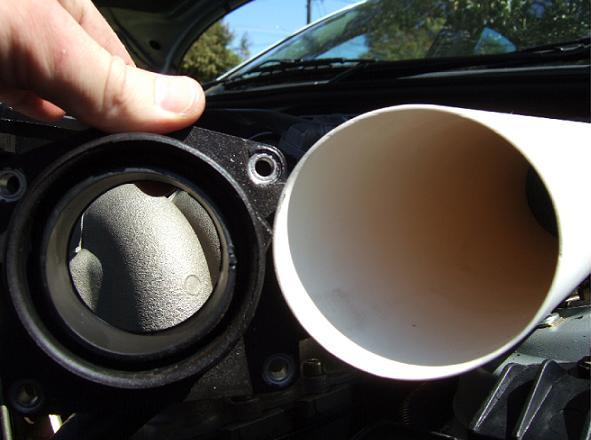

File comment: 55mm VS 85mm
airbox 4.JPG
airbox 4.JPG [ 33.65 KiB | Viewed 161 times ]

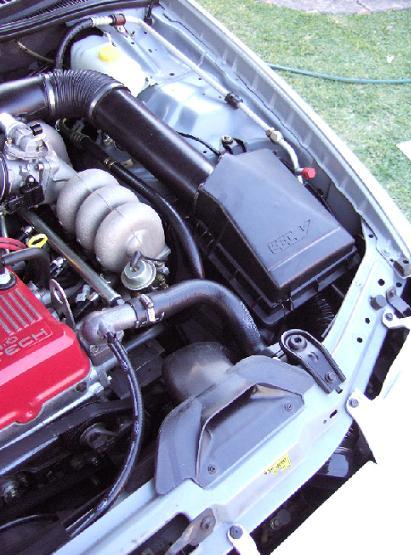

File comment: Finished product
airbox 5.JPG
airbox 5.JPG [ 50.84 KiB | Viewed 158 times ]



_________________

PACEMAKER 4480, SS H/F CAT, 2.5" REDBACK, INTAKE PIPING, K&N PANEL, PIONEER TV

Last edited by FORD4EVA on Sun Sep 30, 2007 8:20 pm, edited 1 time in total.

Top
 Profile


Posted: Sun Sep 30, 2007 8:14 pm
Fordmods Junkie
Offline
User avatar

Age: 45

Posts: 1000493

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

nice work dude!

got any pics?



_________________

RIP SCOTT

Top
 Profile


Posted: Sun Sep 30, 2007 8:35 pm
Getting Side Ways
Offline

Posts: 4967

Joined: 22nd Nov 2004

Location: FAR FAR AWAY LAND
QLD, Australia

$35 well done looks neat



_________________


Top
 Profile


Posted: Sun Sep 30, 2007 9:13 pm
Fordmods Junkie
Offline
User avatar

Age: 45

Posts: 1000493

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

hey now the pics work!

looking good there mate!

time for a dyno!



_________________

RIP SCOTT

Top
 Profile


Posted: Sun Sep 30, 2007 11:16 pm
Parts Gopher
Offline
User avatar

Age: 43

Posts: 77

Joined: 12th Aug 2007

Location: Melbourne
VIC, Australia

classy! Honestly, classy!!! Eat s**t to those who spent the $350!



_________________

Scattered cars, scattered women, scattered memory...

Thank god I've only got the last one!!!


Can't remember anything else = )

Top
 Profile


Posted: Mon Oct 01, 2007 12:38 am
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 7031

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Thats exactly how I did my AU air box! lol
Remember to keep an eye out on the PVC pipe over time mate. mine started to warped from the heat at the clamp end. leaving a gap for dust to get sucked in. ended up using 90mm mild steel pipe off cut I got from the local exhaust joint for nothing... cheap C***! lol

There was no way in hell I was going to spend over $300 dollars for a piece of plastic that most probably cost $20 dollars to manufactured.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Mon Oct 01, 2007 12:56 am
Stock as a Rock
Offline
User avatar

Age: 42

Posts: 197

Joined: 5th Jun 2007

Gallery: 12 images

Ride: AUIII XR6 HP

Power: 137 rwkw

Location: sydney
NSW, Australia

Was gunna go steel since i work in the industry but didnt want the heat transfer. We'll se how long it lasts first



_________________

PACEMAKER 4480, SS H/F CAT, 2.5" REDBACK, INTAKE PIPING, K&N PANEL, PIONEER TV

Top
 Profile


Posted: Mon Oct 01, 2007 1:00 am
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 7031

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

Nice & neat work mate. I think I over tighten the clamps, I think thats what caused it to warp.



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Mon Oct 01, 2007 9:50 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

and your still running the standard snorkel?
the more air the merrier!



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Mon Oct 01, 2007 10:27 am
Getting Side Ways
Offline

Age: 41

Posts: 1353

Joined: 15th Mar 2007

Gallery: 7 images

Ride: AU XR6

Power: 171 rwkw

Location: thornton
NSW, Australia

looks very much like the jmm intake kit that they do for about $190



_________________

9/98 AU1 XR6hp-about to retire from the road and be reborn on the race track.
86 ZL mint grandpa spec with premo sound and 150000km
07 TTG 60000km stock as, mods to come.
97 el futura about to be MOCKed

Top
 Profile


Posted: Mon Oct 01, 2007 11:30 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 525

Joined: 27th Jan 2007

Gallery: 3 images

Ride: AUII Ghia 75th LE, KF 1.8S 5spd

Location: S.E Burbz, Melbourne
VIC, Australia

good work,now you just need the ba bf intake pipe that goes to the intake man to give it a little easier flowin'. nice job though.gotta love cheap mods...



_________________

THE Fairmont Ghia : 75th Anniversary LE
Current Mods - 2.5" Exhaust, Custom CAI, Built Gearbox( Mirror Polished Casing+Bellhousing,TCE 2500 custom convertor, Modified Valve Body), Detailed UnderCarriage, SQ Stereo Install = 136+rwkw
http://www.aufalcon.com.au/sikford

Top
 Profile


Posted: Mon Oct 01, 2007 12:22 pm
Smokin em up
Offline

Age: 35

Posts: 252

Joined: 31st Mar 2006

Gallery: 1 images

Ride: EF Futura

Location: Melbourne
VIC, Australia

very nice... work with an ef?



_________________

Rehab is for quitters !

Top
 Profile


Posted: Mon Oct 01, 2007 12:32 pm
Getting Side Ways
Offline

Age: 55

Posts: 763

Joined: 5th Nov 2005

Ride: EF Fairmont

Location: oberon
NSW, Australia

A friend built a similar induction for his 5.0L ed and then got more gains by insulating the air box to keep out excess engine heat. The intake tempreture droped from 55deg to around 10deg.c and gave some very notable results.



_________________

ef fairmont ghia 5.0L
classy cruiser

Top
 Profile


Posted: Mon Oct 01, 2007 1:03 pm
Stock as a Rock
Offline
User avatar

Age: 42

Posts: 197

Joined: 5th Jun 2007

Gallery: 12 images

Ride: AUIII XR6 HP

Power: 137 rwkw

Location: sydney
NSW, Australia

Should work with any car. Was thinking of insulating complete intake system. Dont know what to use yet. Dont like ugly, when i do ill post it up.



_________________

PACEMAKER 4480, SS H/F CAT, 2.5" REDBACK, INTAKE PIPING, K&N PANEL, PIONEER TV

Top
 Profile


Posted: Mon Oct 01, 2007 2:49 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 557

Joined: 20th Aug 2006

Gallery: 4 images

Ride: EF

Location: Keilor, Melbourne
VIC, Australia

whats the biggest size pvc pipe you can fit in there without modifying bonnet.

I ask this as what if you were to get a bit smaller than the biggest u can fit, wrap insulating sheeting around it, stick that inside the big pvc, paint, install......wouldnt that work?



_________________

<img src="http://i29.photobucket.com/albums/c260/demoniquekryes/Bothcars1.jpg" alt="Photobucket - Video and Image Hosting"><br><br>
