38mm primary pipe extractors.



Page 2 of 2 [ 22 posts ] Go to page Previous  1, 2


 Post subject: Re: 38mm primary pipe extractors.
Posted: Tue Jul 06, 2010 4:43 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

uniacidz

U should get Chris from best mufflers to get ur 02 sensor positioned at the end of the collector



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: 38mm primary pipe extractors.
Posted: Tue Jul 06, 2010 5:03 pm
Getting Side Ways
Offline

Posts: 6113

Joined: 8th May 2007

what for?

if your other 3 cylinders are that different from the first 3, then theres something very wrong !!!
Top
 Profile


 Post subject: Re: 38mm primary pipe extractors.
Posted: Tue Jul 06, 2010 9:25 pm
Getting Side Ways
Offline

Age: 33

Posts: 584

Joined: 4th Apr 2010

Ride: AU falcon

Location: toongabbie
VIC, Australia

My o2 sensor only picks up 2 cylinders and the car runs fine, no need to have it way down.



_________________

Au factory 5sp, rolling on 20'z, full custom extractors, redback cat and back. has a new motors, only 27,000ks

Welcome to Toongabbie motorsports :P

Top
 Profile


 Post subject: Re: 38mm primary pipe extractors.
Posted: Tue Jul 06, 2010 9:40 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Yes it will run fine but do u see good tuners only getting a readout from half the cyclinders........

How does the ecu get a proper indication to make a adjustment with only a 3 cyclinder readout....



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: 38mm primary pipe extractors.
Posted: Tue Jul 06, 2010 11:36 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 4125

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

MICKYYYY wrote:
Yes it will run fine but do u see good tuners only getting a readout from half the cyclinders........

How does the ecu get a proper indication to make a adjustment with only a 3 cyclinder readout....


That's a question i have asked myself a few times. To be honest I am unsure of the answer.

Some race car's have an o2 in each cylinders pipe, but our road car's ecu's couldn't handle that. On my V8 falcon's i noticed there is one o2 sensor per bank/extractor, but they are sequentially injected iirc.

I wonder if the location matters on a car sequentially injected & not so much on a car with batch/bank injection?

I love the pic of the repainted extractors, they look like new! A job i should add to my ever growing list of "to do" lol.....

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: 38mm primary pipe extractors.
Posted: Wed Jul 07, 2010 12:19 am
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

ToranaGuy

02 sensor does make a big difference where its placed when ur doing fine tuning.

the 02 sensors u see on each cyclinder pipe is so they can trim each individual piston as say for example piston 1 likes 28* timing but piston 6 likes 30* timing as each cyclinder it a touch different to another.

On a bank/batch setup its not so important as long as the 02 sensor is located at the collector.

Good tuners will get u to go to an exhaust shop to install a bug before ur cat so they get a proper reading as its alot different when it comes from the tail pipe.



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: 38mm primary pipe extractors.
Posted: Wed Jul 07, 2010 1:26 am
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

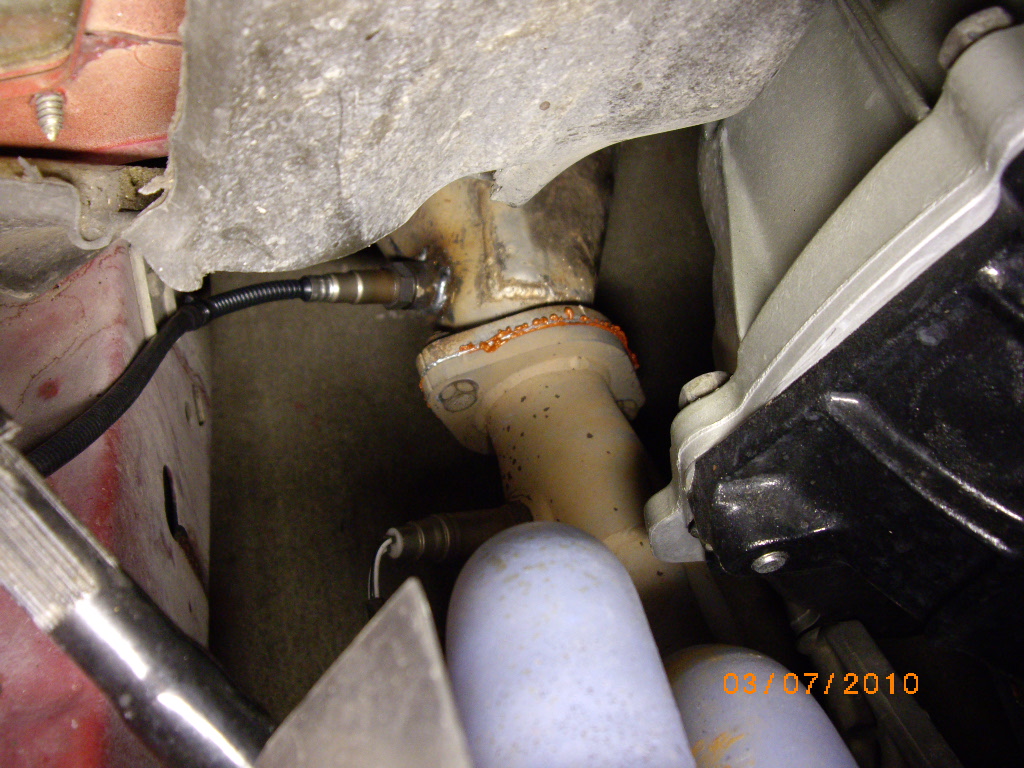

On the 4480's, the O2 sensor is at the main collector......I have since fitted a wideband sensor, so now have 2 fitted.





Attachments:
IMGP4808.JPG [ 362.77 KiB | Viewed 134 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
