A few T5 conversion queastions



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next


 Post subject: A few T5 conversion queastions
Posted: Sat Jan 06, 2007 3:03 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

hey hi y'all just finshed searcheing throuigh 66 pages on irrelevent information i am just after a few answers.....


1) With convert to manual do you need the manual crossmember??
(or will the Auto crossmember work)
2) Is it essentail to change the ecu??
(i own 4speed Eb 3.9 with that seperate TCM)
3) New Tailshaft?
(have read that 4 speed will work)
4) pedal box, need to change it?
(could i just get a clutch pedal and a bolt)
5) have i missed anything?

Things i know... i need a flywheel, clutch kit, clutch cable, various coloured wires for that nutral switch thingy. new centre bit for that console (not a prioty)



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sat Jan 06, 2007 3:28 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

u could weld a shaft on for the pedel box but alot more easy to get a manual one and bolt straight in . tailshaft use ure one. computer u can use just have to get some resitors to put in the line theres a doco in the doco thread about it
xmember should fit
will need to get spigot bearing

i did the conversion to my eb II bout 6 months ago .
Top
 Profile


Posted: Sat Jan 06, 2007 3:30 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

oh make sure u get the wiring loom with the box.
Top
 Profile


Posted: Sat Jan 06, 2007 8:28 pm
Stock as a Rock
Offline

Age: 33

Posts: 136

Joined: 9th Nov 2004

Ride: EA2 'Mont

Location: Warrnambool
VIC, Australia

4 speed shaft works fine

your ecu is the same as ea 4psd auto one, mine has never had issues running manual without a tcu connected; i think it's only in ISC controlling that is slightly different?

Get a new spigot bearing also

Crossmember - no need to change that, that I know of.

pedal box - you will need to pull dash to weld clutch pedal pin in so you may as well just get the pedalbox from a donor car (unless you can't find one?) (also if you do with auto pedalbox you will need to shorten the LHS of the brake pedal and get a manual pedal rubber that won't quite fit.)

will pay to reinforce the firewall area also (you may be able to do this on the pedalbox by welding on a peice at the back to sit flat on the firewall on the inside around where the clutch cable goes thru?) and also strengthen the area around the pedal pin this will stop the two main problems that happen.

Get a new clutch/clutch cable while you're at it and don't forget to get the flywheel machined before putting it in. This means you won't need to pull it all out again to fix something if you re-use second hand parts etc.

Most of all tho, have fun!
Top
 Profile


Posted: Sat Jan 06, 2007 10:06 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

cheers big ears:P yeah thanks alot for that you really gave me the answers i was looking for, just a queastion wwhy is it procedure to machine the flywheel????

if a purchase a clutch kit that is exactly that???? are there any aftermarket flywheels or is that not really cost effective.... so by the sounds of it a pedal box is the ideal thing to get.

thanks man... :)



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sun Jan 07, 2007 12:03 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

You can get a Mal Wood clutch pedal pin, and just bolt a clutch pedal straight up to your auto pedal box.

Tomorrow I'm going to post up a full guide with pics on how to do a Manual Conversion 8-)





Attachments:

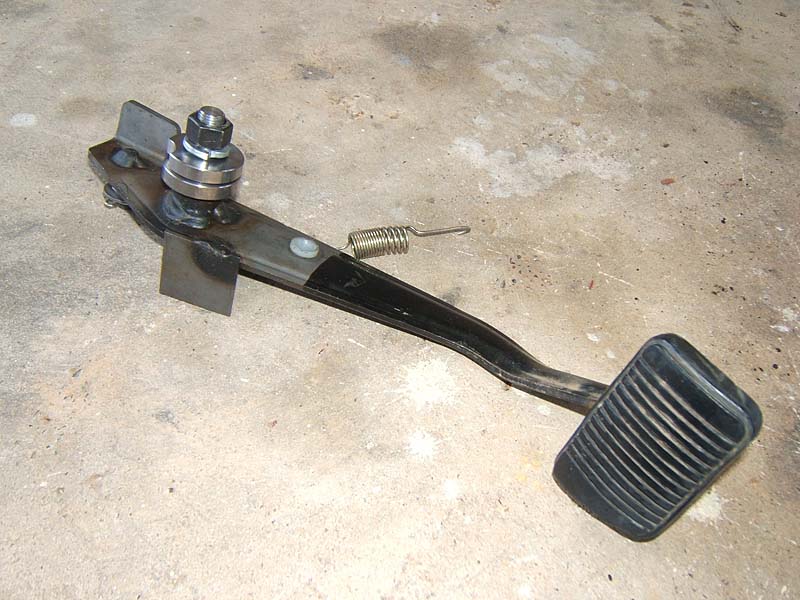

File comment: Mal Wood Pin & Clutch Pedal
ClutchPedal.jpg [ 112.56 KiB | Viewed 37 times ]



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sun Jan 07, 2007 8:06 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

voxace wrote:
You can get a Mal Wood clutch pedal pin, and just bolt a clutch pedal straight up to your auto pedal box.

Tomorrow I'm going to post up a full guide with pics on how to do a Manual Conversion 8-)
A point to note, although the Mal Wood pin makes the clutch pedal install easier it still suffers from the same problems as factory pin bending. The consensus on here has been use a new cable and keep it maintained. I would add only use a heavier clutch if you need one.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Jan 07, 2007 8:22 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Froudey wrote:
cheers big ears:P yeah thanks alot for that you really gave me the answers i was looking for, just a queastion wwhy is it procedure to machine the flywheel????

if a purchase a clutch kit that is exactly that???? are there any aftermarket flywheels or is that not really cost effective.... so by the sounds of it a pedal box is the ideal thing to get.

thanks man... :)
When you get a new clutch it will only come in a kit. There seems to be a rule that no one will honour a warranty claim against the clutch unless the flywheel is machined. The concept of machining the flywheel is to make the surface flat so the are no high spots which can cause lose of efficiency and localised overheating. The price is usually 25-45 dollars if you bring them the flywheel.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Jan 07, 2007 9:35 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

twason wrote:
voxace wrote:
You can get a Mal Wood clutch pedal pin, and just bolt a clutch pedal straight up to your auto pedal box.

Tomorrow I'm going to post up a full guide with pics on how to do a Manual Conversion 8-)
A point to note, although the Mal Wood pin makes the clutch pedal install easier it still suffers from the same problems as factory pin bending. The consensus on here has been use a new cable and keep it maintained. I would add only use a heavier clutch if you need one.


Yeah it's purely for ease of installation.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sun Jan 07, 2007 1:56 pm
Fordmods Junkie
Offline
User avatar

Posts: 3083

Joined: 22nd Sep 2005

Gallery: 13 images

Ride: EF

Location: Melbourne
VIC, Australia

voxace wrote:
You can get a Mal Wood clutch pedal pin, and just bolt a clutch pedal straight up to your auto pedal box.

Tomorrow I'm going to post up a full guide with pics on how to do a Manual Conversion 8-)


you are my hero :)

two questions...

its just a bolt on no welding?

emuchisit? (the malwood pin kit)?



_________________

latest mod: A Service
MY BUILD THREAD

Top
 Profile


Posted: Sun Jan 07, 2007 7:16 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Ahhh I think it's $85 from memory.

I'm almost finished the guide, just trying to sort out the electrical side of things.



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sun Jan 07, 2007 8:25 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

voxace wrote:
I'm almost finished the guide, just trying to sort out the electrical side of things.
I've got a doco I'd written pretty much covering the same - didn't finish the electrical side - I'd intended to cover EA - EL. Let me know if you want a copy, or need help with the electrical part.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Jan 07, 2007 10:53 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Thanks dude. I didn't realise there was another doco floating around.

But it's kind of an idiots guide to manual conversions. It's like 20 pages long with ALOT of photos.
I'm right with the electrical I think, just got some relo's here at the moment slowing me down :)

Cheers,
Dave



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Sun Jan 07, 2007 11:05 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

NP.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Mon Jan 08, 2007 6:31 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Here it is all done:
http://www.fordmods.com/forums/viewtopic.php?t=42420



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile
