Posted: Wed Jan 31, 2007 1:47 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 1339

Joined: 7th Nov 2004

Gallery: 3 images

Ride: FGX G6ET

Location: Worrigee
NSW, Australia

The "greasy crap" in that picture is the U shaped rubber seal and it has old sealant in the ends....you will need to clear it all out, put the new seal in and put sealant on the ends of the rubber seal. Gregories shows you how (from memory).
Top
 Profile


Posted: Wed Jan 31, 2007 3:50 pm
Smokin em up
Offline

Age: 51

Posts: 270

Joined: 11th Mar 2006

Gallery: 6 images

Ride: ef sedan

Location: brisbane
QLD, Australia

hi mate ..

have you given UMR a call ..there at moss st ..ph=3299 1118..
they do good head work ..

can you PM me your addy ..i might pop around if thats ok ..

dave ..



_________________


Top
 Profile


Posted: Wed Jan 31, 2007 6:01 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

Till_Lind wrote:
Okay, so how many welsh plugs should I do? And what tool do you need to remove them?


Is there anything wrong with them? or you just doing them because the heads off? their the things on te side of the block that hold the coolant in. if your going to do them, may aswell do as many as you can, if they seem ok and you cant be stuffed leave them.

If you want to do them, get a screw drivers and put it near the top of the indent in the plug, and hit it with a hammer, it will turn on its side, then use pliers to pull them out, with the new ones, you can put a little sealant on them, find a socket the same size as the outer rim, place the welshplug flat and level with its slot, put the socket on it and hit it in with a hammer until its level.

Quote:
Are Motorcraft sparkplugs okay?


Yes, motorcraft is genuine ford parts.

Quote:
And what is the type of sealant I use on the front of the block when I put the new head gasket on?


that is what that tiny rubber gasket in your gasket set was for, the black one i think it was, about 30cm long. you can also put a little gasket goo around it too.

Quote:
In this picture, there is alot of greasy crap in the boxed around and around that bolt that screws into the block. What's the go yo?


that greasy crap is probably just grease buildup from the powersteering. itll flick little bits around if theres a small leak or something. just get some degreaser onto it and give it a scrub, itll come off. thats the timing chain tensioner, pull that out, reassemble and remember to put it back in properly when you put the cam sprocket back on.


Quote:
Also looks like this in the plenum champer, thin layer of crispy black crap. Is this a concern?


its just carbon/oil build up from the breathers in the rocker cover. small amounts of oil and carbon end up back int he intake and get burnt the 2nd time around, doing no harm, but if you want spray some degreaser or throttle body cleaner down there, just remeber to give it a good rinse out.


Quote:
And lastly the right hand side of the block is very dirty/greasy, while the left is relatively okay. Could this be because there was black marks under the plenum champer where it joins to the head? Or is it the welsh plugs?


welsh plugs leak coolant. the oil will probably just be from minor oil seeps from various locations. ford = oily block is a happy block :lol: once again just more the BBM over a bit more, hit the block with some degreaser and a light scrub and wash it down after to clean it up.


hope i got everything :D


[/quote]



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Wed Jan 31, 2007 7:28 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Thanks lads, and thank Gaz, good post there mate.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Wed Jan 31, 2007 8:10 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Just before I attack the block with a wire brush on a drill, just want confirmation.

I am fine not to fill the coolant galleries with rag pieces?

I am fine not to fill with rags the holes where the head bolts will screw in to?

Anything else?



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Wed Jan 31, 2007 8:13 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

as long as you have compressed air to blow out the head bolt holes.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Wed Jan 31, 2007 8:23 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

We have a garden blower thing? lol.

Also how do I get the old coolant out of the block, and how do I get the old oil out of the block?



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Wed Jan 31, 2007 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

you need compressed air as in an air compressor.
getting grit and dirt out of the head bolt holes is a must!

do not worry too much about the coolant holes.

with the oil, leave the old oil in the car until the heads back on. that way some of the dust will exit via the sump plug.
when you put new oil in it and get it running, after around an hour worth of idling/driving change the oil again. well thats what i did.

with the coolant, a good way is to put a stocking over the top radiator hole then slide the hose over it. the idea is to catch the crap that would otherwise be swept into the radiator.
also have the thermostat out so it don't get clogged up.
once you drain the coolant after it's been running, remove the stocking (with all teh gunk too), put your new thermostat in and fill the cooling system back up.
problem solvered.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Wed Jan 31, 2007 9:02 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Thanks smoke. I guess you can hire air compressors anyway.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Wed Jan 31, 2007 11:45 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

you can get air compressors with accessories for $100-200.

Thats the left hand side of the block not right....Drivers side is right and passenger is left...its like grabbing ur womans tits....in ur right hand is her left tit not right tit. Hard to understand but thats how it works.

Use razor blades for the block to get it smooth. It works well. Remember the head gaskit is think so it gives a little bit but not tooo much.



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Thu Feb 01, 2007 8:44 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Just put the head bolts back in the holes and work around them.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Thu Feb 01, 2007 12:16 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Just dropped the head off to be pressure tested, little grind on the bottom and a clean and the radiator to be cleaned out.

I remember cleaning this plug is a good idea, if yes, how do I clean it?

And here's just a progress picture on cleaning the block.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Thu Feb 01, 2007 2:15 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Okay, here's some high resolution attachments.

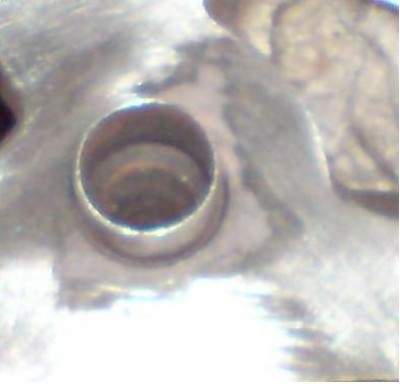

First there's this indicator/guide on the right back of the block that I can't use the drill with wire attachment on. Will steel wool take care of it?

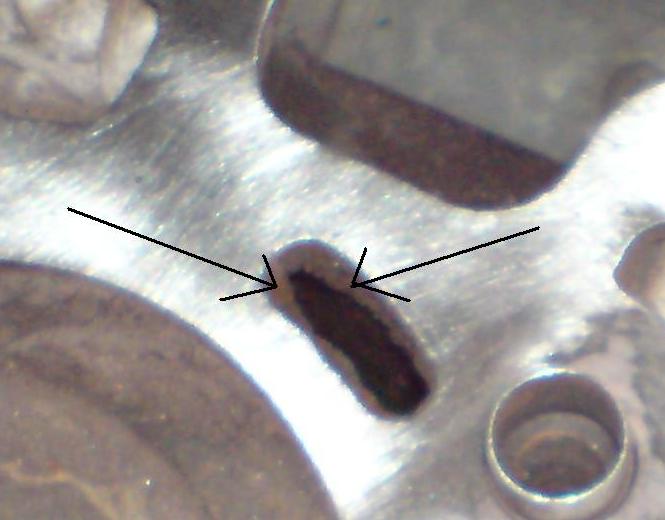

Next is you can see the coolant galleries have some build up at the top, should I get rid of that, push it down into the gallery? It's pretty tough stuff.

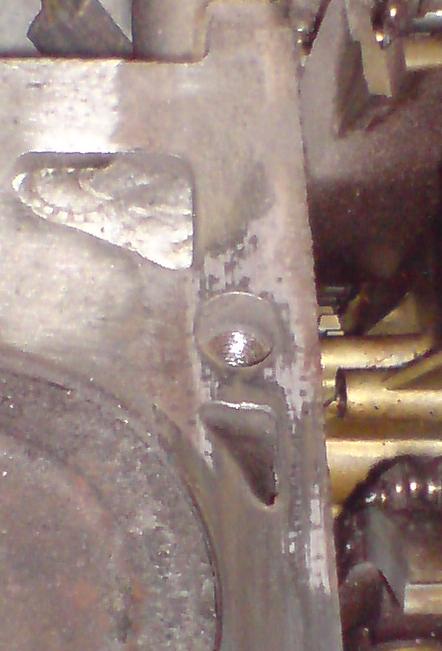

Last is just some more build up down the front of the block, can't squease the drill/wire brush in there. Will steel wool get rid of this crap, or should I try harder?

Finally, when I get it all off, what ensemble of equipment should I use to get the block crystal clean, and ready for the head? What sort of rubbing material, and what chemicals?

Also what do to about the piston, how should I remove the buildup on them, and what do I use to clean them once I get the build up off?





Attachments:
03.JPG [ 13.41 KiB | Viewed 14 times ]
02.JPG [ 33.89 KiB | Viewed 17 times ]
01.JPG [ 35.79 KiB | Viewed 16 times ]



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Thu Feb 01, 2007 3:07 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

The guides should pull out.

I wouldn't worry too much about the buildup in the coolant galleries.

Try some fine emery paper wrapped around a block of wood to clean away the buildup at the front of the block.

I also would worry about cleaning the block down now. As long as all the mating surfaces are clean the entire engine can be steam cleaned or degreased later once it is re-assembled.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Thu Feb 01, 2007 3:19 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Pull outyou say, lol, hmmm. I'll give it a try, but don't like my chances.

Just to review questions.

What chemical and cleaning utensil do I use on the block?

And ditto for the pistons?



_________________

E39 523i
EF Fairmont

Top
