Adam's headgasket thread.



Page 6 of 18 [ 269 posts ] Go to page Previous  1 ... 3, 4, 5, 6, 7, 8, 9 ... 18  Next


Posted: Tue Jan 16, 2007 7:31 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Yeah mate, getting it flushed, radiator is out.

So I have to basically have that indicator on the front of the engine, spot on with the mark on that pulley?

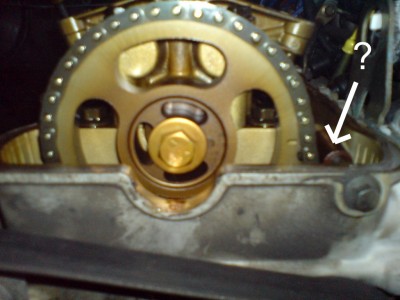

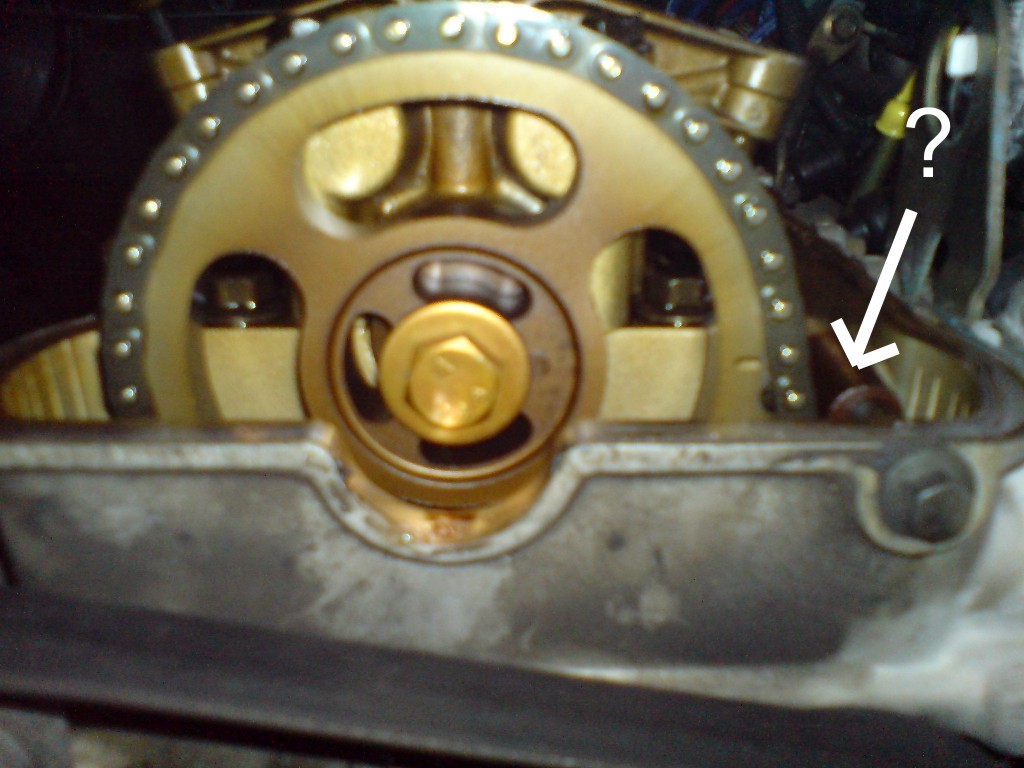

Do I cable tie to this thing here? (see picture)





Attachments:
cabletie.jpg [ 147.6 KiB | Viewed 80 times ]



_________________

E39 523i
EF Fairmont

Last edited by Rick_Deckard on Tue Jan 16, 2007 7:36 pm, edited 1 time in total.

Top
 Profile


Posted: Tue Jan 16, 2007 7:34 pm
Getting Side Ways
Offline

Age: 37

Posts: 3894

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

yep.

well you dont have to.

can have it where ever you want as long as the timing chain doesnt skip any teeth.

you just set it to TDC so that if you do loose the cam gear, or skip a tooth, you know its at TDC and can go from there.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Tue Jan 16, 2007 8:03 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

no the arrow is pointing to the chain guide which you don't need to cable tie, just as long as your chain dosent slip.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Tue Jan 16, 2007 8:18 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

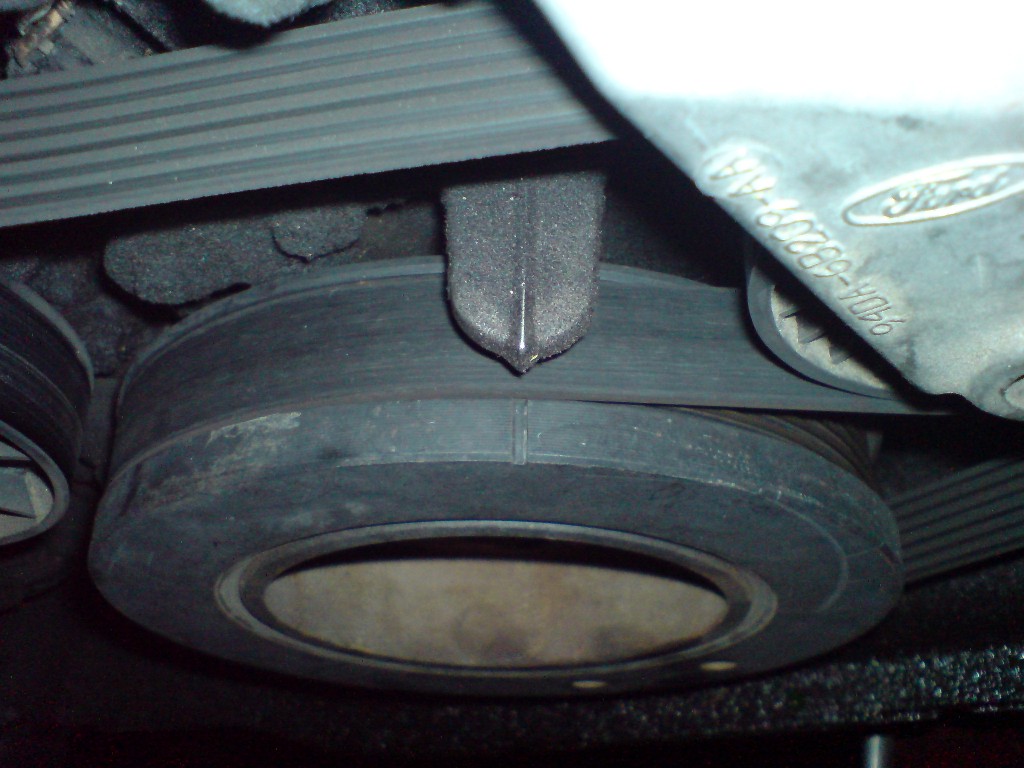

Okay, doesn't show int he picture, but I basically have the indicator and point spot on, now.

Which bolts will let me get that gear out?

How does the mark in the timing chain pulley look?





Attachments:
03.jpg [ 137.33 KiB | Viewed 122 times ]
02.jpg [ 219.87 KiB | Viewed 111 times ]
01.jpg [ 146.02 KiB | Viewed 107 times ]



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Jan 16, 2007 8:24 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

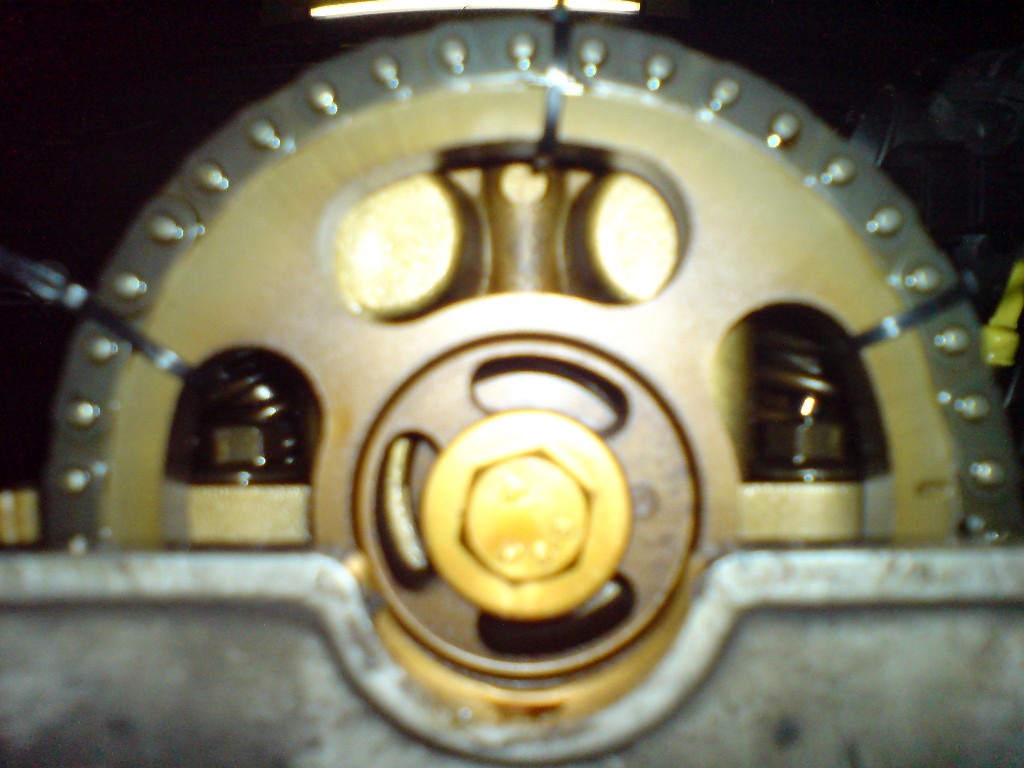

pic 1 looks good.

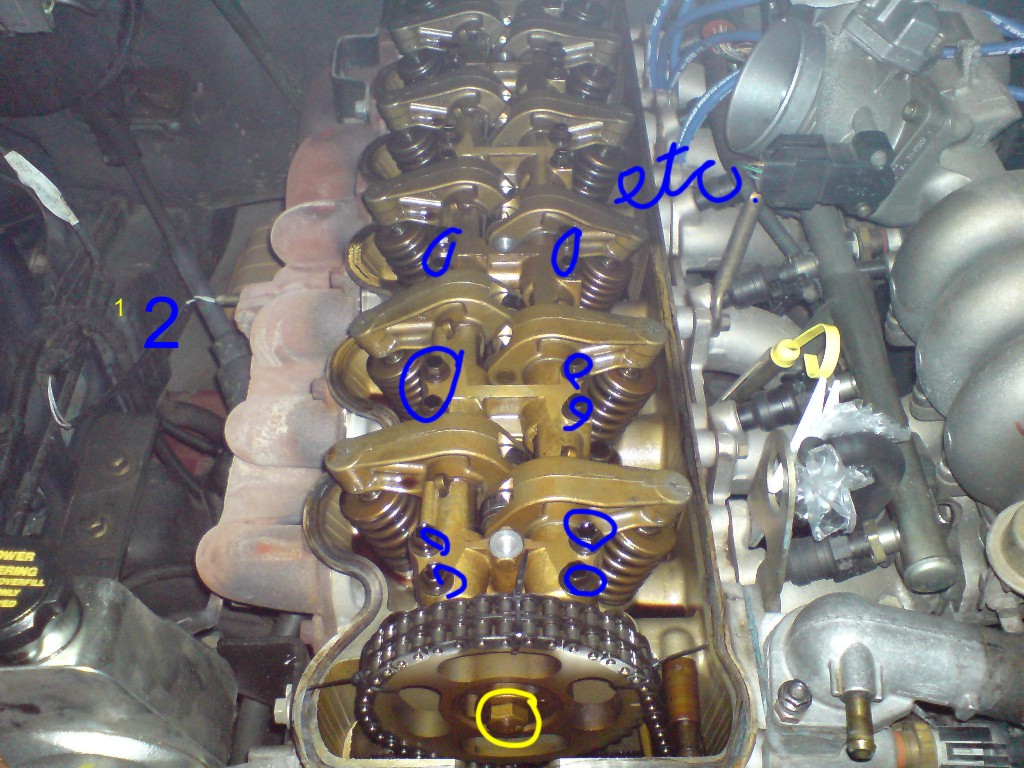

pic 2 you need to remove the yellow circled bolt as it's holding the gear onto the camshaft. you won't need to remove the blue bolts unless your gonna throw a cam in it.
pic 3 looks good too.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Tue Jan 16, 2007 8:39 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Thanks mate.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Jan 16, 2007 9:05 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Okay, tried removing that bolt, no go. It actually ended up turning the timing chain pulley a little (I'm guessing anti-clockwise is how to get it off, right?). Now the indicators aren't lined up, is this a problem? Should I realign the indicators (everything is cable tied up).

Do I need to remove the tenstion on the timing chain to remove that bolt?

Cheers.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Jan 16, 2007 9:27 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 577

Joined: 5th Nov 2004

Ride: EF

Location: Wodonga
VIC, Australia

You wont need to remove the tensioner to remove the bolt, but it will make life a hell of a lot easier to remove it when you try to put the cam gear back on.
Wedge a screw driver through the cam gear to stop it turning.. Anti clockwise is right..

I wouldn't worry about to much about the mark just yet, Just make sure it all lines up when you put it back together..

Good luck..
Top
 Profile


Posted: Tue Jan 16, 2007 9:28 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Crap, well out I go again, thanks, lol.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Tue Jan 16, 2007 9:35 pm
Parts Gopher
Offline

Age: 38

Posts: 64

Joined: 15th May 2005

Gallery: 1 images

Location: bundaberg
QLD, Australia

get a good socket and longest breaker bar/drive and shock the bolt anticlockwise by apply presure anticlockwise and then hitting end of drive with a hammer this usually gets it off. once off just oull the gear off cam and let it sit there.

dont forget to remove the 10mm bolt that runs through the guide on the front of the head, :P:P i have once b4
Top
 Profile


Posted: Tue Jan 16, 2007 9:46 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

yeh either wedge a screw driver between the gear and the head or use a rattle gun to undo it.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Tue Jan 16, 2007 9:51 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Crap, I have a 14mm impact socket, but my wrench isn't big enough to fit, lol. Off to repco again tomorrow I guess.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Wed Jan 17, 2007 7:49 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

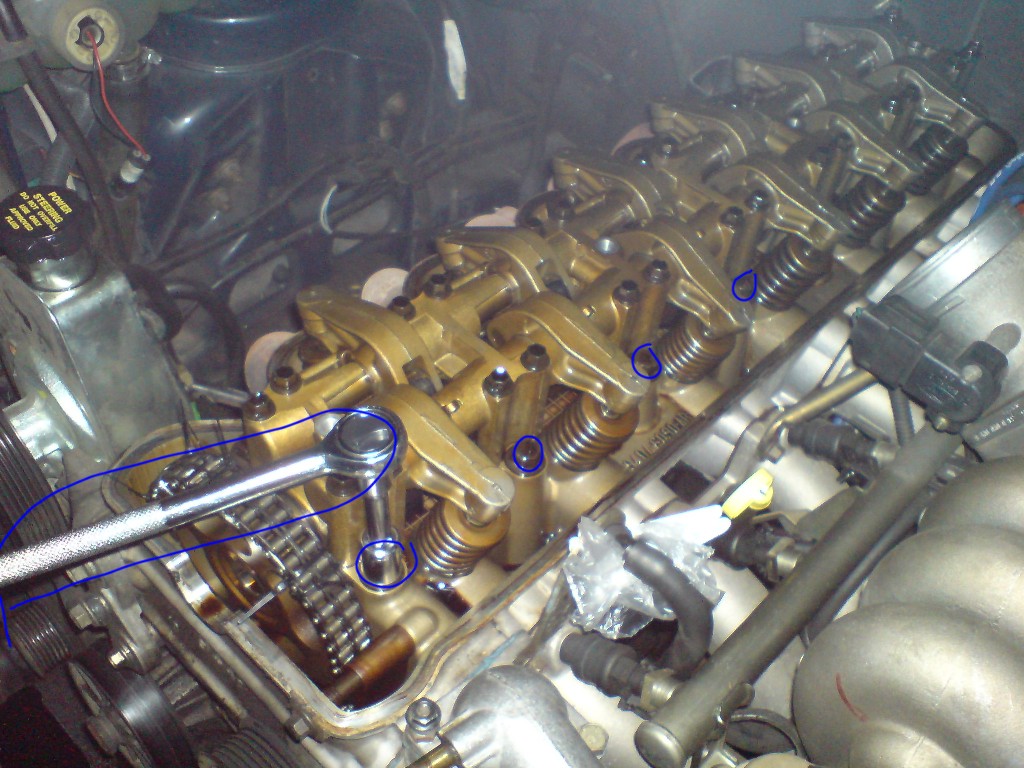

Okay, hit a speed bump. I can't get these bolts of, as per the picture. I'm using what you can see on bolt 14. Should I get an extension or something?





Attachments:
stuck.jpg [ 205.41 KiB | Viewed 117 times ]



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Wed Jan 17, 2007 8:37 pm
Fordmods Addict
Offline
User avatar

Age: 38

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

lol, yes, your going to need a breaker bar, or be dodgy and slide a pipe over the end of your ratchet to get extra leverage.
Gonna be reeaaaaal hard getting headbolts off with that much leverage!



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Wed Jan 17, 2007 8:46 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Lol, talk about it, I was worried it would give and I would rip my fingers to shred with the amount of force I was putting into it.
