 Post subject: AHHHHH Hoses and pipes...
Posted: Tue Jan 01, 2008 10:24 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Hi again folks,

I just got the ED motor into my EA, went in surprisingly easily.

Unfortunately, I didn't disconnect the hoses on the pass side rear of the motor... my father was over visiting from QLD and he was disconnecting everything from that side while I worked on the other side and the engine mounts etc.... so when it came to taking my old motor out... we just sorta did the same thing.. problem is that now he has returned to QLD and I haven't a clue where some of these hoses go.

1. Coming out from behind the washer bottle are three hard 5mm plastic hosts, one green, one short black and one long black... dunno where they go other than probably vacuum feed for the interior. (but where to pickup from?)

2. Under intake manifold is two heater type hoses.. one of them has a vacuum solenoid on it.. (guessing that one is the heater). There is another long one, which I first thought was the other heater one... but then noticed a metal pipe from the cooling system sticking out between the rear intake manifold pipes... so which ones are the heater hoses and where does the 3rd one go? (really wish I'd taken before photos now, I assumed my Max Elleries manual would cover it, but it doesn't seem to.)

Do we have any docs here for where to hook this stuff up?

any help, most appreciated..


rgds

Franki
perth WA
Top
 Profile


Posted: Wed Jan 02, 2008 2:51 am
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

Franki,
I can take a few pix later today of the vacuum and heater hose setup for you, can't do anything until it's daylight. LOL
A few of pix of your para 2 problem hoses would help as your description could even be vacuum or PCV hoses.
Paul



_________________

What goes around, comes around.

Top
 Profile


 Post subject: getting there.
Posted: Wed Jan 02, 2008 4:05 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

Hi Paul,

I have sorted out the fuel line/return.. couldn't tell which was which, then noticed the filter inline on one of them.. so thats sorted.

Figured the heater out too, one of the pipes is steel and goes round to the water pump, that one goes to the heater core pipe closest to the passenger door... the other is the one with vacuum tap in it. So fuel and heater are correct... Really all that I need to figure out, are the three small hard stiff plastic hoses coming from the other side of the firewall behind the window washer bottle.

Oh, and to verify that the brake booster gets its vacuum from the biggest inlet on the vacuum tree at the firewall end of the intake manifold. Also the hose that is on the top/back of the tappet cover.. is that the one that goes right to the front of the intake manifold right near where the air filter attaches? I'm assuming it's to make sure any excess crankcase gases are fed back into the intake?

Once I have those sorted, I'll be laughing.

I'm dying to get this thing fired up.. see how it goes.. then do the cam, then the extractors/exhaust.. and so on... the 3.9 was pretty gutless down low.. I'm hoping the new motor remedies that.. though I suspect I'll probably need to change the diff ratio.

many thanks


rgds

Frank
Top
 Profile


Posted: Wed Jan 02, 2008 3:51 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

no luck paul?

I think one of the hoses in question goes to the heater from the control... just not sure which one.

I guess trial and error will have to be the go.... they are only vacuum hoses for in car controls.
Top
 Profile


Posted: Wed Jan 02, 2008 8:02 pm
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

Sorry Frankie, long day away from home.
You've got it right so far.
The green vac line joins a small black line with joiner in it an goes to the heater tap.
The large line on the tree is to the vacuum booster.
The black line from the firewall is to the tree [serves the heater via the cabin]
The 3rd vac line on the tree is from the fuel reg.
The large line from the rear of the rocker cover does go towards the front of the manifold.
The medium sized black vac line runs fron the inner side of the manifold to the MAP sensor on the firewall

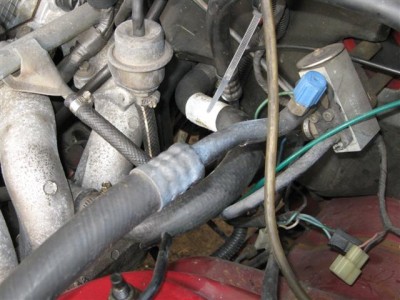

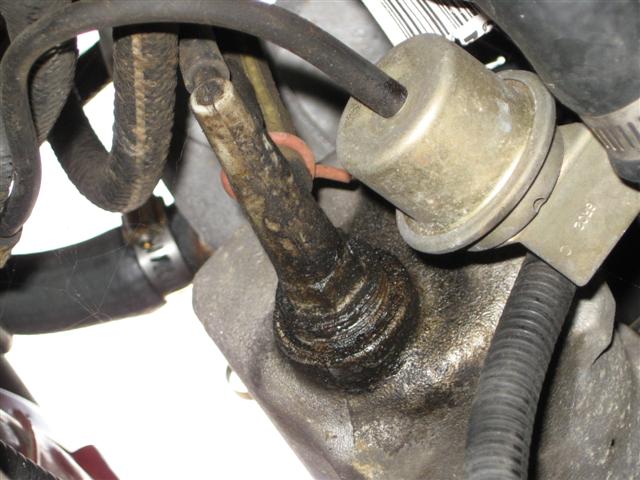

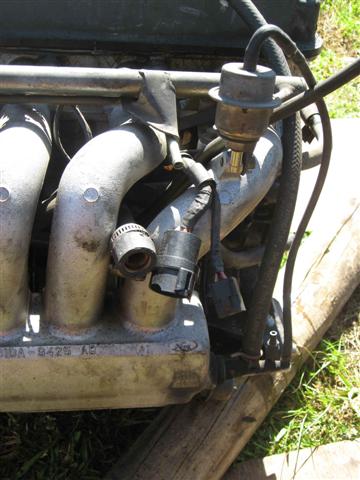

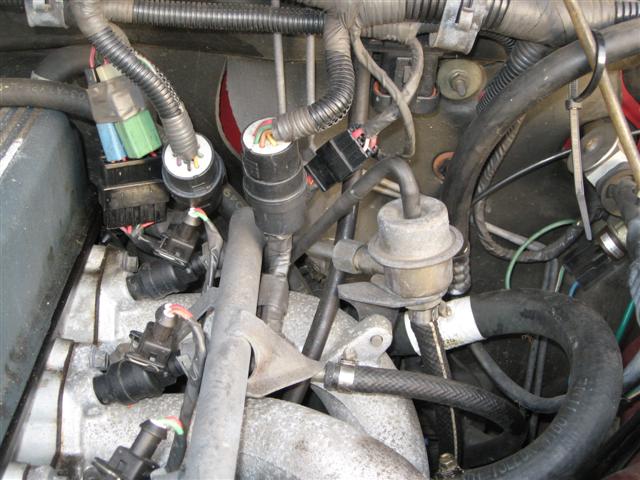

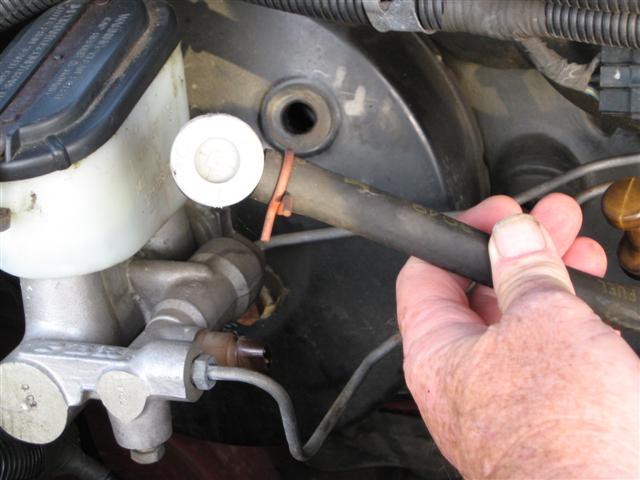

I've just got home and haven't had time to edit these pics with text or arrows, so have a look at them and if you need more explanation either PM me or post here.
Off for a feed and shower now,
Cheers
Paul





Attachments:
IMG_0393 (Small).jpg
IMG_0393 (Small).jpg [ 55.49 KiB | Viewed 49 times ]
IMG_0395 (Small).jpg
IMG_0395 (Small).jpg [ 64.23 KiB | Viewed 57 times ]
IMG_0396 (Small).jpg
IMG_0396 (Small).jpg [ 63.1 KiB | Viewed 65 times ]
IMG_0397 (Small).jpg
IMG_0397 (Small).jpg [ 45.54 KiB | Viewed 59 times ]
IMG_0137 (Small).jpg
IMG_0137 (Small).jpg [ 40.05 KiB | Viewed 55 times ]



_________________

What goes around, comes around.

Top
 Profile


Posted: Wed Jan 02, 2008 8:04 pm
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

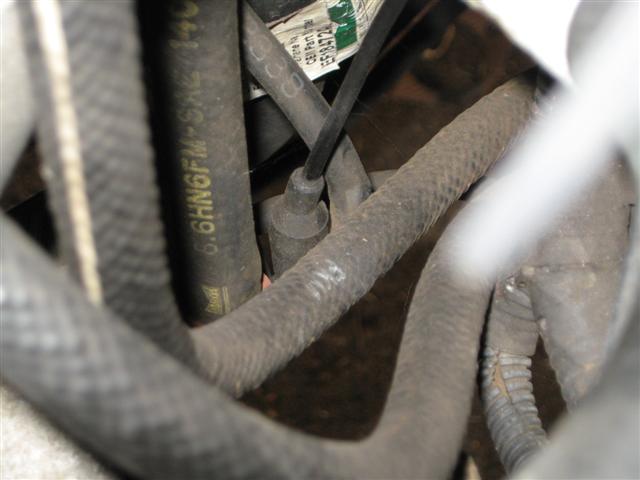

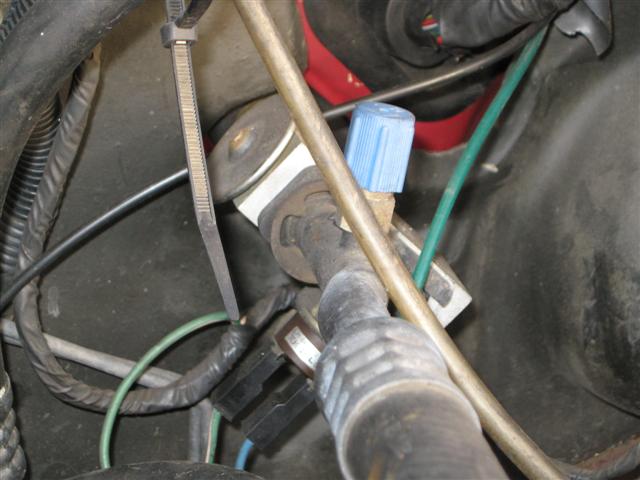

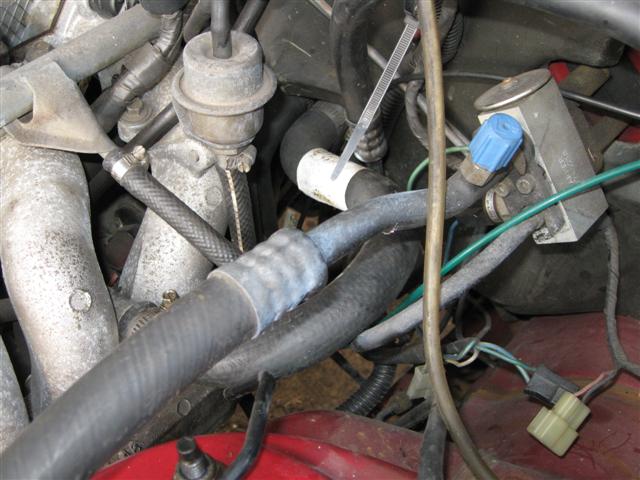

More pix
Paul





Attachments:
IMG_0390 (Small).jpg
IMG_0390 (Small).jpg [ 57.95 KiB | Viewed 55 times ]
IMG_0391 (Small).jpg
IMG_0391 (Small).jpg [ 36.84 KiB | Viewed 49 times ]
IMG_0392 (Small).jpg
IMG_0392 (Small).jpg [ 46.96 KiB | Viewed 51 times ]



_________________

What goes around, comes around.

Top
 Profile


Posted: Wed Jan 02, 2008 10:30 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

That has helped heaps Paul... even sorted out one hose I didn't know about till I saw the photo...

just the short 4mm hard one to figure out..

thanks heaps..

rgds

Franki
Top
 Profile


Posted: Thu Jan 03, 2008 9:20 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1966

Joined: 13th Aug 2005

Ride: 2000 Au wagon

Location: some where in nsw
NSW, Australia

there is a black hose that just sits in the engine bay to look pretty,,



_________________


Top
 Profile


Posted: Thu Jan 03, 2008 9:23 am
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

That isnt the one to the MAP Sensor is it?
Top
 Profile


Posted: Thu Jan 03, 2008 12:47 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

I don't think the hose that is left is "engine" related at all..

It's a tiny hard plastic vacume hose that leads back into the dash.


Someone has dumped a fairlane down the street (looks like it's been joyridden) I might have a look at that one. :-)
Top
 Profile


Posted: Thu Jan 03, 2008 12:51 pm
Getting Side Ways
Offline

Posts: 2448

Joined: 5th Nov 2004

Gallery: 7 images

Location: Brisbane
QLD, Australia

OK.

That sounds like either 1. Vacuum - to the dash to operate the Air Controls, or 2. The Vacuum feed to switch off the water when Cool is selected (heater tap).
Top
 Profile


Posted: Thu Jan 03, 2008 1:00 pm
Getting Side Ways
Offline

Age: 70

Posts: 657

Joined: 24th Sep 2007

Gallery: 10 images

Location: Central Coast
NSW, Australia

The vac hose from the dash to the water tap is the green one, w/joiner into short black hose at the tap.
The long thin black line from the dash goes to the tree. The fuel reg. hose goes to the tree.
Take out the washer bottle and make sure the cruise control and water lines are accounted for?
Franki, any chance of a pic to show us exactly what hose we're talking about.
Paul



_________________

What goes around, comes around.

Top
 Profile


 Post subject: Photo
Posted: Thu Jan 03, 2008 10:09 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

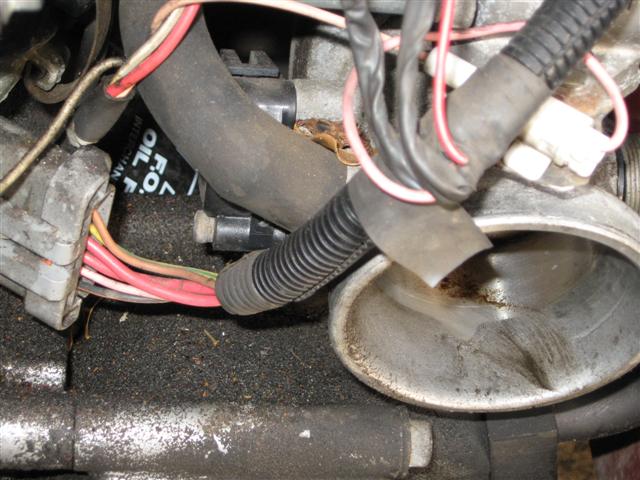

Here ya go... one photo..


I didn't shink it down to much so it shows detail..

The stumpy unconnected one is the one to which I am referring.


any ideas?


rgds

Frank
Top
 Profile


Posted: Thu Jan 03, 2008 10:32 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1966

Joined: 13th Aug 2005

Ride: 2000 Au wagon

Location: some where in nsw
NSW, Australia

it don't go anywhere,,it just sits there and looks pretty,,my ea has the same setup.



_________________


Top
 Profile


Posted: Thu Jan 03, 2008 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 3440

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

OK, fair nuff...

I was paranoid, because my heater has never worked properly...

When I had the engine out, I checked the heater core and gave it a flush.... no problems there... and the fan inside works fine... so assumed that I needed vacuum somewhere to open some flap/solenoid or something to allow air to flow though the heater core...

will see what happens I guess... no point stressing about a problem if it isn't there anymore. :-)

WooooHoooo... I just picked up some Genie extractors and a 16 inch Thermo fan for a grand total of $220.... I'm stoked!!!
Top
 Profile
