Another head to port & polish 94AB



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next

Post New Topic Post Reply  Previous topic Next topic

cjh
 Post subject: Another head to port & polish 94AB
Posted: Wed Oct 31, 2007 10:37 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

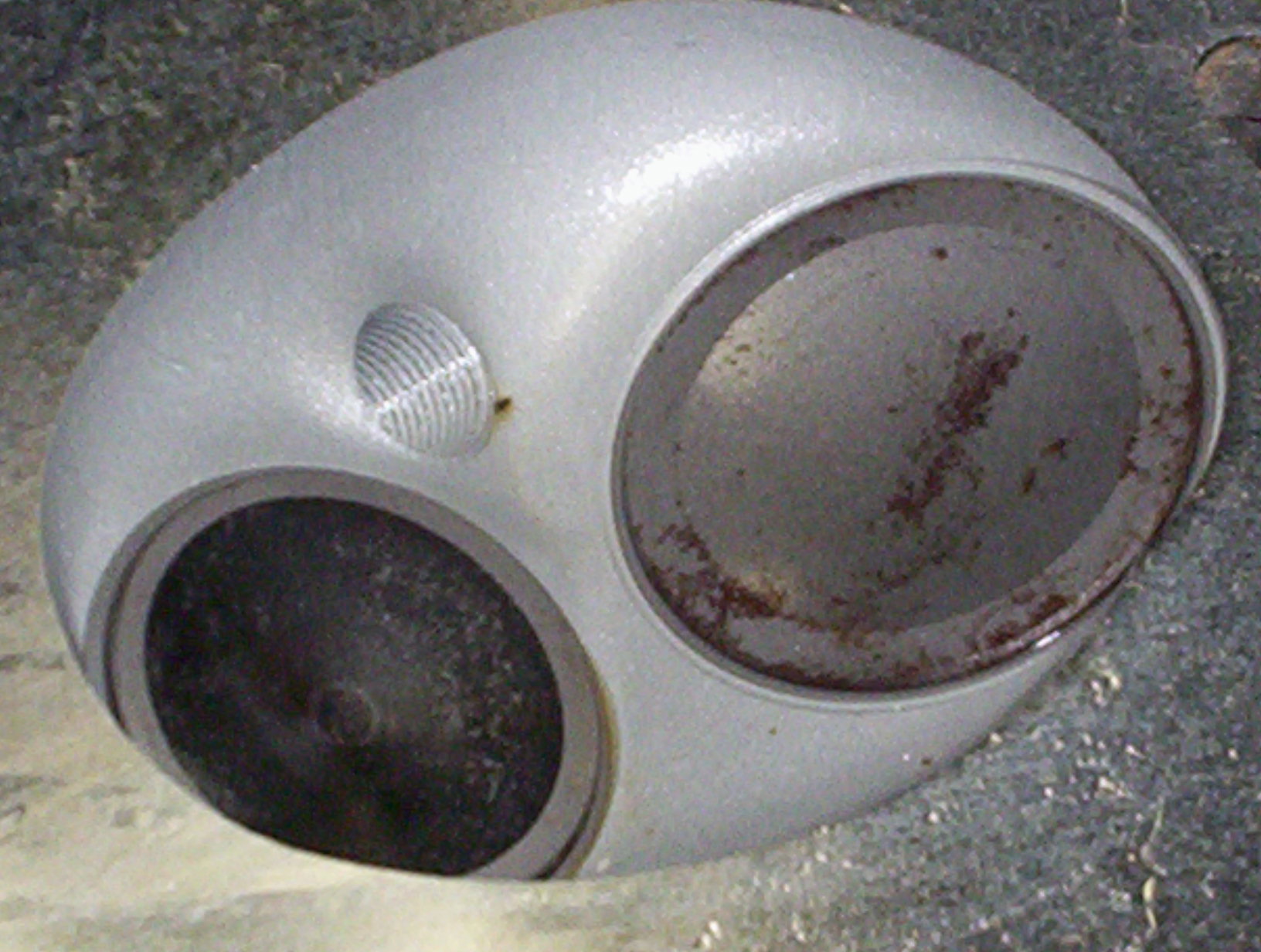

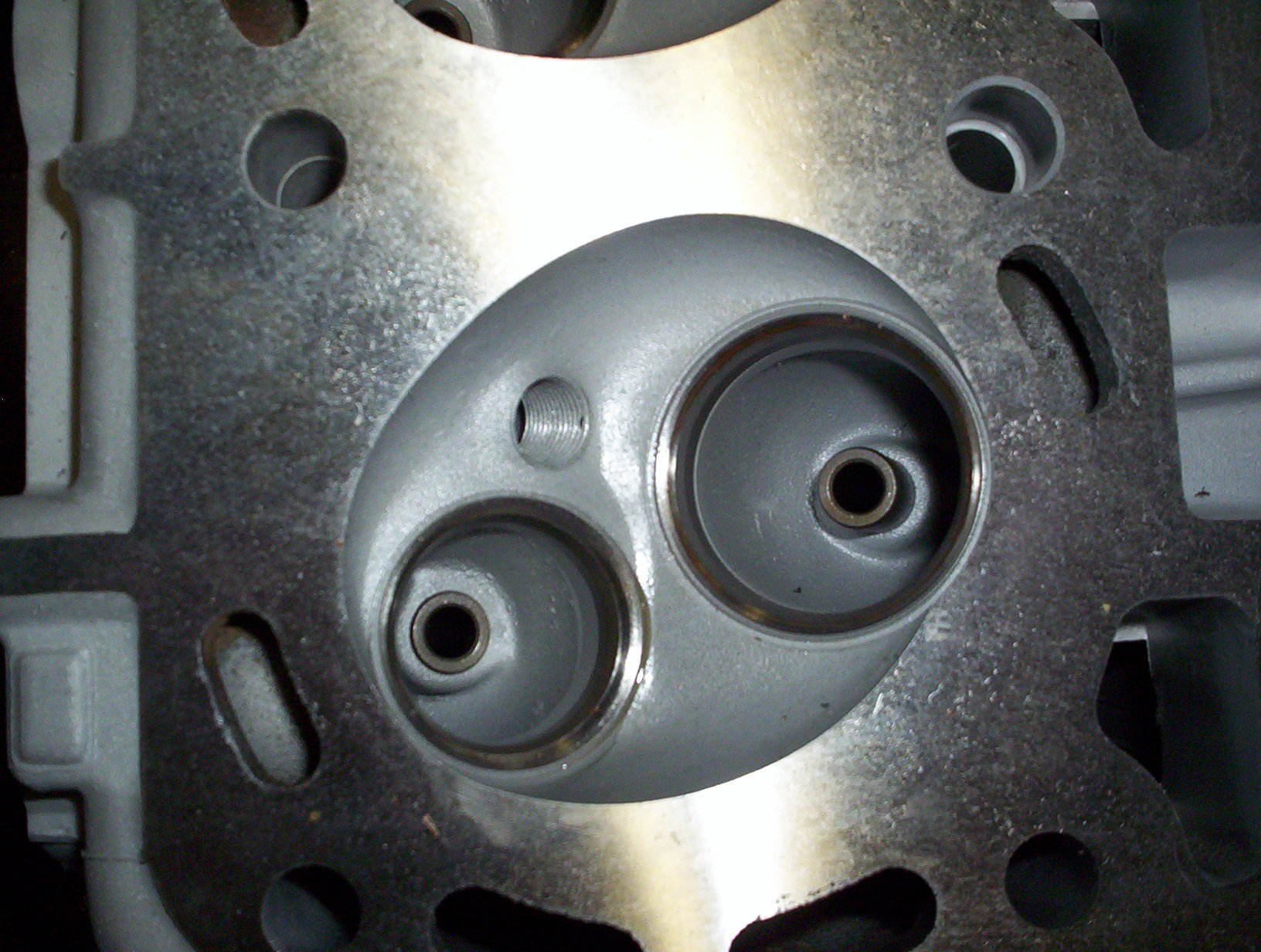

Well, now that my previous head is my car now, I gotta do another head. This one is an EF unit, 94AB, had it sitting out on the veranda for a couple of years, so now its up for a bit of work for my new engine. I'm just about to start.

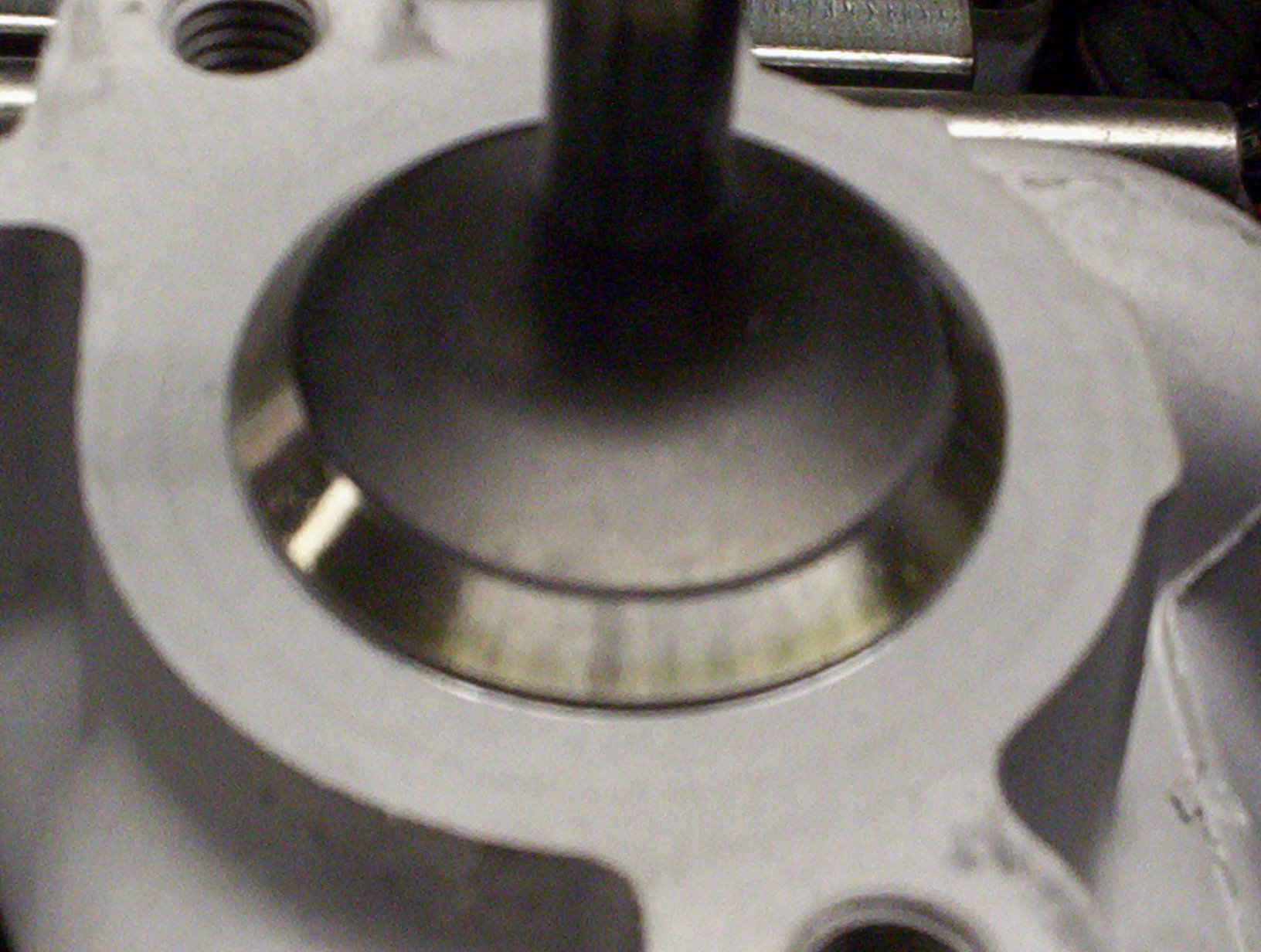

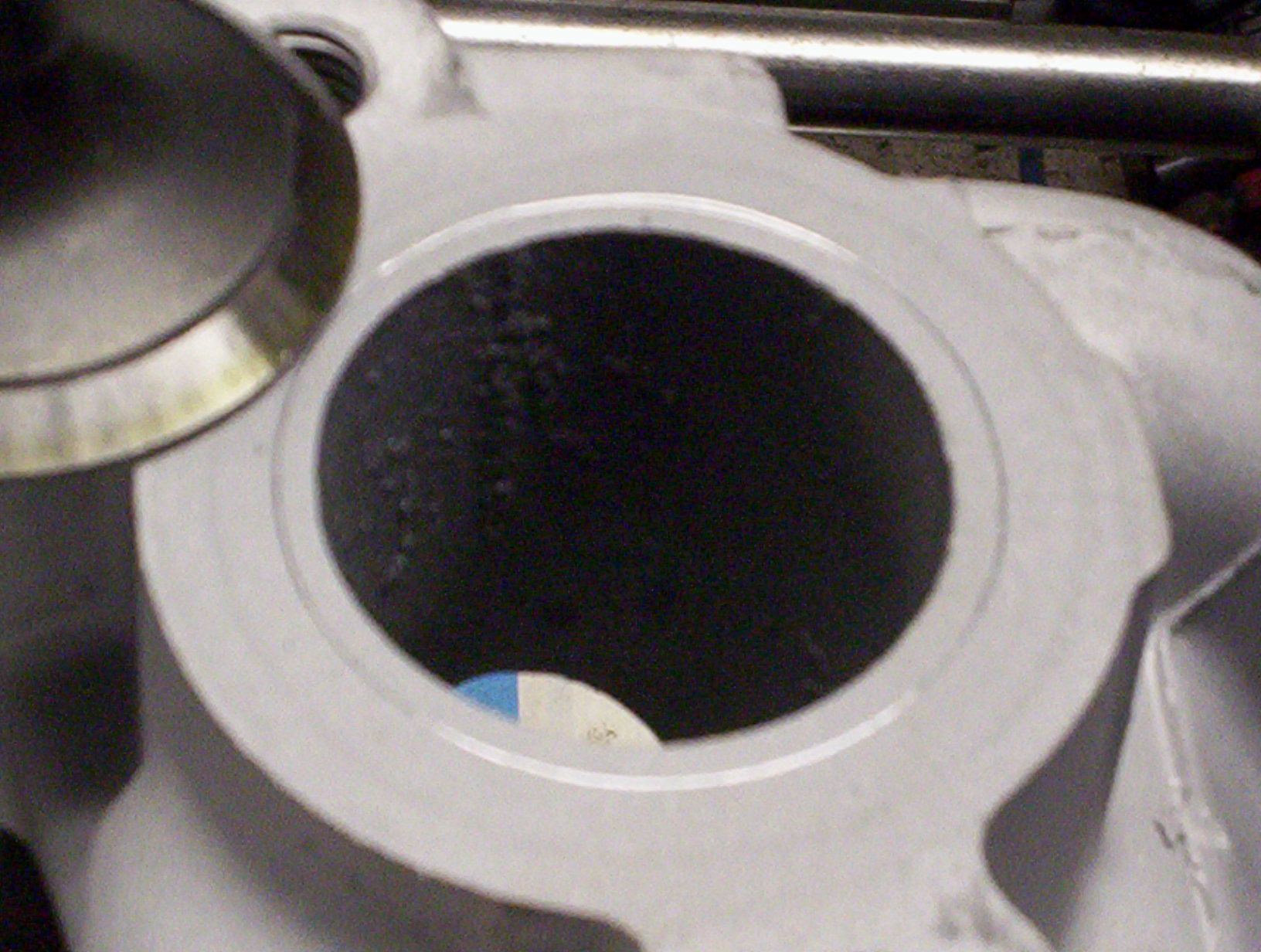

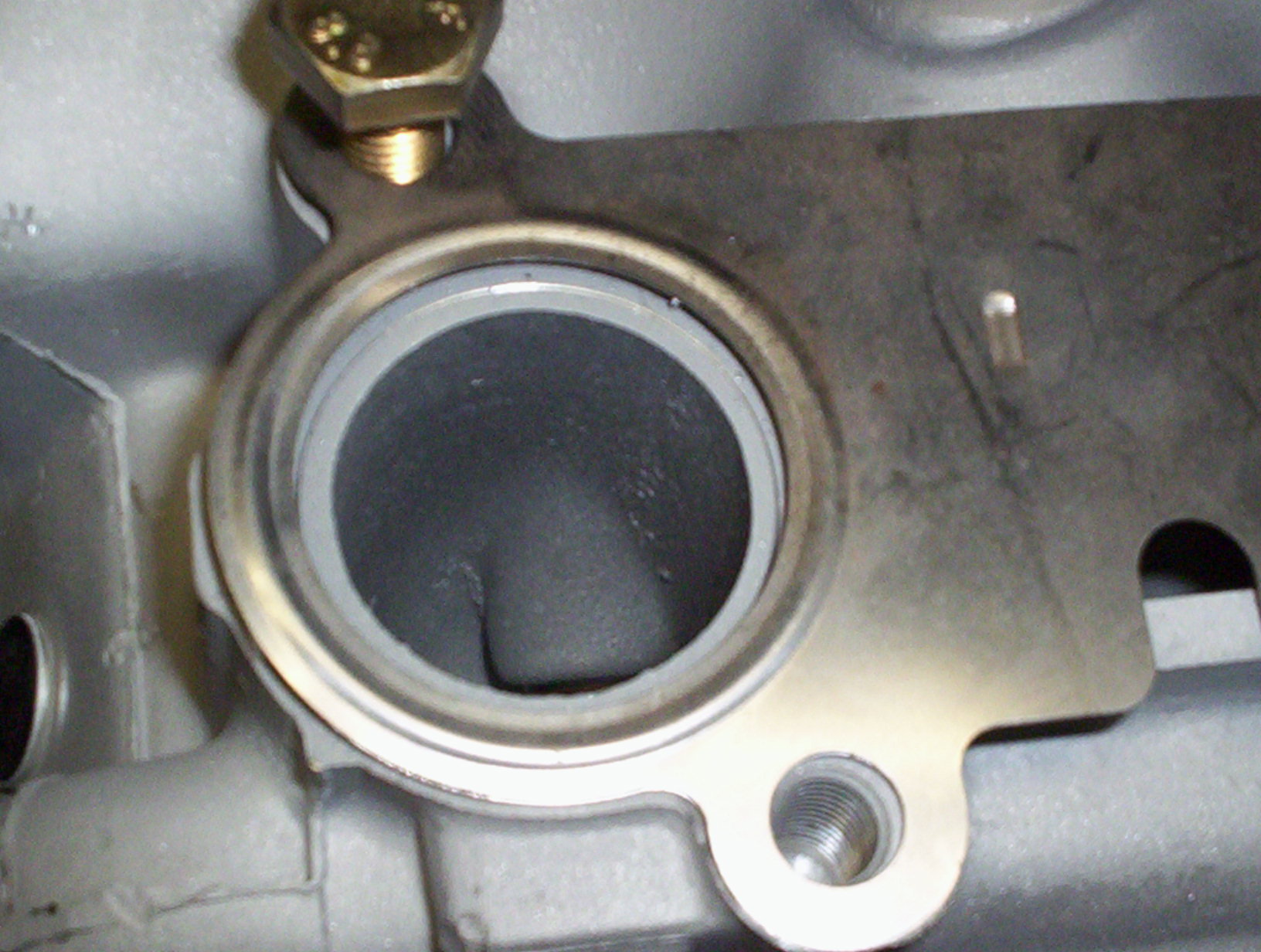

The funny thing is, the hole in the genuine exhaust manifold gasket, is the same size as the head on the ex valve.





Attachments:
My 4.0 EF cyl head 016.jpg
My 4.0 EF cyl head 016.jpg [ 341.7 KiB | Viewed 152 times ]
My 4.0 EF cyl head 015.jpg
My 4.0 EF cyl head 015.jpg [ 336.71 KiB | Viewed 150 times ]
My 4.0 EF cyl head 007.jpg
My 4.0 EF cyl head 007.jpg [ 327 KiB | Viewed 243 times ]
My 4.0 EF cyl head 009.jpg
My 4.0 EF cyl head 009.jpg [ 301.35 KiB | Viewed 161 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


Damo
Posted: Wed Oct 31, 2007 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia
On that other head you put on your car, what is the thing under where the valves are. The j shaped thingy, and how come this head doesn't have one ? Is that the 'swirl chamber' I have heard people talk about ?

Sorry for my lack of technical words. :)

Looks like you have a lot of fun hours ahead of you. :P Good luck.
Top
 Profile


cjh
Posted: Wed Oct 31, 2007 11:07 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia
Damo wrote:
On that other head you put on your car, what is the thing under where the valves are. The j shaped thingy, and how come this head doesn't have one ? Is that the 'swirl chamber' I have heard people talk about ?

Sorry for my lack of technical words. :)

Looks like you have a lot of fun hours ahead of you. :P Good luck.


The first head is off an EA. Only the 3.9's had that. Was deleted with the intro of the 4.0's. It isn't really a "swirl chamber", more of a guide to produce a swirl.



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


cjh
Posted: Fri Nov 02, 2007 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

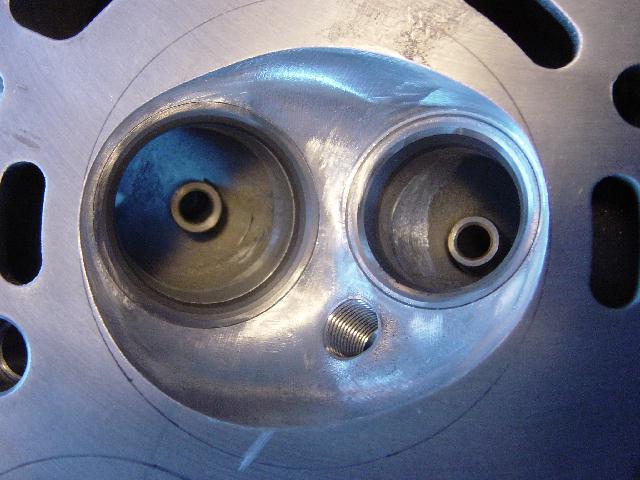

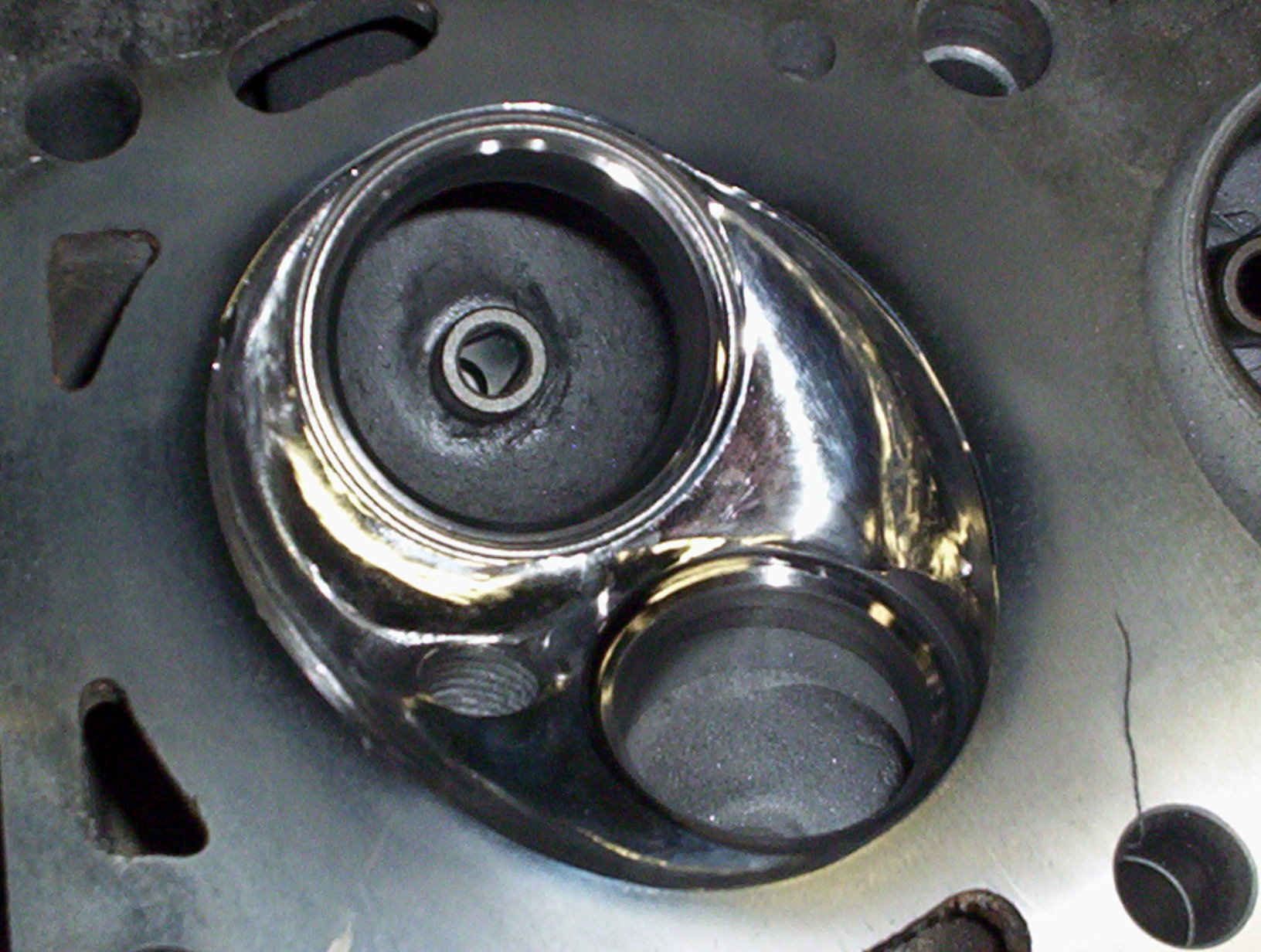

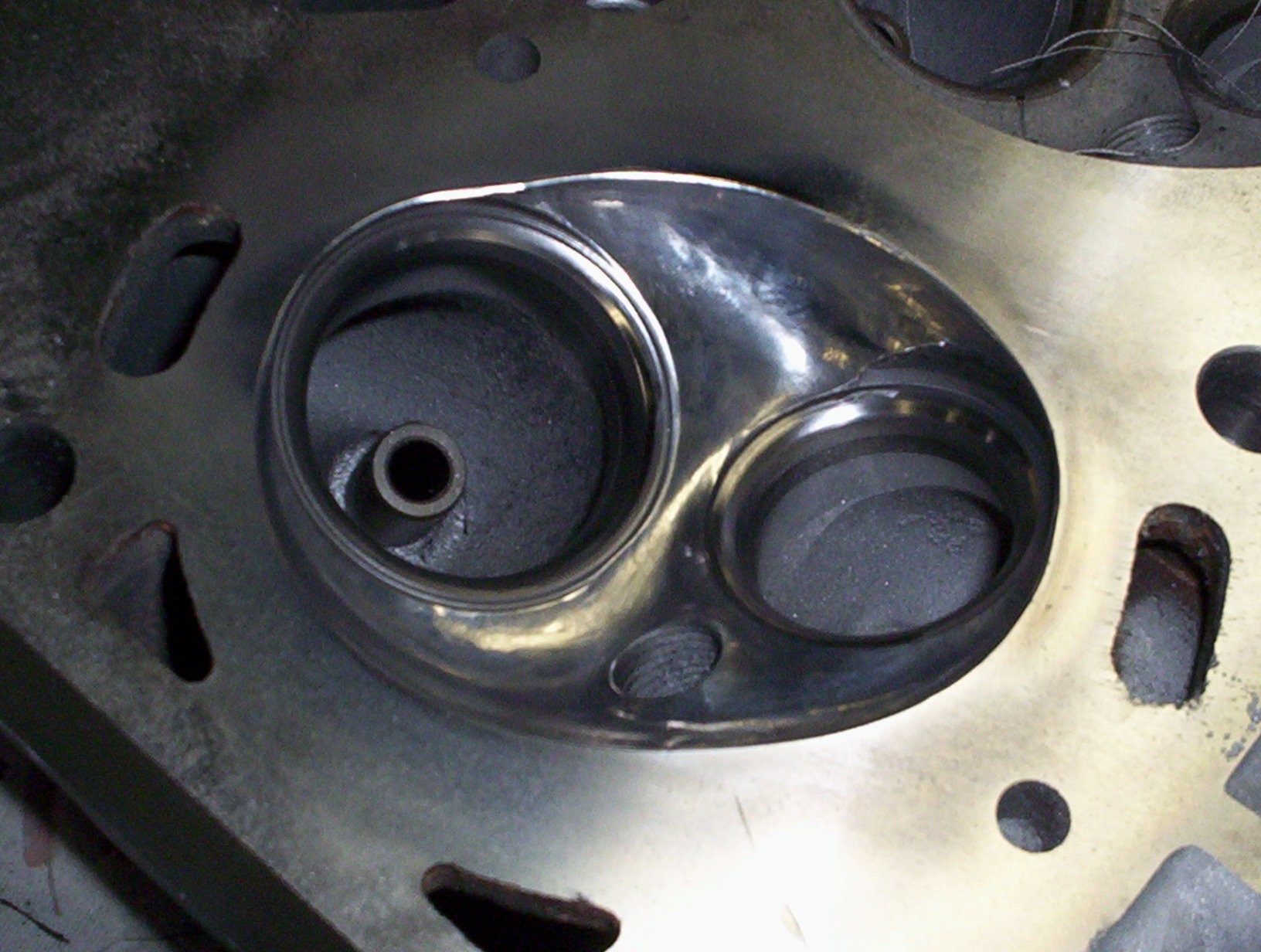

I have just finished polishing one combustion chamber. Took about 2 hrs.





Attachments:
My 4.0 EF cyl head 012.jpg
My 4.0 EF cyl head 012.jpg [ 422.61 KiB | Viewed 171 times ]
My 4.0 EF cyl head 019.jpg
My 4.0 EF cyl head 019.jpg [ 344.34 KiB | Viewed 169 times ]
My 4.0 EF cyl head 020.jpg
My 4.0 EF cyl head 020.jpg [ 367.6 KiB | Viewed 196 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


MMD
Posted: Fri Nov 02, 2007 10:44 pm
Getting Side Ways
Offline

Posts: 539

Joined: 30th Nov 2004

Location: Melbourne
VIC, Australia
what do u use to polish the chamber ?
Top
 Profile


cjh
Posted: Fri Nov 02, 2007 10:47 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia
MMD wrote:
what do u use to polish the chamber ?


I used a Dremel.



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


fritzz
Posted: Fri Nov 02, 2007 10:56 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia
y didn't u lay bak the chamber around the valves on the opposite side to spark plug? gains to be had there



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys
Top
 Profile


cjh
Posted: Fri Nov 02, 2007 11:04 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia
fritzz wrote:
y didn't u lay bak the chamber around the valves on the opposite side to spark plug? gains to be had there


Not doing it for turbo, N/A, Hypereutectic raised pistons going in. Looking at 10:1 to 10.5:1 comp. ratio.



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile


schnoods
Posted: Sat Nov 03, 2007 12:23 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 2057

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia
The head is going to be shaved as well?

Looks good so far, It'll be interesting to see what it'll do.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.
Top
 Profile


tickford_6
Posted: Sat Nov 03, 2007 12:24 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004
cjh wrote:
fritzz wrote:
y didn't u lay bak the chamber around the valves on the opposite side to spark plug? gains to be had there


Not doing it for turbo, N/A, Hypereutectic raised pistons going in. Looking at 10:1 to 10.5:1 comp. ratio.



again why didn't you lay back chamber around the valves? if you are using domed pistons the 2 or 3cc gain in chamber size wouldn't matter anyway.
but the flow gain would be well worth it.

seems like alot of time and effort for a gain or 3/8th of f**k all
Top
 Profile


viper1431
Posted: Sat Nov 03, 2007 3:55 pm
Stock as a Rock
Offline

Age: 43

Posts: 112

Joined: 18th Aug 2005

Location: hobart
TAS, Australia
So looking at those pics the intake valve looks like it goes up pretty close to the surface of the head, so how much can you shave off before having issues? hard to see exactly from the pics just how much room there is.

Also the valves look like they are concaved... does anyone make valves with a flat bottom to them for a bit less overall CC volume? Unless there is a proper reason they need to be concaved in like that?
Top
 Profile


WagonDad
Posted: Sat Nov 03, 2007 7:48 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 480

Joined: 10th Feb 2005

Gallery: 28 images

Ride: EF Fairmont Station Wagon.

Power: 150 rwkw

Location: Mandurah
WA, Australia

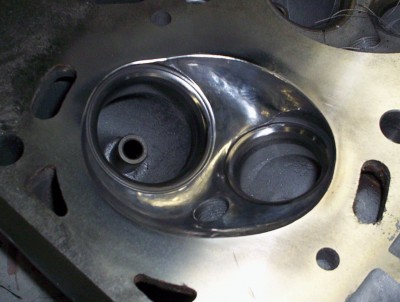

I think tickford_6 is talking about something like this.





Attachments:
DSC02951.JPG [ 60.46 KiB | Viewed 184 times ]



_________________

4.0L EF Fairmont Station Wagon. EL GT Snorkel. K&N Pod in air box. 3" Intake piping.
Home port job. 1636 Wade cam. Wildcat Extractors, 2 1/2" cat and exhaust.
2200/2400rpm Dominator More Stall. Stage two mechanical shift kit. 3.73 4 pinion LSD. 15.078 @ 92mph.
Top
 Profile


twase
Posted: Sat Nov 03, 2007 7:56 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia
fritzz wrote:
y didn't u lay bak the chamber around the valves on the opposite side to spark plug? gains to be had there
Can you explain more (perhaps with an arrow)I am thinking of a DIY head polish and need as much info as I can get.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
Top
 Profile


tickford_6
Posted: Sat Nov 03, 2007 11:04 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004
WagonDad wrote:
I think tickford_6 is talking about something like this.




bang on the money
Top
 Profile


cjh
Posted: Sat Dec 01, 2007 9:28 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

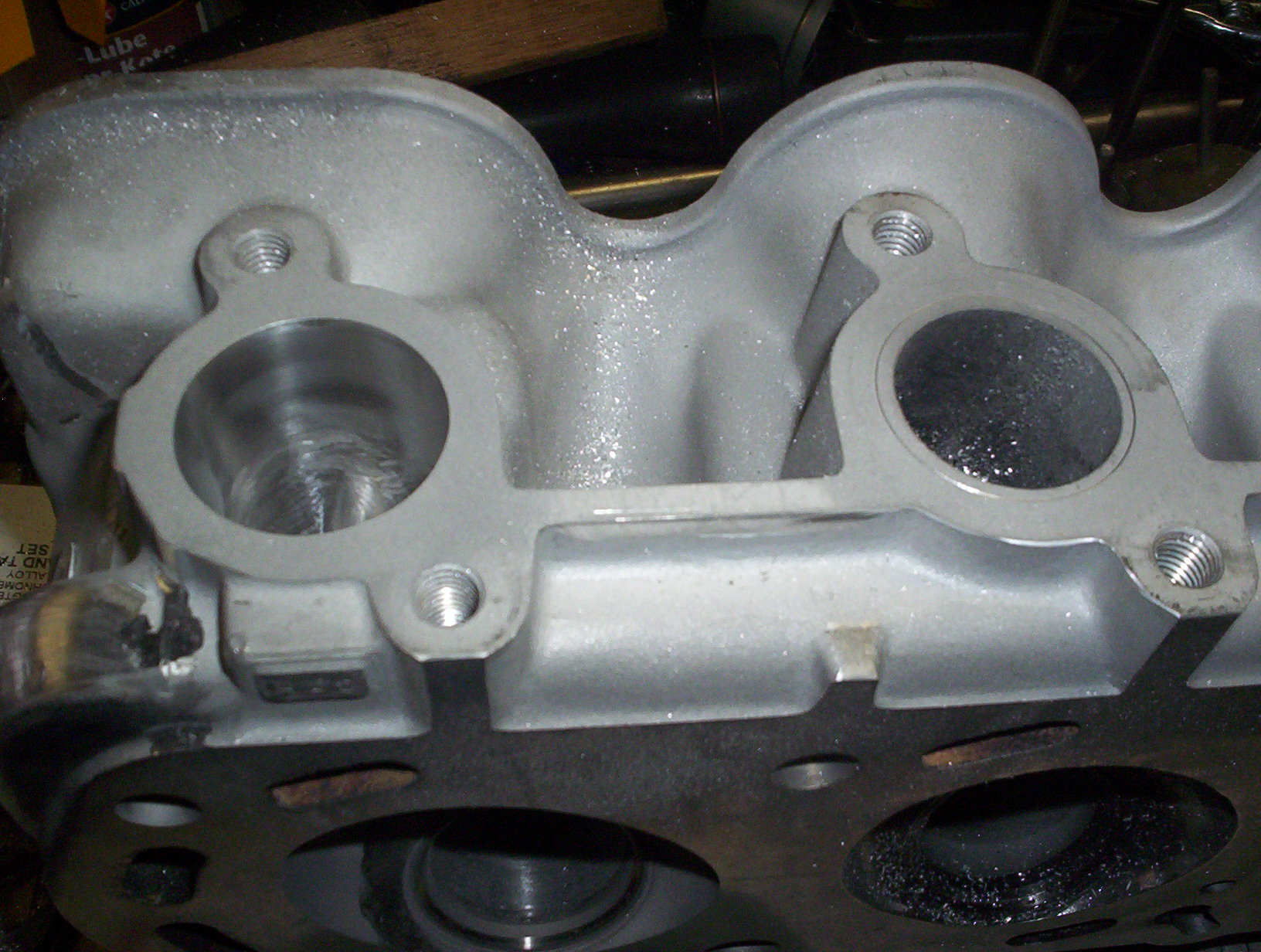

I finally got back to it this arvo. I have done the exhaust port now. I have made it the same size as the genuine exhaust gasket as seen in the pic.





Attachments:
100_5444.JPG [ 405.61 KiB | Viewed 153 times ]



_________________

http://youtu.be/jJTh9F3Vgg0
Top
 Profile
