 Post subject: AU Engine in an EF
Posted: Tue Oct 16, 2007 2:15 pm
Stock as a Rock
Offline

Age: 40

Posts: 140

Joined: 21st Feb 2007

Gallery: 9 images

Ride: EF Citric Acid

Location: Newcastle
NSW, Australia

I know it's been asked before, but anyway. Will an AU motor fit straight in to an EF? or is there cutting etc involved?



_________________

96 R33 Skyline

Top
 Profile


Posted: Tue Oct 16, 2007 2:16 pm
Getting Side Ways
Offline

Age: 40

Posts: 3405

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Top
 Profile


Posted: Wed Oct 17, 2007 10:44 am
Stock as a Rock
Offline

Age: 43

Posts: 170

Joined: 28th Mar 2007

Ride: NFturbo,xfturbo

Location: melbourne
VIC, Australia

mate you just use all of your looms off of your engine and there is a issue with the sump but can be fixed
Top
 Profile


Posted: Wed Oct 17, 2007 3:02 pm
Tyre Shredder
Offline

Age: 42

Posts: 369

Joined: 16th Dec 2005

Gallery: 2 images

Ride: XR6

Location: Sydney
NSW, Australia

need to trim the x-member frame thing to fit
Top
 Profile


Posted: Wed Oct 17, 2007 5:00 pm
Getting Side Ways
Offline

Posts: 491

Joined: 19th May 2007

Ride: fairmont ED

Location: sydney
NSW, Australia

im currently in the process now.

it will fit, although you will have to either -

* cut and modify the K-frame

*modify the sump (grind and weld OR use a ef sump that has been machined)
Top
 Profile


Posted: Wed Jan 09, 2008 9:24 pm
Oompa Loompa
Offline

Posts: 33

Joined: 21st Oct 2006

Location: Sydney
NSW, Australia

Hi Guys. I have already done this exact conversion. I modified the K-Frame.

If you need any further info let me know.
Top
 Profile


Posted: Thu Jan 10, 2008 11:16 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 607

Joined: 15th Dec 2004

Gallery: 23 images

Ride: GLXR 6

Location: Perth
WA, Australia

I'd like to know as the engine conversion sticky doesnt state this.

What kind of AU engine will and wont fit the EF?
What needs to be changed/swapped ?
Which A/C to use etc?
Can i still use my 1636 cam in an AU head?

Cheers :)



_________________


Top
 Profile


Posted: Thu Jan 10, 2008 11:54 am
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

doofus wrote:
I'd like to know as the engine conversion sticky doesnt state this.

What kind of AU engine will and wont fit the EF?
What needs to be changed/swapped ?
Which A/C to use etc?
Can i still use my 1636 cam in an AU head?

Cheers :)


What other AU engines are there?, and the 1636 cam wont fit, iv asked a few people and they said it wont, which is very annoying.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Thu Jan 10, 2008 12:04 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 607

Joined: 15th Dec 2004

Gallery: 23 images

Ride: GLXR 6

Location: Perth
WA, Australia

Series 1, 2, 3? or are they all the same?



_________________


Top
 Profile


Posted: Thu Jan 10, 2008 12:11 pm
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

not to sure either



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Thu Jan 10, 2008 10:32 pm
Oompa Loompa
Offline

Posts: 33

Joined: 21st Oct 2006

Location: Sydney
NSW, Australia

Doofus, Basically the following needs to be done with the assumptions
1. You are getting a complete engine with all manifolds and injection, coil
pack, heater pipe.
2. Old EF engine is removed from car, with AIR CON compressor still in
tact in car.
3. AU ALternator is to be used. Ensure the mitsubishi type is used as the
EF uses the same plug.

What needs to be done:
- Modify K-Frame, there is another post that discusses this

For the old EF engine :
- Remove top half of inlet manifold.
- Remove engine wiring harness.
- Keep serpentine belt unless replacing.
- Remove knock sensor.
- Remove crank angle sensor (where the dizzy usually goes on side).
- (I think you also need the driving gear as well for the dizzy).
- Remove oxygen sensor.

For the new AU engine
- Remove wiring harness and cut off rear temperature sensor lead as far
down the harness as possible. Now attach this in line in the EF harness
somwhere conveniant. This way you can utilise the AU temperature
switch and still have the EF harness if required.
- Replace top half of inlet manifold.
- Remove stud for knock sensor using 2 nuts and screw in EF knock sensor
- remove dizzy blank and insert dizzy drive gear.
- Modify crank angle sensor so you can install clamp around it. This is
because the mounting bolt hole is in a different position on the AU block.
Insert crank angle sensor and clamp down.
- Remove AU AIR CON compressor mounting adapter.
- Replace AU oxygen sensor with EF oxygen sensor. Plugs are different.
- DO NOT BE TIGHT AND REPLACE THE REAR MAIN SEAL.
- (You can change the belhousing of the transmission of you want. They
should only be about $40. I did not do this as I had no time to get one).
- Leave the AU mounts. They DO fit.
- Leave the AU exhaust manifold. it DOES fit.

Once Engine is in the car:

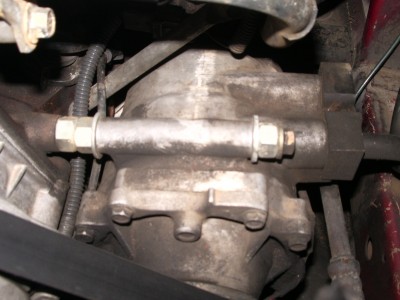

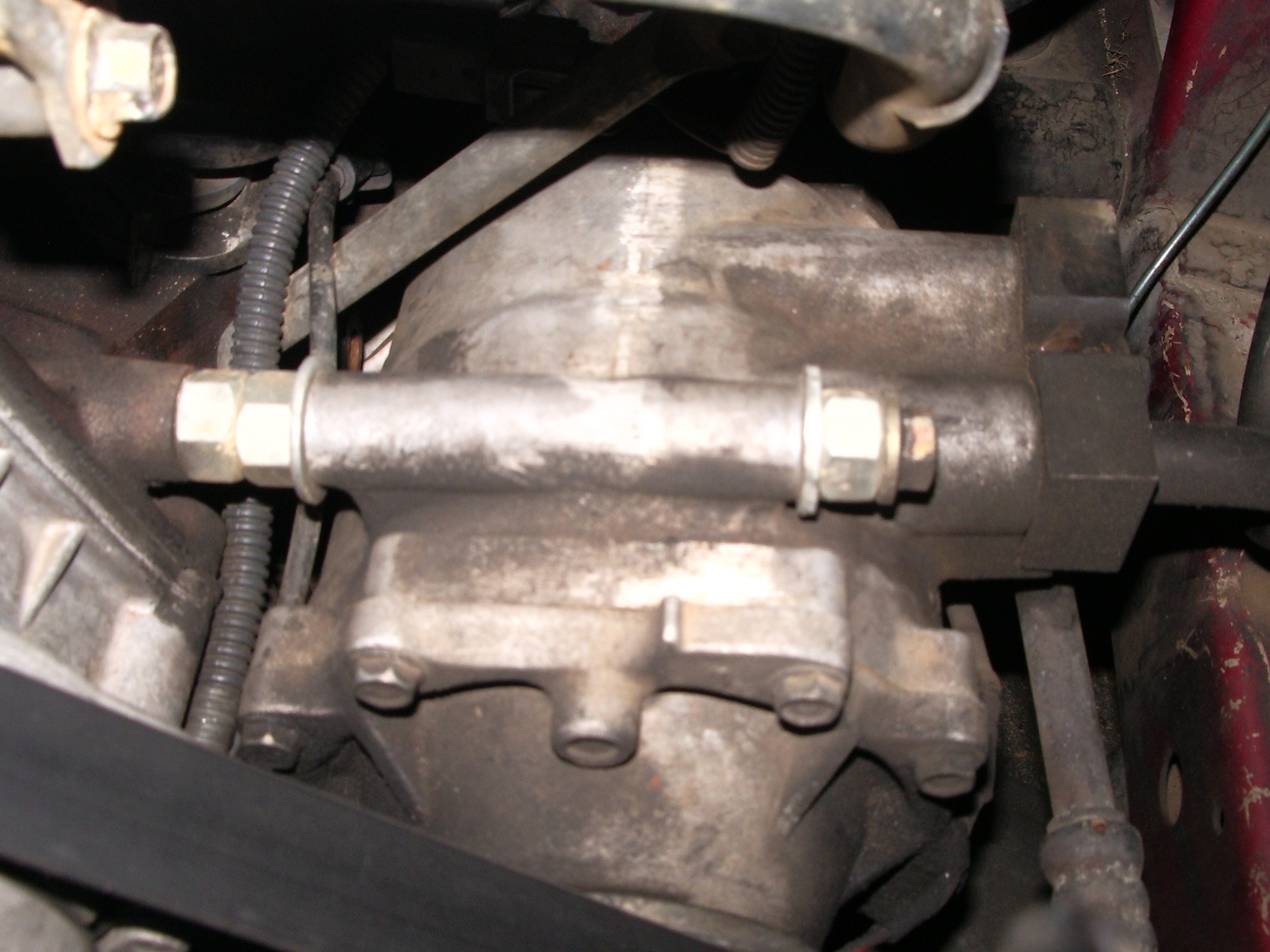

- For the Air Con Compressor, see attached pic. Instead of modifying the
spacers, it was easier for me to use some M12 nuts and M10 washers.
Nuts make for good spacers. This allowed me to use the original bolts.

I think that is all. Hope this helps. Oh and is it worth it?? definately. I find that the AU engine is more responsive and even on gas you can feel the grunt.





Attachments:
Air Con.JPG
Air Con.JPG [ 629.62 KiB | Viewed 155 times ]
Top
 Profile


Posted: Fri Jan 11, 2008 10:58 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 724

Joined: 11th Nov 2005

Gallery: 1 images

Ride: BF Fairmont

Location: Melbourne
VIC, Australia

Dont modify your k frame thats just silly..... Grind and cut the sump much safer way to fix the problem. I have had an au motor in my car now for 3ish months its great but i would have put an el one in if i had to modify the kframe..
Top
 Profile


Posted: Fri Jan 11, 2008 12:47 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 607

Joined: 15th Dec 2004

Gallery: 23 images

Ride: GLXR 6

Location: Perth
WA, Australia

Fiox - thank you heaps mate! Thats the sort of info i was after!
The AU engine is also much smoother isnt it?
Might get onto finding me one now!

Any yeah, i was going to try the sump before i tried the k-frame.

Thx fellas!



_________________


Top
 Profile


Posted: Fri Jan 11, 2008 5:46 pm
Oompa Loompa
Offline

Posts: 33

Joined: 21st Oct 2006

Location: Sydney
NSW, Australia

Hey Doofus, no problem.

gryph, thats a matter of opinion. Some of us prefer the K- Frame mod and some prefer the Sump Mod. Had I been able to do the Sump Mod myself, I would have. But being alloy, it would have cost me an extra $150. Where as the K-Frame mod I could do. I had a limited budget. + I had to buy the alternator.
Top
 Profile


Posted: Sat Jan 12, 2008 9:58 am
Stock as a Rock
Offline

Age: 40

Posts: 140

Joined: 21st Feb 2007

Gallery: 9 images

Ride: EF Citric Acid

Location: Newcastle
NSW, Australia

Fiox

I've found an AU engine already modified to suit an EF, i'm guessing by the look of it, it's just the sump that is modified, is there anything else that needs doing? or can you just put it straight in and bolt it up? i know you prob have to modify some of the wires etc, but is there anything else major?

Cheers
Acidic
