AU head gasket on an EF???



Page 5 of 5 [ 67 posts ] Go to page Previous  1, 2, 3, 4, 5


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 20, 2010 9:38 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

a mechanic put a graphite bovic kit in mine lasted less than a month.
i then used acl stainless gaskets $30 the latest ford au multi layer black metal head gasket $80
use ford o rings aswell cause they actually seal $10
hylomar both sides (which i heard they use in aviation)$18,head bolts$40
its amazing how much better your car goes without the cylinders being internally cooled :?
if it hasnt already been said the tourqe setting is differnt between gaskets,
saying this i didnt remember and tightned it down to what the book said ,but yeah no leaks at all.
i got the timing round 180 and had to remove the rocker gear because it wouldnt rotate past 4,5 valves.
just get somone to put there finger through the cam sproket while you slowly spin the balancer.
my sproket mark was no where near 3mm off the head either .
not releasing your tensioner when reinstalling the sprocket is the best way to break brittle
guides :wink:
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 20, 2010 9:52 pm
Getting Side Ways
Offline

Posts: 534

Joined: 14th Oct 2007

Gallery: 8 images

Location: newcastle
NSW, Australia

krisisdog wrote:
The holes in the gasket are wayyyy smaller than the head/block holes.


but thats how they are right??
i lined up the gaskets and they looked exactly the same ,i may be wrong but im pretty sure the holes are bigger in the mls then the standard original brown ford ef one
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sun Mar 21, 2010 3:48 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

I have pictures on m y phone, except I am way too maggot to even try anythin with my phone and PC right now... so maybe another time. Block n head = inch long, gasket = 1/4 holes,if that.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sun Mar 21, 2010 8:57 am
Parts Gopher
Offline
User avatar

Age: 38

Posts: 82

Joined: 24th Jun 2009

Ride: EF XR6

Location: Bendigo
VIC, Australia

Yep the oil/coolant holes in the gaskets are much smaller than the actual gallery ports.

The question is, has anyone tried opening these up? Or knows what effect this will have?

First thought is that these are restricting flow so open them up.. but maybe they are designed that way to manage pressure and flow around the block/head?
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sun Mar 21, 2010 6:50 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

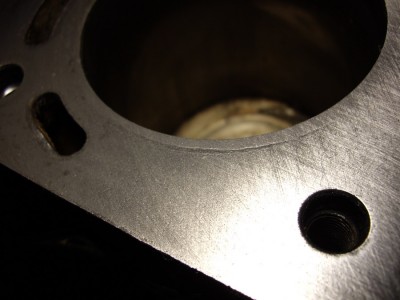

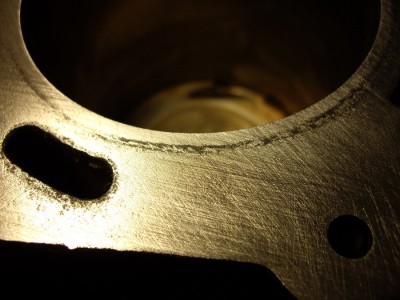

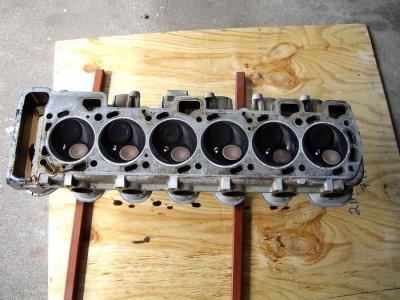

I found a picture as to why it IS a good idea to use Hylomar on the head gasket.
This is a good example of why & where.
Ideally, remove engine and strip engine, skim the deck and reassemble.....would cost more than the car is worth......an EBII.
This car didn't have a blown head gasket.





Attachments:
IMGP2392_resize.JPG [ 255.12 KiB | Viewed 70 times ]
IMGP2405_resize.JPG [ 124.79 KiB | Viewed 46 times ]
IMGP2403_resize.JPG [ 169.93 KiB | Viewed 33 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sun Mar 21, 2010 6:54 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

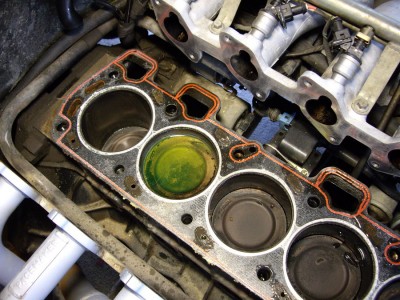

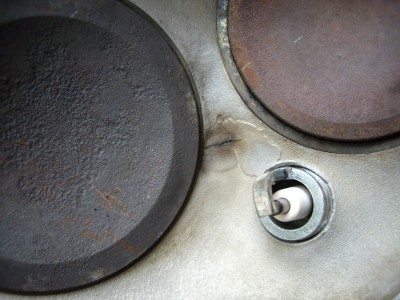

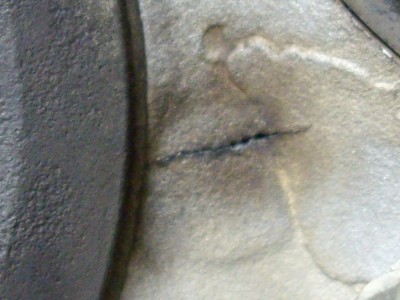

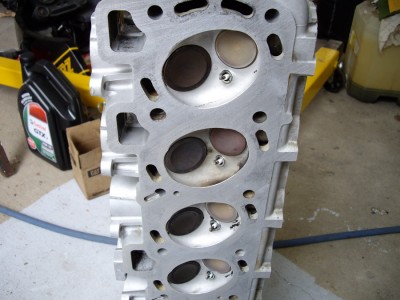

This was the culprit.....a cracked head.
It wasn't easy to spot till I cleaned the head.....coz head gasket didn't look blown.





Attachments:
IMGP2395_resize.JPG [ 234.79 KiB | Viewed 75 times ]
IMGP2426_resize.JPG [ 166.61 KiB | Viewed 55 times ]
IMGP2428_resize.JPG [ 211.47 KiB | Viewed 49 times ]
IMGP2429_resize.JPG [ 145.21 KiB | Viewed 44 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sun Mar 21, 2010 7:01 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i agree if there is any issues with the block surface then hylomar is a good idea..

i had a v8 valiant engine that was re built and the lazy a** machinest/builder had an issue with a power outage during machining the block deck, and they didnt check the block when the power came back on and just re started the machine leaving a curcular low spot.
so long story short after a week of driving it appeared to have a blown head gasket,
so after a small legal battle i got a refund..
but rather than start again the surfaces were coated with hylomar and 10 years on the engine is still going strong...
