AU head gasket on an EF???



Page 1 of 5 [ 67 posts ] Go to page 1, 2, 3, 4, 5  Next


 Post subject: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 1:36 pm
Smokin em up
Offline

Age: 29

Posts: 218

Joined: 22nd Apr 2007

Gallery: 21 images

Ride: EF, Magna, R33 skyline

Hi guy i just want to know if any one knows the difference between the standard head gasket and the AU one.... and what do you use to put it one..... what type of glue??? :roll:
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 1:39 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

just clean the block and get the head skimmed (5 thou) put the AU head gasket (MLS) and NEW head bolts (AU) no glue but make sure the block and head are clean (wipe with metho or thinners) and your right



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 1:50 pm
Smokin em up
Offline
User avatar

Age: 27

Posts: 212

Joined: 11th Jan 2008

Gallery: 5 images

Ride: BF Fairlane Ghia, BA XR8 Ute

Location: Dandenong
VIC, Australia

For sealant use Hylomar



_________________

The Luxo Cruiser - 07 BF Fairlane
Silhouette,Pedders CoilOvers, Whiteline Adjustable Swaybars, BluePower Tune and Airbox, DiFillipo Headers and Cat with Catback, FPV Brake Upgrade, G6ET Wheels

The New daily/Toy - 2004 BA XR8 Ute
Mercury Silver, 5 Speed Manual, a factory Blownup Boss 260 :P

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 1:51 pm
Smokin em up
Offline

Age: 24

Posts: 294

Joined: 27th Sep 2009

Ride: 1995 EF Ford Fairmont

Location: Bundaberg, QLD
QLD, Australia

you should use some sort of gasket glue when doing the head,
personally i use hylomar, really really good will stay sticky the whole time its on the car, been recommended my a few car mags from what ive seen
should be able to get it from most car places, all you gotta do is spray it on the gasket leave it sit for a bit to let the glue get tacky then put it on carefully making sure the head and the block are as clean as you can get them.
the glue doesnt hold the gasket in place as such it creates a better seal and expands when the block and the head expand.
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 2:20 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

AU headgaskets are about half the thickness of EF (all E series) headgaskets, and are MLS (Multi Layer Steel) rather than the older composite type which is prone to blowout.

As the AU is thinner it will raise compression. If this is for your turbo EF, you can get 1mm and 1.6mm copper gaskets from ACL, I believe as well as others, which will drop your compression down a fair whack. Failing that you can always double up the AU gaskets.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 4:04 pm
Smokin em up
Offline

Age: 29

Posts: 218

Joined: 22nd Apr 2007

Gallery: 21 images

Ride: EF, Magna, R33 skyline

ok thanks guys but dose any one know what the difference is between the 2 gaskets in THOU??? :lol:
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 6:55 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Standard is 40 thou I believe, AU is 20 thou (or 17, not 100% as I havent measured one).



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Thu Mar 11, 2010 7:33 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

there is no need to use any sealer at all, both with the AU gasket and the PRE AU gasket.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Fri Mar 12, 2010 11:04 am
Parts Gopher
Offline
User avatar

Age: 38

Posts: 82

Joined: 24th Jun 2009

Ride: EF XR6

Location: Bendigo
VIC, Australia

I know it's said no sealant is required.. but I can't help the nagging feeling that one would help.
That gasket is going to slide a bit (I often flog my own engines to pink-hot header temps, and 'customer' cars get similar treatment) under thermal expansion and contraction.

I've always used copper spray for the fabric gaskets (VHT Copper etc) but Hylomar is also popular.

Anyone used copper spray with a steel gasket? Any reports or observations?
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Fri Mar 12, 2010 11:31 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

I used Hylomar myself, mainly for all the other gaskets during the rebuild, but I also put it on the head gasket, more because I had enough left in the can to do it, not for any other reason.

Head gaskets I have done in the past used no glue or bondig agent and had no issues with them.

each to his own on this one. As mentioned, no glue is required, use it if you really want.

Dave



_________________


I have a car.

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 13, 2010 5:15 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

I've never used hylomar or any other glue/sealant on a head gaskit, never had any issues with them blowing out earlier than expected (falcon I6 for example). I have an engine here, a little Suzuki F8b that someone used red gaskit goo on the head gaskit, and within about 20secs of firing the new engine up, it was leaking coolant into the oil & cylinders. I've checked the surface of the block & head, checked for block cracks & none were found. It was sold to me cheap, with a suspected cracked block, which i didn't really care about, i wanted all the other bits like conrods & so on as spares. Block was checked & not cracked....

Only conclusion i can draw is the failure was due to the gaskit goo used. There is signs of where the gaskit goo let go near the cylinder walls & coolant galleries.

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 13, 2010 6:41 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

I never use anything on the deck either.

However when I was working at a mechanical workshop, I was 'told' to use form-a-gasket No.2 on the deck and head.

We never saw one come back.

I guess it doesn't hurt to use 'something'.

Yet, when I do a Car, I make sure both surfaces are true and there is no need to use a 'buffer'



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 13, 2010 6:48 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 4285

Joined: 8th Dec 2004

Gallery: 25 images

Ride: EB2 Ghia,Mighty Boy,Eb1 Xr8 5spd

Location: ** In the Shed! **
VIC, Australia

Krytox wrote:
Yet, when I do a Car, I make sure both surfaces are true and there is no need to use a 'buffer'


Hence why if you blow a head gaskit on a I6 alloy head ford, it doesn't hurt to have it hardness tested & surfaced before placing it back on, making sure it's flat & hard enough, and use a straight edge on the block to check it out too...

Cheers

ToranaGuy



_________________

I am the ToranaGuy!|74 Lh Torana Turbo|78 Hz PanelVan|86 Mighty Boy Ute|93 EB2 Ghia,GT Mockup,5spd,LPGI,Full Leather|2 x EB Xr8 5spd's|FS [VIC]: Wrecking - Eb XR8 - Parts available |Build Thread|Ebay Items - Ford Parts|

Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 13, 2010 7:09 pm
Smokin em up
Offline

Age: 24

Posts: 294

Joined: 27th Sep 2009

Ride: 1995 EF Ford Fairmont

Location: Bundaberg, QLD
QLD, Australia

its more of a personal opinion if you feel sealant will help use it if u dont then dont bother
dont think anyones done tests to see the difference between sealant and no sealant
Top
 Profile


 Post subject: Re: AU head gasket on an EF???
Posted: Sat Mar 13, 2010 8:16 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I make sure all surfaces are flat & clean, then use ACL Hylomar on both sides of the gasket.

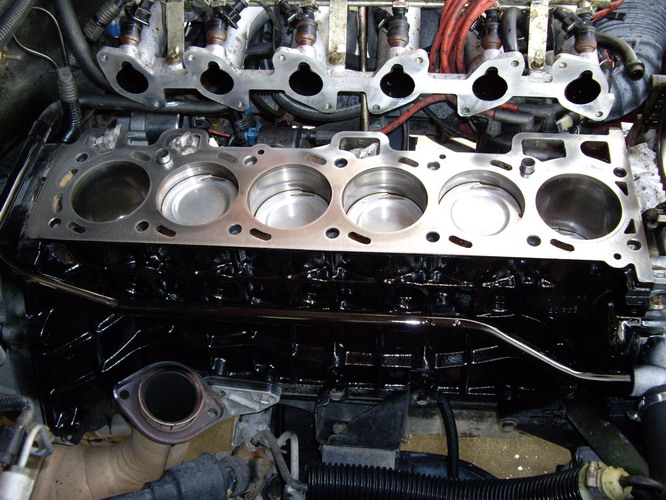

Never had a problem. In the pic, that is not a new engine, its the old engine, cleaned up for installation of the head.
I scrub the side of the engine block, and repaint it black, so it does look like its all good again, no coolant stains.





Attachments:
IMGP0732_resize.JPG [ 139.29 KiB | Viewed 89 times ]
