 Post subject: Au VCT Idler bush
Posted: Sat Dec 05, 2009 10:17 am
Stock as a Rock
Offline
User avatar

Age: 55

Posts: 198

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Au II Xr8 & Xr6

Location: Eye of the Storm
NSW, Australia

Just wondering what people use to remove the seal/bush behind the idler pulley near the power steering pump on an Au VCT?? Got a leak and I want to fix it asap.
Cheers
Mr220kw
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 4:09 pm
Fordmods Newbie
Offline
User avatar

Age: 34

Posts: 3

Joined: 30th Jan 2005

Ride: BA Falcon

Location: Brisbane
QLD, Australia

Hope this bumps the question/topic up the list. I have the same issue right now and am hoping someone can shed some light on the replacement procedure.
Cheers guys



_________________

Disclaimer: The above is the author's personal opinion and is not the opinion or policy of his employer or of the little green men that have been following him all day. :P

Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 4:17 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

Are you sure it the idler bush as there is no oil in the bush, more likely the timing chain tensioner seal is leaking



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 4:27 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

there is no seal...
its just leaking between the gasket and bolt hole..
just re fit the bolt with silicon on the shaft...
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 4:42 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

TROYMAN wrote:
there is no seal...
its just leaking between the gasket and bolt hole..
just re fit the bolt with silicon on the shaft...


Seal/o-ring I have a tapered O-ring in mine lol bit of rubber grease on it when i reinstalled it and havent had a problem since



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 5:18 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

EDXR6-Poly wrote:
TROYMAN wrote:
there is no seal...
its just leaking between the gasket and bolt hole..
just re fit the bolt with silicon on the shaft...


Seal/o-ring I have a tapered O-ring in mine lol bit of rubber grease on it when i reinstalled it and havent had a problem since


well there is no seal on mine.. there never was.. but it did seep a bit of oil after the bolt was removed so i just used gasket silicon...
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 6:09 pm
Stock as a Rock
Offline
User avatar

Age: 55

Posts: 198

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Au II Xr8 & Xr6

Location: Eye of the Storm
NSW, Australia

Just to clarify. It's actually not the bush but the mount the idler sits on. I think there might be some kind of seal in this mount. The mount itself presses into the timing chain cover. I've tried cleaning the bolt and resealing it as advised on this or another forum. Fixed the problem for a while then started leaking again.

Cheers
Mr220kw
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 6:54 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the idler mounts to the powersteering pump bracket which is bolted through the timing case..
are we talking about the same thing???
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 7:20 pm
Stock as a Rock
Offline
User avatar

Age: 55

Posts: 198

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Au II Xr8 & Xr6

Location: Eye of the Storm
NSW, Australia

Yes that's the one

Mr220kw
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Sep 10, 2010 7:25 pm
Stock as a Rock
Offline
User avatar

Age: 55

Posts: 198

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Au II Xr8 & Xr6

Location: Eye of the Storm
NSW, Australia

Okay,
I had another go at fixing the leak. Removed bolt and pulley. Cleaned bolt and hole. Added three O rings to plain section of bolt. Applied some Black Maxx sealant and reinstalled. Hopefully this will fix oil leak. Now I've just got to get the power steering rack fixed, which I found leaking. :roll:

Some photos included. Camera phone.

Cheers
Mr220kw





Attachments:

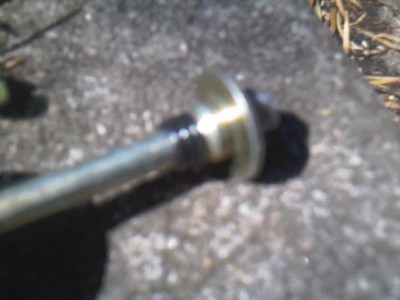

File comment: This is this bolt with added O rings
three in total. Also added Black Maxx sealant.

bolt.jpg [ 61.02 KiB | Viewed 40 times ]

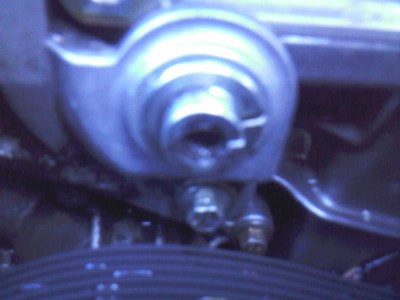

File comment: This shows the idler mount close up
mount.jpg [ 58.98 KiB | Viewed 46 times ]

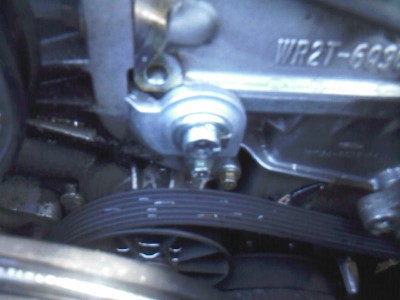

File comment: mount from above.
mount 2.jpg
mount 2.jpg [ 64.08 KiB | Viewed 58 times ]
Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Sun Sep 12, 2010 10:55 pm
Getting Side Ways
Offline
User avatar

Posts: 627

Joined: 5th Dec 2009

Gallery: 2 images

Ride: GREEN ED XR6

Power: 249 rwkw

Location: CENTRAL WEST QLD
QLD, Australia

pretty sure when I replaced my gaskets in my VCT motor where that bolt goes the gasket should seal that bolt you shouldnt need O-Rings and sealant but keen to see if that fixes it maybe try a copper washer too to help seal it



_________________

AU2 engine with Hoppers head/cam performance package & spool rods / CP pistons ,Snort 1200 plenum, T56 Manual & Billet short shifter, Front & Rear Slotted rotors, Pedders lowered suspension, LSD and tuned with EMS stinger 4424 347rwkw THE ED XR6 IS BOOSTED

Top
 Profile


 Post subject: Re: Au VCT Idler bush
Posted: Fri Jan 07, 2011 9:27 pm
Stock as a Rock
Offline
User avatar

Age: 55

Posts: 198

Joined: 8th Nov 2004

Gallery: 4 images

Ride: Au II Xr8 & Xr6

Location: Eye of the Storm
NSW, Australia

G'day
I have finally fixed this. All i needed to do was to seal the thread on the bolt. :roll:
It's amzing how such a little leak can cause such a friggin mess. Don't bother with the attempt in the pictures above it does SFA. Ah the joys of owning cars
:wink:
Mr220kw
