yip that ones fine :D Great Explaining Benj

How does the other one run??
thiers a picture a few pages back of wheb i tried mocking up some hose to fit......where does the one that runs off the heater pipe coming from the thermostat housing go to????

Cheers
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Wed Jul 01, 2009 7:38 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

The one from the lower thermostat housing, goes to the heater tap. It should be a straight piece of hose. And there should be a little 10mm diametre hose that goes between the two metal pipes.

The other side of the heater tap goes up to the heater box.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 12:30 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

Cool thanks mate i'v got that sorted now :D

More issues :evil:
I'v started to put in the appropriate pins into my loom foe the ECU but as it turns out my one already has Pin 4 witch is the smartlock signal wire.........My car is an EBII non smartlock???? I have a J3 chip on the way witch is going to dissable the smartlock
Do i need to worrie about it?
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 12:51 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if it has the wire and pin already in the ecu plug for the smartlock are you sure it doesnt already have smartlock??
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 12:53 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if it has the wire and pin already in the ecu plug for the smartlock are you sure it doesnt already have smartlock??
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 12:59 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

im pretty sure it doesnt.... When i did the manual conversion I used an EA manual ECU.....It doesnt have the smartlock light in the dash.
Is thier away of telling if it does?
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:01 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

If it has the Smartlock Module above the handbrake lever, then it has smartlock. Should be Orange.

Does your car have factory remote central locking? If not, it won't have smartlock either.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:08 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

It has cental locking but it has an eftermarket alarm fitting witch has remote locking.
And get this..........Pin 23 for the knock sensor has a wire in it already WTF??????
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:10 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

are you looking at the ecu plug the right way around??
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:15 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

I sure am i just tripple checked???????
its a 1992 EB fairmont on the Registration.
It say EBII on the stamp under the header tank.
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:21 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

What month was it made?

My EB11 did not have smartlock or central locking from factory. Smartlock and remote locking was introduced in September 1992.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:25 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

Where abouts does it tell me what month it was made?
I still dont under stand why thiers wires in pins 4 and 23??????? it also doesnt have a wire in pin 17 witch is for self test mode??????
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:32 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

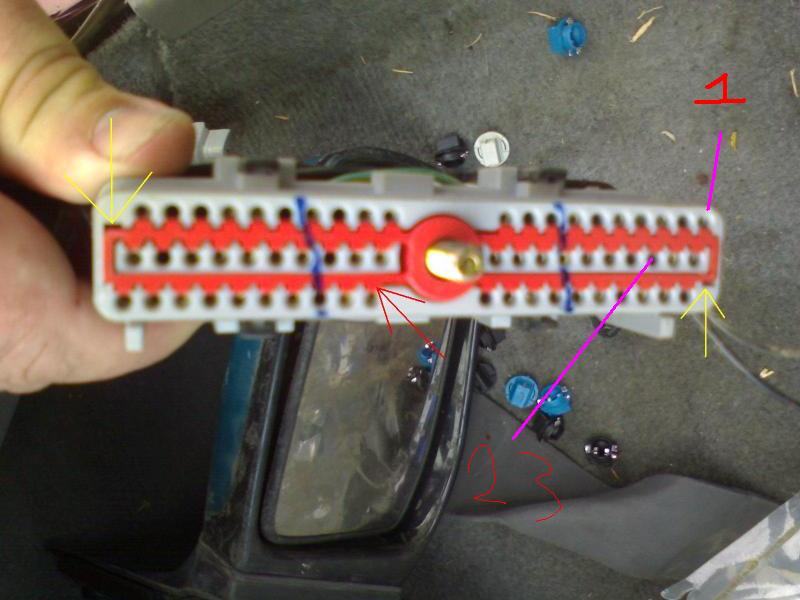

Ok i just Made a quik picture just so you can tell me if im reading the ECU plug around to right way.........Hope you dont mind if i use your pic Troyman as my camera not working atm
Attachment:
ecuplug.jpg [ 62.16 KiB | Viewed 22 times ]
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:43 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

yep thats the bottom of the plug..
if you look at the top of the plug where the wires go in there are pin numbers marked next to the wires..(very small)
so you look at the pins from the top of the plug not the bottom.. :)

so i think your looking at pin 16 and 36..
Top
 Profile


 Post subject: Re: AU VCT into EBII
Posted: Fri Jul 03, 2009 1:59 pm
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 327

Joined: 23rd Apr 2008

Ride: ED, EB11, 351 XF

Location: christchurch
New Zealand

so are the ones on the bottom of the plug not the same as the top????
Top
 Profile
