AU VCT into EF question



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: AU VCT into EF question
Posted: Mon Jun 15, 2009 1:54 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Oil line bolt torque:
Is this called a banjo bolt? I'm referring to the bolt that holds the mental oil line for the VCT unit. Anyone know the torque setting for it?

Electrical connection on VCT unit:
Where/what/how have people connected this up?




_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 2:04 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i dont know the torque for the oil line bolt. i just did it firm tight...

the vct solinoid can be hooked up to the bbm vac solinoid or i had mine connected to a j car rpm switch set to switch at 3000rpm..
but i would check with joe to see if the cam is set for the vct to operate or its been dialed to be static.
ive actually disconected my vct unit and im now running a non vct cam instead..
Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 3:22 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

TROYMAN wrote:
the vct solinoid can be hooked up to the bbm vac solinoid or i had mine connected to a j car rpm switch set to switch at 3000rpm..
but i would check with joe to see if the cam is set for the vct to operate or its been dialed to be static.
ive actually disconected my vct unit and im now running a non vct cam instead..


The entire point of the exercise was to have the cam running with the VCT, he's left it that way, just done a grind on the cam for the supercharged application.
I guess I need to try and find some sort of plug to plug onto it then too.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 5:09 pm
Parts Gopher
Offline

Age: 25

Posts: 84

Joined: 1st Jan 2008

Ride: EF II Ghia

Location: Newcastle
NSW, Australia

TROYMAN wrote:
i dont know the torque for the oil line bolt. i just did it firm tight...

the vct solinoid can be hooked up to the bbm vac solinoid or i had mine connected to a j car rpm switch set to switch at 3000rpm..
but i would check with joe to see if the cam is set for the vct to operate or its been dialed to be static.
ive actually disconected my vct unit and im now running a non vct cam instead..


So the solenoid needs 12v to move it at 3000rpm?
Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 6:15 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

JWM wrote:
TROYMAN wrote:
i dont know the torque for the oil line bolt. i just did it firm tight...

the vct solinoid can be hooked up to the bbm vac solinoid or i had mine connected to a j car rpm switch set to switch at 3000rpm..
but i would check with joe to see if the cam is set for the vct to operate or its been dialed to be static.
ive actually disconected my vct unit and im now running a non vct cam instead..


So the solenoid needs 12v to move it at 3000rpm?


the solinoid has constant 12v with ignition on and the rpm switch should be set to cut power at 3000rpm..
Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 6:35 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

TROYMAN wrote:
the solinoid has constant 12v with ignition on and the rpm switch should be set to cut power at 3000rpm..


Where is the solenoid?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 6:51 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

twr7cx wrote:
TROYMAN wrote:
the solinoid has constant 12v with ignition on and the rpm switch should be set to cut power at 3000rpm..


Where is the solenoid?

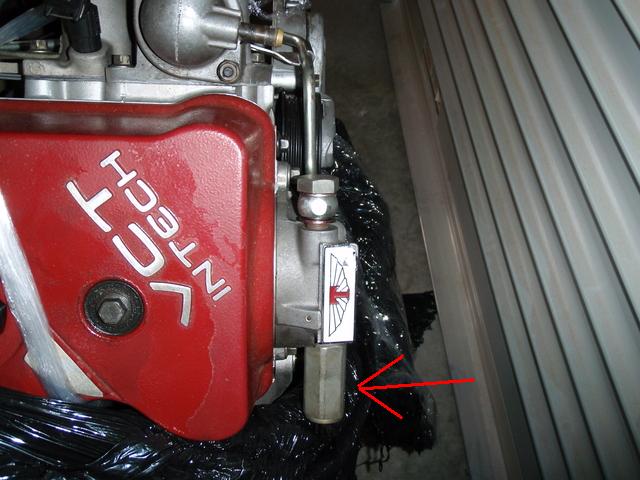

its the thing on the front of the head that takes an injector type plug.
Attachment:
p5150225.jpg [ 65.79 KiB | Viewed 35 times ]

what it does it has 12v with ignition on and it opens the oil way and allows oil pressure to rotate the cam gear to give you low rpm torque.
and when the power is cut to the solinoid it cuts the oil pressure and the spring tension in the vct unit will rotate the cam for high rpm..
Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 8:12 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Sorry, I meant where is the BBM solenoid? As in location wise.

Do you know which pin is which on the VCT solenoid?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 8:56 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

twr7cx wrote:
Sorry, I meant where is the BBM solenoid? As in location wise.

Do you know which pin is which on the VCT solenoid?


the bbm solinoid is behind the washer bottle on the pasenger inner guard.
and the bbm solinoid works on the same principal as the vct.(12v constant and the ecu cuts earth at 3800rpm releasing vacuum)

um.. the top pin on the vct unit is the 12v and the bottom one is the earth/trigger.
Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

TROYMAN wrote:
twr7cx wrote:
Sorry, I meant where is the BBM solenoid? As in location wise.

Do you know which pin is which on the VCT solenoid?


the bbm solinoid is behind the washer bottle on the pasenger inner guard.
and the bbm solinoid works on the same principal as the vct.(12v constant and the ecu cuts earth at 3800rpm releasing vacuum)

um.. the top pin on the vct unit is the 12v and the bottom one is the earth/trigger.


So I run a constant 12v to the top pin and connect the bottom pin to the earth ecu cut on the BBM solenoid then.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Mon Jun 15, 2009 10:15 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if you just want to use the bbm signal to trigger the vct?
you hook the top pin to constant ignition 12v and the bottom can be hooked up to the green wire from the bbm solinoid or the bbm pin on the ecu(same wire)..
im not sure how much load is drawn through the vct so it might be best to use a relay and just let the ecu trigger the relay instead of the ecu carrying the load?.

i hope that makes sence??
Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Tue Jun 16, 2009 12:41 am
Getting Side Ways
Offline

Age: 48

Posts: 429

Joined: 3rd Jan 2005

Ride: AU XR6 with BF Turbo engine

Location: Sydney
NSW, Australia

the VCT has 12v constant to it. And the ECU earths it out. Works above 3200rpm. Pin 32 on the ECU is the VCT earth



_________________

RIP :( 1x confused Falcon..EL Falcon with full AU running gear...VCT, 5 speed, IRS, AUII front suspension, brakes, and steering RIP

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Tue Jun 16, 2009 12:59 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

TROYMAN wrote:
if you just want to use the bbm signal to trigger the vct?
you hook the top pin to constant ignition 12v and the bottom can be hooked up to the green wire from the bbm solinoid or the bbm pin on the ecu(same wire)..
im not sure how much load is drawn through the vct so it might be best to use a relay and just let the ecu trigger the relay instead of the ecu carrying the load?.

i hope that makes sence??


It does, ta. I might just go with the RPM switch instead, I was reading your build thread about how you were saying it takes a while for the cam to move over, so you found 3,000rpm to be better suited.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Tue Jun 16, 2009 12:59 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

macxr8 wrote:
the VCT has 12v constant to it. And the ECU earths it out. Works above 3200rpm. Pin 32 on the ECU is the VCT earth


I assume that is if I was running an AU ECU, which I'm not?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


 Post subject: Re: AU VCT into EF question
Posted: Tue Jun 16, 2009 9:34 am
Getting Side Ways
Offline

Age: 48

Posts: 429

Joined: 3rd Jan 2005

Ride: AU XR6 with BF Turbo engine

Location: Sydney
NSW, Australia

yea, thats if your running the AU ECU



_________________

RIP :( 1x confused Falcon..EL Falcon with full AU running gear...VCT, 5 speed, IRS, AUII front suspension, brakes, and steering RIP

Top
 Profile
