AU2 XR6 VCT in EB XR6 1992?



Page 1 of 5 [ 71 posts ] Go to page 1, 2, 3, 4, 5  Next


 Post subject: AU2 XR6 VCT in EB XR6 1992?
Posted: Sat Dec 22, 2007 2:27 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Im planning to put AU2 XR6 VCT (2001) MOTOR & AUTO into EB XR6!

- Change all wiring loom & ECU for engine
- Sump Modified


Has anyone done this before?

Thank you



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


 Post subject: Re: AU2 XR6 VCT in EB XR6 1992?
Posted: Sat Dec 22, 2007 3:57 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

linesix wrote:
Im planning to put AU2 XR6 VCT (2001) MOTOR & AUTO into EB XR6!

- Change all wiring loom & ECU for engine
- Sump Modified


Has anyone done this before?

Thank you


i think it wouldn't the faroff some one put an VCT au motor in an EF and that....

i think you not far off it... get a VCT with all acessories and vct accessories eninge loom and ecu and you should be okay



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Sat Dec 22, 2007 4:13 pm
Getting Side Ways
Offline

Age: 28

Posts: 554

Joined: 24th Mar 2007

Gallery: 2 images

Ride: ef 5 speed

Location: melbourne
VIC, Australia

dont mod sump just give the bar in engine a bigg hit it will work fine



_________________

i am in need of a new front bar or good condation secondhand for a 95 ef futra,
lsd for a for ef ,modifed au sump to go in and ef , working air con compressor

Top
 Profile


Posted: Sun Dec 23, 2007 12:39 am
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Thanks for info and i will keep post with pictures!

Will start after NYE!



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Sun Dec 23, 2007 7:52 am
Getting Side Ways
Offline
User avatar

Posts: 649

Joined: 20th Mar 2005

Gallery: 2 images

Top
 Profile


Posted: Tue Dec 25, 2007 8:53 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Ok, Is the Fuel pump same EB (xr6) to AU (xr6)?

i got specifitcations for EA/EB/ED

Delivery (min) 240cc @ 275kPa
(XR6) 280cc @ 300kPa

These are the same for EF/EL which i got the book too!

i dont have a book for AU!

I think EA to AU is same fuel pump pressure!



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Sat Dec 29, 2007 11:25 pm
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

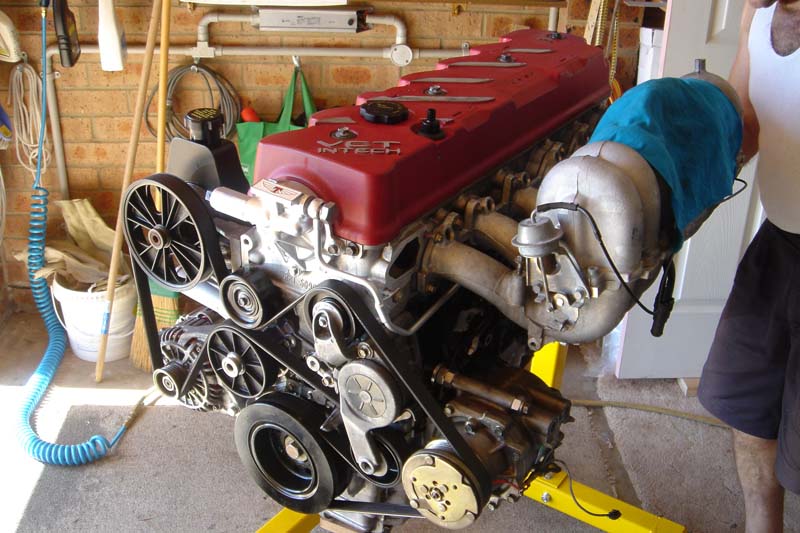

AU2 XR6 VCT





Attachments:
day1.jpg [ 122.27 KiB | Viewed 68 times ]



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Sat Dec 29, 2007 11:38 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

i think youll find it easier to use the AU1 ECU as it uses smartlock instead of smartsheild



_________________


Top
 Profile


Posted: Tue Jan 01, 2008 9:51 am
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

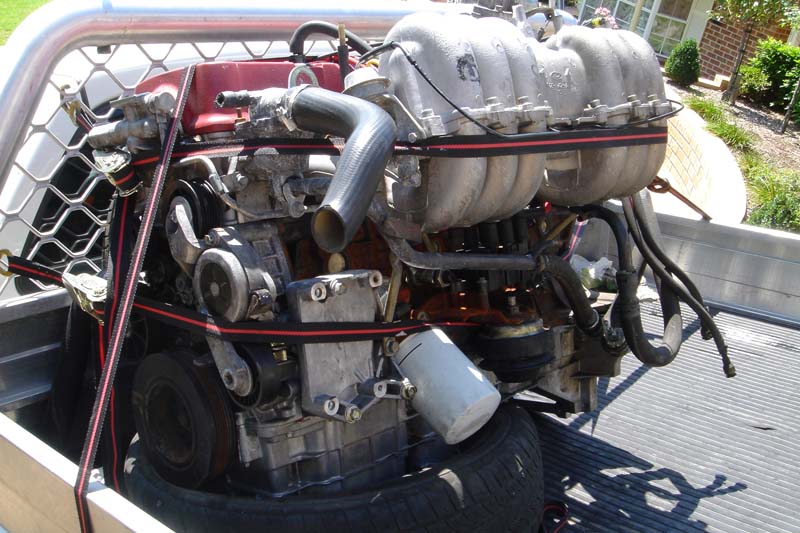

Day 2





Attachments:
day 2.jpg
day 2.jpg [ 116.42 KiB | Viewed 87 times ]



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Tue Jan 01, 2008 9:58 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

cool mate :)

im with the AU1 ecu as well

smartsheild easier to deal with



_________________

RIP SCOTT

Top
 Profile


Posted: Tue Jan 01, 2008 10:19 am
Parts Gopher
Offline
User avatar

Age: 36

Posts: 72

Joined: 11th Apr 2005

Gallery: 7 images

Ride: XR6

Location: Sydney
NSW, Australia

Hi Frank, My car is EB series II with the smartlock!

Are you using AU I ECU with the VCT engine and what sort of Modifications did it require eg additional sensors and wiring?

Could you please advise, and also what car did you install this engine in?

Thanks,



_________________

Car Body: EBII 92 XR6
Engine: AUII 2001 VCT XR6
Gearbox: EF T5 Manual
Diff: 3:45 LSD
Cams: Standard
ECU: MicroTech LT10S
Dyno: 149.8rwkw (200.8rwhp)

Top
 Profile


Posted: Tue Jan 01, 2008 4:02 pm
Getting Side Ways
Offline

Age: 29

Posts: 4182

Joined: 30th May 2005

Ride: 1993 EB XR8

Location: BrisVegas
QLD, Australia

Frank has an AU1 XR6HP, it is twason who is putting the VCT AU motor into his EF



_________________

ILL60 - EF XR8, Sunroof, Ticky Kit, 19x8.5/19x11 TE37's, 347, AFr185's, TFS BoxRcustom converter, Hurst Quarterstick, huge billet cam.

51TER - DL LTD. Stock.

Top
 Profile


Posted: Tue Jan 01, 2008 4:05 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

67RCE wrote:
Frank has an AU1 XR6HP, it is twason who is putting the VCT AU motor into his EF
Yep , in and done. I would steer clear of the AU ECU in anything other than AU or EF unless you are doing a complete rewire. If I were you I would be going to the EL ecu and using the BBM output to drive the VCT. I cheated and installed a microswitch on the BBM to trigger the VCT.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Tue Jan 01, 2008 4:21 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

twason wrote:
67RCE wrote:
Frank has an AU1 XR6HP, it is twason who is putting the VCT AU motor into his EF
Yep , in and done. I would steer clear of the AU ECU in anything other than AU or EF unless you are doing a complete rewire. If I were you I would be going to the EL ecu and using the BBM output to drive the VCT. I cheated and installed a microswitch on the BBM to trigger the VCT.


good solution and much easier...tho not quite perfect..


what phases does the cam move through relative to RPM?



_________________


Top
 Profile


Posted: Tue Jan 01, 2008 5:26 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

gogetta wrote:
twason wrote:
67RCE wrote:
Frank has an AU1 XR6HP, it is twason who is putting the VCT AU motor into his EF
Yep , in and done. I would steer clear of the AU ECU in anything other than AU or EF unless you are doing a complete rewire. If I were you I would be going to the EL ecu and using the BBM output to drive the VCT. I cheated and installed a microswitch on the BBM to trigger the VCT.


good solution and much easier...tho not quite perfect..


what phases does the cam move through relative to RPM?
AU VCT is a lot cruder than the BA version, its either on or off.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile
