ba into boxcar, k frame clearance



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: ba into boxcar, k frame clearance
Posted: Tue Jul 15, 2008 12:23 am
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

how much clearance is required to clear an eb2 k-frame?

Its expendable so will a slegdgehammer suffice?
Top
 Profile


Posted: Tue Jul 15, 2008 12:33 am
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

Top
 Profile


Posted: Tue Jul 15, 2008 9:22 am
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

blah, that doesnt help.

if you'd read it you'd know that i've posted in that thread, fool.
Top
 Profile


Posted: Tue Jul 15, 2008 9:25 am
Getting Side Ways
Offline

Age: 34

Posts: 3406

Joined: 7th Feb 2005

Ride: AU2 Ute

Location: melbourne
VIC, Australia

Weld some box to the front of the crossmember then cut the original away.
Top
 Profile


Posted: Tue Jul 15, 2008 9:49 am
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

Dansedgli wrote:
Weld some box to the front of the crossmember then cut the original away.


yeah thought about that but i dont have a welder and dgaf about it just want it to bolt in :(

the only way i could get it welded would be to drive the car somewhere, and i guess it cant be done with the engine in? :p
Top
 Profile


Posted: Tue Jul 15, 2008 10:57 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

sledge + grind ribs off sump?



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Tue Jul 15, 2008 11:44 am
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

I don't reckon you'll get enough clearance with a sledgey glenn.
Can't you borrow some kunts arc or something?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Jul 15, 2008 1:53 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

EFFalcon wrote:
sledge + grind ribs off sump?


hehe i'd rather damage the k-frame more than the sump :P

Steady ED wrote:
I don't reckon you'll get enough clearance with a sledgey glenn.
Can't you borrow some kunts arc or something?


:( I dont know any knts with an arc welder, only migs. maybe i'll just cut it and bolt a piece of steel in the middle or something.?

I dont want to take the k-frame out or transport it by trailer. I'd rather put the motor in and drive it somewhere without the crossmember in then get it welded in after :P
Top
 Profile


Posted: Tue Jul 15, 2008 2:26 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

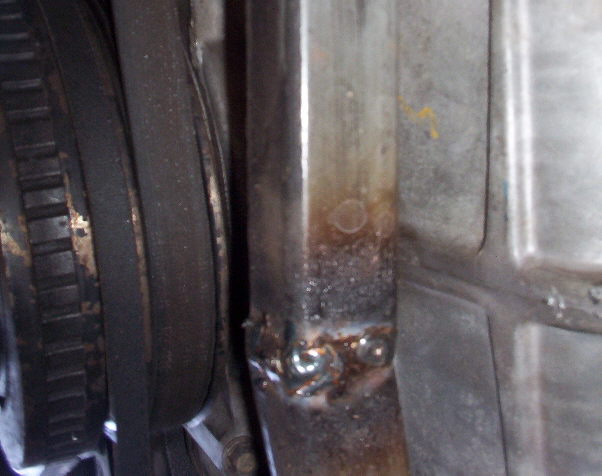

can i suggest cut through the centre of the square tube at the front of the k frame bend each side of the tube with a sledg or a jack.
one you got the engine in and running just drive it to where ever you can get a welder and weld it back up??

that tube is only a support bar its not really structual...

something like what i have done to put the au engine into the ea..

here is a pic





Attachments:
engine.ea2au (5)_edited.jpg
engine.ea2au (5)_edited.jpg [ 43.45 KiB | Viewed 614 times ]
Top
 Profile


Posted: Tue Jul 15, 2008 2:57 pm
Getting Side Ways
Offline

Age: 32

Posts: 1112

Joined: 18th Jan 2005

Location: MAFFRA
VIC, Australia

isnt the sump the same as au and fit pretty easily?



_________________

97 el xr6,5 speed short shifter,sequential scoop,no arial,freshly resprayed,low on 17's,3 inch zorst,stainless hi flo cat,snort stage 3 stainless manifold,garrett t04e,front mount cooler,wolf 3d ecu,seimens 760cc injectors,walbro fuel pump

Top
 Profile


Posted: Tue Jul 15, 2008 2:58 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

TROYMAN wrote:
can i suggest cut through the centre of the square tube at the front of the k frame bend each side of the tube with a sledg or a jack.
one you got the engine in and running just drive it to where ever you can get a welder and weld it back up??

that tube is only a support bar its not really structual...

something like what i have done to put the au engine into the ea..

here is a pic


did you grind the ribs off? i dont really want to damage the sump (not that grinding fins off is damage)...

But thats probably what i'd do, even if i have to grind the ribs off.

Thanks mate
Top
 Profile


Posted: Tue Jul 15, 2008 3:07 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Is that gonna clear BA oil pump?



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Jul 15, 2008 3:23 pm
Getting Side Ways
Offline

Age: 31

Posts: 1279

Joined: 5th Apr 2005

Gallery: 2 images

Ride: Toyota Supra RZ

Location: Burwood Nights
VIC, Australia

Steady ED wrote:
Is that gonna clear BA oil pump?



who knows.. i'm sure the car would survive low speed country roads to get somewhere to get it welded without the member all together...

but i'd probably be dominating the road with a ba motor and a t5 :O
Top
 Profile


Posted: Tue Jul 15, 2008 3:25 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

madeaspack wrote:
isnt the sump the same as au and fit pretty easily?


no the ba has a extra bulge on the front of the sump..(i think its the oil pump..
Top
 Profile


Posted: Tue Jul 15, 2008 3:30 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

actually.... bolting it in might be an idea glenn.
Cut the middle section out so you've got clearance.
get some square steel and drill both, few bolts through and done.
drive and get it welded up.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile
