 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Jul 30, 2011 1:14 am
Parts Gopher
Offline

Posts: 86

Joined: 23rd Dec 2009

Gallery: 16 images

Ride: ford ef2 xr6

Location: melbourne
VIC, Australia

looks like the pulleys on your tensioner may have been put on the wrong way around..metal pulleys in your pic look like nu line ones..these must be bolted on from correct side to work properly...unlike the original plastic pulleys which can be bolted on from either side..remove the tensioner and try turnig pulley around.
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Jul 30, 2011 3:01 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

The belt doesn't sit central normally on the lower tensioner pulley either, if you ever notice the wear on a typical plastic one.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Jul 30, 2011 9:18 am
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

zabatron wrote:
looks like the pulleys on your tensioner may have been put on the wrong way around..metal pulleys in your pic look like nu line ones..these must be bolted on from correct side to work properly...unlike the original plastic pulleys which can be bolted on from either side..remove the tensioner and try turnig pulley around.


The thread is 4 years old, I think it might be a bit late to let him know.
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Jul 30, 2011 9:44 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

in the pics that damo put up, its the harmonic balancer that is the issue.
you can see the belt area on the balancer is out of align with the water pump..

a similar issue will happen when the tensioner is suffed see there is a gap opening where the tensioner pivots.

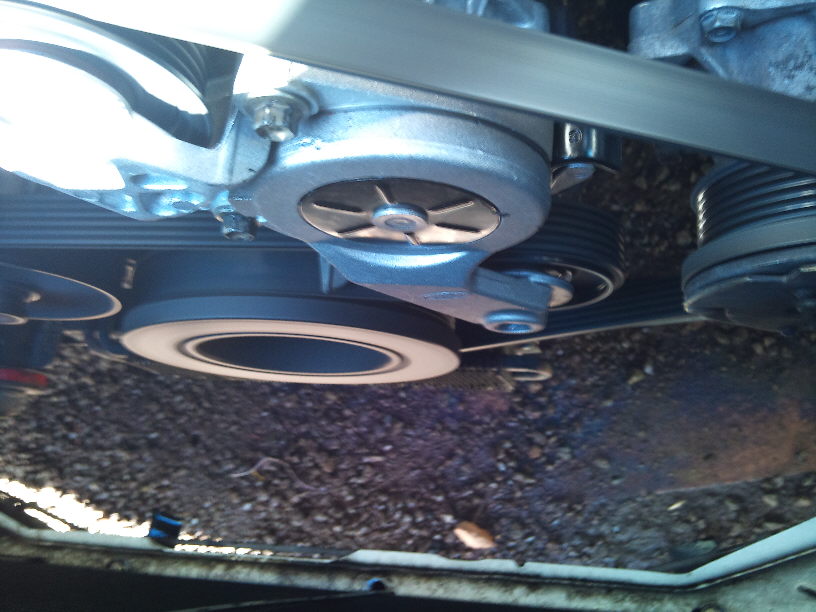

before
Attachment:
belt tensioner 1.jpg
belt tensioner 1.jpg [ 129.42 KiB | Viewed 51 times ]

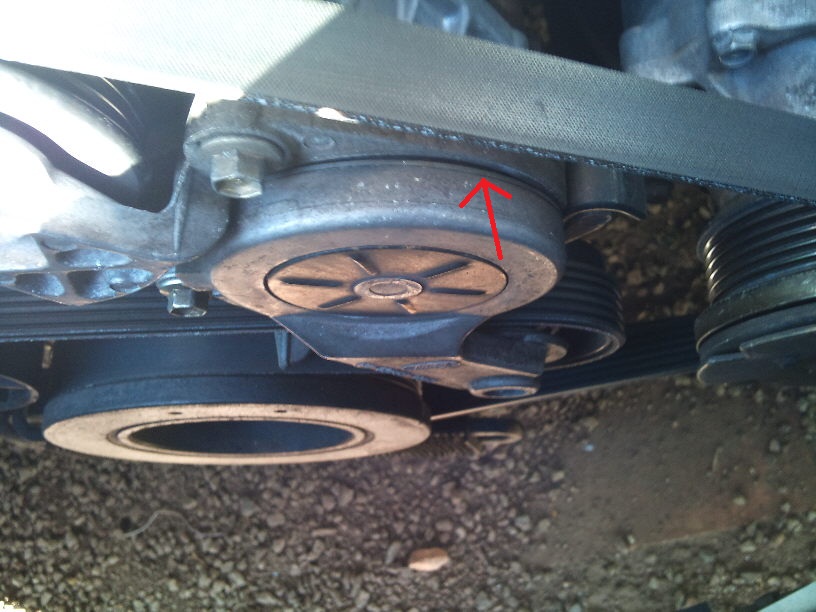

after
Attachment:
belt tensioner 2.jpg
belt tensioner 2.jpg [ 83.81 KiB | Viewed 60 times ]


oh and the metal tensioner pulleys only go on one way, they are slightly offset if you try put them on the wrong way they will hit the tensioner and wont even turn..
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Jul 30, 2011 5:42 pm
Fordmods Newbie
Offline

Posts: 7

Joined: 29th Jul 2011

Ride: EL Futura

Location: Sunshine Coast
QLD, Australia

Ok thanks.

If i put some pics here could u give me ur advice/opinion on which it would be? or both? lol knowing my luck probably both :/ damnit.
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Jul 30, 2011 6:19 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Fire em up so we can see what the issue is.
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Thu Sep 15, 2011 11:36 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

my car is exhibiting the same problems . already changed my balancer but problem is still persisting.
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Fri Sep 16, 2011 12:57 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Had the same problem after replacing a failed balancer/pulley. Was chewing through a belt a week. The pulley was still way out of alignment (by about 1 rib on the pulley). Turns out that I hadn't tightened the bolt far enough, so the pulley wasn't all the way home. Doh! :oops:

The pulley is a tight friction fit on the crank, so it needs a lot of torque to get the pulley to fully seat and line up with the belt. Use a breaker bar, as a normal ratchet is probably not enough leverage. Mine is an automatic, so I had to take the access plate off the front of the transmission and jam a prybar in the flex plate teeth to keep the crank from turning while I tightened the crank bolt. That fixed the problem.

Worth double checking.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Sat Sep 17, 2011 5:52 pm
Tyre Shredder
Offline
User avatar

Age: 42

Posts: 368

Joined: 22nd Aug 2008

Ride: 2002 AUII Fairlane Sportsman V8

Location: Roxby Downs
SA, Australia

efxr6wagon wrote:
Had the same problem after replacing a failed balancer/pulley. Was chewing through a belt a week. The pulley was still way out of alignment (by about 1 rib on the pulley). Turns out that I hadn't tightened the bolt far enough, so the pulley wasn't all the way home. Doh! :oops:

The pulley is a tight friction fit on the crank, so it needs a lot of torque to get the pulley to fully seat and line up with the belt. Use a breaker bar, as a normal ratchet is probably not enough leverage. Mine is an automatic, so I had to take the access plate off the front of the transmission and jam a prybar in the flex plate teeth to keep the crank from turning while I tightened the crank bolt. That fixed the problem.

Worth double checking.
I've got the head off at the moment, i might quickly undo the starter motor & see if i can jam something in between. i will try to tighten the HB bolt even further.
