 Post subject: Balancer and Idler Pulley
Posted: Sat Mar 10, 2007 7:30 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

I think I have a major problem with my either harmonic balancer or one of my idler pulleys, or possibly the belt tensioner. basically I replaced both of the pulleys on the tensioner a couple of days ago, whilst I had it off i noticed there was a groove worn into the metal where the belt had been skimming against the tansioner on the lower pulley.

I just finished doing a few things to the car and the problem is still there. The belt is pretty much sitting half on the lower pulley and wobbling all over the joint as is the balancer. See pic.Image Anyway it's got me stuffed, if the balancer was a bit wobly would it cause the tensioner pully to almost push the belt off ? I'm going to go pull the belt tensioner off again now and check it out, i'll post a pic of the groove it had worn in, the groove was allready there before I replaced the pullys and belt. So if i'm up for a new harmonic balancer can anyone suggest a better quality aftermarket one, or is there nothing available for the i6 ? I'll post some more pics up when I remove the tensioner but it doesn't look good.

Thanks

Damo
Top
 Profile


Posted: Sat Mar 10, 2007 8:16 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

You can see the groove the belt has worn in here, it's even more prominent now and there were metal shavings around it.
and here is a pic of the tensioner. I havn't even been driving the car and I keep finding problems with it, can't drive it till end of july. So if anyone has had a similair experience please share what the problem was and how you fixed it.Image
Top
 Profile


Posted: Sat Mar 10, 2007 8:43 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

I wonder if genuine pulleys are slightly better



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sat Mar 10, 2007 9:32 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

That wear is caused by the tensioner being worn out, as in where it pivots. You need a new tensioner assembly. Same thing happens on Bommadores.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Mar 10, 2007 9:46 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

thanks CJH any idea on the price of a new tensioner, i'm surprised this wasn't picked up on when i had the motor changed, i guess it confirms the fact my mechanic is s**t. What is a new tensioner worth ?

Krytox, these pulleys are better than the genuine plastic crap ones. I'm guessing the balncer is ok than ? might replace it anyways.
Top
 Profile


Posted: Sat Mar 10, 2007 10:48 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Damo wrote:
thanks CJH any idea on the price of a new tensioner, i'm surprised this wasn't picked up on when i had the motor changed, i guess it confirms the fact my mechanic is s**t. What is a new tensioner worth ?

Krytox, these pulleys are better than the genuine plastic crap ones. I'm guessing the balncer is ok than ? might replace it anyways.


If the rubber isn't hanging out of the balancer, or gone back inside, it'll be alright. The tensioner, price wise???, about $200 +. The XH ute ones are another $100 dearer. You could track down a used one from the wreckers, just hope it isn't off a cab engine. I've had to replace them on cabs a fair bit. I like the plastic pulleys, less weight.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Thu Mar 15, 2007 10:43 pm
Parts Gopher
Offline
User avatar

Posts: 67

Joined: 17th Sep 2006

Gallery: 5 images

Ride: 95 EFII Futura Wagon

Location: Sydney
NSW, Australia

I had the same problem with my tensioner.

I got one from the wreckers for $25 but it took a few goes to find a nice straight one.

I replaced the pulleys for $20 each.

From memory a new one from Ford was about $250.



_________________

"My theory is that the universe is made out of stupidity because it's more plentiful than hydrogen" - Frank Zappa

Top
 Profile


Posted: Sat Mar 17, 2007 1:58 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

ok continuing on from this I got a good tensioner from a wreckers this morning and wacked it on. Now I had the exact same problem as before but even worse this time. Shut the car down strait away.

After having a good look down there I have a feeling my balancer has slipped out heaps, because the bottom pulley on the tensioner doesn't even come close to lineing up, and the water pump pulley is also closer to the timing case.

Now can anyone tell me for sure if the balancer has slipped out ? and how far from the timing case should it sit, mine looks to have slipped out almost 5mm doesn't look right at all.
Top
 Profile


Posted: Sat Mar 17, 2007 2:21 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

here's a better pic.
Top
 Profile


Posted: Sat Mar 17, 2007 3:37 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

that last pic is a little blury, but that balancer might have slipped out????

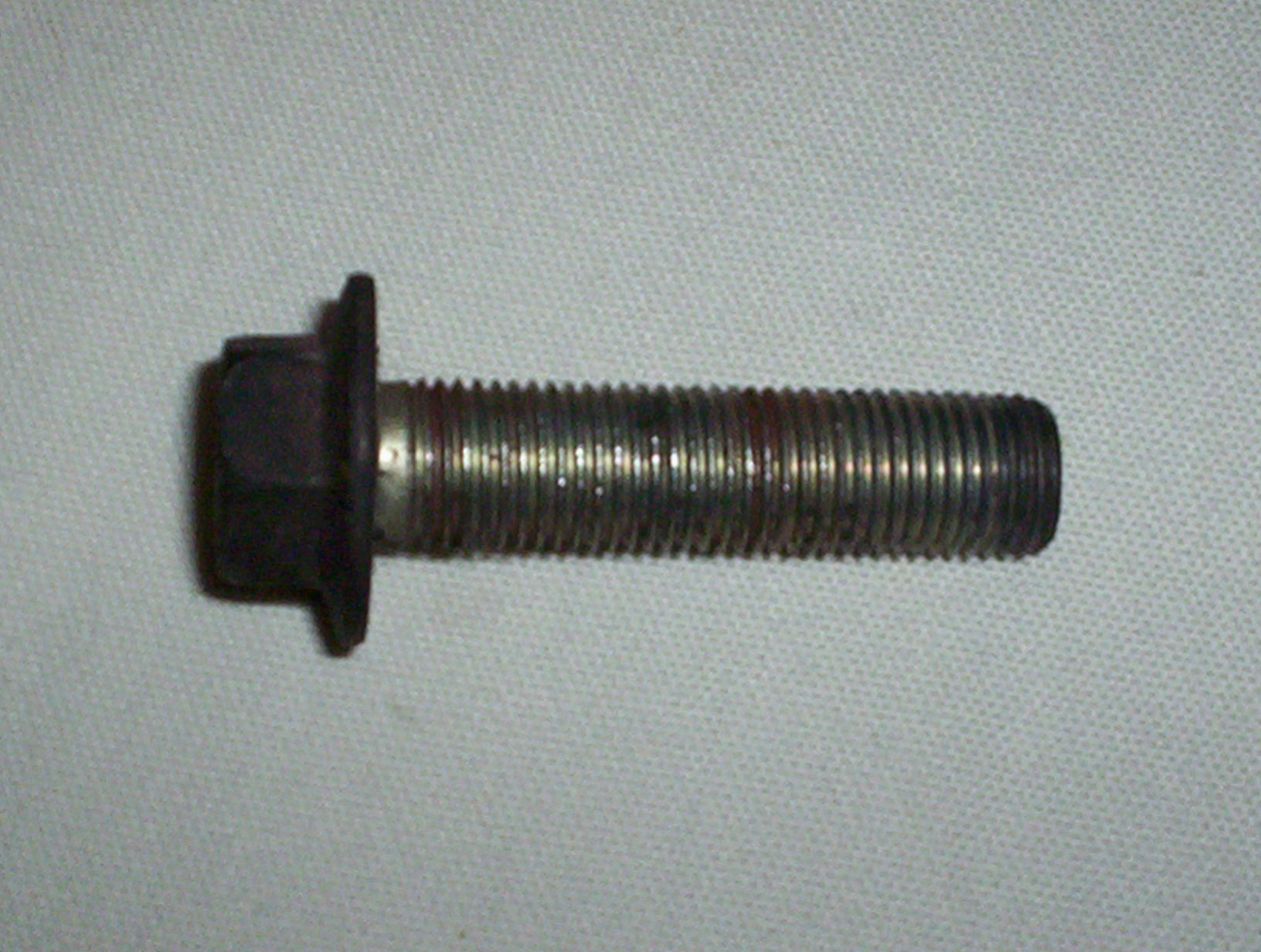

A good bolt to use to put them back in, is a bommodore front strut bolt, they are the same thread size. Here's a pic of one.





Attachments:
Harmonic balancer install bolt..jpg
Harmonic balancer install bolt..jpg [ 326.05 KiB | Viewed 41 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Mar 17, 2007 5:51 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

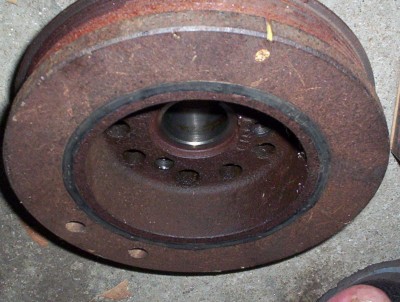

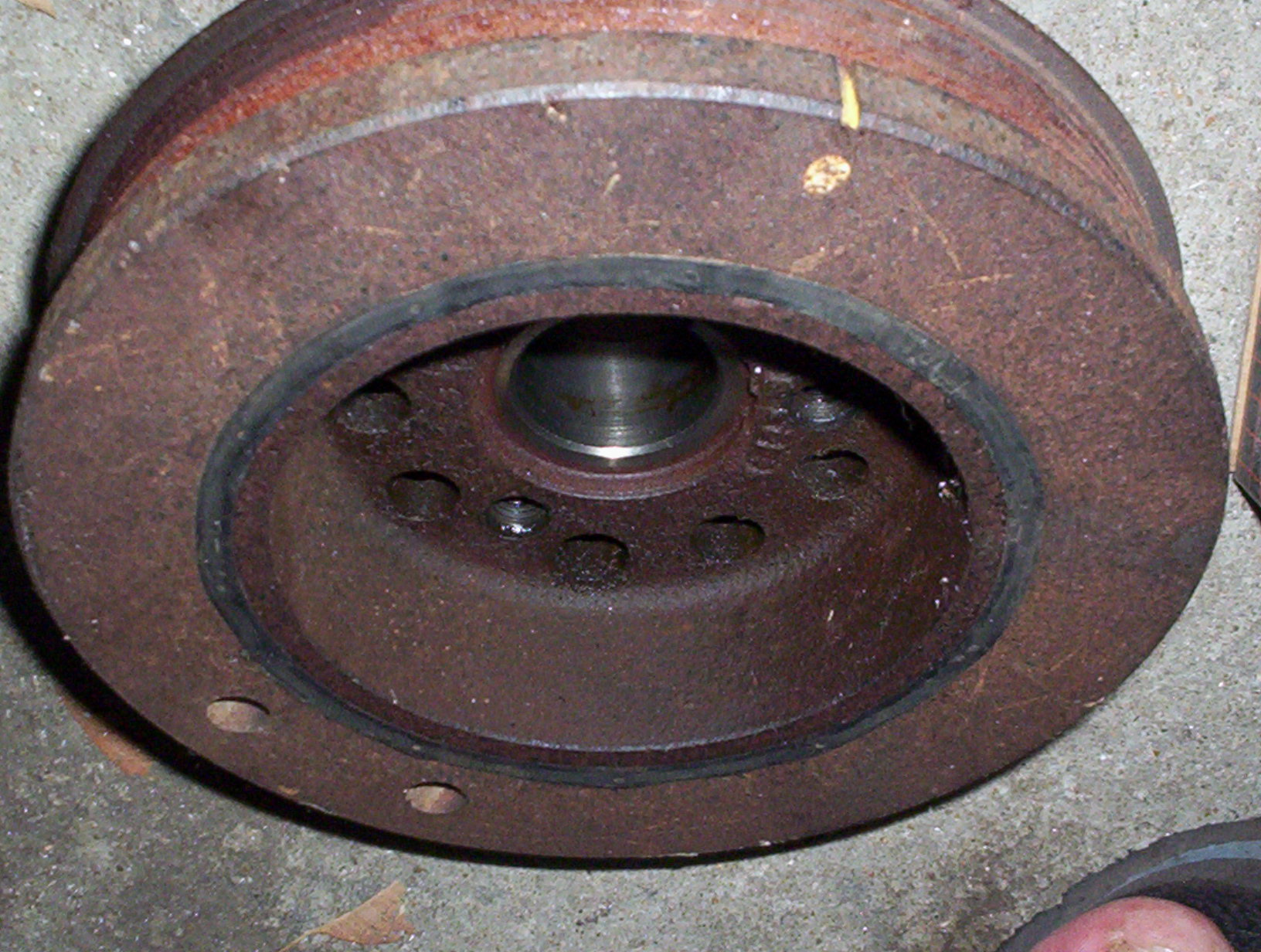

Here is a pic of one in good nick. Just needs bead-blasting and some paint. I'll be using this one on my EA.





Attachments:
1997 EL Harmonic balancer 002.jpg
1997 EL Harmonic balancer 002.jpg [ 428.87 KiB | Viewed 53 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Mar 17, 2007 7:04 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 1160

Joined: 25th Apr 2005

Gallery: 11 images

Location: Melbourne
VIC, Australia

looking at that the rubber and pulley on mine has deffinately slipped right out. :S I might look at getting a powerbond balancer, i'd like to replace it anyway as most of the pulleys and stuff on the car are like new. Thanks again.
Top
 Profile


Posted: Sat Mar 17, 2007 7:44 pm
Getting Side Ways
Offline

Posts: 988

Joined: 4th Dec 2004

Ride: el faimont, dual fuel

Location: melbourne
VIC, Australia

yeah your harmonic balancer is nackered.
fairly easy to replace.
new ford $300
nuline item $100
http://search.stores.ebay.com.au/Ringwo ... 08QQsofpZ0



_________________

why do u write in here.

Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Fri Jul 29, 2011 10:14 pm
Fordmods Newbie
Offline

Posts: 7

Joined: 29th Jul 2011

Ride: EL Futura

Location: Sunshine Coast
QLD, Australia

Hi I know this is a really old topic.. but I have just joined and having similar issues. I have an AUII and an EL. Looking at the pics.. seen damo's pic with 5mm on it and then cjh's pic of a decent one. because its blurry its a pic hard to see but im trying to figure where this is compared to a good one.

My EL is really bad... only half the pully and half the tensioner one also. I have the same problem with the belt rubbing and wearing into the metal too :/

Was this issue fixed by new pullies or pullies and harmonic balancer??

I also need a new timing chain in the EL (or adjusted?)

I run dual fuel on both but predominatly lpg.

Many thanks... for a chick i think i kinda do ok in getting my head around an engine bay... thank F for this place bcuz i knew sfa before i found you all!! much love HAHA
Top
 Profile


 Post subject: Re: Balancer and Idler Pulley
Posted: Fri Jul 29, 2011 11:36 pm
Oompa Loompa
Offline
User avatar

Posts: 28

Joined: 27th Mar 2010

Ride: XH UTE

Location: Hervey Bay
QLD, Australia

I had the same problems last week on my XH. Last Monday i replaced the harmonic balancer and it's now fixed. Cost me 260 done by the local RACQ workshop. My wife works there and I couldn't be stuffed :roll:
