 Post subject: BBM butterfly assembly only opening at 85%???
Posted: Sat Mar 29, 2008 3:08 am
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

thought I would start a new thread:


originally posted by:

Joesau
Fordmods - Smokin em u



PostPosted: Yesterday at 7:20 pm Post subject: Reply with quote
the BBm should close all the way, when it opens to WOT the valves do not
fully open, they open about 85% u can adjust this i have and is proven for a increase in power,



I just went out and checked and your right, I manually moved the lever that controls the butterfly assembly and they only open at about 85%.


All you need to do is bend up the metal tab plate up on the BBM so the shaft goes further back (when there is no vacuum, that's when the butterflies are open for the short runners after 3800rpm)

Before I do this is there any reason why ford only opened them by 85% and why there is an adjuster there to start with? What sort of gains am I expecting. haven't heard of this mod before?


Also drive around with the vacuum disconnected so the short runners are open and yeah down low is a bit slow and at switch point it comes on like boost.. But not as effective as long runners to 3800rpm then switch to short runners.



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Sat Mar 29, 2008 2:18 pm, edited 5 times in total.

Top
 Profile


Posted: Sat Mar 29, 2008 5:19 am
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

It got the better of me, so i adjusted the BBM lever. probably only got another 5-10% more travel. So the factory setting was pretty spot on.

Took it for a spin and could notice a little bit more of a surge when the BBM switches. Might have gained 1-5HP. Ford probably backed it off a tad for a smoother acceleration feel when the revs pass the 3800rpm switching point.

Cheers...



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Sat Mar 29, 2008 1:38 pm, edited 1 time in total.

Top
 Profile


Posted: Sat Mar 29, 2008 12:08 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

So..... will you leave it like that?
Top
 Profile


Posted: Sat Mar 29, 2008 12:28 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

tell us how u did it maybe? how to adjust it?



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
 Profile


Posted: Sat Mar 29, 2008 12:36 pm
Getting Side Ways
Offline

Posts: 6113

Joined: 8th May 2007

with the perspex heat shield, and now the "bbm power mod" i would take it down the track fo'shizzle..... 14's in the bag
Top
 Profile


Posted: Sat Mar 29, 2008 12:39 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

Spoondog wrote:
tell us how u did it maybe? how to adjust it?


just bend up the metal tab



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Top
 Profile


Posted: Sat Mar 29, 2008 1:06 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 3424

Joined: 23rd Dec 2007

Gallery: 32 images

Ride: BA XR6T (mix of BA, BF and FG)

Location: Perth
WA, Australia

gonna need a photo me thinks..
Top
 Profile


Posted: Sat Mar 29, 2008 1:21 pm
Getting Side Ways
Offline
User avatar

Posts: 3331

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

just noticed the time this thread was started....did u really go outside at 3 in the morning and do this?



_________________


Top
 Profile


Posted: Sat Mar 29, 2008 1:42 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

frankieh wrote:
gonna need a photo me thinks..

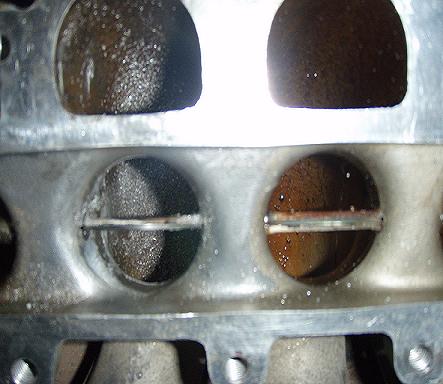

Here is a photo, just took the car out on the highway, it has made a noticeable improvement above 3800rpm.




_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Sat Mar 29, 2008 1:49 pm, edited 1 time in total.

Top
 Profile


Posted: Sat Mar 29, 2008 1:48 pm
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

is that going to change the point at which the butterfly opens? or wont it matter



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


Posted: Sat Mar 29, 2008 1:57 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

GeZza200 wrote:
is that going to change the point at which the butterfly opens? or wont it matter


No it will not effect switch point. Basically at idle there is vacuum present which closes the manifold butterfly control diaphragm (Short runners are closed). The ECU then cuts vacuum at 3800rpm via the BBM switch valve that is located behind the windscreen fluid bottle and thus the butterfly valves open on the shorter runner improving top end performance.


pic




_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Sat Mar 29, 2008 2:06 pm, edited 3 times in total.

Top
 Profile


Posted: Sat Mar 29, 2008 1:58 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 423

Joined: 17th May 2007

gogetta wrote:
just noticed the time this thread was started....did u really go outside at 3 in the morning and do this?


Lol, that's pure gold. When they are fully open they are at a slight angle (my BBM is off the car atm) but I've got a feeling they are open for maxium effect with the direction of the incomoing air, but not sure. I can't resist so I'll probably adjust them to fully open. I also cut the shaft that holds the valves' it's in 2 pieces and the valve slots between, I left the side with the thread for the screw. I also got the valves onto the bench grinder and halved the width. Just looking at it the ports have quite a bit more free space now, i think it will prove effective for some minor herbs.





Attachments:
valves.JPG [ 38.92 KiB | Viewed 149 times ]
valves.JPG [ 38.92 KiB | Viewed 137 times ]
Top
 Profile


Posted: Sat Mar 29, 2008 2:20 pm
Getting Side Ways
Offline

Posts: 6113

Joined: 8th May 2007

cboz wrote:
I also cut the .....


what did you do?

i dont really understand what youve done, but i cant imagine any gains being made by cutting into the shaft
Top
 Profile


Posted: Sat Mar 29, 2008 3:31 pm
Smokin em up
Offline
User avatar

Age: 50

Posts: 251

Joined: 22nd Mar 2006

Gallery: 7 images

Ride: EF XR6 manual

Location: S.E. Melbourne
VIC, Australia

Quote:
I also cut the shaft that holds the valves' it's in 2 pieces and the valve slots between, I left the side with the thread for the screw


I probably wouldn't have thinned the shaft that way, IMO it may have weakened the shaft too much, if the shaft lets go then you could end up with BBM blades/valves loose in the intake and possibly in your engine, Jamming your valves and stuffing your head.



_________________

EF XR6 5spd 14.57@97mph
154rwkwts

Top
 Profile


Posted: Sat Mar 29, 2008 3:54 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 423

Joined: 17th May 2007

grub73 wrote:
Quote:
I also cut the shaft that holds the valves' it's in 2 pieces and the valve slots between, I left the side with the thread for the screw


I probably wouldn't have thinned the shaft that way, IMO it may have weakened the shaft too much, if the shaft lets go then you could end up with BBM blades/valves loose in the intake and possibly in your engine, Jamming your valves and stuffing your head.


There's no chance of it breaking it's very strong material and the screw thread is retained. Though must say it's alot of labour for what I think would be a small gain, hoping to gain a little bit by doing this along with cutting the gasket to size which is pretty rough and fully opening the valves. Cheers I hand the thread back to it's owner after my little hi-jack, lol.
