belt troubles



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: belt troubles
Posted: Wed Jan 03, 2007 1:36 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

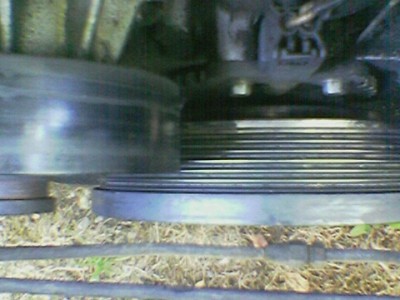

hey guys, i'm having some trouble, seems my serpentine belt is rubbing up against the arm on the tensioner. i replaced the tensioner but it isnt lining up with the harmonic balancer so i think the problem may be the harmonic balancer itself. i took a pic and it looks like the harmonic balancer is sticking out too far. it also wobbles a bit when the car is running. any ideas?





Attachments:
Image(21).jpg [ 118.61 KiB | Viewed 25 times ]
Top
 Profile


Posted: Wed Jan 03, 2007 1:43 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Yep.

Harmonic balancer may well be shagged. they have a rubber ring inside of them, which absorbs the vibrations but also holds the two parts of the balancer together. I had the one on my 5L fail, the outer ring of the balancer started to works its way loose. Made a hell of a vibration.

Make sure everything is still bolted in OK... but, have a good look at the balancer. See if you can spot the rubber insert trying to work its way loose...



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Jan 03, 2007 1:49 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

thanks for the quick reply. had a look and the rubber is looking like its coming loose. time for a new balancer i spose?
Top
 Profile


Posted: Wed Jan 03, 2007 2:39 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

You guessed it :)



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Jan 03, 2007 2:56 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

i have a similar problem on my el, the water pump and tensioner pulley (smooth one) seem to be just out of alignment all the rest look ok, the belt runs about 1m of the edge of the water pump and tensioner pulleys but sit perfectly fine on the rest???
Top
 Profile


Posted: Wed Jan 03, 2007 3:20 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

if the tensioner pulley lines up with the rest of them but not the harmonic balancer, that would mean your harmonic balancer is stuffed.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Wed Jan 03, 2007 8:45 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

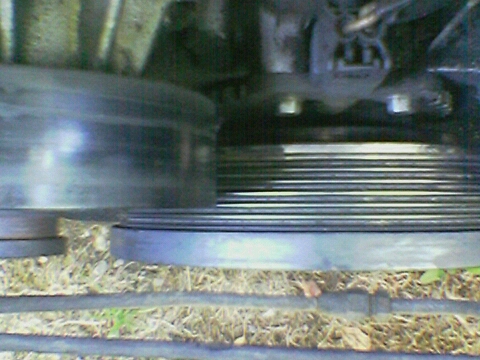

sorry for hijacking ya thread but is this what im looking for? that rubber bit. and ya can see how the belt isnt sitting right on the water pump and the tensioner

how would the harmonic balancer affect the engine and how much do they cost?

Top
 Profile


Posted: Wed Jan 03, 2007 9:44 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

if the balancer flies off it will create havoc, replace asap!



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Thu Jan 04, 2007 12:06 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

I remember seeing an EF which IIRC had the belt come off and wrap around the balancer - a couple of seconds caused around $1100 worth of damage.
Seeing the tensioner broken in half was awesome.

So I think you know what to do, and when to do it . . . .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Thu Jan 04, 2007 3:24 am
Getting Side Ways
Offline
User avatar

Age: 53

Posts: 1072

Joined: 6th Jul 2006

Gallery: 13 images

Ride: BA Falcon

Power: 106 rwkw

Location: Craigmore
SA, Australia

geez thats a familiar site, had to do mine a few months ago on my AU, that was fun..... not.

at least is a bit easier to do on the E-series.

dsheps83 average cost to buy one new is about $100, depends on where you go



_________________

2003 BA Falcon Egas Taxi Pack - XR Replica
Tpak MKII Build Thread

1984 ZL Fairlane
The Project

Top
 Profile


Posted: Fri Jan 05, 2007 12:08 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

ok i'm replacing the harmonic balancer as we speak. does anyone know how to take the bolt off? can't take it off because the crank turns as im undoing it. how do i stop it turning over? thnx
Top
 Profile


Posted: Fri Jan 05, 2007 12:17 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

breaker bar and wedge it between the chassis and hit the key. just make sure it's not gonna smash anything in the process, and it's best you remove the radiator.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Fri Jan 05, 2007 12:31 pm
Stock as a Rock
Offline

Age: 32

Posts: 102

Joined: 27th Dec 2004

Ride: EF

Location: Melbourne
VIC, Australia

ok but then how do u go about re tightening it when the new one is in?
Top
 Profile


Posted: Fri Jan 05, 2007 12:37 pm
Getting Side Ways
Offline
User avatar

Posts: 681

Joined: 3rd Apr 2005

Gallery: 24 images

Ride: BF MKII Ghia

i put a small bar or screwdriver threw one of the holes in the balancer to stop it from spinning (maybe why mine is stuffed but i doubt it)
Top
 Profile


Posted: Fri Jan 05, 2007 12:58 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

to tighten i always use a rattle gun but i assumed that you didn't have access to one?
maybe see how tight you can get it with the breaker bar, start it and run it, then check it a few times to make sure it dosen't loosen off? otherwise the best bet is to take the ring gear inspection plate off and wedge something between the flex plate or ring gear and see how you go.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile
