Bent rod?



Page 1 of 2 [ 25 posts ] Go to page 1, 2  Next


 Post subject: Bent rod?
Posted: Fri Jul 27, 2012 10:14 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Just checking a few things on my XR6T block and when checking the distance between the block face and the top of each piston at TDC found variations of up to 1.5mm. Is that normal or do I have an issue with the rods?



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Fri Jul 27, 2012 10:39 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

twase wrote:
Just checking a few things on my XR6T block and when checking the distance between the block face and the top of each piston at TDC found variations of up to 1.5mm. Is that normal or do I have an issue with the rods?

:cry: :cry: bent,should be close to a few thous of a inch .004-.008-or.1-.2mm,and thats generous



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Fri Jul 27, 2012 10:44 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Bugger, only cost $100 for the short motor anyway. I have a set of rods from another engine but no caps, are the caps interchangeable by chance?



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Fri Jul 27, 2012 10:53 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

twase wrote:
Bugger, only cost $100 for the short motor anyway. I have a set of rods from another engine but no caps, are the caps interchangeable by chance?

can get the rod and cap resized,could use the caps off the bent ones,they measure the bore and resize it to the rod.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Fri Jul 27, 2012 10:59 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

hans hartman wrote:
twase wrote:
Bugger, only cost $100 for the short motor anyway. I have a set of rods from another engine but no caps, are the caps interchangeable by chance?

can get the rod and cap resized,could use the caps off the bent ones,they measure the bore and resize it to the rod.

Thanks, I might have to take the lot in to someone and get it done... I will strip it down tomorrow and see what condition the bearings are in.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 12:20 am
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

after market rods will compare in price...........



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 10:05 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Did some measurments this morning with a dial gauge rather than the crude vernier ones last night.
WRT Cylinder 6
cyl test1 test2
1 1.20mm 1.17mm
2 0.61mm 0.52mm
3 1.20mm 1.10mm
4 1.10mm 0.86mm
5 0.57mm 0.63mm
6 0.00mm 0.00mm

Test one from the center of the piston, test 2 from a point near the edge but below the lip where someone has previously cleaned a section of the piston. Looks like most if not all have issues...



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 10:21 am
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

twase wrote:
Did some measurments this morning with a dial gauge rather than the crude vernier ones last night.
WRT Cylinder 6
cyl test1 test2
1 1.20mm 1.17mm
2 0.61mm 0.52mm
3 1.20mm 1.10mm
4 1.10mm 0.86mm
5 0.57mm 0.63mm
6 0.00mm 0.00mm

Test one from the center of the piston, test 2 from a point near the edge but below the lip where someone has previously cleaned a section of the piston. Looks like most if not all have issues...

check the gudgeon to piston top height,may have been a shoonky repair,grabbed all sorts of parts.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 10:54 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Pulled the main caps and the bearings are pretty worn, white metal gone in some parts, have not got to the conrod's yet.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 11:05 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Is the NA crank the same as the turbo? This crank has a damaged end where the motor has been dragged on its end at some stage. The more I look the less of a deal this was.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 1:15 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Sounds like someone's first go at a rebuild.
Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 1:22 pm
Getting Side Ways
Offline

Age: 66

Posts: 2548

Joined: 18th Mar 2006

Ride: EF-XR8chaser

Location: wollongong
NSW, Australia

twase wrote:
Is the NA crank the same as the turbo? This crank has a damaged end where the motor has been dragged on its end at some stage. The more I look the less of a deal this was.

did you expect the boat anchor to have a pensioners life with-boost,crank it up and bend rods,main bearing wear confirms it,hard life.



_________________

R.I.P HANS HARTMAN

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 1:31 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Not too worried, the bore has the hone marks and only a few minor marks. I suspected it was sus but the seller said he paid $550 for it from a performance workshop that someone had upgraded and it was going and low K motor. Anyway the only bit I really needed was one turbo piston from it, I have other 5 and 6 good (I hope) rods. I hope the NA crank I have is the same as the turbo version.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 2:56 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

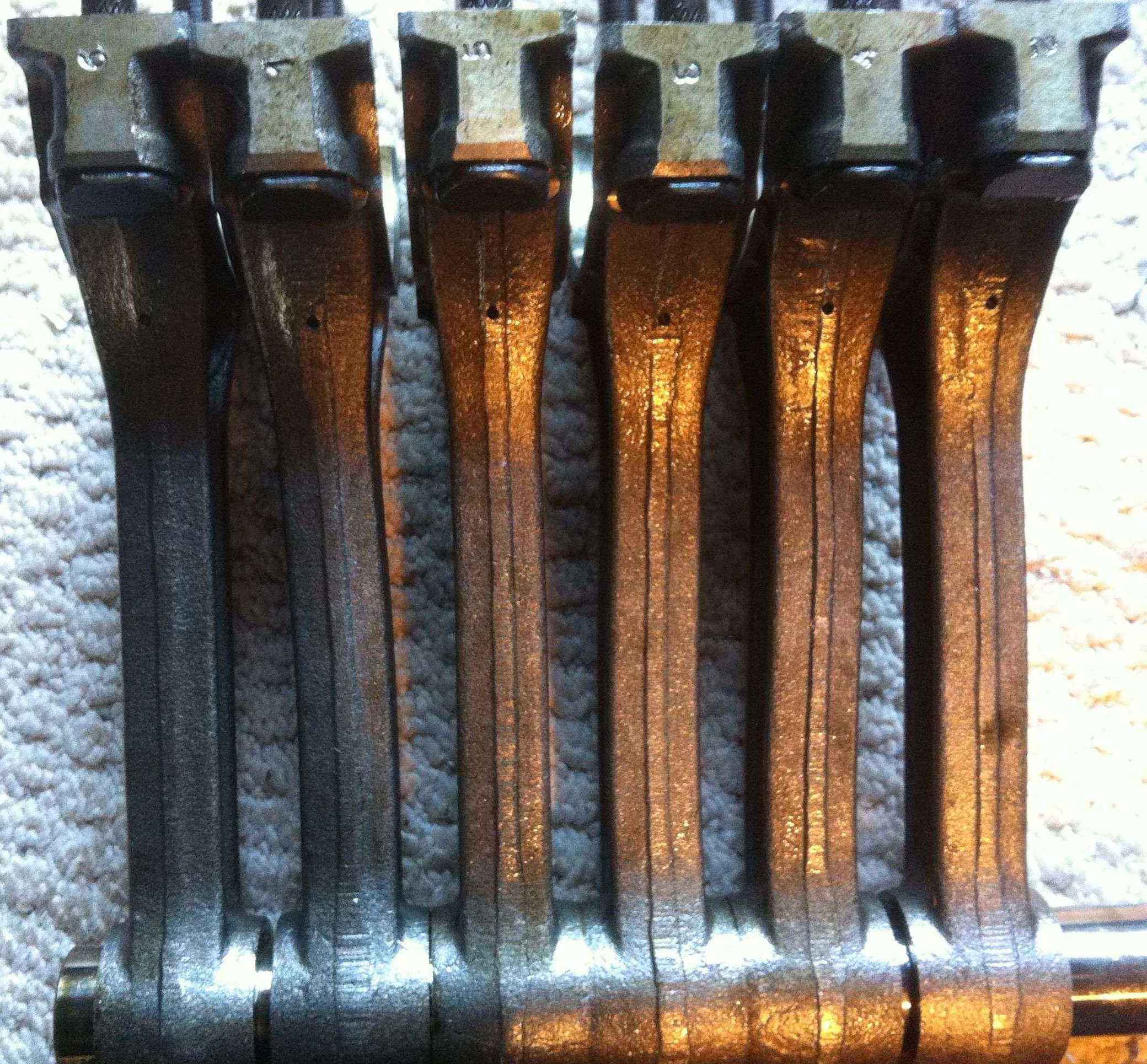

Looks like they only just survived inside the block, few more drags and they would have been making there way out.
Attachment:
File comment: Theres the problem
Bent.jpg [ 472.32 KiB | Viewed 33 times ]

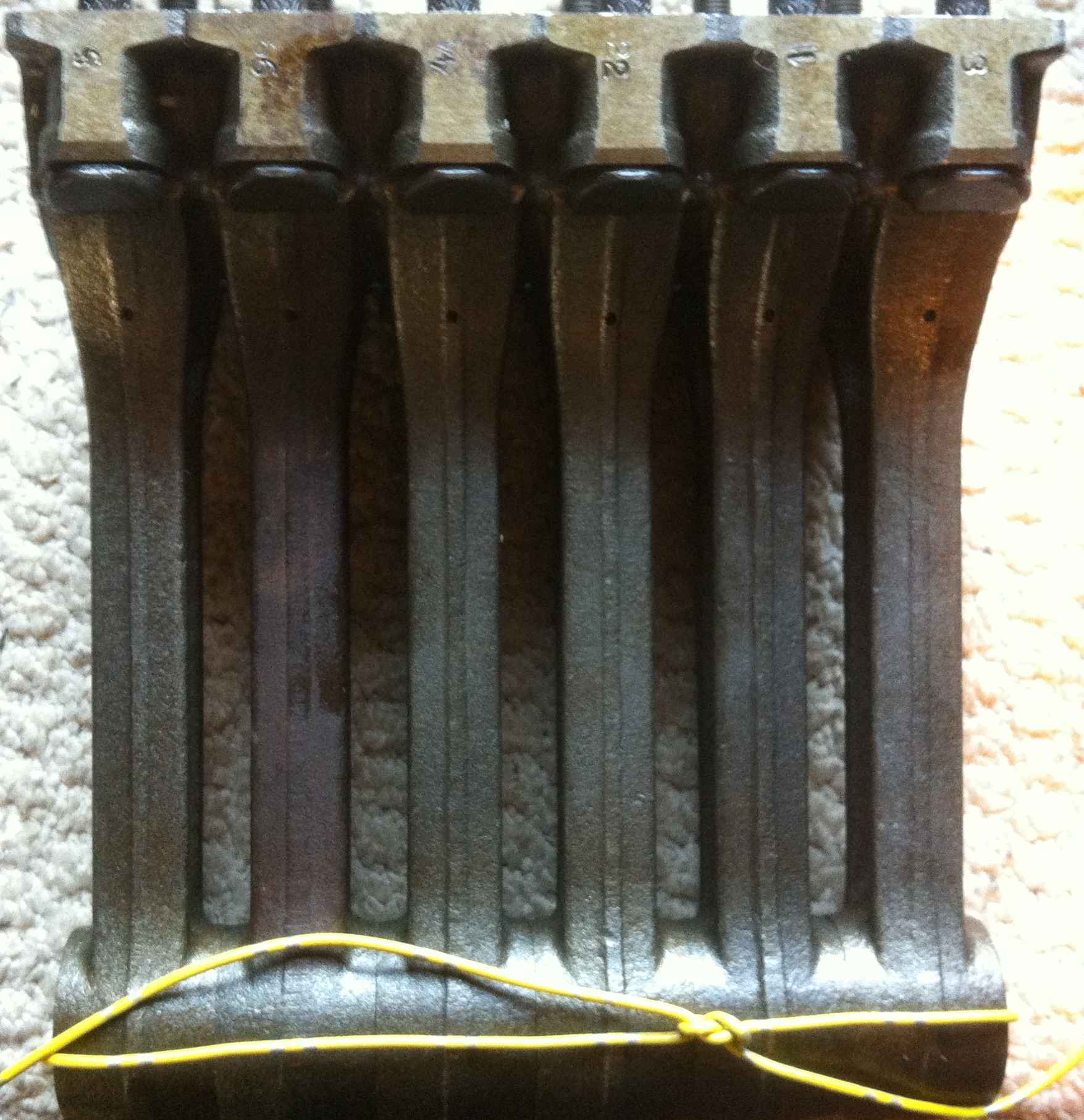

My spare set looks fine.
set
Attachment:
File comment: My good set
straight.jpg [ 217.26 KiB | Viewed 35 times ]



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


 Post subject: Re: Bent rod?
Posted: Sat Jul 28, 2012 3:41 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the top ones are definatly all bent.. :shock:
