cam chain tensioner



Page 1 of 1 [ 15 posts ]


 Post subject: cam chain tensioner
Posted: Wed Jun 13, 2012 11:16 pm
Fordmods Newbie
Offline

Posts: 5

Joined: 4th Mar 2012

Ride: el wagon

Location: adelaide
SA, Australia

Hi,
I am having trouble getting the whole cam chain tensioner to come out.
The last part will not come out.
I guess this is because I can not get it in the locked position.I don't have a special allen key is there a good way to get it locked?
Cheers
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Wed Jun 13, 2012 11:26 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 591

Joined: 28th May 2011

Gallery: 4 images

Ride: EF Futura DUH

Location: central coast
NSW, Australia

agil81 wrote:
Hi,
I am having trouble getting the whole cam chain tensioner to come out.
The last part will not come out.
I guess this is because I can not get it in the locked position.I don't have a special allen key is there a good way to get it locked?
Cheers



Just take the retainer out with a pair of needle nose pliers and use a magnet to take the last bit of the tentioner out.



_________________

1996 EF Futura factory manual
Fully rebuilt engine,Decked, Honed, Bored, Tolerences spot on, Wade 1673, Extractors, 2.5" zorst, 3" CAI, High flow filter, Exedy sports tuff clutch, Chiptorque tune.
Future Mods: A mortgage...

Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Fri Jun 15, 2012 8:32 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

If the last bit of the tensioner won't come out, thats because it will have engine varnish/sludge stuck to it.
I found the way to get them out is to spray Carby Cleaner down the front of the engine where the tensioner is situated, and at the same time, use a magnet on a stick to push and pull at it.
Doing this will get it out, and necessitate the need to change the engine oil as it will be contaminated, and thinned down with Carby Cleaner.
Then, once out, clean, assemble and use new 'O'rings to refit.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Sat Jun 16, 2012 9:14 am
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

+1 magnet.
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Sat Jun 16, 2012 3:58 pm
Fordmods Newbie
Offline

Posts: 5

Joined: 4th Mar 2012

Ride: el wagon

Location: adelaide
SA, Australia

I have the retainer out but the last part of the tensioner feels like it is hitting something when I stick my finger in there and pull.Would WD40 work?
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Sat Jun 16, 2012 6:19 pm
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

So you have taken out the inside shell, the Allen key part, the spring and the little d*ldo lookin thing behind the spring. And all that's left is the outer case?
Sometime I find if it's a little stuck a use a long screwdriver or prybar ect and lightly push the guide that the tention acts apon against the tentioner. Usually works but if it's not moving don't over do it you may break the guide.
If not tyr and spin it side to side to break the contact, it will only be able to move like a mm or two but it you cat get it to shift it'll come out
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Sun Jun 17, 2012 12:02 am
Fordmods Newbie
Offline

Posts: 5

Joined: 4th Mar 2012

Ride: el wagon

Location: adelaide
SA, Australia

yea it's just the last piece, I thought I might leave it until I get the head off. then i might be able to push it out buy hand.
If I can get the head off. those head bolts are a bugger only got one loose after 1hour of trying. :?
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Sun Jun 17, 2012 9:36 am
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

Do remember to use the propper sequence when removing the headbolts, what tools are you using. A half inch 14mm impact socket and a 2 foot breaker bar make light work of en
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Sun Jun 17, 2012 8:24 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

WD40, RP7, INOX...etc...won't work too well...they are a lubricant more than a " breaker-down" of engine varnish/sludge.
Use Carby Cleaner, even the cheapsh!t from Supercheap will do....and use a magnet to push and pull while spraying.......it does work, thats how I get them out.
For the head bolts, I use a deep, 1/2" drive, 14mm single hex impact socket and a 3 foot long breaker bar.....never had a problem.....and the deep socket clears the rocker gear too.
Be very careful when removing the head.....jam the breaker bar into No. 1 cyl, ex port, and lift gently to break the seal of the headgasket......so as not to snap off the camchain guide that sticks up on the inlet side.

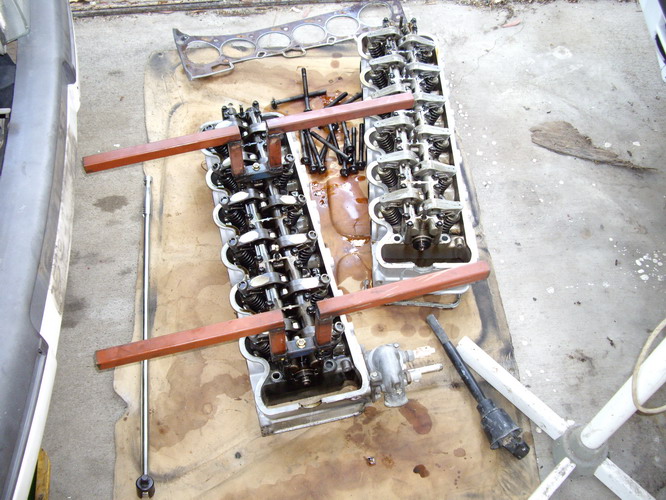

I made handles from some 1" x 1" RHS to make it easier to remove/replace the head.





Attachments:
IMGP0736_resize.JPG [ 137.34 KiB | Viewed 43 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Wed Jun 20, 2012 11:52 pm
Fordmods Newbie
Offline

Posts: 5

Joined: 4th Mar 2012

Ride: el wagon

Location: adelaide
SA, Australia

thanks for the tips ill let you know how it goes
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Fri Jun 22, 2012 11:25 am
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

+1 for IMPACT TYPE SIX POINT socket and big breaker bar - and I actually use the detachable half of my big trolley jack handle slipped over the handle of the breaker bar as well - about 5 foot of total leverage works real well :D



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Mon Sep 17, 2012 10:29 pm
Fordmods Newbie
Offline

Posts: 5

Joined: 4th Mar 2012

Ride: el wagon

Location: adelaide
SA, Australia

got it out.and got a recond cylinder head.Can I use wet and dry sandpaper to clean up the head.I have got it pretty clean but there is still a bit of carbon on the head.
Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Mon Sep 17, 2012 10:41 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 591

Joined: 28th May 2011

Gallery: 4 images

Ride: EF Futura DUH

Location: central coast
NSW, Australia

agil81 wrote:
got it out.and got a recond cylinder head.Can I use wet and dry sandpaper to clean up the head.I have got it pretty clean but there is still a bit of carbon on the head.


Carbon on a reco head? Mine have all been sqeeky clean. Exhaust ports and all.



_________________

1996 EF Futura factory manual
Fully rebuilt engine,Decked, Honed, Bored, Tolerences spot on, Wade 1673, Extractors, 2.5" zorst, 3" CAI, High flow filter, Exedy sports tuff clutch, Chiptorque tune.
Future Mods: A mortgage...

Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Mon Sep 17, 2012 11:16 pm
Getting Side Ways
Offline

Age: 50

Posts: 912

Joined: 22nd Mar 2005

Gallery: 1 images

Location: FNQ
QLD, Australia

Depends on whether whoever did it bothered to hot tank it etc. - strictly speaking it's not necessary to actually clean a head up completely squeaky even to fully condition and crack test it.



_________________

96 EF Auto GLi - Bilstein Shocks - Adjustable Front sway bar - JMM Cam - TI Perf J3 - TCI 2500/3000 stall converter. 2015 Jeep Cherokee Trailhawk.

Top
 Profile


 Post subject: Re: cam chain tensioner
Posted: Tue Sep 18, 2012 3:12 am
Stock as a Rock
Offline

Age: 76

Posts: 107

Joined: 2nd Feb 2010

Ride: Ford LTD DA 1989

Location: Sydney
NSW, Australia

Oven cleaner works fine.
