Can you identify these wires. EF XR6



Page 1 of 1 [ 4 posts ]


 Post subject: Can you identify these wires. EF XR6
Posted: Sun Jun 20, 2010 9:47 am
Parts Gopher
Offline

Age: 37

Posts: 87

Joined: 7th Sep 2009

Location: melbourne
VIC, Australia

I'm rebuilding an EF XR6 and the wiring looms in the engine bay have been cut in places. Can anyone help out?

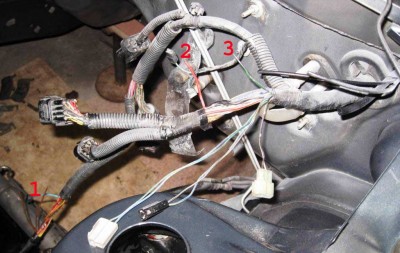

Attachment:
washer loom compressed copy.jpg
washer loom compressed copy.jpg [ 116.25 KiB | Viewed 19 times ]

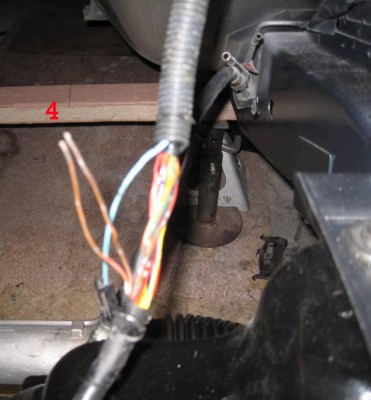

Attachment:
AC compressed copy.jpg
AC compressed copy.jpg [ 126.92 KiB | Viewed 24 times ]

There are more cut wires but fixing these ones should keep me occupied for a while. thanks



_________________

Any man over the age of 26 that drives a car of less than 8 cylinders with a 0-100kph time greater than 7 seconds must consider himself a failure.

Top
 Profile


 Post subject: Re: Can you identify these wires. EF XR6
Posted: Sun Jun 20, 2010 10:10 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

2 and 3 look like the bbm solinoid wires..
Top
 Profile


 Post subject: Re: Can you identify these wires. EF XR6
Posted: Sun Jun 20, 2010 10:31 am
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 433

Joined: 18th Jul 2009

Ride: NL FAIRLANE BA TURBO POWERED

Location: ballarat
VIC, Australia

Do you know if it had LPG fitted looks like it to me. If so these wires would be tapped into another wire see if you can trace it back.

Steve
Top
 Profile


 Post subject: Re: Can you identify these wires. EF XR6
Posted: Sun Jun 20, 2010 11:05 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

you have a general consensus on which waythe run, see if you can find the matching colour in one of the plugs... use a multimeter to beep them out to double check... record the pin in the plug, the wire colour and by what the plug plugs into you should have some idea what the application is for, be it fuel system, or whatever...

become a member of ford forums...

http://fordforums.com.au/wsm/wire/efl/21-2.html

this is the EF wiring schematics...

Go to what you think the appropriate section is, match a wire colour up... it will give you a connector number...

http://fordforums.com.au/wsm/wire/efl/21-3.html

list of connectors... it will show a picture, this will enable you to double check the connector its in... go back to the wiring diagram and follow the wire and see a) what its for, and b) where its meant to go...

Fiddly way, but its gonna be more accurate than guessing...

Cheers,
Tim
