cat back 1 muffler system



Page 1 of 1 [ 10 posts ]


 Post subject: cat back 1 muffler system
Posted: Mon Jun 25, 2007 1:19 am
Parts Gopher
Offline

Age: 28

Posts: 72

Joined: 27th May 2007

Ride: xf ute

Location: perth
NSW, Australia

does it make a difference in power in where the muffler is placed
ie, befor diff after diff close to cat?
looking for best note and power..
any help would be great
Top
 Profile


Posted: Mon Jun 25, 2007 8:28 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

I phoned 6 of the Canberra exhaust shops last week for quotes. During my quote mission, one dude mentioned he puts the cat a little further back and believes there's a few kw's in that.

Position of the muffler? Not sure, might be slight gains to had I guess. It's usually just before the diff anyway, so that's as far back as you can go for the first muffler.



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Mon Jun 25, 2007 8:37 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

well i got extractors put in and he moved my cat back and that i felt a difference unless that was the tractors :P



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Mon Jun 25, 2007 6:58 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 839

Joined: 10th Sep 2006

Gallery: 3 images

Ride: V8 Falcon, Nissan Patrol

Location: Brisbane, Bouncing off 5800RPM
QLD, Australia

I understand that when the muffler is at the back of the car you gain more torque and more kw if near the engine. However i've never had this proven. I would be more careful in the selection of the diameter size of the pipe used, as the wider the more you have to rev to get in to your power band.



_________________

1993 Ford Fairmont EB II 5.0L V8 Wagon
1992 Nissan Patrol TI 4.2L Diesel 4x4 Wagon

Top
 Profile


Posted: Mon Jun 25, 2007 9:21 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

FairmontXR6 wrote:
I understand that when the muffler is at the back of the car you gain more torque and more kw if near the engine. However i've never had this proven. I would be more careful in the selection of the diameter size of the pipe used, as the wider the more you have to rev to get in to your power band.


I would've thought the over way round. Move cat/muffler's closer to the motor to build backpressure / lower end torque, and further away to gain more hp elsewhere in the rev range.

Does anyone know what I mean?! lol does it make sense? :shock:



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Tue Jun 26, 2007 7:59 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

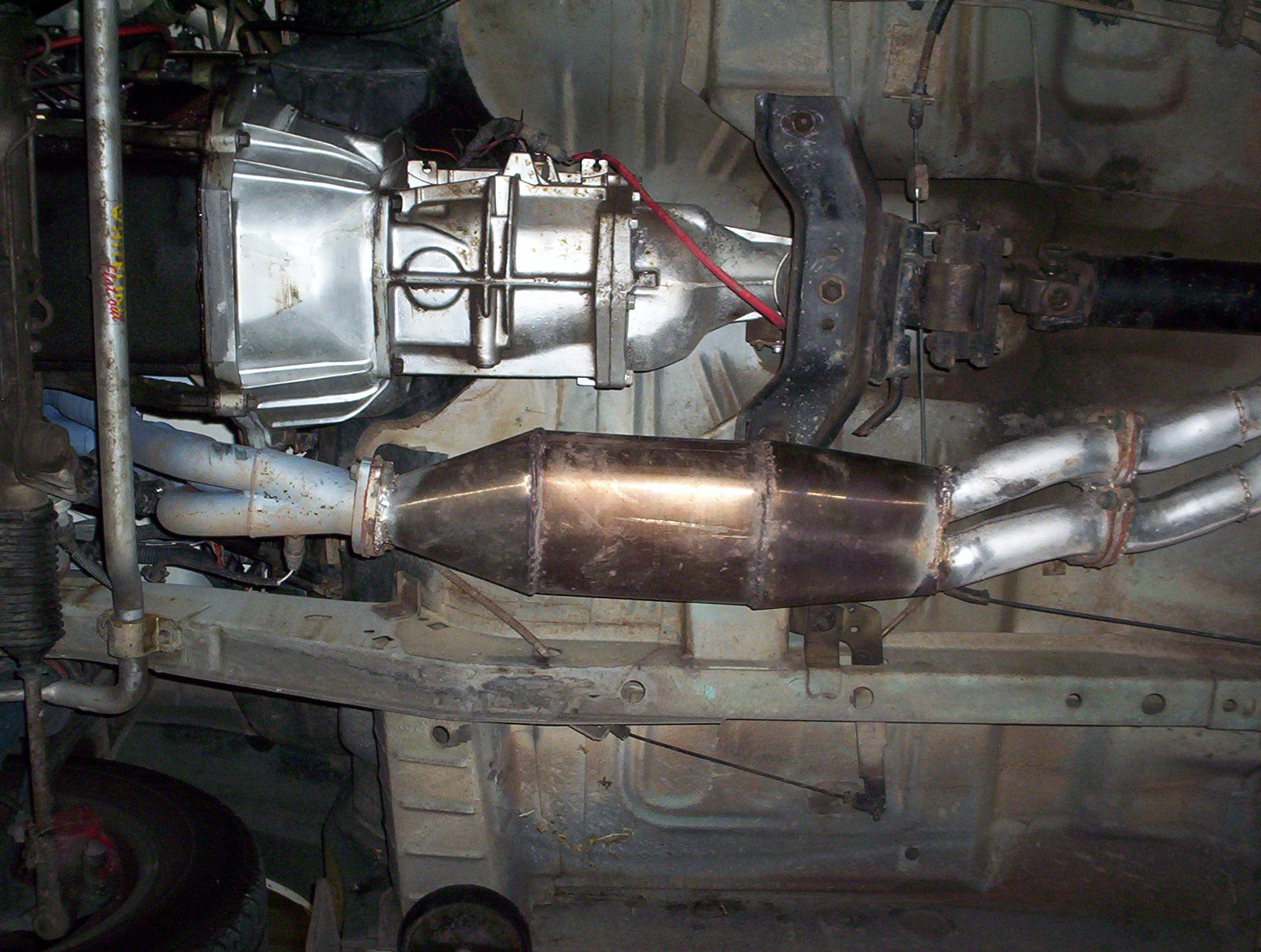

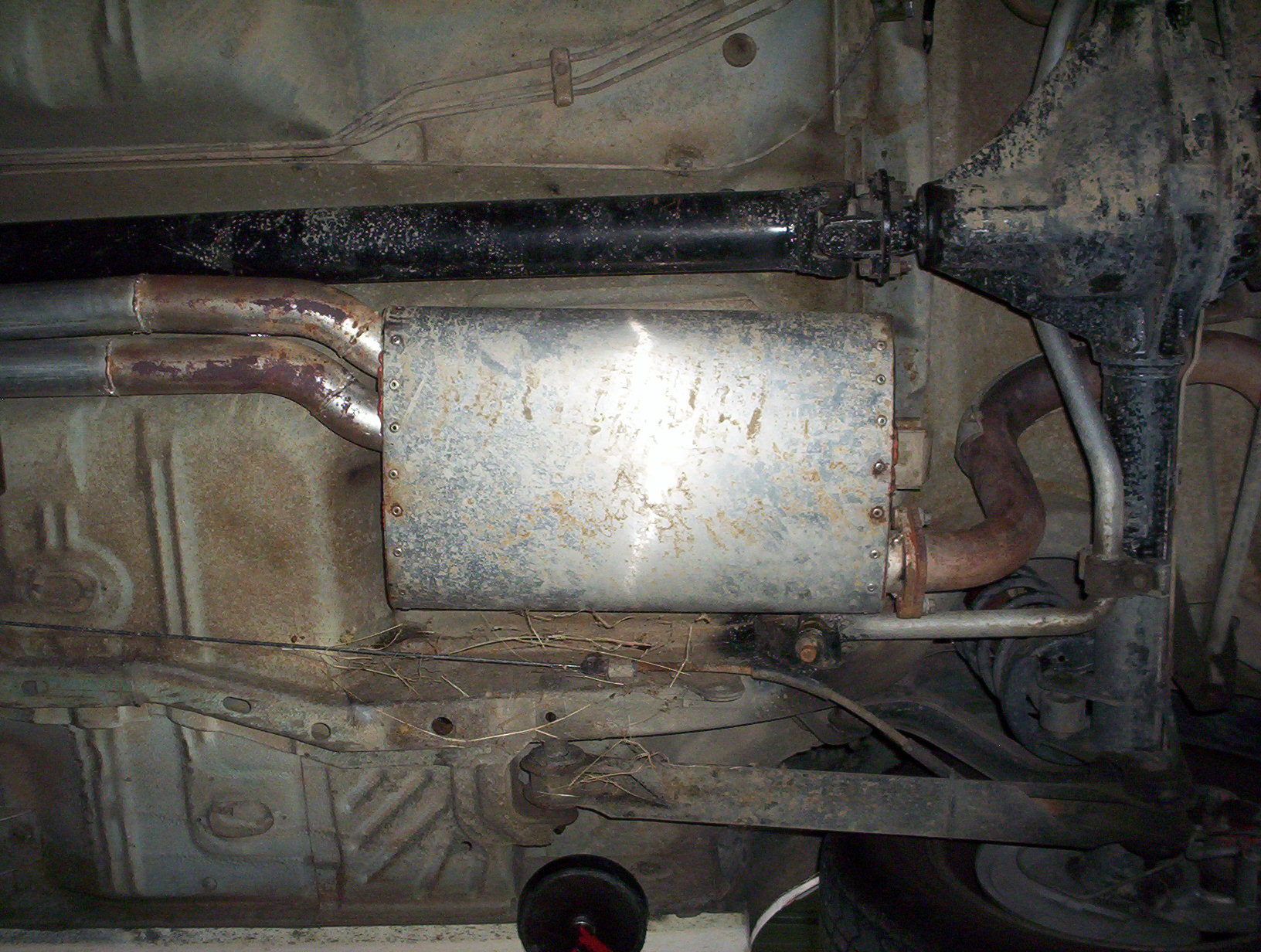

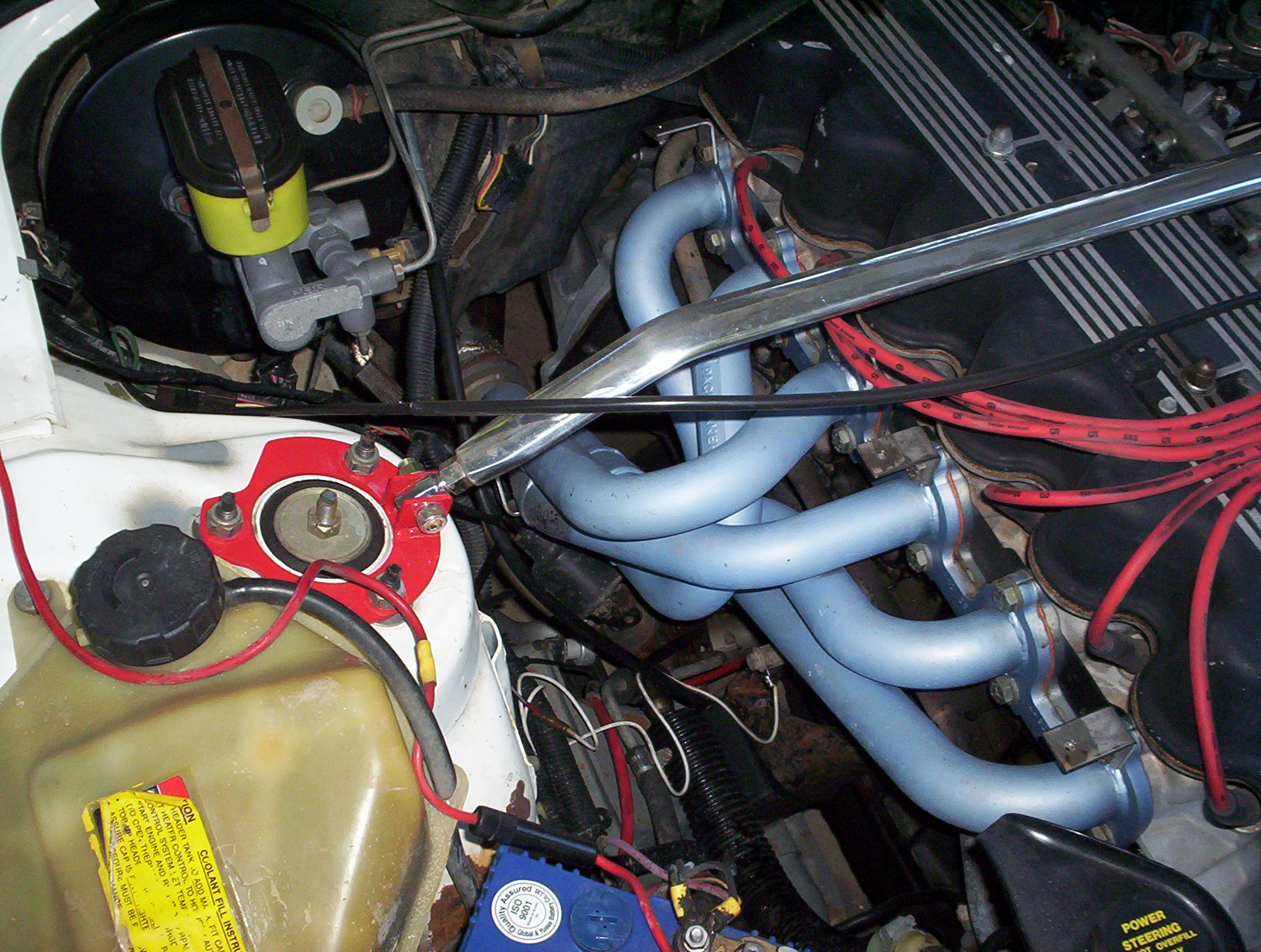

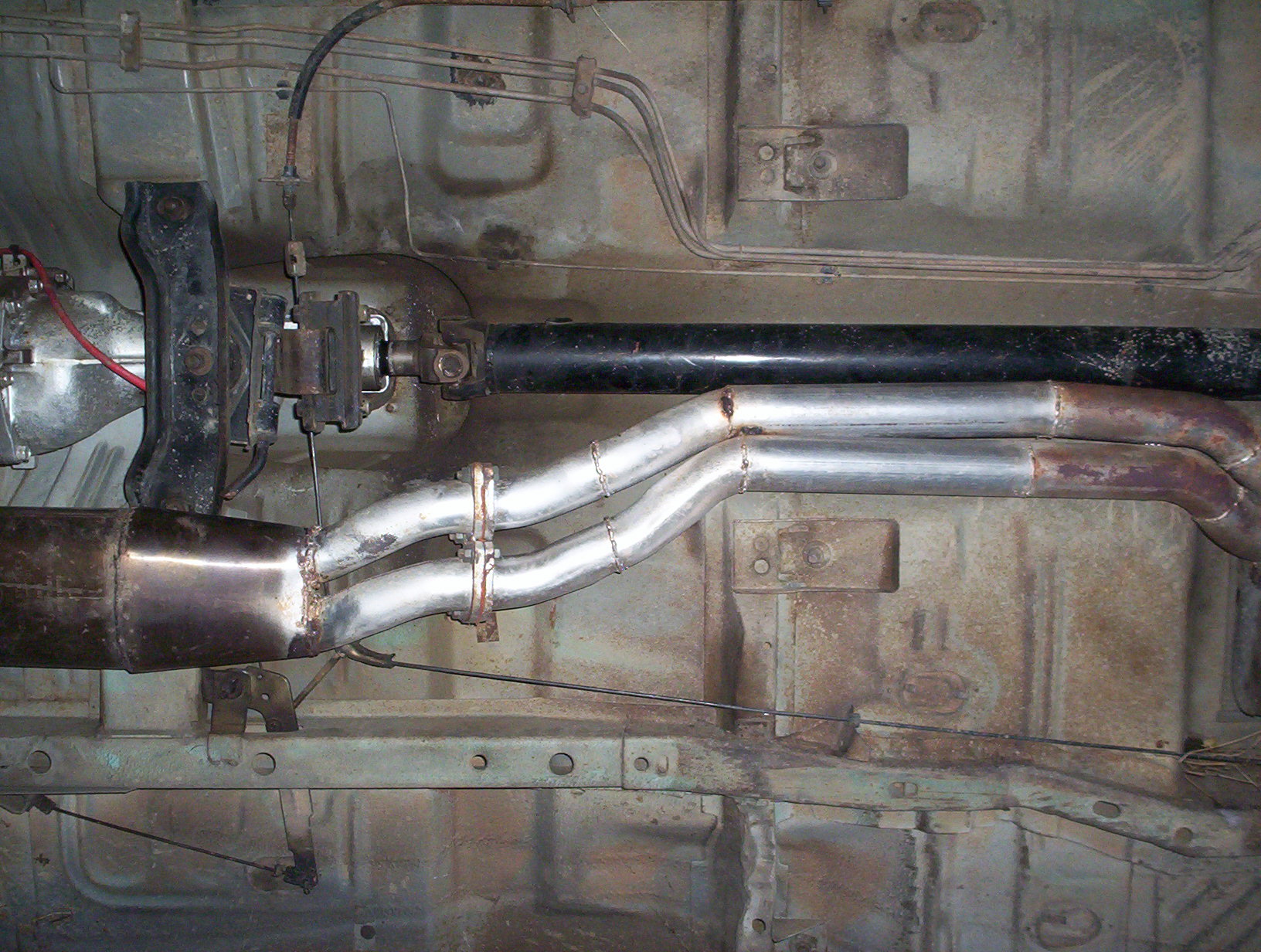

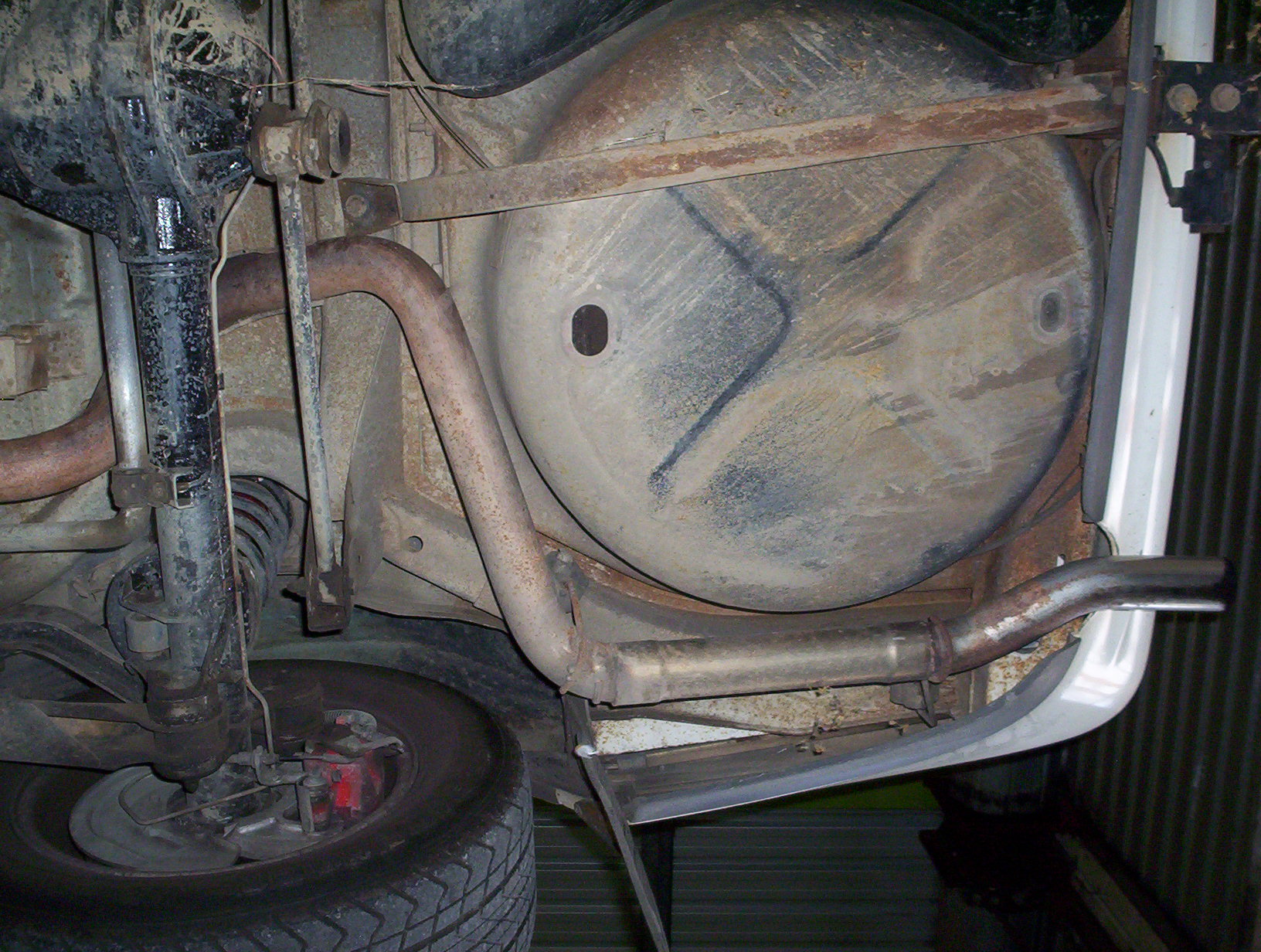

This is my CAT, a modified unit, with twin 2&1/4" going into a large volume muffler, and a single 2&1/2" tailpipe.
The gains were such that I had to fit a piggy back ECU to stop the engine leaning out. The engine is standard, original bore, std cam, std inlet manifold, etc.





Attachments:
My homemade Exhaust on 88EA sedan. 005.jpg
My homemade Exhaust on 88EA sedan. 005.jpg [ 539.55 KiB | Viewed 21 times ]
My homemade Exhaust on 88EA sedan. 007.jpg
My homemade Exhaust on 88EA sedan. 007.jpg [ 505.56 KiB | Viewed 22 times ]
My homemade Exhaust on 88EA sedan. 008.jpg
My homemade Exhaust on 88EA sedan. 008.jpg [ 488.32 KiB | Viewed 25 times ]
My homemade Exhaust on 88EA sedan. 010.jpg
My homemade Exhaust on 88EA sedan. 010.jpg [ 523.56 KiB | Viewed 27 times ]
My homemade Exhaust on 88EA sedan. 009.jpg
My homemade Exhaust on 88EA sedan. 009.jpg [ 485.85 KiB | Viewed 26 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Tue Jun 26, 2007 9:58 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

I dunno how many times I've seen that exhaust now! It's an interesting one tho, the twin sys allows more flow? or too close to compare to single 2.5" typical sports sys?

It's another good example that putting the muffler further back is a prolly a good idea, as all performance systems are setup like this... so I'm betting there's a happy spot for the cat, and it'd be back further too..



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Tue Jun 26, 2007 10:11 pm
Parts Gopher
Offline

Age: 28

Posts: 72

Joined: 27th May 2007

Ride: xf ute

Location: perth
NSW, Australia

cheers for the advise..
resinators, wht r they and wht do they do? ive read threads saying without one its louder.. would a sports exhaust sys come with this or would it be extra?
not to fussed on the db level of the exhaust because where i live there is no cops in my town
cheers
Top
 Profile


Posted: Tue Jun 26, 2007 10:19 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

resonator will quiet it down a little and also cut the drone when cruising the highway.

if you have a bad drone it will really piss you off..

its usually an extra, but you just ask for it, they shouldn't charge much extra for it. usually if its a premade exhaust they come in 2 parts, front part and tail section and the tail sections are either straight thru or with a resonator.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Wed Jun 27, 2007 2:07 am
Parts Gopher
Offline

Age: 28

Posts: 72

Joined: 27th May 2007

Ride: xf ute

Location: perth
NSW, Australia

well my exhaust atm has big rust holes after the 2nd muffler, in total it has 3!
i got a xf sedan with standard manifold no cat with a 1muffler stright threw sys n it sounds alright but a bit to loud,dumped b4 diff
so hopfully a 1muffler sys should be wht im looking for, cam and 4480s come next month, maybe a au motor first but cpu and bottom mount need changing n its my everyday ute, may be a weekender job hmm
Top
 Profile
