clutch wrong size!!! pics inside



Page 1 of 3 [ 32 posts ] Go to page 1, 2, 3  Next


 Post subject: clutch wrong size!!! pics inside
Posted: Sun Jul 02, 2006 5:36 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

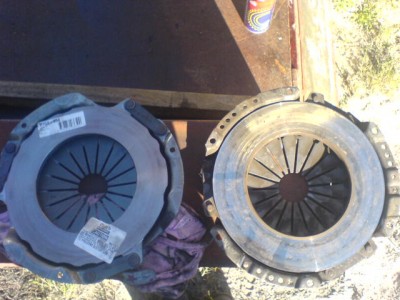

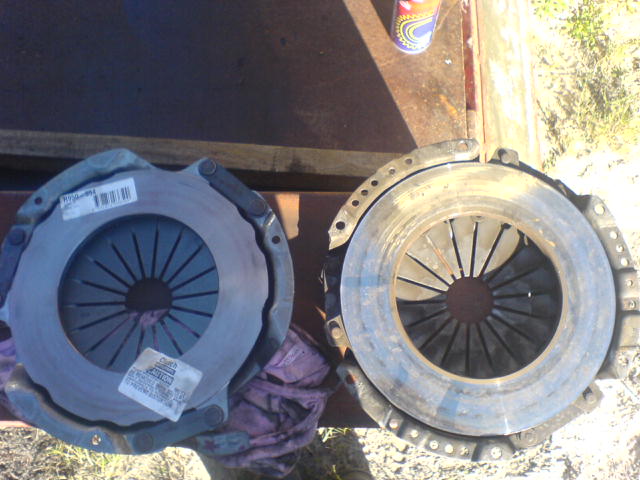

well got my coonversion got told its out of a 92 eb falcon so went picked up the clutch for it..


now i just checkedit against the clutch that cam out ofthe car and it is the wrong size ne 1 know or couldhelp me in which clutch it couldbe from ?>





Attachments:
DSC00033.JPG [ 59.03 KiB | Viewed 22 times ]
Top
 Profile


Posted: Sun Jul 02, 2006 5:37 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

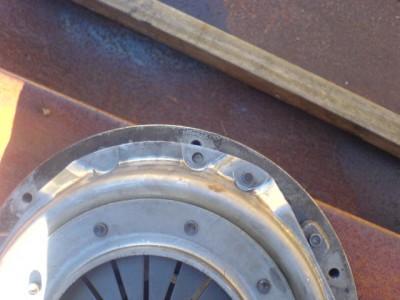

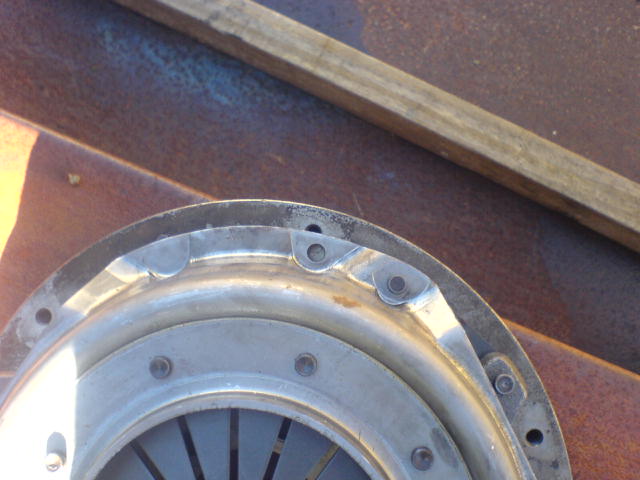

nother 1





Attachments:
DSC00034.JPG [ 47.63 KiB | Viewed 19 times ]
Top
 Profile


Posted: Sun Jul 02, 2006 5:42 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

The newer one in the first pic is an EA is it not. The other one is the latter version from EB onward.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Jul 02, 2006 5:45 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

the new one is spose to be for a eb. 92 model so the shop said
Top
 Profile


Posted: Sun Jul 02, 2006 5:46 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

this is all that i needed just after i finish putting the peddel box in and ready to rip the auto out with everything undone.
Top
 Profile


Posted: Sun Jul 02, 2006 5:48 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Take it back and exchange it for the correct one.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Jul 02, 2006 5:53 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

yeh no car to run around and they havnt got the other one in stock . so looks like i willhave to drop the old one in then go and exchange it this week then next weekedn rip it out again and put the new one in....

this is going to suck !!!
Top
 Profile


Posted: Sun Jul 02, 2006 6:00 pm
Getting Side Ways
Offline

Age: 28

Posts: 1135

Joined: 27th Oct 2005

Gallery: 3 images

Location: SA
SA, Australia

yea one on the left looks like an EA one to me.
Top
 Profile


Posted: Sun Jul 02, 2006 6:11 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

i could killmy mate he's the manager oftheauto shop from where i got it from..
Top
 Profile


Posted: Sun Jul 02, 2006 7:37 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yep the one on the left is a 3 bolt EA setup as mentioned. Clutch plate is 9.5" as opposed to the 6 bolter setup which is 10" IIRC. Check your transmission as well - mark the input shaft and the cover tube and mark the output shaft the same - select 1st gear and rotate the output shaft one revolution - if the input shaft spins 3¼ turns, it's an EBII onwards box, if 3½ turns, it's an EA-EBI box or earlier. Otherwise, just visually it's hard to spot any difference. Just because they say it's out of an EB falcon, doesn't mean a replacement or conversion has not been installed from another model.
And as for the exchange kit, yeah, they need a floggin - you'll find the 3 bolt kit is cheaper than the 6 bolt one, so definitely get the right one, particularly if they charged you for it.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Sun Jul 02, 2006 7:47 pm
Stock as a Rock
Offline

Posts: 197

Joined: 8th Nov 2004

Ride: FG-XR6 EL EA '24 Dodge

Location: Tamworth
NSW, Australia

fairmont599 wrote:
yea one on the left looks like an EA one to me.

Yeah 92 EA



_________________

As Sigfried once said "Nein Nein Ninty Nine"

Top
 Profile


Posted: Sun Jul 02, 2006 8:14 pm
Getting Side Ways
Offline

Posts: 1687

Joined: 5th Nov 2004

Gallery: 5 images

Ride: 1994 ED Ricer

Location: Perth
WA, Australia

had the same prob hazza.. i thought my gearbox was out of an EB manual so i bought the eb one and it was to big, to many bolts aswell

so i went back got an EA one and it fitted fine..

what sorta clutch did ya get?
Top
 Profile


Posted: Sun Jul 02, 2006 9:34 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

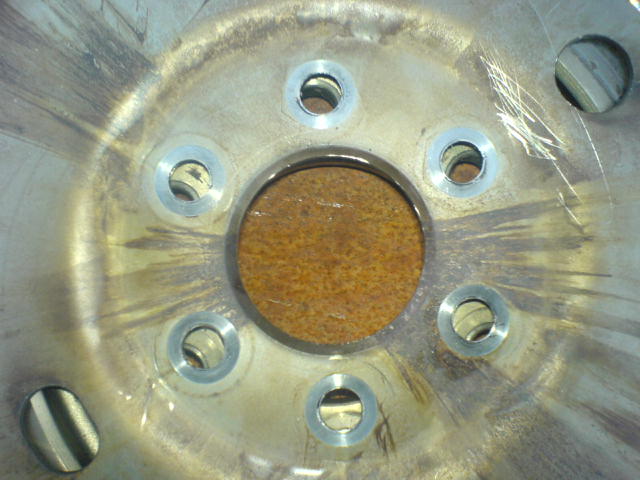

well ened up giving up and getting the auto out befor the light was gone. got that alll out and gotthe fly wheel off then compared it tothe one i got from the wrecker andyeh asu can see in the pic it aitnt going to fit / bolt to the motor.

so going to head back to the wrecker tomorow arvo after work toget the right one.





Attachments:
DSC00041.JPG [ 53.21 KiB | Viewed 15 times ]
Top
 Profile


Posted: Sun Jul 02, 2006 9:34 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

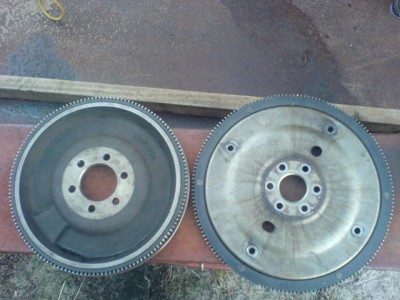

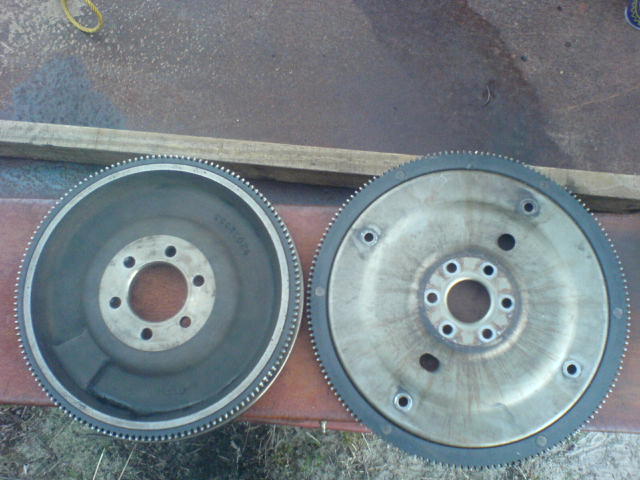

left is the fly wheel the wrecker gave me right is my auto one.





Attachments:
DSC00043.JPG [ 56.03 KiB | Viewed 16 times ]
Top
 Profile


Posted: Sun Jul 02, 2006 10:02 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

thanks for that snap 0964 just did the test and it cam back to a eb IIonwards box..

. so what would be the clutch /flywheel toget ?? ????

considering the clutch above on the right is an eb onward one and matches he flywheel but he fly wheel dosnt match the motor ??
Top
 Profile
