coil packs EF/AU1 vs AU 2/3



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: coil packs EF/AU1 vs AU 2/3
Posted: Tue Feb 02, 2010 5:49 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

hi all,

this is in regard to an AU XR6 series 3 engine conversion in to an EF XR6.

are the later AU coil packs any better than the EF/AU1 coil pack?

i can get an AU engine bay loom for next to nothing and was wondering if its worth putting the AU series 2/3 coil pack plug on the EF loom so i can use the AU 2/3 coil pack?


any help would be much appreciated.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Last edited by millard455 on Tue Feb 02, 2010 7:38 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Tue Feb 02, 2010 7:14 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

hi ashcook,

i will not be using the AU loom, just remove the coil pack plug from the later AU loom and wire the plug on to my EF XR6 loom so i could use the later coil packs IF there was any advantage.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Tue Feb 02, 2010 7:37 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

yeah ive looked through what you have posted about your mission of trying to graft the two different series together. thats why i had no plans of using the AU loom :wink:

think ill just stick with the ef/au1 coil pack, atleast i know it will work.

thanks mate



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Tue Feb 02, 2010 11:06 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

a coils a coils a coil.

Power in on pin four and trigger on pins 1 2 3. there is absolutely no reason you can't fit an AU two coil to an EF or AU1. yes the AU2/3 coil has more out put, you'll also need AU2/3 spark plugs with the larger 1.3mm gap. You can push that out to 1.5mm if you check them often.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Wed Feb 03, 2010 4:42 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

tickford_6 wrote:
a coils a coils a coil.

Power in on pin four and trigger on pins 1 2 3. there is absolutely no reason you can't fit an AU two coil to an EF or AU1. yes the AU2/3 coil has more out put, you'll also need AU2/3 spark plugs with the larger 1.3mm gap. You can push that out to 1.5mm if you check them often.



a coils a coils a coil.
that's what i thaught, all a coil needs is power and a trigger but what i think will work and what actually works can be two different things :shock:

if the later AU coil pack is better i might give it a try, hell its not hard to cut and shut a few wires and ill use AU plugs and leads.

so the wiring is the same layout for the coil pack between EF and late AU, IE power on pin 4 and 1,2 and 3 are trigger?

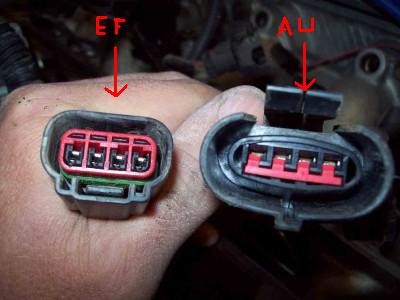

what side of the plug is pin 1? ill attach a pic

thanks.





Attachments:
ef-au coilpack plug.jpg
ef-au coilpack plug.jpg [ 18.67 KiB | Viewed 203 times ]



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Wed Feb 03, 2010 5:08 pm
Getting Side Ways
Offline
User avatar

Posts: 1140

Joined: 27th Feb 2005

Ride: Supercharged EF Fairmont

Location: T.I. Performance HQ
VIC, Australia

It will work. It also gives you a better range of aftermarket leads and coils to use, as there are heaps of american cars with the later style coil plugs (both spark lead and ecu).

Jason
Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Wed Feb 03, 2010 6:45 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

ashcook wrote:
tickford_6 wrote:
a coils a coils a coil.

Power in on pin four and trigger on pins 1 2 3. there is absolutely no reason you can't fit an AU two coil to an EF or AU1. yes the AU2/3 coil has more out put, you'll also need AU2/3 spark plugs with the larger 1.3mm gap. You can push that out to 1.5mm if you check them often.


Ok, so if a coils a coils a coil. Why would the AU1 pack not work with my AU2 ECU?



i can't see your car so i can't say.

But it's been done a number of times before. along with fitting accel mustang coils to falcons



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Wed Feb 03, 2010 7:45 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

ashcook wrote:
Ok, so if a coils a coils a coil. Why would the AU1 pack not work with my AU2 ECU?


hi mate,

what was the engine doing when you had the series1 pack in? so i know what symptoms to look out for if i end up trying the later coil.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Wed Feb 03, 2010 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

ashcook wrote:
It started fine. But it ran rich as hell. If you slowly picked the rpm up it would rev all the way to redline. But you had to rev it very slowly. If you did it any quicker it would shut down. You had to release the throttle completely to get it to run on otherwise it would stall.



thanks for that. hey, is that your pic that i stole? i borrowed it from someones thread on here.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Thu Oct 28, 2010 5:27 pm
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

amm in a desperate dilemma am tight on a budget and got a EF im putting a S2 Au motor into it, i think my EF coil is gone not 110% sure , really want to use the S2 coil any advice ?
Top
 Profile


 Post subject: Re: coil packs EF/AU1 vs AU 2/3
Posted: Thu Oct 28, 2010 8:32 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Use AU Series 1 coil, same plug as EF.
