 Post subject: complete el conversion into eb falcon
Posted: Sun Oct 09, 2011 2:35 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

hey everyone havnt posted at all on this site lets cut to the chase i have brought an nl fairlane ghia with tickford 6 that has been badly smashed and have completly stripped the car all the wiring loom (uncut) interior and dash engine auto k frame diff brakes the whole lot and planning on putting it into the eb i understand i should have kept the lower dash mounts and partial piece of floor pan for console and seats to mount to any pointers would be great also is there any difference in heater boxes and other hidden items also is it going to be trouble putting in the climate control. i have to drive the eb daily but can do it over a week or so

bit random sorry if its in the wrong thread thingy have done searches and this is what i have come up with

cheers damo
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 12:33 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi, and welcome to Fordmods.

Everything is possible.

Read my thread, link at the bottom, and search for Racedirector's thread.

I customised my EB Loom to work with the EL parts, but Racedirector used the complete electrics, running gear and interior from an EL and installed them in his ED Wagon. His thread is more along the lines of what you are describing.

Good luck with it all.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 8:57 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

I used an NL Concorde V8 as the donor car for my EA Wagon.

Swap as much as you can over, if you've pulled the engine and dash out, then the heaterbox is a 5min job to remove anyway.

if you swap everything, then its really a pretty straight forward swap.

you'll need to make the odd hole in the body for wiring looms to go through.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 1:03 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

hey guys well i got the eb dash out of the car. got the el dash sitting in there with no heater box got some pics for ya to show you what i have done im not going to run the handbrake on the side of the console i dont think its worth it too much stuffing around underneath the car and i hate that. so i have cut some of the dash out i didnt think it turned out to bad what do you guys think?

also cut the old hand brake braket off the pedal box and welded it to the el pedal box i couldnt find any differences between the two except the braket and the bolt holes that hold up the dash underneath the cluster

im off to find head bolts and timing chain guide kit so i can put the el engine back together as it is spread all over the shed right now and my housemate is getting a bit upset with my crap laying round :shock:





Attachments:

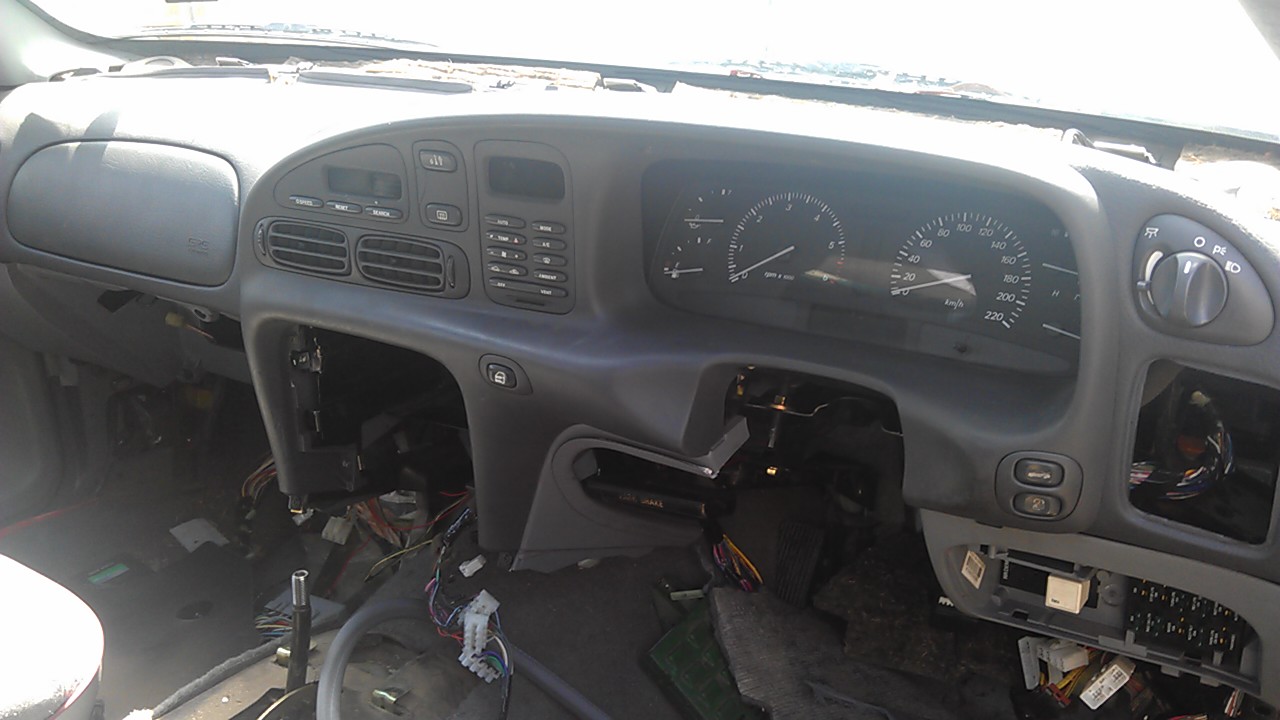

File comment: dash in place
IMAG0579.jpg [ 327.97 KiB | Viewed 131 times ]
IMAG0578.jpg [ 242.66 KiB | Viewed 89 times ]

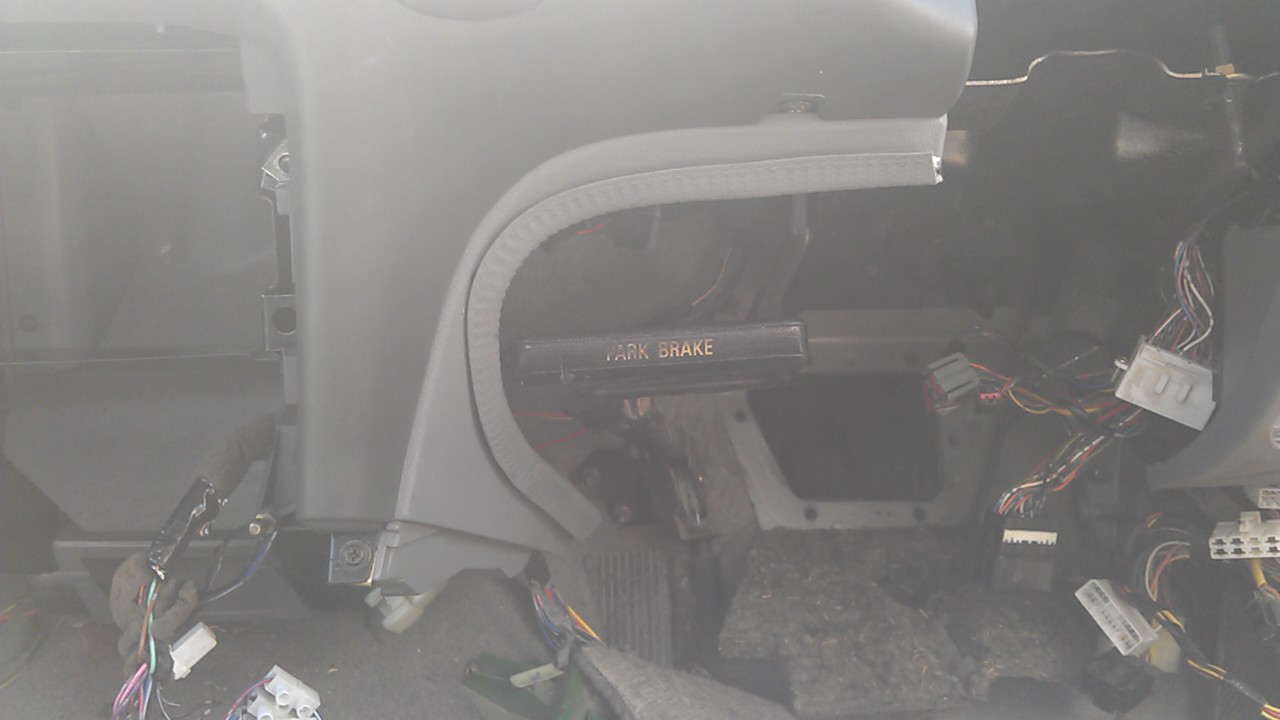

File comment: the cut dash and handrake in relativley the right spot
IMAG0577.jpg [ 399.86 KiB | Viewed 92 times ]
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 1:04 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

bit of door jam surround stuff i had layin around worked well i think
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 2:25 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

where did you move the BEM to?



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 2:38 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

sorry for my lack of forum knowledge but what exactly is a BEM?
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 3:22 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

the box that was behind the plastic you cut for the handbrake.
typically its coloured, but its dependant on what model you got the parts from.
eg, might be green



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Mon Oct 10, 2011 3:23 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

nevermind, i can see its still on the floor :P



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Oct 11, 2011 9:56 am
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

oh ok yer im going to find a secure mounting place up further in the dash for that but it was raining very heavily yesterday here so i couldnt do anything to it yesterday afternoon

except bolt the cylinder head down to the engine and chuck a few oter pieces on should be able to get most of the motor done today and then ill start on the rear loom of the car just goin to run as much el loom as possible up the back havnt had a look as to what is or ist going to fit yet

What is BEM abbreviated from?
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Tue Oct 11, 2011 10:57 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

Body Electronics Module, sometimes refered to as a BCM aswell (body control module)

controls stuff like central locking, smartlock, power window delay etc



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Thu Oct 13, 2011 3:42 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

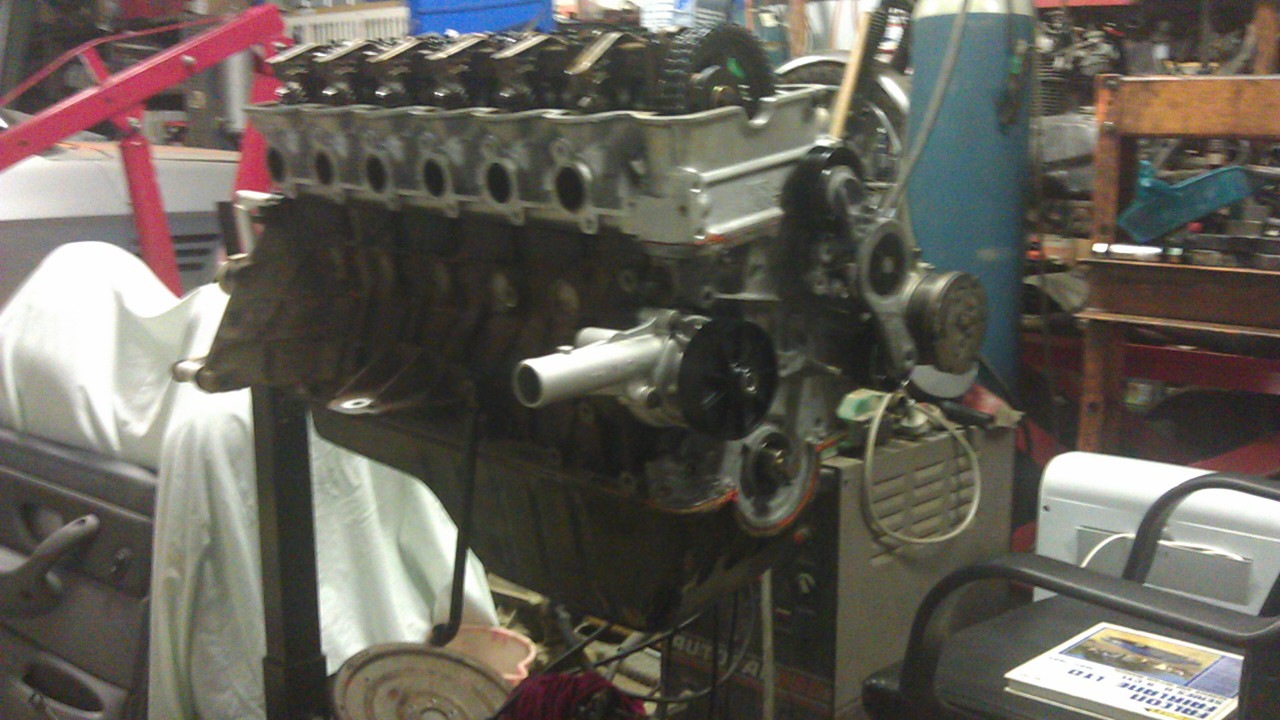

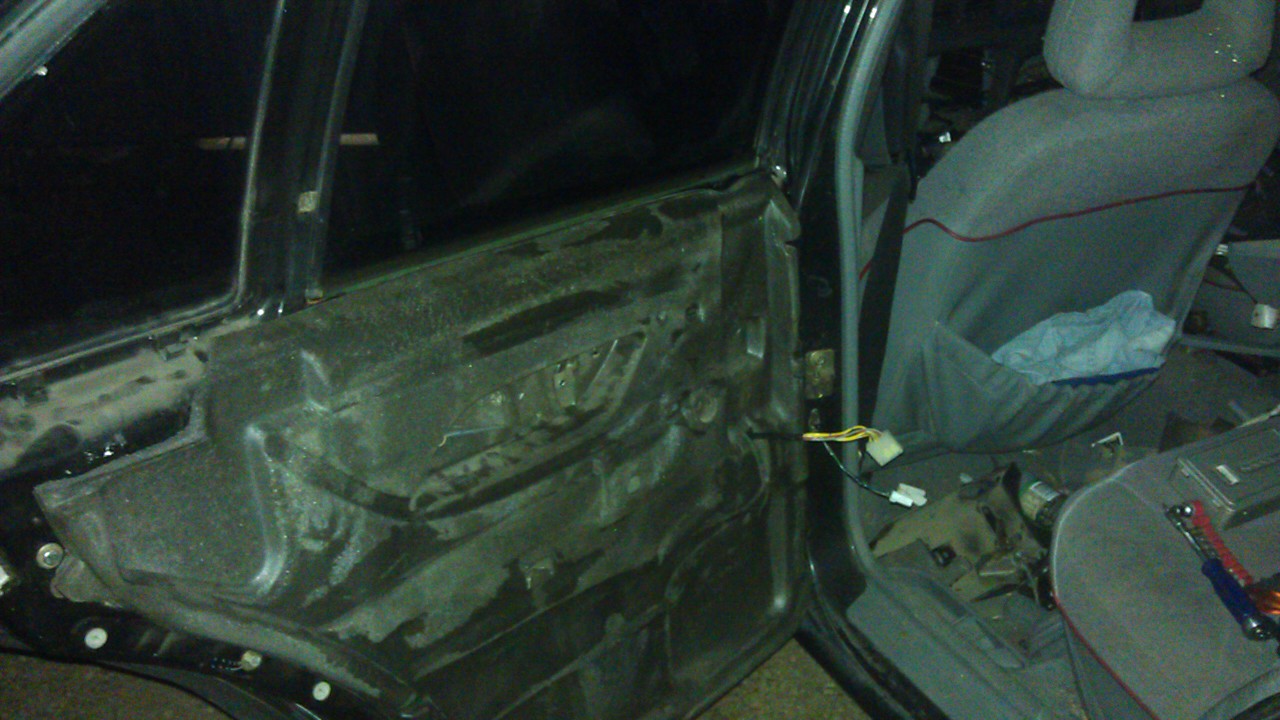

hey guys well i have not been doing all that much but i have the cylinder head on and timing case coer on my engine just need to bolt the rest of the stuff onto it also pulled one rear door trim off today changed over all the parts and loom jus need to drill some holes in the door to mount the trim ill post up som pics later tonight
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Thu Oct 13, 2011 9:50 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

some pics to show you what ive been playing with





Attachments:
IMAG0587.jpg [ 448.42 KiB | Viewed 59 times ]
IMAG0586.jpg [ 478.23 KiB | Viewed 98 times ]
IMAG0585.jpg [ 479.6 KiB | Viewed 90 times ]
Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Thu Oct 13, 2011 10:00 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Ahhhhhh.

Brings back so many memories.

Keep up the good work.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: complete el conversion into eb falcon
Posted: Fri Oct 14, 2011 12:45 pm
Oompa Loompa
Offline

Age: 28

Posts: 31

Joined: 26th Apr 2010

Ride: EB falcon S & EL XR6

Location: Cranbourne
VIC, Australia

thanks Benj. I read your threads well done on your work they both look very tuff
