 Post subject: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 7:13 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

G'day ford moders, first post.

I have made myself a problem and I don't know how to solve it :

I have an ef xr6 engine in my ef. I was going to get the head set up for boost but instead I bought an au vct head already set up for boost( head with valves, springs and cam, no rockers) for $500 (for ripped off. So can I take the vct off and and plug the gap at front?



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:01 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Hey man,

All you do is pull out the VCT cam (which you said you don't have) and the phasor and fit a normal AU cam and vernier gear... You pull the oil supply line off and fit the pressure sender straight into the block like normal and fit an appropriate bolt into the oil supply hole in the phasor housing...

You can pull out the solenoid and plug that hole with an appropriate bolt too...

Is the solenoid in the phasor housing leaking? They seem to leak through the two electrical pins and dribble oil everywhere... If not and you don't want the solenoid the VCT stuff isn't any good if you don't have the phasor and cam) then PM as I wouldn't be interested to acquire a spare VCT solenoid for mine in case it leaks...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:10 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

as timmy said,
I did exactly this on my ed when I turbo'd it..
I removed the vct cam and cam gear then fitted non vct cam and cam gear..

I left the solenoid unit on the front of the head but had no power going to it, so it was vct by looks only...lol

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:13 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

You run oil pressure in that steel pipe too troy or have that disconnected?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:14 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

Sorry mate I think i miscommunicated , I attached the picture. That's all I have of the au gear :/



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:16 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

at first it still had oil running into it, it was ok like that because when there is no power to the vct solenoid the solenoid closes off oil supply, but I did end up removing the oil line all together and put a bolt in the solenoid housing
Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:18 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Somethin_abit_diff wrote:
Sorry mate I think i miscommunicated , I attached the picture. That's all I have of the au gear :/


there is no picture???
Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:20 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

I took it with the iPhone but it was to big haha , I'm trying to post the pic at the moment



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:30 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

upload it to photobucket and then copy the img code into the thread... photos come up bigger and easier to see than uploading through here...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:38 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

There we go , I just downloaded a image resizing app





Attachments:

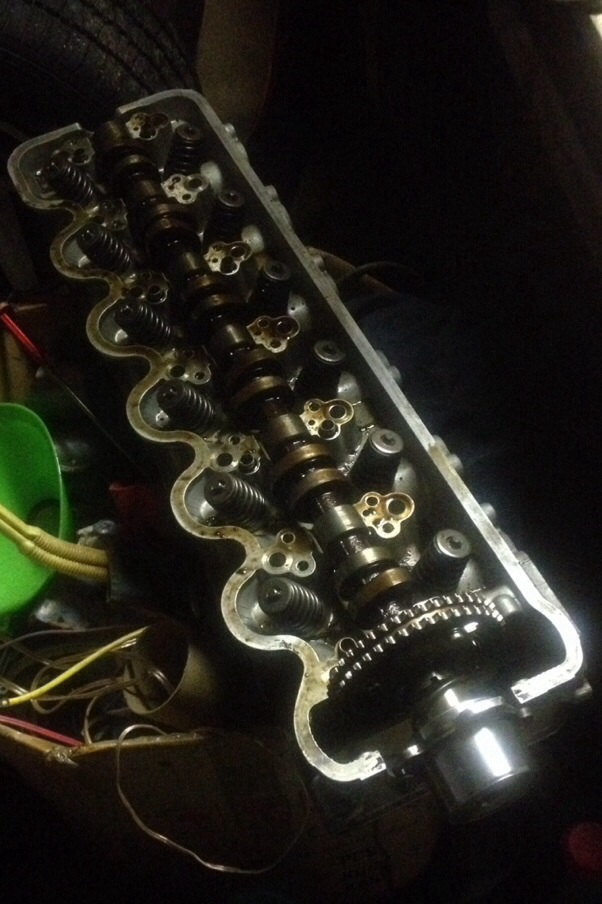

File comment: Au vct head and cam
image.jpg [ 143.81 KiB | Viewed 118 times ]



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 9:46 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

So that's what I have to work with. Is it worth setting up? Or should I just try make my money back ?



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 10:06 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

That phasor is useless now the 4 bolts have been removed from it and the whole lot is useless without the phasor housing that fits into the front of the head... Any It is also useless without the VCT rocker cover to seal onto the phasor housing...

Unless you have have something made to fill the hole up...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 10:49 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

So I pretty much wasted $500 because of my lack of au vct knowledge? :/



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 11:08 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

unfortunately you got the raw end of the deal, you can get a whole vct engine for $500
Top
 Profile


 Post subject: Re: Converting au vct head to non vct
Posted: Thu Oct 10, 2013 11:20 pm
Fordmods Newbie
Offline

Age: 24

Posts: 8

Joined: 26th Aug 2013

Ride: Ford Ef falcon

Location: MACKAY
QLD, Australia

The only positive was that the head has 2 thou shaved off it , it's ported , has bigger valves and higher quality conicle valve springs , and I talked to the business that worked the head and they confirm it was only run for 2 weeks before the guy crashed his car. knowing that , how much do you think it's worth ?



_________________

EF falcon gli
Current mods : 2 1/2" exhaust, 4480 pacemakers, ef xr6 engine/ecu

Future mods : 3" custom exhaust, worked head, powerdyne supercharger, water/air intercooler, Monroe gt sport shocks, slotted/drilled front rotors, LSD 3.45 diff, manual conversion = $10,000

Top
 Profile
