 Post subject: Cool/Different Gas Intake Idea
Posted: Sat Sep 17, 2011 1:02 am
Getting Side Ways
Offline
User avatar

Age: 102

Posts: 466

Joined: 22nd Jun 2011

Ride: '97 EL Fairmont Ghia

Location: Perth
WA, Australia

Whats up everyone.

I was recently thinking about my gas setup and how the mixer ring in the intake restricts the engine quite a bit.. I recent bought a BA intake and ran that for a while without the mixer ring in and wow I loved it. But as petrol is dear I didn't want to be cruising around all day when there is a much cheaper alternative.. but I still wanted the power that comes with it.

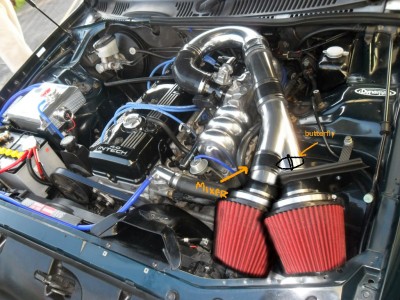

It came through my mind to make some sort of dual intake setup something like this:
Attachment:
File comment: Borrowed pic from KWIKXR's sexy engine bay
customgasintake.jpg [ 259.31 KiB | Viewed 30 times ]


As you can see there is 2 POD filters (obviously they wont be that big, just had to use what was in the photo :P), the 2 pipes would merge a little further up. One has the mixer ring (Restrictive) and the other is fully open with a butterfly.

So while running on gas you'd just close the butterfly and run the car as per usual but when you switch to petrol for "power" mode you simply open up the butterfly and effectively have 2.5x the airflow over just the mixer. I know having the mixer open at the same time won't make much of a difference over just 1 intake but there's no point blocking it off.

The only problem I can see is that with the mixer being so far down it might not work effectively.

So would you think this would work or not? I've got no problem making it just have to ask people if it has some serious design flaws.

Cheers :D
