 Post subject: cooling systen problem
Posted: Sun Jul 28, 2013 5:22 pm
Fordmods Newbie
Offline
User avatar

Age: 71

Posts: 3

Joined: 13th Jul 2013

Ride: 93 Ford Falcon GLI ED

Location: Malanda
QLD, Australia

Attachment:
bleeder plug.JPG
bleeder plug.JPG [ 64.33 KiB | Viewed 156 times ]

Hi. every one
Still learning about my 93 ED

I get no heat from my heater.
The green and black tubes are on correctly.
My temp gauge shows no temp at all when driving.
heat sensor seems ok along with the thermostat.
I earthed out the temp gauge and it rose to high.

In the pic it shows a hose from my thermostat housing
going to a T joint One hose going to the engine another
going to the heater on the fire wall.

The arrows DON'T show water flow but only where the hoses go to.
A second hose is fitted to the heater with the heat tap connected I am not sure where that runs yet.

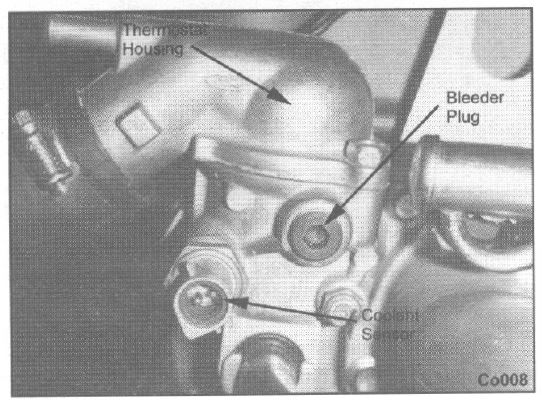

In my work manual for the ED it shows where the red line hose is connected as a bleeder plug.
I supplied a pic as well.

My question is would this set up cause the temp to remain low.??
I am at a loss. Any Help I am grateful for.
