 Post subject: cracking firewall
Posted: Thu Jul 13, 2006 9:45 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi
the clevis on my clutch cable let go today which is a pain in the a**.
in the process of fixing it i noticed that my ea has a problem with the firewall cracking around tha cluch cable.
it has been welded once already and its starting to crack again..
i read in another post that ford sell a reinforcement plate or something like that does anyone have a pic or part number??
also read that the x series had a bolt on plate can anyone confirm this??
or have any pics..

Last edited by TROY. on Tue Aug 01, 2006 1:39 pm, edited 3 times in total.

Top
 Profile


Posted: Thu Jul 13, 2006 11:39 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

that plate is the same for all ford manuals back to X series iirc :)

no idea on the part number but ford spare parts SHOULD be able to help u



_________________

RIP SCOTT

Top
 Profile


Posted: Fri Jul 14, 2006 10:12 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ok
thanks ...
Top
 Profile


Posted: Fri Jul 14, 2006 11:38 am
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

When I had my xf I was such a a*** that when the clevis broke I managed to weld it back up!



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Fri Jul 14, 2006 2:07 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

lol bush mechanics style? or fm style ? :P



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


Posted: Fri Jul 14, 2006 3:14 pm
Fordmods Newbie
Offline

Age: 29

Posts: 19

Joined: 13th Jul 2006

Ride: XR6

Location: Bendigo
VIC, Australia

hey mate im not sure about the clip giving way but i can advise you on the firewall cracking. my eb has done the same thing with the clutch cable. my uncle is helping me this weekend to make up a plate (just any metal that wont bend) to weld over the hole. it'll proberly be about 8 cm wide and just however tall will fit. then drill a hole through the plate for the clutch cable to go through. bugger paying money to buy the same kinda thing when you can just make it up yourself!!

cheers
Braden



_________________

EBII XR6

WANTED: EL MANUAL XR6 ECU
Please PM me.

Top
 Profile


Posted: Fri Jul 14, 2006 6:35 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

im going to the wreckers and see if i can find a car with a bolt on type and i will modify it to fit..

does anyone know the angle the cable comes out the firewall??????
Top
 Profile


 Post subject: Re: cracking firewall
Posted: Fri Jul 14, 2006 8:23 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

TMAN NK wrote:
hi
the clevis on my clutch cable let go today which is a pain in the a**.
in the process of fixing it i noticed that my ea has a problem with the firewall cracking around tha cluch cable.
it has been welded once already and its starting to crack again..
i read in another post that ford sell a reinforcement plate or something like that does anyone have a pic or part number??
also read that the x series had a bolt on plate can anyone confirm this??
or have any pics..


here are pics of the clevis that let go....




the clevis on mine, i'm in the process of making a new one out of half inch X inch steel flat bar



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sat Jul 15, 2006 2:28 am
Getting Side Ways
Offline

Age: 29

Posts: 486

Joined: 23rd Sep 2005

Ride: EB S1 3.9L Bush basher

Location: Perth
WA, Australia

there is a hole for wires and such that comes out above the pedals in my ED (my neighbours and auto elec told me about it)



_________________

I dont care how fast your car is, mine goes faster through the bush.

Top
 Profile


Posted: Sat Jul 15, 2006 9:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

willygrice wrote:
there is a hole for wires and such that comes out above the pedals in my ED (my neighbours and auto elec told me about it)

sorry dude but whats that got to do with a cracked firewall were the cluch cable goes...
Top
 Profile


Posted: Mon Jul 17, 2006 7:05 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

hi

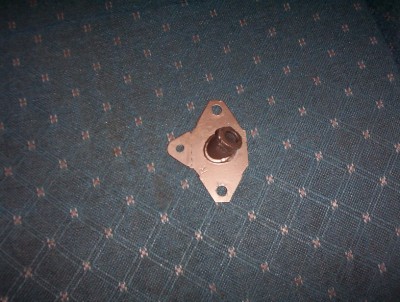

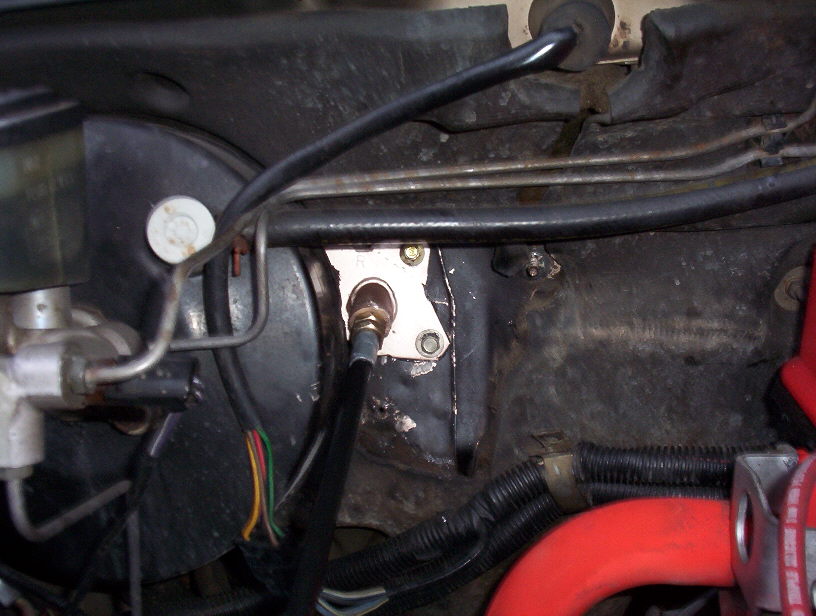

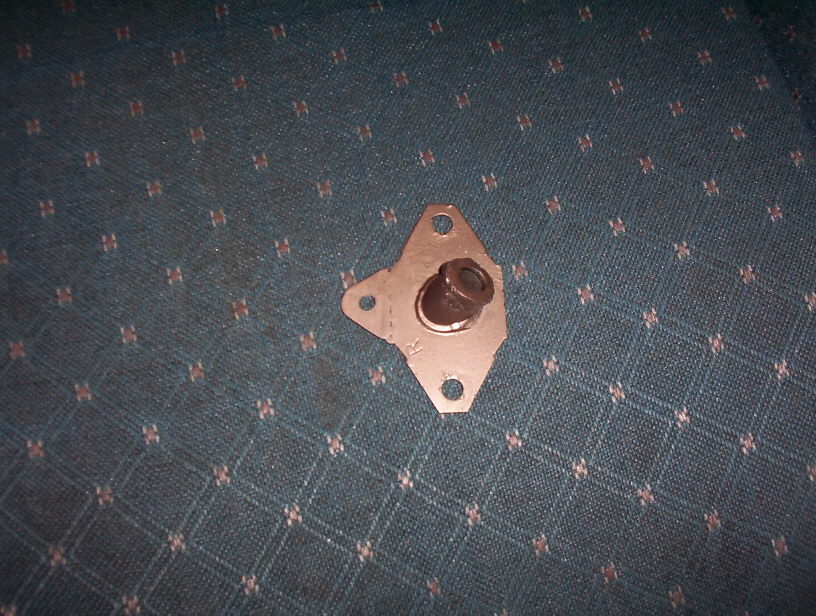

i went to the wreckers today and the xd/xe does have a bolt on support for the clutch cable but i couldnt find a manual that still had one but xf has the same as the ea..

anyway i modified one off a nissan pulsar and its all sweet now..

here are some pics..





Attachments:
fixed.jpg [ 82.56 KiB | Viewed 72 times ]
clutch.jpg [ 132.97 KiB | Viewed 83 times ]
