Posted: Wed Jan 16, 2008 10:14 am
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

I have seen it but I think the better mod is to raise the surge tank by swapping for AU tank and hose.
If Ford thought it would help then I won't argue with the engineers If you look at the BA/F they have a higher one again. If you can try to keep the air bubbles from forming an air lock in the head. air in the head = hot spot and localised overheating causing CRACKS. This is what happened to me when my surge tank was cracked. I kept losing coolant and the head cracked.



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Wed Jan 16, 2008 10:41 am
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

Rick's EF Fairmont Wagon wrote:
I have seen it but I think the better mod is to raise the surge tank by swapping for AU tank and hose.


i think the problem is more related to the coolant flow in the motor, and limited airflow in the engine bay, combined with s**t orginal gaskets and headbolts rather than the postion of the coolant reservoir
Top
 Profile


Posted: Wed Jan 16, 2008 11:28 am
Smokin em up
Offline
User avatar

Posts: 205

Joined: 14th Oct 2007

Gallery: 1 images

Ride: EF futura 96

Location: Le BrisVois
QLD, Australia

Are we all talking about standard ford EF gaskets or can I assume that an AU / ACL / Jim-mock-special-super-dooper-triple-layer-metal-go-fast gaskets will ALL tend to break over these periods?

I need to go see my analyst now and treat this nervous condition ive developed about my car :wink:


zxhoon: have you checked your cooler hose clamps. I had one just above my alternater which wasnt tight enough and was leaking and staining my alternater. Lucky it didnt kill my alternater. Tightened it up and no water loss.
Top
 Profile


Posted: Wed Jan 16, 2008 11:40 am
Stock as a Rock
Offline

Age: 35

Posts: 187

Joined: 30th Dec 2006

Ride: 95 EF I

Location: Melbourne
VIC, Australia

ooh rdiigen, will have to check that out, mechanic just said it was leaking, i poked my head under and saw the water mark down the side of the engine so left it at that... will have to have a closer look, im not too worried though, if it blows ill get an AU motor heh... mechanic quoted 1100 for a reco head replacement... if i can get a whole motor for a lot less why bother :p

cheers :)
Top
 Profile


Posted: Wed Jan 16, 2008 4:26 pm
Getting Side Ways
Offline

Age: 48

Posts: 1061

Joined: 7th Sep 2007

Gallery: 3 images

Ride: BF3 Egas wag SY AWD Terry Ghia

Location: Brookfield
VIC, Australia

a reco c/o head is $595 plus fitting and gasket.
so doing it yourself will be about $800



_________________

BF3 Egas XT Wagon
SY Territory Ghia AWD 6spA :))

Top
 Profile


Posted: Wed Jan 16, 2008 4:47 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

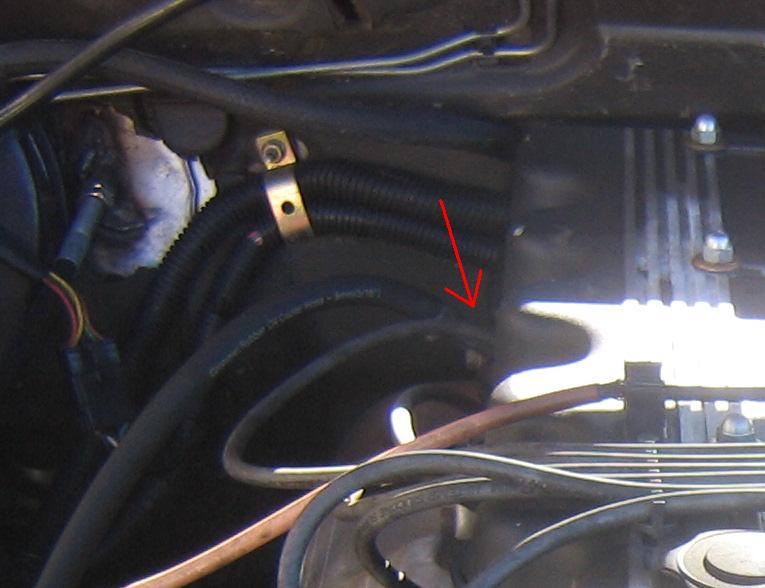

Mine has it!

I got a new head in Apr/june last year. The new head was already tapped, and the workshop ran the hose to between cyl's 5 & 6.

The hose connects via a T-piece just after the overflow bottle.





Attachments:
rear water inlet.JPG
rear water inlet.JPG [ 48.7 KiB | Viewed 36 times ]



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Thu Jan 17, 2008 12:04 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

so in theory what is this hose meant to do. Is coolant running from the head or to the head in this hose or is it just there to get rid of air pockets.



_________________

Turbo 6s rule

Top
 Profile


Posted: Thu Jan 17, 2008 12:08 am
Smokin em up
Offline

Posts: 264

Joined: 19th Sep 2005

Location: Perth
WA, Australia

locknut, would you be able to take a side on pic which shows the exact location of the tapping point and a pic of the connection point of the t piece



_________________

Turbo 6s rule

Top
 Profile


Posted: Thu Jan 17, 2008 6:48 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 673

Joined: 29th Jan 2006

Gallery: 8 images

Ride: BA XR6 Turbo

Location: Canberra
ACT, Australia

Yep yep, will do later today. It's tapped in at a slight angle too by memory.



_________________

I like boost
http://www.venomexhaustworks.com.au

Top
 Profile


Posted: Thu Jan 17, 2008 8:30 am
Getting Side Ways
Offline

Age: 49

Posts: 505

Joined: 14th Nov 2004

Gallery: 1 images

Ride: ford au wagon 4.0 na

Power: 170 rwkw

Location: Merrylands
NSW, Australia

turbotrana wrote:
so in theory what is this hose meant to do. Is coolant running from the head or to the head in this hose or is it just there to get rid of air pockets.

The front of our cylinder heads run cooler due to the water pump location.I believe this is a good mod and will help prevent head warpage. As for the head bolts..I had ,my head installed wehn I blew my last engine by wreckers.they done a very bodgey job and water leakt the very next day into the motor.I retightened the bolts to 3 times the ford specs and it hasnt leakt since.



_________________

14.77 @92.71mph July 06 14.52@95.68mph July 07 14.241 96.7 MPH in a shoebox/taxi au ford wagon!!Bwahahah still cant believe it!!!

Top
 Profile


Posted: Thu Jan 17, 2008 11:00 pm
Stock as a Rock
Offline
User avatar

Age: 49

Posts: 102

Joined: 30th Nov 2004

Gallery: 2 images

Ride: V8 LTD DC

Location: Cranbourne
VIC, Australia

Rick's EF Fairmont Wagon wrote:
a reco c/o head is $595 plus fitting and gasket.
so doing it yourself will be about $800

If you do it yourself it will be a bit different figure:

Machining head surface: $55
Pressure test: about $40
VRS with new bolts: about $100
Lapping equipment (if you dont have your own yet): about $35
Coolant: $45
Oil+filter: $40

Total: $315



_________________


BA XT Wagon 2004 -daily driver
LTD DCII V8 1993
NC-1 1991
NA-II Sportsman 1990- budget project going very slow: full respray is in progress, XR6 engine, rebuild auto, lowered, 3.45 LSD, extractors, LTD leather electric seats, thermofans, NF door trims, NF door handles, complete NCII wiring.

Top
 Profile


Posted: Thu Jan 17, 2008 11:21 pm
Stock as a Rock
Offline

Age: 35

Posts: 187

Joined: 30th Dec 2006

Ride: 95 EF I

Location: Melbourne
VIC, Australia

Peter7 wrote:
Rick's EF Fairmont Wagon wrote:
a reco c/o head is $595 plus fitting and gasket.
so doing it yourself will be about $800

If you do it yourself it will be a bit different figure:

Machining head surface: $55
Pressure test: about $40
VRS with new bolts: about $100
Lapping equipment (if you dont have your own yet): about $35
Coolant: $45
Oil+filter: $40

Total: $315


firstly, sorry for the total thread derailment here!

ive been doing searches and reading up, still unsure of what to try really... you think its worth just taking the head off, reversal of torrque sequence, etc. getting it tested and cleaned up and just putting it back on again? what do you need the lapping equipment for? i dont have money to burn but at the same time i dont want to go to the effort of all that and then having the gasket blow in 6 months, or worse a week later :p

cheers :)
Top
 Profile


Posted: Thu Jan 17, 2008 11:36 pm
Stock as a Rock
Offline
User avatar

Age: 49

Posts: 102

Joined: 30th Nov 2004

Gallery: 2 images

Ride: V8 LTD DC

Location: Cranbourne
VIC, Australia

zxhoon wrote:
ive been doing searches and reading up, still unsure of what to try really... you think its worth just taking the head off, reversal of torrque sequence, etc. getting it tested and cleaned up and just putting it back on again? what do you need the lapping equipment for? i dont have money to burn but at the same time i dont want to go to the effort of all that and then having the gasket blow in 6 months, or worse a week later :p

cheers :)


Lapping equipment you need to lap the valves. :wink:
If you don’t know what and how to do- better to refer to workshop, it will be cheaper for you at the end. :roll:



_________________


BA XT Wagon 2004 -daily driver
LTD DCII V8 1993
NC-1 1991
NA-II Sportsman 1990- budget project going very slow: full respray is in progress, XR6 engine, rebuild auto, lowered, 3.45 LSD, extractors, LTD leather electric seats, thermofans, NF door trims, NF door handles, complete NCII wiring.

Top
 Profile


Posted: Thu Jan 17, 2008 11:46 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

The biggest mistake would be buying a VRS kit off the shelf.

in fact, If you do buy a VRS kit, Throw away the Head gasket.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Fri Jan 18, 2008 12:00 am
Stock as a Rock
Offline
User avatar

Age: 49

Posts: 102

Joined: 30th Nov 2004

Gallery: 2 images

Ride: V8 LTD DC

Location: Cranbourne
VIC, Australia

Krytox wrote:
The biggest mistake would be buying a VRS kit off the shelf.

in fact, If you do buy a VRS kit, Throw away the Head gasket.

Burson and Repco selling wrong goods? :shock: :lol:



_________________


BA XT Wagon 2004 -daily driver
LTD DCII V8 1993
NC-1 1991
NA-II Sportsman 1990- budget project going very slow: full respray is in progress, XR6 engine, rebuild auto, lowered, 3.45 LSD, extractors, LTD leather electric seats, thermofans, NF door trims, NF door handles, complete NCII wiring.

Top
 Profile
