Posted: Sat Jun 23, 2007 9:08 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Sweet deal, good read right there.



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Sun Jun 24, 2007 10:55 am
Smokin em up
Offline

Age: 30

Posts: 274

Joined: 22nd Feb 2006

Ride: AU 6

Location: Geelong
VIC, Australia

Out of that article!!!

I wasn't really concerned about it was because this head is going on an EB engine so the pistons are going to be different to an AU anyway. If I'd left the combustion chambers how they were it would have more compression than standard - and this is going to be a (turbo engine)."

See just proving what i said mate!!
My Au head is different to Eseries so maybe its benficial for a eseries head to have hump removed i dont know,
Top
 Profile


Posted: Sun Jun 24, 2007 7:26 pm
Getting Side Ways
Offline

Posts: 404

Joined: 8th Jun 2006

Location: melbourne
VIC, Australia

Does anyone know if the ED head is marked 91AB?
Top
 Profile


Posted: Sun Jun 24, 2007 8:12 pm
Parts Gopher
Offline

Posts: 67

Joined: 26th Jan 2006

Location: Perth
WA, Australia

The swirl ridge is generally removed because it reduces flow, and because its possible for the thin edge of it to get hot enough to possibly cause detonation. It was put in the head casting in the first place to introduce more swirl and tumble in the cylinder which mixes air and fuel better and hence more complete combustion which amongst other things improves lowend power and reduces emissions. The compression and swirl effect you lose from removing the ridge is easily offset by the higher flow you get by removing it. However, if your building an NA motor its easy to more than regain the lost compression via shaving the head.
Top
 Profile


Posted: Sun Jun 24, 2007 8:47 pm
Parts Gopher
Offline
User avatar

Posts: 58

Joined: 6th Mar 2006

Ride: BA XR6T

Location: wangaratta
VIC, Australia

Joesau wrote:
Out of that article!!!

I wasn't really concerned about it was because this head is going on an EB engine so the pistons are going to be different to an AU anyway. If I'd left the combustion chambers how they were it would have more compression than standard - and this is going to be a (turbo engine)."

See just proving what i said mate!!
My Au head is different to Eseries so maybe its benficial for a eseries head to have hump removed i dont know,


just be low that he said.
"The benefits in the flow right through the valve lift range outweigh the small reduction in compression. But if someone wanted more compression I can easily pick it up by skimming the head with the mill anyway. It wouldn't take much to make it up - maybe 10 thou."



_________________

05 XR6T shockwave prem sound t56 k&n 2cai center muffler mod / 95 ef Fairmont ghia stock.

Top
 Profile


Posted: Sun Jun 24, 2007 9:14 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Brett3158 wrote:
Does anyone know if the ED head is marked 91AB?

Thats EB XR.
EB-ED 4L is 91AA.
ED Tickford is 93DT.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


 Post subject: they didn't mention anything about actually porting
Posted: Mon Jun 25, 2007 1:12 pm
Smokin em up
Offline

Age: 40

Posts: 227

Joined: 21st Jun 2005

Location: Melbourne: Thornbury
VIC, Australia

That article, or rather the parts of it that were posted, only really mentioned working on the chambers. In reality there is much more work to be done in the bowls, the guide bosses and exhaust side short turns.

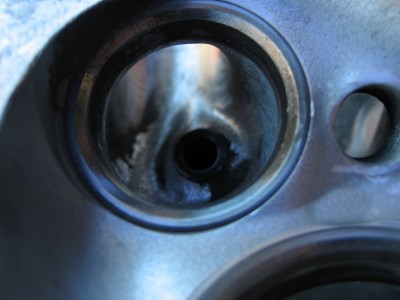

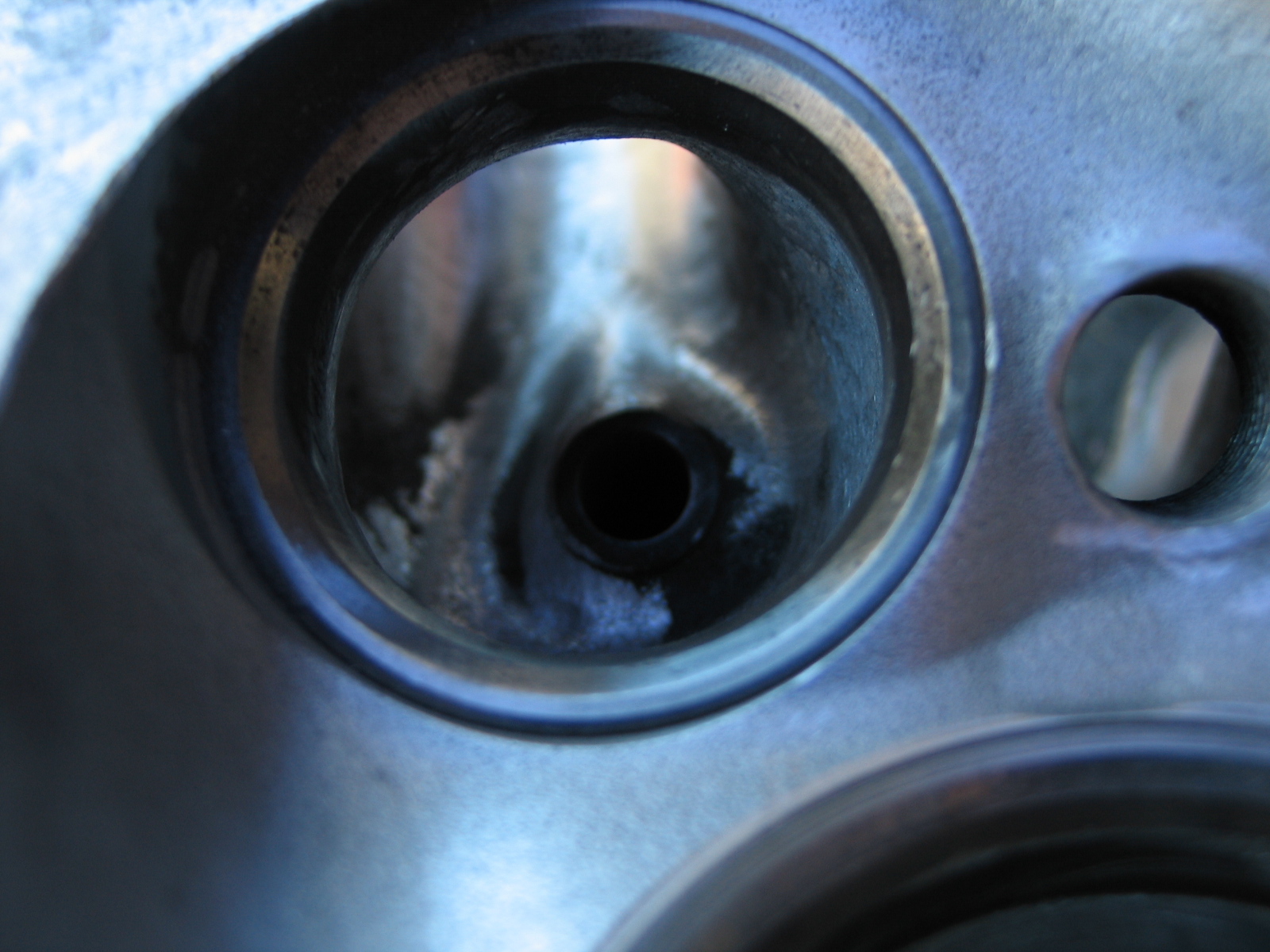

here is my attempt at it:





Attachments:
march-april-07 079.jpg
march-april-07 079.jpg [ 631.19 KiB | Viewed 77 times ]



_________________

EA SVO Fairmont Ghia - Recaros, Bilsteins, Sunroof, SVO rims and body kit, Genie headers, DBA rotors. T5 steeda triax short shifter. 3.27 lsd. (EL 4.0 ported/polished, rebuilt and balanced, Dev5 cam. J3 chipped EL ecu, AU injectors).
