 Post subject: Doin some mods all help greatfully accepted.
Posted: Sat Sep 24, 2005 1:09 am
Tyre Shredder
Offline
User avatar

Age: 41

Posts: 363

Joined: 23rd Sep 2005

Gallery: 1 images

Ride: XR6 Wagon

Location: Perth
WA, Australia

Is there a better snorkel for my air box than my EF XR6 standard one?
What Plugs and coil are good for that little bit more performance?
Will I loose too much back pressure if I have a 3" pipe from the muffler back or am I better off sticking with the 2.5"?[/img]

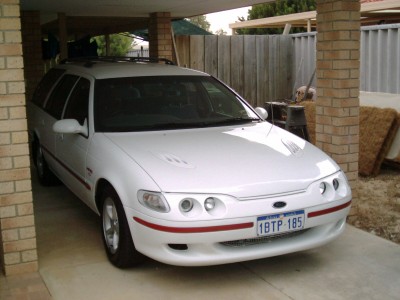

Attachments:
11220001.JPG [ 918.52 KiB | Viewed 20 times ]



_________________

EF XR6 Wagon,RPD R6 cam,Wildcat extractors, Magnaflow cat,2.5" Lukey exhhaust.
Too many more too list

Top
 Profile


Posted: Sat Sep 24, 2005 2:38 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 927

Joined: 6th Nov 2004

Ride: BA Falcon EGas

Location: Perth
WA, Australia

The AU XR8 snorkel is the way to go. it fits straight in and can be bought new from ford for $40.

Stick to 2.5" unless you are turboing.
I recommend what i have for a good NA setup exhaust wise.

NGKs are great plugs, dunno much about coils.



_________________

BA Falcon Futura on EGas. Stock as...

EF 5 speed manual; PH 4480 Pacemaker Headers; 2 1/2" Lukey Mandrel Bent System; Hi Flow Walker Cat; Stage 3 Crow Cam; ChipTorque Chip; 3" Mandrel Bent Intake; K&N Pod Filter; Low Pedders Suspension; 17" EL GT Champagne Rims; RPM Series Clutch

Top
 Profile


Posted: Sat Sep 24, 2005 2:49 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

EF's run a coilpack system so you can't change the coil. As for plugs, I would just use the NGK XR6 spec plugs. As for the exhaust, a 3" is a huge overkill on the 6cyl, stick with a 2.5".
Top
 Profile


Posted: Sat Sep 24, 2005 5:54 am
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

Upgrade your leads to something a little thicker than standard (although have heard the Motorcraft ones are quite competent) ... I think the XR6 spec plugs are Iridiums (unless that's the current model XR6T plugs i am thinking of).

as mentioned before ... no use going over 2.5" in pipe diameter for the exhaust.

XR8 220kw snorkel (Series III) from Ford is just under the $40 mark new ... upgraded panel filter ... and also getting a mandrel bent intake pipe from airbox to throttle body gives a nice increase as well.



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Sat Sep 24, 2005 1:07 pm
Tyre Shredder
Offline
User avatar

Age: 41

Posts: 363

Joined: 23rd Sep 2005

Gallery: 1 images

Ride: XR6 Wagon

Location: Perth
WA, Australia

Mucho grazzias, all the info has been a great help thanks to all!!!!



_________________

EF XR6 Wagon,RPD R6 cam,Wildcat extractors, Magnaflow cat,2.5" Lukey exhhaust.
Too many more too list

Top
 Profile


Posted: Sat Sep 24, 2005 1:09 pm
Tyre Shredder
Offline
User avatar

Age: 41

Posts: 363

Joined: 23rd Sep 2005

Gallery: 1 images

Ride: XR6 Wagon

Location: Perth
WA, Australia

Mucho grazzias, all the info has been a great help thanks to all!!!!



_________________

EF XR6 Wagon,RPD R6 cam,Wildcat extractors, Magnaflow cat,2.5" Lukey exhhaust.
Too many more too list

Top
 Profile


Posted: Sat Sep 24, 2005 1:09 pm
Tyre Shredder
Offline
User avatar

Age: 41

Posts: 363

Joined: 23rd Sep 2005

Gallery: 1 images

Ride: XR6 Wagon

Location: Perth
WA, Australia

Mucho grazzias, all the info has been a great help thanks to all!!!!



_________________

EF XR6 Wagon,RPD R6 cam,Wildcat extractors, Magnaflow cat,2.5" Lukey exhhaust.
Too many more too list

Top
 Profile


Posted: Sat Sep 24, 2005 1:44 pm
Getting Side Ways
Offline

Age: 35

Posts: 533

Joined: 12th Jan 2005

Location: Melbourne
VIC, Australia

Megnecore leads are probably one of the best on the market and last the life of the engine unlike other leads that may only last 20,000 to 30,000 km. They're pricy though. Expect to pay $300-$400 for a set of magnecores.

Ignition systems only draw as much power as they need. Forcing more power through ignition leads and plugs only wastes power and is a gimmick. The reason why some engines need high power coils are 2 reasons.

1. If you're charging your engine, either by turbo or super, the spark plugs draw more power to produce a spark that can jump the gap because of the greater air/fuel charge density.

2. If you've got a very high revving engine, you need a good, powerful coil with a low charge time so that you've got enough power in the coil for the next spark.

The EF with the coil pack doesn't have to worry about the charge time since each coil get 6 times longer to charge up compared to an engine with a single coil.

NGK Irridiums came out about 2 years ago so I can't see Ford having them as standard in a 10 year old car.
Top
 Profile


Posted: Sat Sep 24, 2005 3:12 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

Buy 98 Ron Fuel



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Sat Sep 24, 2005 3:22 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

The EL GT snorkel would be better than the AU III XR8 one. Its a direct easy swap with the standard one. The AU one sometimes fouls on the thermo fan housing and can be a b**ch to line up with the screw holes. EL GT is a perfect fit.

Get some Pacemaker extractors and 2.5" cat back system. Can be done for under a $1000.

Get NGK leads and plugs. No need to go over the top.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Sat Sep 24, 2005 5:25 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

EDXR8 wrote:
EF's run a coilpack system so you can't change the coil. As for plugs, I would just use the NGK XR6 spec plugs. As for the exhaust, a 3" is a huge overkill on the 6cyl, stick with a 2.5".


you could change the coils. the EFs run internal igniters (in the ecu) you all you need to do is get 3 duel out let coils or 6 single coils and extend the wiring to them.

splitfire, MSD, crane. take your pick



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sat Sep 24, 2005 6:36 pm
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 3785

Joined: 5th Nov 2004

Ride: Ford

Location: Victoria
VIC, Australia

I'm lead to believe that Aunger make an air intake for EF/EL's that has a bigger throat than the other intakes. I also believe that it is a rather cheap intake and readily available at alot of Autobarn stores.



_________________


Top
 Profile


Posted: Sat Sep 24, 2005 7:49 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1440

Joined: 7th Nov 2004

Ride: 320kw BA XR8

Location: Adelaide
SA, Australia

revcore wrote:
I'm lead to believe that Aunger make an air intake for EF/EL's that has a bigger throat than the other intakes. I also believe that it is a rather cheap intake and readily available at alot of Autobarn stores.


Yeah the Aunger one looks good but seeing the EL/AU XR8 snorkles flow enough for 260+kw, I wouldn't bother spending the extra $$$
Top
 Profile


Posted: Sat Sep 24, 2005 11:17 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2376

Joined: 5th Nov 2004

Gallery: 3 images

Ride: Shell with 4 wheels

Location: Richmond,
NSW, Australia

ba xr6 turbo ss inductions :smile:
