Dyno Read out



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: Dyno Read out
Posted: Sat Jan 13, 2007 11:23 am
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

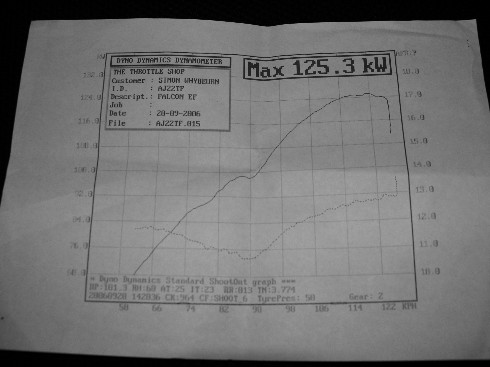

Could sameone please explain how to read this I was told by the guy that did it I had a problem with the fuel and that is why I only made 125kw what could be wrong I have had the injectors done fuel filter and sparks.





Attachments:
DSCN3185 490x367.jpg
DSCN3185 490x367.jpg [ 39.32 KiB | Viewed 110 times ]



_________________

Au II XR8

Top
 Profile


Posted: Sat Jan 13, 2007 11:33 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

just looks like the "air fuel ratio" is outa whack.. just needs adjusting...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Sat Jan 13, 2007 11:39 am
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

Is it too lean my fuel econ is very good now with the dev3hl cam in. How do you adjust it on a stock ecu



_________________

Au II XR8

Top
 Profile


Posted: Sat Jan 13, 2007 11:39 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

k/w looks about right to me!

Well unless you spent more $$$ on getting more hp

dunno bout the a/f



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sat Jan 13, 2007 12:12 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

The problem I see with your afr is that it is too good for a stock ecu. They normally like to run a safe rich tune in the 11's, but yours in the high 12's is the afr you would target with an aggressive power tune. The AFR itself would be giving you power, not taking it away.

It is possible though that the leaner mix might be tripping the knock sensor and the ecu has pulled a lot of timing out which will cost you power.

Hard to say though, what do other falcons normally pull on that dyno?



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sat Jan 13, 2007 12:13 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

power is pretty good.


AFR's arent to bad, but a little more lean at the end than normal i think



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Last edited by Gaz on Sat Jan 13, 2007 1:11 pm, edited 1 time in total.

Top
 Profile


Posted: Sat Jan 13, 2007 12:30 pm
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

The guy tune it to ran on 98oct. with the vernier gear. When i reset the ecu it feel like it has more power ( seat of pants ).



_________________

Au II XR8

Top
 Profile


Posted: Sat Jan 13, 2007 1:11 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I thought the XG's didn't have a knock sensor?
Has the O2 sensor been replaced? How many K's on the XG?



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Jan 13, 2007 1:25 pm
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

It Is a ef Fairmont



_________________

Au II XR8

Top
 Profile


Posted: Sat Jan 13, 2007 1:27 pm
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

Do I put a xr6 fuel reg on?



_________________

Au II XR8

Top
 Profile


Posted: Sat Jan 13, 2007 1:50 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Sorry about that, I think the XR6 fuel reg is set different to a std one, you could try it.
You may need a piggy back system to fix it, the A/Fr.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Jan 14, 2007 11:07 am
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

Is the unichip the best to use to control this?



_________________

Au II XR8

Top
 Profile


Posted: Sun Jan 14, 2007 9:16 pm
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

It looks like I am going to give up on the dev 3hl and go with the r5 cam from rpd that should fix the problem. The car a fairmont so it needs power to move weight. I hope this works



_________________

Au II XR8

Top
 Profile


Posted: Mon Jan 15, 2007 4:45 pm
Parts Gopher
Offline
User avatar

Age: 42

Posts: 86

Joined: 25th Mar 2005

Gallery: 4 images

Ride: Fairmont

Location: Blue Haven
NSW, Australia

Bang for buck
unchip $1400 v's xr6 ecu and fuel reg $250
What do you guys think?



_________________

Au II XR8

Top
 Profile


Posted: Mon Jan 15, 2007 4:48 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Neither are particularly good value for money

Better options would be chiptorque, edit, or MS2.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile
