 Post subject: E-series head using AU headgasket torque setting FINAL
Posted: Fri Nov 04, 2011 11:32 pm
Fordmods Newbie
Offline

Posts: 13

Joined: 4th Oct 2011

Ride: 97 el xr6 sedan

Location: Brisbane
QLD, Australia

Okay, I have researched an found there are 3 ways of this method floating around to tighten head bolts on an E-Series head using an AU head gasket. I think this will clear up a lot of searching for other people.

What is the correct setting used here?

Step one;
30nm + 120deg

Step two;
40Nm + 90deg

Step three; (JMM)
Stage 1 40nm
Stage 2 80nm
Stage 3 110nm

Thanks
Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sat Nov 05, 2011 9:14 am
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

What bolts?



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sat Nov 05, 2011 9:26 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

35nm + 90 deg is what I have always done. Why? cause it works. I didn't think this was topic that neeed clarification. Thowing the JMM stuff in there just muddies the water.



_________________


I have a car.

Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sat Nov 05, 2011 10:04 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

I have a au head gasket and normal bolts . I used 30nm and 120deg it's been fine for a few months now . No issues .



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sat Nov 05, 2011 1:27 pm
Parts Gopher
Offline

Age: 31

Posts: 99

Joined: 11th Apr 2011

Ride: Batmobile

Location: Tauranga
New Zealand

tickford_6 wrote:
What bolts?


Why do you ask this?

The headbolts I picked up were ea - au and had the torque settings for both e series and a series, so I assumed it was dependant on the head or gasket.
Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sun Nov 06, 2011 9:20 am
Getting Side Ways
Offline
User avatar

Age: 41

Posts: 3785

Joined: 5th Nov 2004

Ride: Ford

Location: Victoria
VIC, Australia

If you use a AU heagasket us use the torque settings specified for the AU gasket.... Thats the way I've always known it to be.



_________________


Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sun Nov 06, 2011 10:14 am
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

the third step is best it's the way i was tought by joe and has never given me problems before!
I don't beleave in that +90 s**t unless you have a dwell set up..



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sun Nov 06, 2011 11:29 am
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

30Nm + 120degrees

Done that on my car and it's been good for 4 years so far...

green machine wrote:
the third step is best it's the way i was tought by joe and has never given me problems before!
I don't beleave in that +90 s**t unless you have a dwell set up..


30Nm + 120 OR 40Nm + 90 is by far more precise than 3 different torque settings. From what I was told, the accuracy of a torque wrench changes with increase in torque and if the block was not cleaned properly with little bits of grit/shard metal in the bolt holes, the bolt can actually "stick" more giving a false torque reading on the torque wrench.

At 30 or 40Nm, the accuracy will be higher than at 110Nm while 120/90 degrees allows bolts to be tightened to equal distance.

Well that's from my understanding, and if you are a backyard mechanic, chances are your torque wrench has not been calibrated regularly and accuracy will be way off.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sun Nov 06, 2011 9:12 pm
Fordmods Newbie
Offline

Posts: 13

Joined: 4th Oct 2011

Ride: 97 el xr6 sedan

Location: Brisbane
QLD, Australia

Alright fellas.

Reason why I ask this as I used JMM specs an leaked coolant after 6 months of high rpm drag racing. Legally.

Ford genuine headbolts are same from EA to AU. I only use Genuine. Also use genuine head gasket.

I will use the AU spec this time an see how it goes.

Got the block decked this time, so hopefully that was the problem. Or the fact I use JMM specs.

I am mechanic by trade, only fresh though. I just seen those 3 specs thrown around a lot an wanted too see who used what specs more often.


Thanks
Top
 Profile


 Post subject: Re: E-series head using AU headgasket torque setting FINAL
Posted: Sun Nov 06, 2011 9:28 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I have always used the 40Nm + 90*.....I don't use a buffer to clean either....this tends to polish the metal surfaces and doesn't let the gasket bond properly.
Also, filling with inhibitor/coolant into a fresh engine, or just a head gasket job, will also upset the bonding of the gasket/s.
Take a look at the ACL specs for surface finish and the using of inhibitors/coolants too soon on an engine.

My engine wasn't leaking coolant, or using coolant, but I saw the corosion crystals.....that head gasket had been replaced about 3 years earlier....at a Ford dealer too.
It's coming up to 3 years soon.....and I towed a car trailer from here to Geelong and back.....no probs.





Attachments:

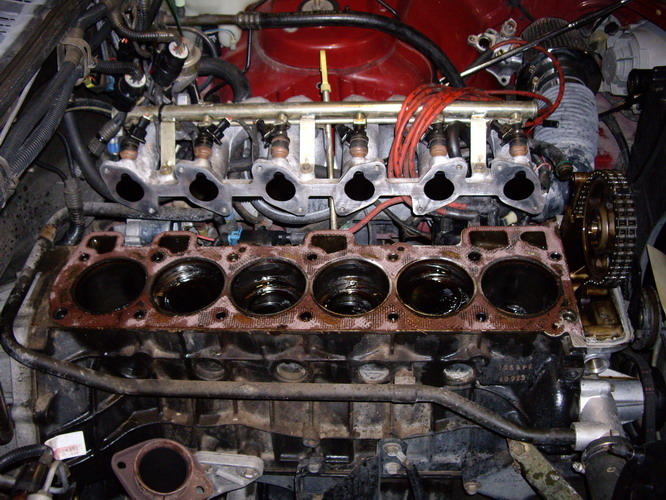

File comment: WHY I DID IT
IMGP0703_resize.JPG [ 93.2 KiB | Viewed 61 times ]

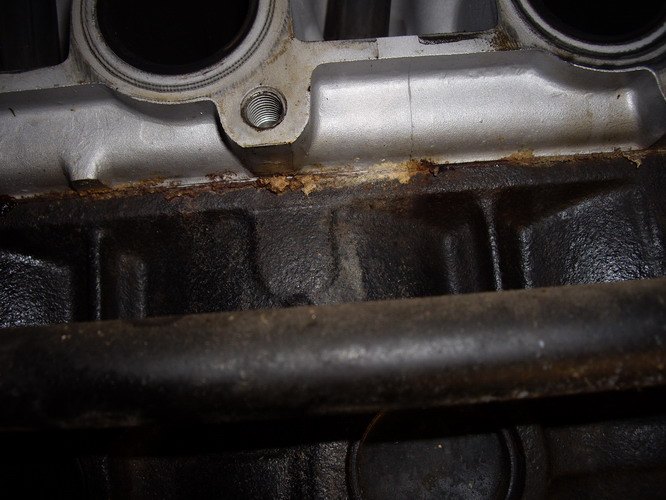

File comment: BEFORE
IMGP0722_resize.JPG [ 151.21 KiB | Viewed 65 times ]

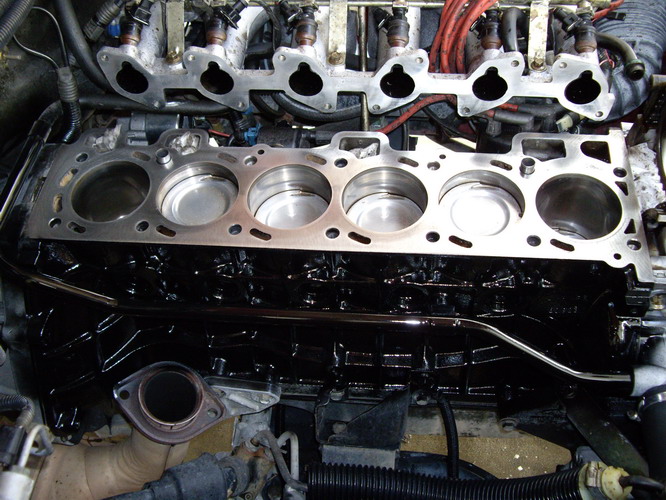

File comment: AFTER
