 Post subject: E Series stock intakes, which is better ?
Posted: Sat Jan 22, 2011 12:19 am
Parts Gopher
Offline
User avatar

Age: 60

Posts: 62

Joined: 28th Oct 2010

Gallery: 12 images

Ride: FG Falcon V8 Supercar Replica

Location: Newcastle NSW
NSW, Australia

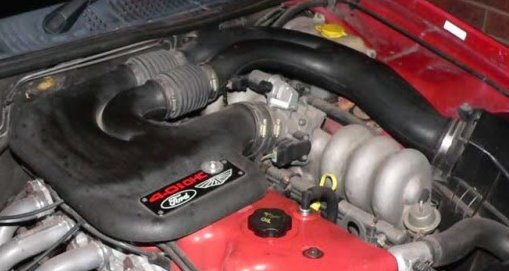

I have a stock 98 EL wagon and a donor parts car with this type intake system, which is better...do i keep the single tube setup or use the dual tube unit like in this pic ?





Attachments:
P1010515.jpg [ 31.25 KiB | Viewed 79 times ]



_________________


Top
 Profile


 Post subject: Re: E Series stock intakes, which is better ?
Posted: Sat Jan 22, 2011 12:29 am
Technical Contributor
Offline
User avatar

Age: 44

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Tests show the Dual intake runner flows better than the single EL elbow type.

http://autospeed.com/cms/title_Awakenin ... ticle.html



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: E Series stock intakes, which is better ?
Posted: Sat Jan 22, 2011 4:31 am
Tyre Shredder
Offline
User avatar

Posts: 326

Joined: 12th Jun 2010

Ride: EL Fairmont

Location: Central Highlands
QLD, Australia

I have tried both, the EL intake tube performs better agaisnt the stock EF intake tube at light-medium throttle but at full throttle there is no difference. You can cut the bell mouth off the EF intake inside the airbox all it does is make it rev better in neutral, driving wise does't do s**t..

If you had an after market camshaft etc on your engine I would go the EF intake with the internal snorkel cutoff. Got to let the engine breath..........



_________________

Current ride 2007
ML GLX Dualcab Triton 4x4

Top
 Profile


 Post subject: Re: E Series stock intakes, which is better ?
Posted: Sat Jan 22, 2011 4:39 pm
Parts Gopher
Offline
User avatar

Age: 60

Posts: 62

Joined: 28th Oct 2010

Gallery: 12 images

Ride: FG Falcon V8 Supercar Replica

Location: Newcastle NSW
NSW, Australia

This was interesting,

Contrary to popular opinion, J.M.M. says the EF Falcon’s divided passage induction pipe between the airbox and throttle gives more power than the larger, single-bore pipe used on the EL and AU. A fabricated 3 inch mandrel pipe is necessary only for engines making more than 140kW at the rear wheels. Gains also depend on the type of headers and exhaust system used.



_________________


Top
 Profile


 Post subject: Re: E Series stock intakes, which is better ?
Posted: Sat Jan 22, 2011 8:37 pm
Getting Side Ways
Offline
User avatar

Age: 56

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Frankly, I reckon the old log manifold works great.......what can I say...150 rwkw.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
