EA Falcon 4lt Twin TurboCharged C10/9 inch diff project



Page 3 of 7 [ 95 posts ] Go to page Previous  1, 2, 3, 4, 5, 6, 7  Next


 Post subject: sorry a bit slow my end
Posted: Mon Oct 10, 2005 7:22 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi guys

been slightly bissy wif a few big jobs at work and just a few hours to sneak some more work on my own car

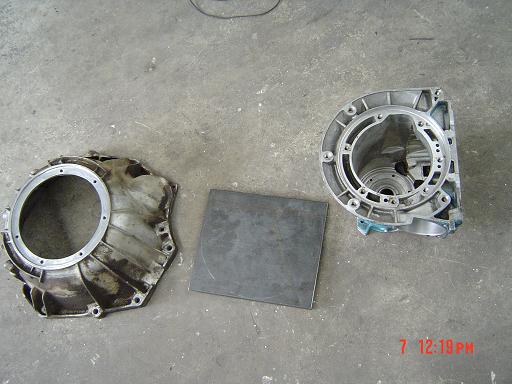

worked on the transmsion adapter plate to mount a C10 trans to a AU inline 6 cylinder fuel injected twin turbo 3D wolf V4plus thats been fitted to a EA sedan :wink: :wink:

have several ways i could do this and chose the worst way of doing it heaps of machine work and its like watching grass grow when doing lathe work boreing as bat s**t LOL :wink:

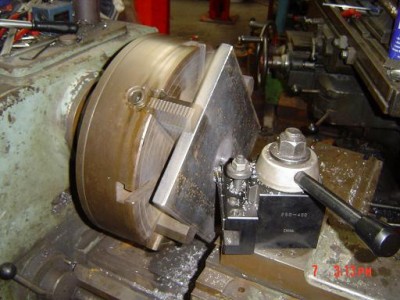

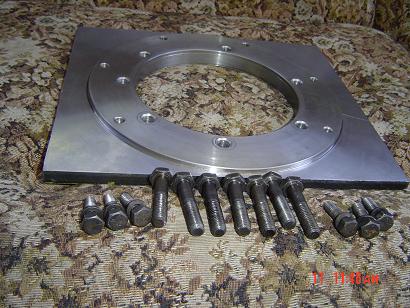

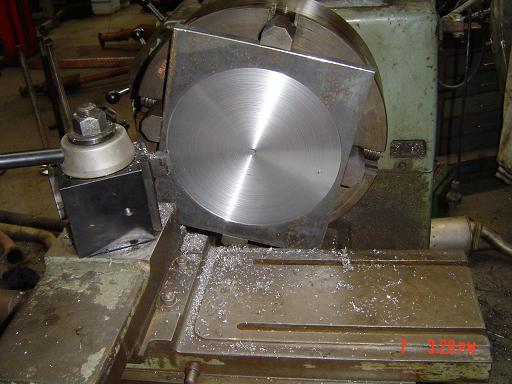

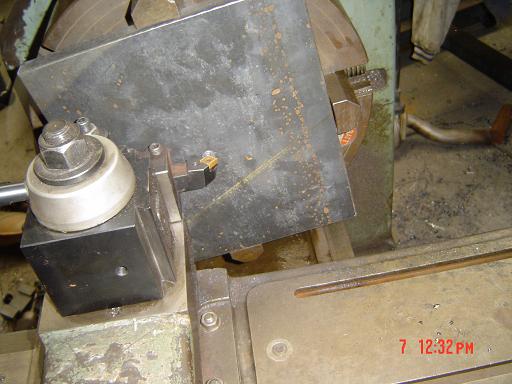

i used a 20mm thick steel plate approx measurements 330mm by 380mm first thing i did was squared the surfaces to be parrallel to each other and started maching it in the jaws of a lathe in a 4 jaw chuck gess there a prick to work with and time consuming to change over the chucks on the lathe and the set the job up in the right place to machine as u can see in the pics

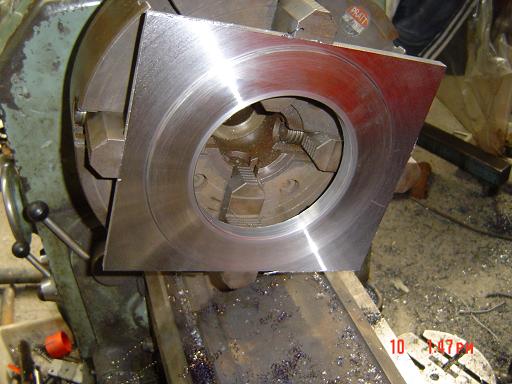

had to machine a large 6.125 inch hole in the center so the ford C10 pump could pass through and locate the adapter plate in center an then i had to do a step ( DOWEL ) of 0.184 mm by a diameter of 9.430 inches to locate the ford EA three speed auto bellhousing as seen in the pics

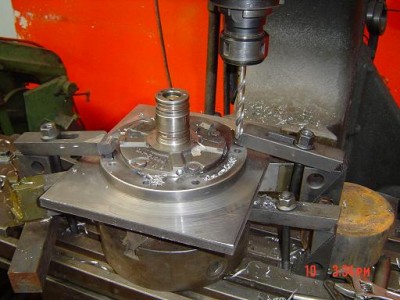

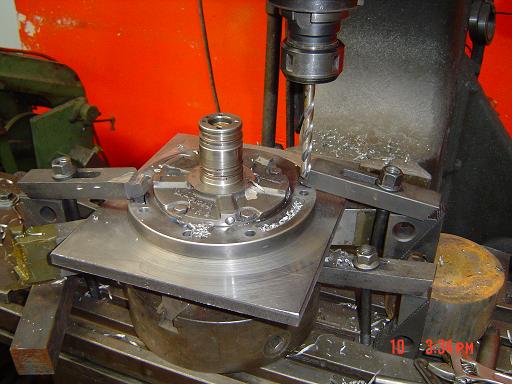

Once i finished maching in the lathe then i procceed to drill the pump holes nad the bellhousing holes

the ford C10 has irregular hole pattern so will have to mill the adapter ( PROFILE TO SUIT ) plate to match that will be the final machining process.

even though the pump is bolted to the transmission and the adapter plate will still bolt via the transmsion outer bolts also probably not needed but hey a little more drilling wont kill me LOL :wink:

the next plates i will have them frofile waterjet cut and the i will maching a few things in them save alot of time on the late and mill





Attachments:

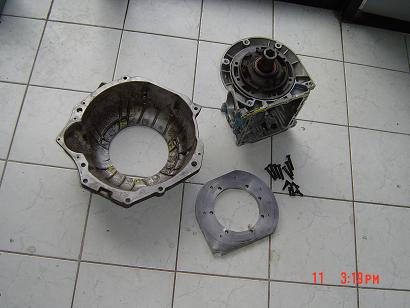

bellhousingtransmissionplate.JPG [ 40.05 KiB | Viewed 59 times ]

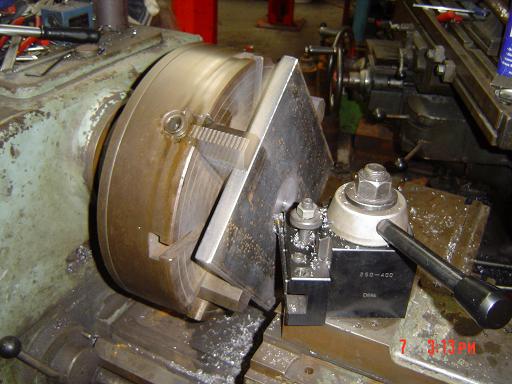

lathe_facingplate2.JPG [ 44.64 KiB | Viewed 47 times ]
lathe_facingplate1.JPG [ 39.7 KiB | Viewed 50 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Mon Oct 10, 2005 7:51 pm, edited 1 time in total.

Top
 Profile


 Post subject: waterjet cut
Posted: Mon Oct 10, 2005 7:29 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

next lot of adapter plates i will be making out of aluminium and waterjet cut all the holes and profile cut to shape to save weight

this one had to be made manually as it will be the template for future transmission adapters i make

the next plates i will have them profile waterjet cut and then i will machine a few things in them save alot of time on the lathe and mill

cheers





Attachments:
adapterplatedrilling.JPG [ 44.11 KiB | Viewed 55 times ]
lathe_facingplate4.JPG [ 43.04 KiB | Viewed 53 times ]
lathe_facingplate3.JPG [ 41.4 KiB | Viewed 53 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Tue Oct 11, 2005 12:31 am, edited 1 time in total.

Top
 Profile


Posted: Mon Oct 10, 2005 10:50 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

looks good



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile


 Post subject: Re: waterjet cut
Posted: Tue Oct 11, 2005 12:28 am
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

:oops:

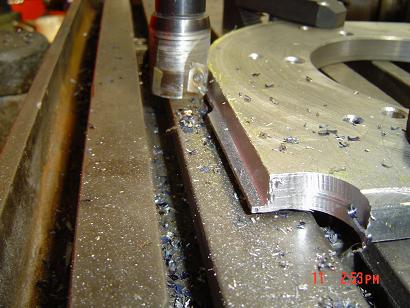

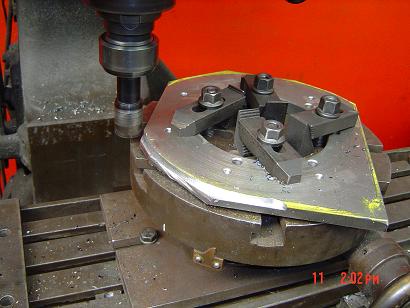

few more pics of profile milling manually yhr adapter plate :oops: :cry: wish i had CNC machines my hands are hurting :wink: LOL





Attachments:
trannyadpter1.JPG [ 29.84 KiB | Viewed 54 times ]
trannyadpter.JPG [ 43.15 KiB | Viewed 49 times ]
trannyadpter2.JPG [ 34.69 KiB | Viewed 57 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Tue Oct 11, 2005 5:18 pm, edited 1 time in total.

Top
 Profile


Posted: Tue Oct 11, 2005 3:50 am
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

good to see progress.. Keep it up.

Nice to see some custom work too. Good job, looks good.


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


 Post subject: Is this possible
Posted: Tue Oct 11, 2005 2:46 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

With regard to clearance with the front 26mm bar, is it possible to mobe the engine/g/box back say 5-10 mm by elongating the mounting holes in the engine mounts and g/box xmember.

Just a thought.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


 Post subject: Is this possible
Posted: Tue Oct 11, 2005 2:46 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

With regard to clearance with the front 26mm bar, is it possible to mobe the engine/g/box back say 5-10 mm by elongating the mounting holes in the engine mounts and g/box xmember.

Just a thought.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


 Post subject: Re: Is this possible
Posted: Tue Oct 11, 2005 4:59 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

falconea wrote:
With regard to clearance with the front 26mm bar, is it possible to mobe the engine/g/box back say 5-10 mm by elongating the mounting holes in the engine mounts and g/box xmember.

Just a thought.


hi

im sure it is possible to do so , but my conversion consisits of a AU motor and a C10 auto its alot easy and tidy if i jaut move the 26mm front brace foward

either way i have to make a gearbox crossmember


for those that are curious i saw someone asking in one of the threads will a 4speed auto fit in a 3speed auto's spot in a EA falcon the answer is NO IT WILL NOT the floor pan is the same but the gearbox crossmember brackets that are welded to the floor pan are in different locations

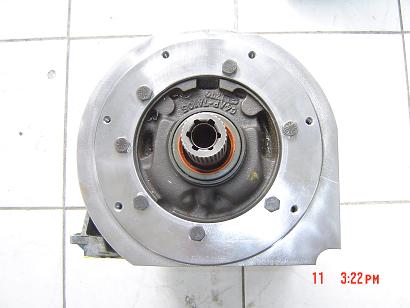

ok , just finished the adapter plate totally other than i have spotfaced the insides of the bellhousing so the bolts sit flat from the inside that bolt it to the transmission will do that later
the gearbox is sitting in the car as we speak and next i will make the crossmember convert the T/bar shifter from right to left hand side cause the C10 is on the left handside ( ie passenger side of the tunnel )

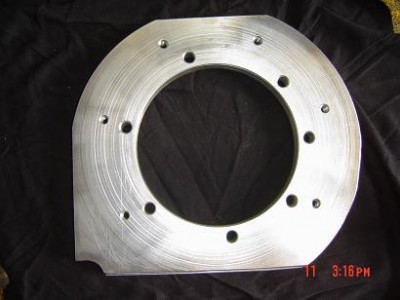

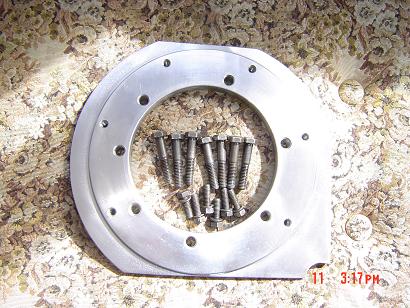

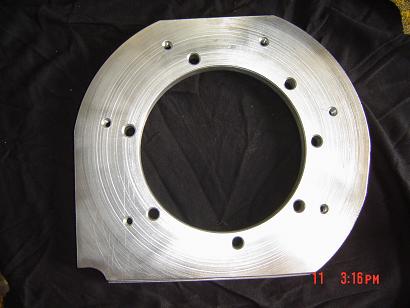

here are the final pics of the adapter its not as tidy as i would have liked cause in some ares i needed some more metal but the next lot will be perfect :wink:

i will next document the 9 inch differential from start to finish have heaps of photos to go through


autoban has some nic`e intercools for sale its amazing how there come down in price

will show how i made the turbo exhaust manifolds and inlet manifold stay tuned :wink: :idea: :?: :P

cheers





Attachments:
trannyadpter3.JPG [ 23.17 KiB | Viewed 22 times ]
trannyadpter4.JPG [ 45.91 KiB | Viewed 22 times ]
trannyadpter5.JPG [ 25.16 KiB | Viewed 32 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


 Post subject: finished adapter
Posted: Tue Oct 11, 2005 5:24 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

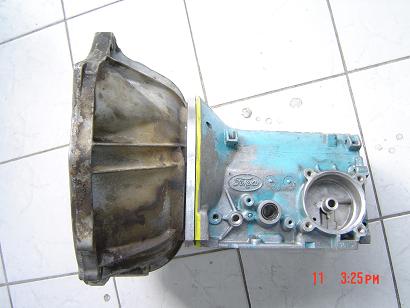

transmission fitted to the bellhousing

cheers





Attachments:

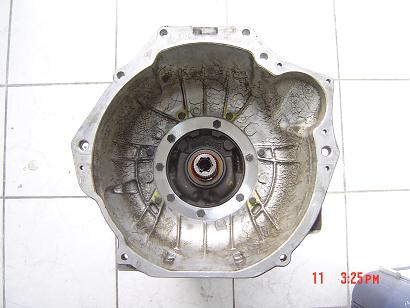

File comment: 3 speed EA auto bellhousing adaptered to C10 V8 auto
trannyadpter8.JPG [ 24.36 KiB | Viewed 34 times ]
trannyadpter6.JPG [ 22.25 KiB | Viewed 29 times ]
trannyadpter7.JPG [ 26.41 KiB | Viewed 23 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Tue Oct 11, 2005 6:21 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

love your work man keep it up, seems to be comin along nicely, its good to see people doing these mods, and rather inspiring, now if only i could find some nice cnc machinery on the side of the road ...



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


 Post subject: crossmember
Posted: Tue Oct 11, 2005 7:03 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

cooki_monsta wrote:
love your work man keep it up, seems to be comin along nicely, its good to see people doing these mods, and rather inspiring, now if only i could find some nice cnc machinery on the side of the road ...


LOL thanks , can we share the CNC machinery :wink:

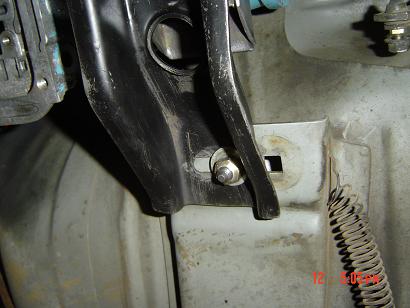

ok just stuck my head back under the car makes life easy when u have a 4post hoist :wink: the gearbox mount point misses out by 2 inches mount piont is more forward to the front of the car , just level out the setup and a standard EA falcon crossmember will be modified to make the connection work a bit of cutting and welding will fix thinks in this area

no cutting or welding required , just new holes drill in the floor crossmember bracket , and because the gearbox crossmember has a slotted hole the approx 2 ich move forward was easyly accomplitioned as can be seen in the pics


will fit it back up to the same spots on the floor pan of the EA out of the factory

post a few pics once finished of the crossmember

cheers



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Last edited by FPV_GTp on Thu Oct 13, 2005 9:11 am, edited 1 time in total.

Top
 Profile


Posted: Tue Oct 11, 2005 7:05 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

hehe yea for sure :D id let everyone use it if i found it, imagine the stuff we could turn out :D



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


 Post subject: finished crossmember
Posted: Wed Oct 12, 2005 6:37 pm
Getting Side Ways
Offline

Posts: 1656

Joined: 22nd Jun 2005

Location: Melbourne
VIC, Australia

hi

post a few pics once finished of the crossmember

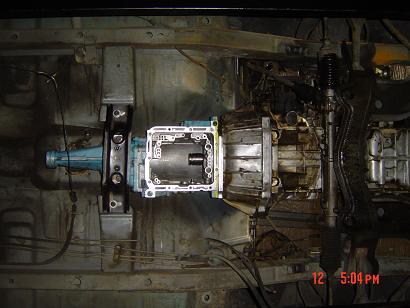

Gearbox is fitted to the motor and mounted in the chassis

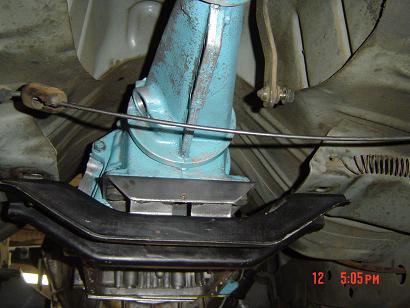

OK finished the gearbox crossmember today, also made a solid mount to suit , the gearbox mount as compared to EA 3speed mounting spot missed by a few inches so i just relocated the mounting bolt on the floor pan crossmember brackets as can be seen in the pics


cheers





Attachments:
DSC03180_turboEA.JPG [ 30.81 KiB | Viewed 35 times ]
DSC03181_turboEA.JPG [ 27.35 KiB | Viewed 39 times ]
DSC03179_turboEA.JPG [ 28.55 KiB | Viewed 48 times ]



_________________

FS [VIC]: WorkShop CleanOut - Assorted Parts Some New & Chassis Dyno http://www.fordmods.com/ford-parts-for-sale-f17/fs-workshop-cleanout-assorted-parts-some-new-chassis-dyno-t123623.html

Top
 Profile


Posted: Wed Oct 12, 2005 10:35 pm
Technical Contributor
Offline
User avatar

Posts: 2799

Joined: 6th Nov 2004

Gallery: 7 images

Ride: Falcon

Location: Sydney
NSW, Australia

looking good..., interesting about the gearbox placement. Hmm, always thought, they would change alright. Hmm, Ill keep that in mind.


Cheers



_________________

;++JustForDimSim++;

Cheap, fast and reliable.. choose 2.

Top
 Profile


 Post subject: Hey hey kids
Posted: Thu Oct 13, 2005 10:31 pm
Stock as a Rock
Offline

Age: 31

Posts: 115

Joined: 10th Jan 2005

Ride: Falcon

Location: Perth
WA, Australia

Sorry to spoil the fun or maybe u have already thought of it. or maybe not, i don't know, but is this engine bolted solid to the engine mount brakets, because if i am not mistakened the engine does move around the engine bay quiet abit, and your turbos are mounted solit to the right shockie tower.... :S. that will flex, cause heat transfer probably crush the shockie tower twist the headers of the head, do u known amounts of damage or am i looking into this to much and they are only there because u were welding up the manifold or something ? anyways good job, i am actualy half way though gettin a 4.0l into my XF. she is almost running, driveline is all bolted up. Turbo is an option if i like it when i am done, but might flog it off. anyways keep us posted dude way to go.

Muff
