ed xr6 quad lights, whats going on



Page 2 of 3 [ 36 posts ] Go to page Previous  1, 2, 3  Next


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 12:32 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

here is a diagram of how it should be...

post up a pic of your car, and how the headlight wiring is??





Attachments:
ED Falcon Headlights Wiring (XR).pdf [29.67 KiB]
Downloaded 109 times
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 1:49 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

will throw up a pic in a sec.. thanks for the diagram but you wouldnt know what colours are what?
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 1:56 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

mockxr6 wrote:
will throw up a pic in a sec.. thanks for the diagram but you wouldnt know what colours are what?





Attachments:
File comment: passenger side wiring for quad lights, once i took all the tape of found this mess
untitled.bmp [ 37.63 KiB | Viewed 657 times ]
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 2:01 pm
VIC Cruise Moderator
Offline
User avatar

Age: 27

Posts: 1167

Joined: 6th Jan 2009

Gallery: 12 images

Ride: ed

Location: Mooroolbark
VIC, Australia

TROYMAN wrote:
here is a diagram of how it should be...

post up a pic of your car, and how the headlight wiring is??


in the diagram can u put in the plug position? im unsure if the 5th pin on the new relay needs to bypas the plug or what... i just havent seen something that clicks yet...



_________________

94 White ED Wagon
eaton M112 supercharger, lowered a tad, extractors, 2.5" exhaust, T5 , custom SureCam supercharger cam, 3.45 lokka, 2 piece tailshaft, poyair bags in the back, TSS front Skirt, Sprint skirts, XR wagon spoiler.
soon to get: AU diff, upc 330mm brakes, Vapor LPG injection.

Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 2:20 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

the white plug you can see is plugged into the wiring loom. it then has 2 black wires (earth?), a pink/yellow wire (low beam), a pink/white, and pink/black and pink/red(indicator).
now the pink/white and pink/black both come on with the high beam. i am unsure as to why there are 2 high beam wires. i have tried to add them to the feed for low beam to see if they might feed the low beam while the high is on but all that acheived was having all 4 lights on on either hi or low
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 2:31 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

looks like someone has dodgy wired your headlights..

i did this conversion a few years back on an ea that didnt have the extra wires..

post618949.html#p618949
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 2:42 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

problem is solved. it was dodgy wiring. i disconnected the earth wire from the low eam and substitued with the extra high beam wire i had.. problem solved.. but i now have an extra earth.. i am sure i can find something to use it on
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 2:49 pm
VIC Cruise Moderator
Offline
User avatar

Age: 27

Posts: 1167

Joined: 6th Jan 2009

Gallery: 12 images

Ride: ed

Location: Mooroolbark
VIC, Australia

im still confuesed.....

so i run the extra wire from the 5th pin on the relay to the hi beem power wire?



_________________

94 White ED Wagon
eaton M112 supercharger, lowered a tad, extractors, 2.5" exhaust, T5 , custom SureCam supercharger cam, 3.45 lokka, 2 piece tailshaft, poyair bags in the back, TSS front Skirt, Sprint skirts, XR wagon spoiler.
soon to get: AU diff, upc 330mm brakes, Vapor LPG injection.

Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 3:04 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ausedwagon wrote:
im still confuesed.....

so i run the extra wire from the 5th pin on the relay to the hi beem power wire?



long story short.... yes...
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Wed Dec 15, 2010 5:42 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

TROYMAN wrote:
ausedwagon wrote:
im still confuesed.....

so i run the extra wire from the 5th pin on the relay to the hi beem power wire?



long story short.... yes...

my car had the 2 wires for the high beams there already. basically you doo this.. no earth to low beam just 1 high beam wire and one low beam wire.
high beam has a hig beam wire and an earth.
it looks like you only need to earth the whole shebang by the one earth wire to the high beam. i ran the leftover earth i had to the body just to be safe..
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Thu Dec 16, 2010 10:43 am
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

ok mine still not going properly.. had a mini meltdown last night.. can someone with the twin lights please tell me what colours the wires are. starting at the black wiring plug with orang/green, blacks, red/black etc etc going to each individual light.. that way i can wire mine up to match.. my wires are everywhere from the black plug and i am gunna pull out everything between the wiring loom and the lights and make my own little looms for the lights. so any help would be great.. i will take pics along the way and post them up for others to follow..
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Thu Dec 16, 2010 11:06 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

mockxr6 wrote:
TROYMAN wrote:
ausedwagon wrote:
im still confuesed.....
so i run the extra wire from the 5th pin on the relay to the hi beem power wire?


long story short.... yes...

my car had the 2 wires for the high beams there already. basically you doo this.. no earth to low beam just 1 high beam wire and one low beam wire.
high beam has a hig beam wire and an earth.
it looks like you only need to earth the whole shebang by the one earth wire to the high beam. i ran the leftover earth i had to the body just to be safe..


thats so wrong, by the sound of it, someone has f**k your wiring up so bad...
mockxr6 wrote:
ok mine still not going properly.. had a mini meltdown last night.. can someone with the twin lights please tell me what colours the wires are. starting at the black wiring plug with orang/green, blacks, red/black etc etc going to each individual light.. that way i can wire mine up to match.. my wires are everywhere from the black plug and i am gunna pull out everything between the wiring loom and the lights and make my own little looms for the lights. so any help would be great.. i will take pics along the way and post them up for others to follow..



ok

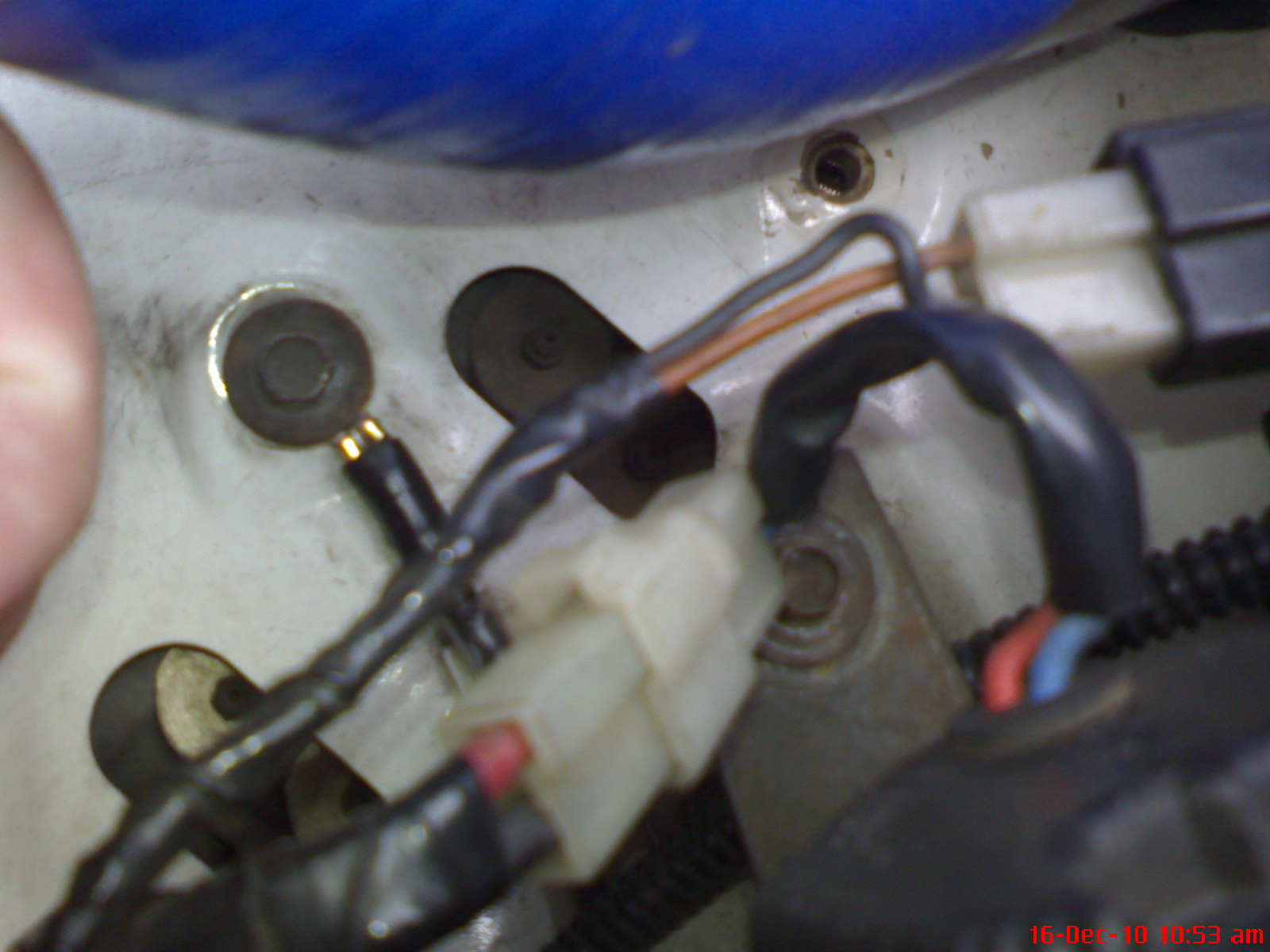

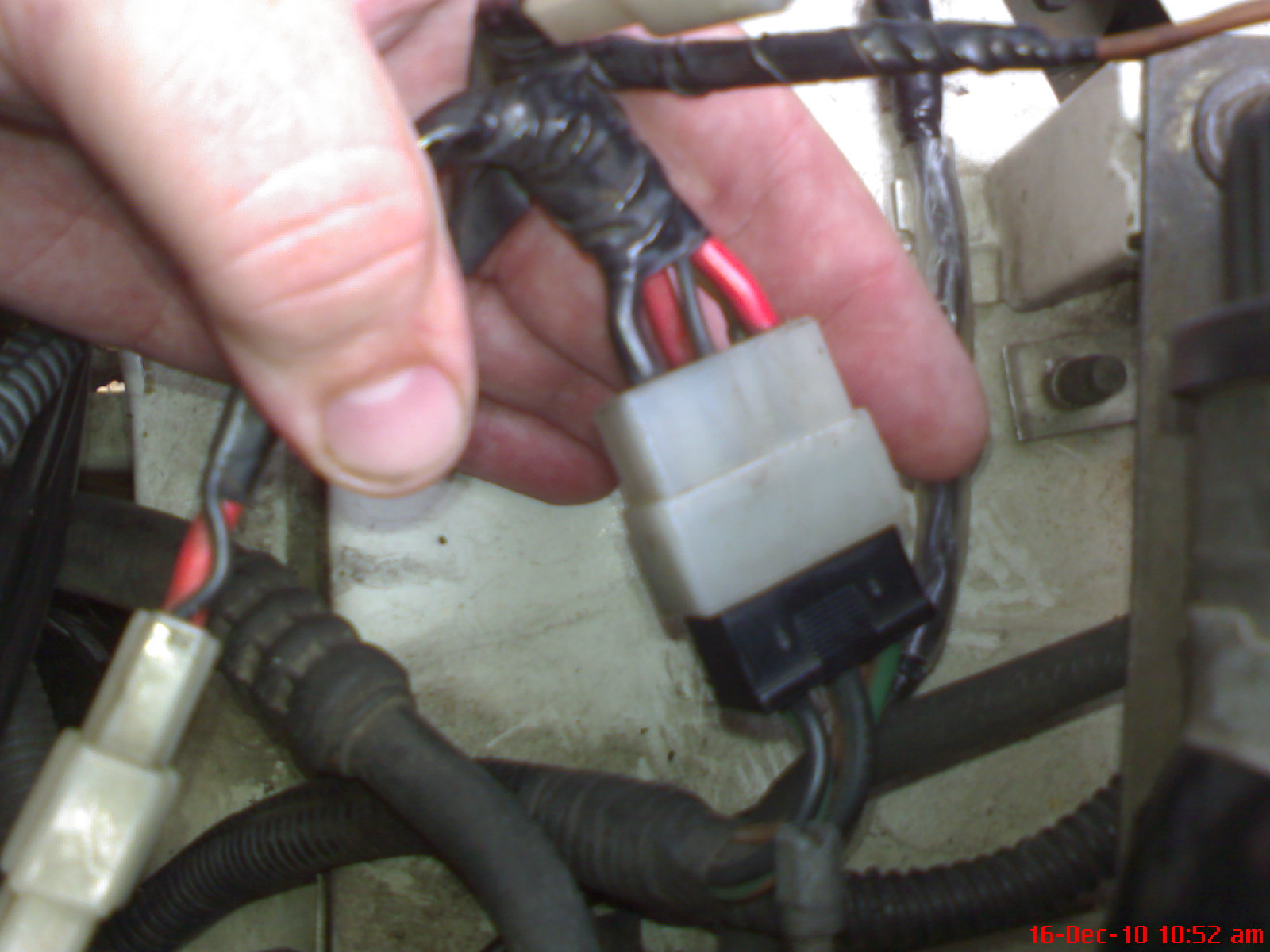

the thick black is earth for low and high beam, the thin black is earth for parker globe.
the green/orange is high beam power, red/black is low beam power and brown is parker globe power.. thats it...

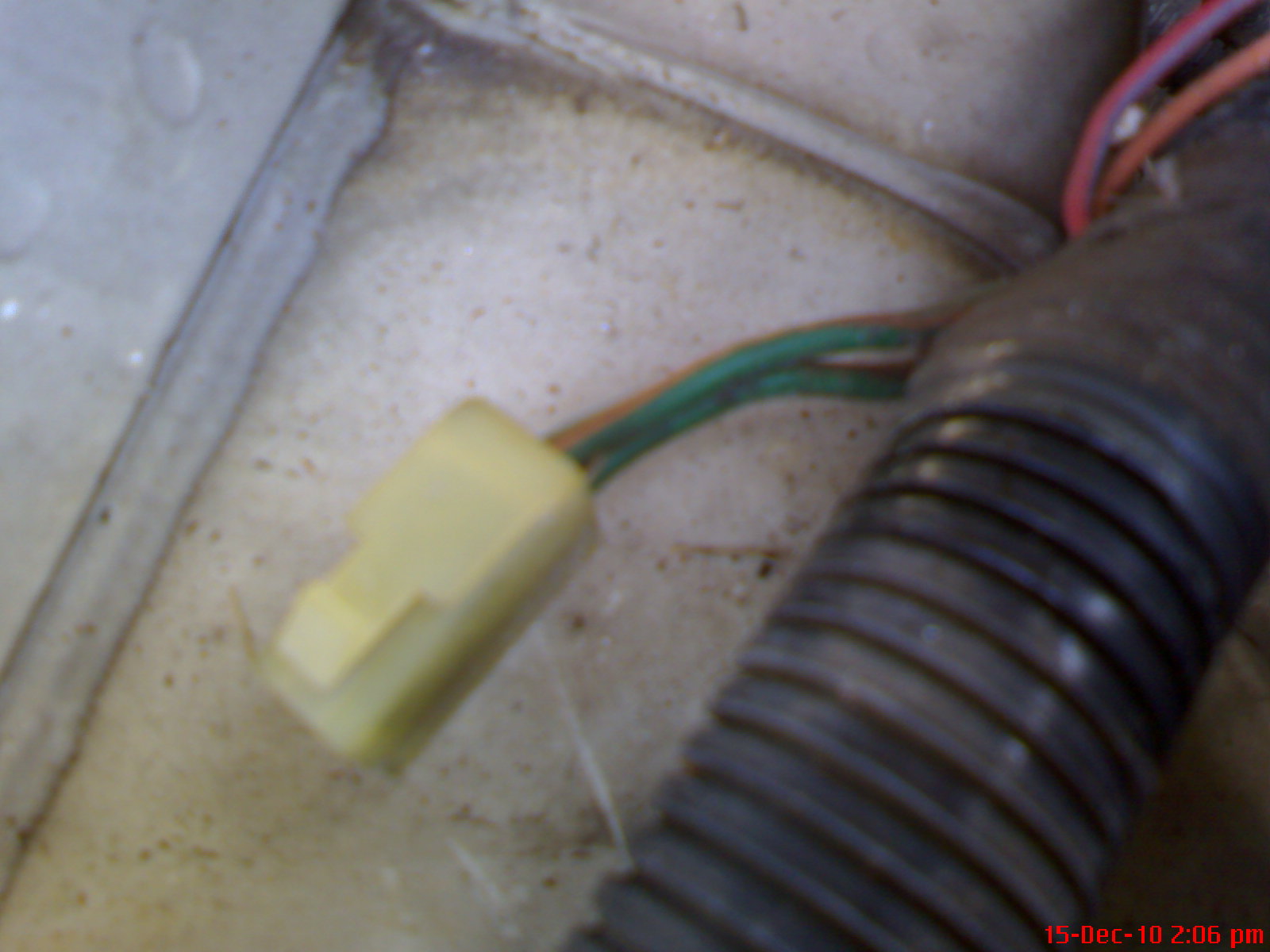

and this is the plug for the diod link under the header tank..
Attachment:
DSC02083.JPG [ 186.55 KiB | Viewed 43 times ]





Attachments:
DSC02085.JPG [ 213.55 KiB | Viewed 32 times ]
DSC02084.JPG [ 220.54 KiB | Viewed 30 times ]
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Thu Dec 16, 2010 4:52 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

thanks troyman.. thats helps heaps.. now i can wire it properly then modify it to make all 4 lights work.. i owe ya drink...
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Thu Dec 16, 2010 7:23 pm
Parts Gopher
Offline

Age: 35

Posts: 52

Joined: 4th Dec 2010

Ride: ED Futura

Location: narrabri west
NSW, Australia

ok well i rewired the headlights following the colours you gave me..
the lights all come on on high beam and only the lows on low beam.. this is great it works as it should. i got rid of the white plugs and wired it up using spade plugs and new wires with my own colour coding (which i have written down)
now i ask you this. under the header tank there is a diode already there other than the one i have to put in.. what does this doiode run cause i used it to test my lighting system and if i can get away with it for the weekend i will leave it n there. i just cant find what it runs and dont want to run the risk of not having something like the ECU not working properly or someting silly like that.
Top
 Profile


 Post subject: Re: ed xr6 quad lights, whats going on
Posted: Thu Dec 16, 2010 7:36 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

im not sure what the second one is for..

what you can do is use 2 spade connectors with a short piece of wire and bridge the headlight one untill you get another one...
Top
 Profile
