hi gents,

well i found a hairline crack in the airbox lid on the El which was letting dust through.

so went down to the wreckers and got an EF airbox complete and all the intake pipes, clamps etc, rocker cover bolt....as i have read the autospeed tests and also got the ef intake pipes from this article.

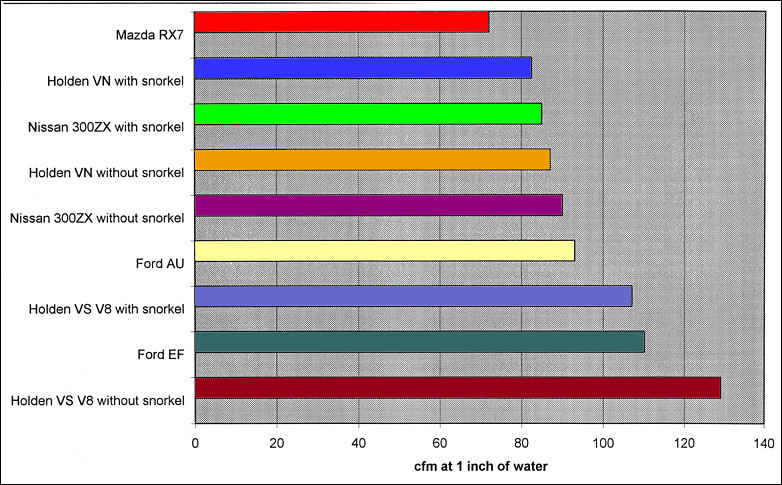

"Contrary to popular opinion, J.M.M. says the EF Falcon's divided passage induction pipe between the airbox and throttle gives more power than the larger, single-bore pipe used on the EL and AU. A fabricated 3 inch mandrel pipe is necessary only for engines making more than 140kW at the rear wheels. Gains also depend on the type of headers and exhaust system used."

anyway i would have to say that the complete EF setup out performs the el stock setup. especially low-mid rev range.

didn't notice any difference in fuel economy.

cheers..





Attachments:
0073_12mg.jpg [ 43.16 KiB | Viewed 152 times ]



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Sun Nov 05, 2006 5:05 am, edited 3 times in total.

Top
 Profile


Posted: Sun Oct 22, 2006 8:08 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

interesting on the flow figures... looks very new in the pics there.. 8-)



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Sun Oct 22, 2006 8:34 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Nice work.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Oct 22, 2006 8:55 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

Dam thats clean



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming

Top
 Profile


Posted: Sun Oct 22, 2006 11:36 pm
Smokin em up
Offline

Age: 28

Posts: 252

Joined: 31st Mar 2006

Gallery: 1 images

Ride: EF Futura

Location: Melbourne
VIC, Australia

is there a difference between the tickford snorkel, the xr8 snorkel and the ss induction snorkel? have you only tested the intake with one snorkel?



_________________

Rehab is for quitters !

Top
 Profile


Posted: Mon Oct 23, 2006 8:24 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

samuel wrote:
is there a difference between the tickford snorkel, the xr8 snorkel and the ss induction snorkel? have you only tested the intake with one snorkel?


SS and Aunger snorkels are a lot larger, not just at the mouth but you actually have to enlarge the opening on your air box bottom aswell for them.
The Tickford snrokels come from the performance V8 AU models, e.g. there XR8, there pretty much the same as the EL GT snorkel or I think it's the BA XR6T one that is also common. They are larger at the mouth than the stock snorkel.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Oct 23, 2006 9:41 am
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Good to know. Thanks for the info. I always thought the EL one would be better but now I know different.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Mon Oct 23, 2006 10:52 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

EF systems looks better aswell.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Mon Oct 23, 2006 4:50 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

:lol: bump :lol:



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Mon Oct 30, 2006 4:07 pm, edited 1 time in total.

Top
 Profile


Posted: Mon Oct 23, 2006 5:25 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Just a quote from the autospeed articles that compared the AU and EF lids.
Quote:
Ford AU Falcon
This box uses a very large filter having an area of no less than 510 square cm. The inlet to the box is in the lower half, with this duct having a diameter of 80mm. The outlet duct has a moulded-in plastic bellmouth but its outlet ID is only 58mm. However, the outlet assembly unbolts from the airbox revealing that the actual outlet hole can be as much as 80mm in diameter! The lid clips to the base that is heavily curved to match the inner wheel arch area. The box is 380 x 280 x 310mm and costs $58 for the lid and $65 for the tray (new prices from Ford). Clips are used to hold the box together.

The large size of the filter meant that this box flowed quite well, with a filtered cfm rating of 93. However, it's interesting to note that fitting the filter caused a substantial flow drop of 17 per cent.

Flow of box with filter: 93 cfm

Conclusion: Amongst the better airboxes for flow, but see below for how to make a dramatic improvement!

Ford EF Falcon
This box uses the same lower half as the AU Falcon box mentioned above, however the EF lid has a much better integrated exit duct. This duct starts with a well-designed 50mm bellmouth deep inside the lid that grows in diameter to 80mm as it leaves the box. In the photo above, the EF upper half is on the left and the AU on the right. The filter used is the same as the AU, with a 510 square cm area. The box is 380 x 280 x 310mm and the EF lid costs $64 from Ford.

This is a much better flowing design than the AU box. The flow with the filter fitted was 110 cfm, up over the AU box by a very substantial 18 per cent! Even more importantly, the filter caused only a 3 per cent flow decrease, rather than the 17 per cent decrease that occurred when the same filter was fitted to the AU box. This is probably because the outlet duct draws from the centre of the filter rather than one end of the box, in addition to its bigger final diameter. It would therefore appear that swapping an EF lid onto your brand new AU Falcon can improve box airflow by 18 per cent!

Flow of box with filter: 110 cfm

Conclusion: The second-best flowing airbox after the de-snorkled VS Commodore. However, at $24.50 (Ryco), the filters are not as cheap as those for the Holden boxes.


For anyone who was interested in readiny more.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Oct 23, 2006 5:29 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

O, and just to partner the above graph:
http://us1.webpublications.com.au/static/images/articles/i0/0073_13lo.jpg

As you can see the filter in the Falcon air boxs is really poor flowing from factory, it takes the air box that was flowing 2nd and 4th down to 5th and 6th once the filter is fitted. They were using Ryco filters, it would be interesting to see if a K&N or other high flow replacement would make a difference (Autospeed are very against replacing the standard filter with a high flow unit, they say in otherarticles it does squat).



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Oct 23, 2006 7:46 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

twr7cx wrote:
O, and just to partner the above graph:
http://us1.webpublications.com.au/static/images/articles/i0/0073_13lo.jpg

As you can see the filter in the Falcon air boxs is really poor flowing from factory, it takes the air box that was flowing 2nd and 4th down to 5th and 6th once the filter is fitted. They were using Ryco filters, it would be interesting to see if a K&N or other high flow replacement would make a difference (Autospeed are very against replacing the standard filter with a high flow unit, they say in otherarticles it does squat).


that graph shows the flow of the airbox when no filter is fitted. As you can see the AU and EF airboxs are pretty close when no filter is being used. But when a paper filter is put in the EF only loses 3% flow where the AU/EL airbox loses heaps as shown in the first graph.

cheers........



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Top
 Profile


Posted: Mon Oct 23, 2006 8:18 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

EL__Fairmont wrote:
that graph shows the flow of the airbox when no filter is fitted. As you can see the AU and EF airboxs are pretty close when no filter is being used. But when a paper filter is put in the EF only loses 3% flow where the AU/EL airbox loses heaps as shown in the first graph.

cheers........


You are correct, I managed to get it backwards and confuse myself! :? :?:



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Oct 23, 2006 9:46 pm
Stock as a Rock
Offline

Age: 30

Posts: 144

Joined: 1st Jun 2006

Gallery: 1 images

Ride: EL XR6

Location: yarrawonga
VIC, Australia

hmmm i also woulda thought that the larger single pipe on the EL woukd do better... do ya know what the size of the two EF pipes is as compared to the EL?? would it make any difference to replace the EL lid with an EF instead?? oh and the K and N filters DO increase airflow. i live down a dirt road in which i drive down everyday and no dust gets in my engine so anyone holding out on em should consider it cos it does help and it does the same job as the stock paper just better airflow



_________________

EL XR6, 5 Speed Manual, Extractors, Exhaust, 3" Intake, EL GT Intake, Alpine sound system,lowered, 136rwkw.. to come.. another sub and boot install

Top
 Profile


Posted: Mon Oct 23, 2006 10:04 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

:lol: bump :lol:



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Last edited by EL__Fairmont on Mon Oct 30, 2006 3:58 pm, edited 1 time in total.

Top
 Profile
