 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 7:33 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

No mate, that won't be it. When the fuel lines were reversed it wouldn't fire at all.

Well done on getting to this stage.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 7:47 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Thanks Benj, I appreciate it. I am not happy i have to work tomorrow as i really wnat it sorted. Am hoping its a lead not on properly or at worst i may have damaged a plug when changing the leads. Firing order is 153624 yea, same as the X flows

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 8:01 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Also check that the Map Sensor Vac pipe is plugged in to the Map Sensor and the BBM.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 8:03 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

Yep the firing order is correct. I just checked it in the manual.
Actually if you have a vacuum leak off the tree is the map sensor connected?



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 8:19 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

what injectors did you use??
was the ef engine a runner?
if not, fit the ed injectors and also check that all the injector plugs are on properly
Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 8:22 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

I can vouch that the EF engine did indeed run but it had a stuffed head gasket.
I drove it about 10kms myself.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Wed Apr 14, 2010 8:56 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

When i pulled it apart, the injectors from the EF looked crap, so i actually installed the ED injectors.
It will be something simple. I am not feeling well so wont be going to work tomorrow and will sort it then.
Will let you all know how i go in the AM

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 12:41 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

OK, idle issue sorted, Turns out i had rested the BBM on the dizzy cap, and as such she moved a little and wasn't sitting straight.

I ha dhoped to keep the ED rocker cover, but alas it could not be done, so i painted the EF cover and installed that. Only issue now is the temp guage doesnt seem to be working. I have a feeling this may be why the EF blew a head gasket, so i will swap my Thermostat and sender and see what happens. Took it for a quick test squirt, and it has a heap more bottom end torque, but doesnt seem to transition into the long runners for tomp end scream, hopefully the EL ECU will sort that.

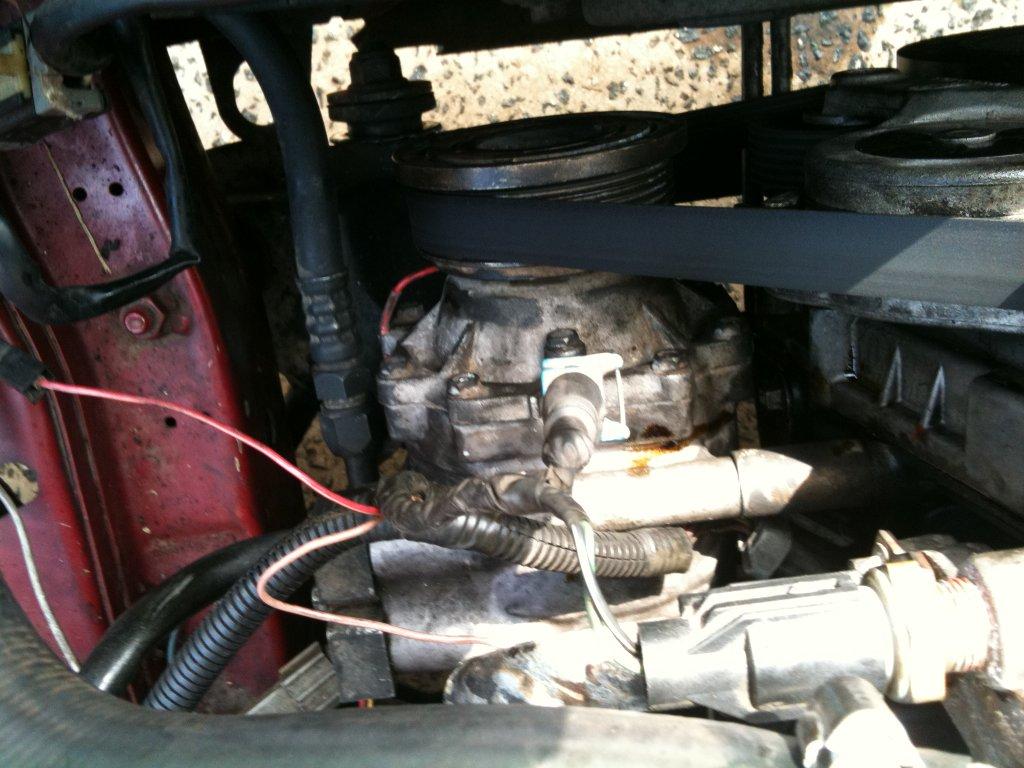

Also, it seems in my effort to clean all the used parts i have killed the tensioner, and it makes a fair bit of noise, will need to source a new one some time soon, but i acan deal with it for now.



Brett





Attachments:

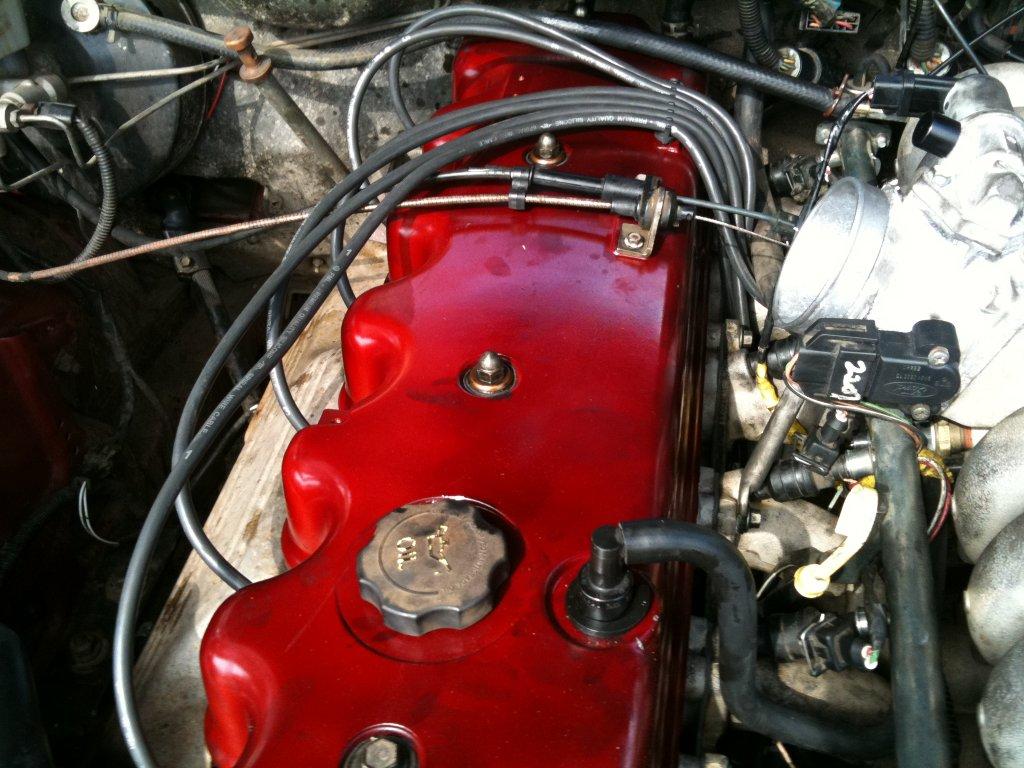

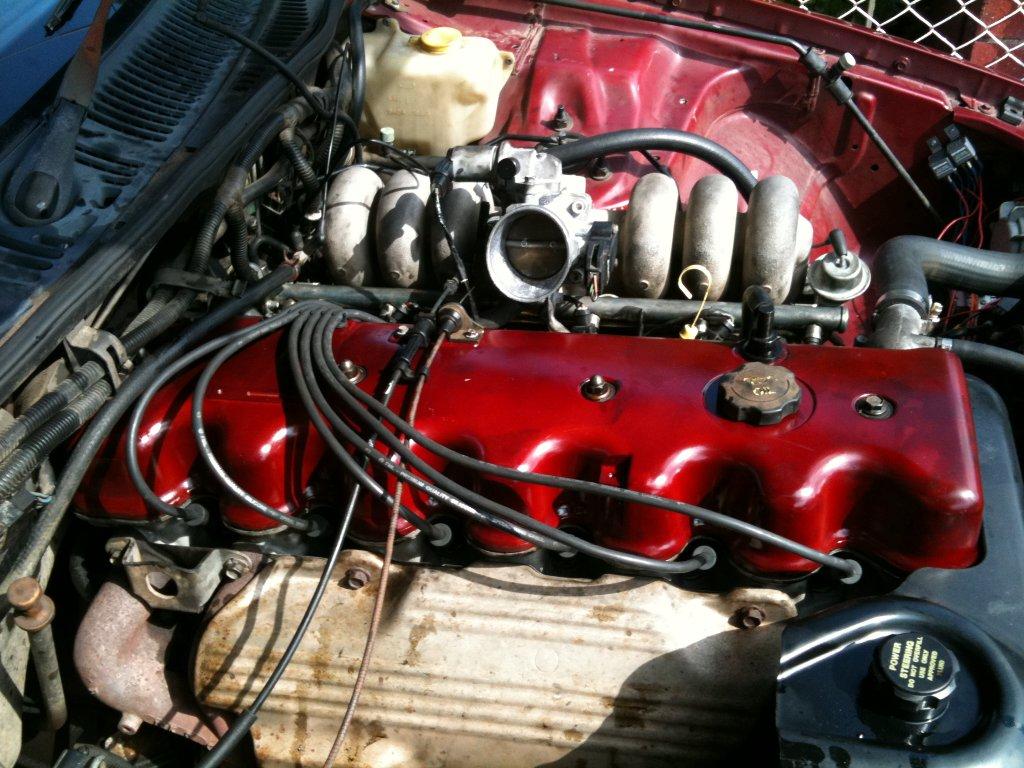

File comment: Notice the cruise control, not yet hooked up
BBM 003.jpg
BBM 003.jpg [ 133.81 KiB | Viewed 13 times ]
BBM 002.jpg
BBM 002.jpg [ 115.01 KiB | Viewed 16 times ]
BBM 001.jpg
BBM 001.jpg [ 147.6 KiB | Viewed 15 times ]



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 2:49 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the ef dont have the small temp sender like the ed. ed has the large one for the ecu and a small one for the gauge, so you need the ed thermostat housing and the small sender needs to be plugged in..
Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 5:15 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

The lower thermostat housing is the one Troy is referring to.

Oh, and you will just need new pulleys on the tensioner, approx $25 each at Bursons.

Good to hear you got the idle sorted.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 5:27 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

I went for a run in ED this afternoon and it has really changed the old beast.
Goes pretty damn well and is very smooth now.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 7:56 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Noticed that, will swap it over in the morning.
Is the an electrical connection for the BBM, as i can't seem to find one. Just planning ahead for when i get my ECU.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 8:14 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

TerroristGHIA wrote:
Noticed that, will swap it over in the morning.
Is the an electrical connection for the BBM, as i can't seem to find one. Just planning ahead for when i get my ECU.

Brett


there is a vacuum solinoid that is behind the washer bottle in the ef,
you run a vac line from the manifold to the blue check valve, then from the check valve to the vacuum solinoid, and from the vac solinoid to the diaphragm on the front of the bbm..

then there is a plug with 2 wires. the red wire goes to ignition power(you can splice this into the injector red wire)
and the green wire is the one that goes to the ecu..
Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 8:30 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

No probs, more bits i need of the EF then.
I take it these bits are not on the ED loom.

Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: EF Cruise module Serp convo and BBM
Posted: Thu Apr 15, 2010 8:44 pm
Getting Side Ways
Offline

Age: 41

Posts: 4629

Joined: 23rd Nov 2006

Gallery: 4 images

Ride: 5.0 AU's and 5.0 Maverick

Power: 139 rwkw

Location: Sydney West
NSW, Australia

Geez there are certainly a few bits required.
Good thing there is the complete car to pick it all from.
If you get a sec Brett it might be cool if you do a full list of the bits you have had to track down to update the info a bit.



_________________

xr6turnip wrote:
More people paid for a ride in a VT commodore then an AU Falcon so the VT is superior.
Based on that fact my Mum is the best around!
